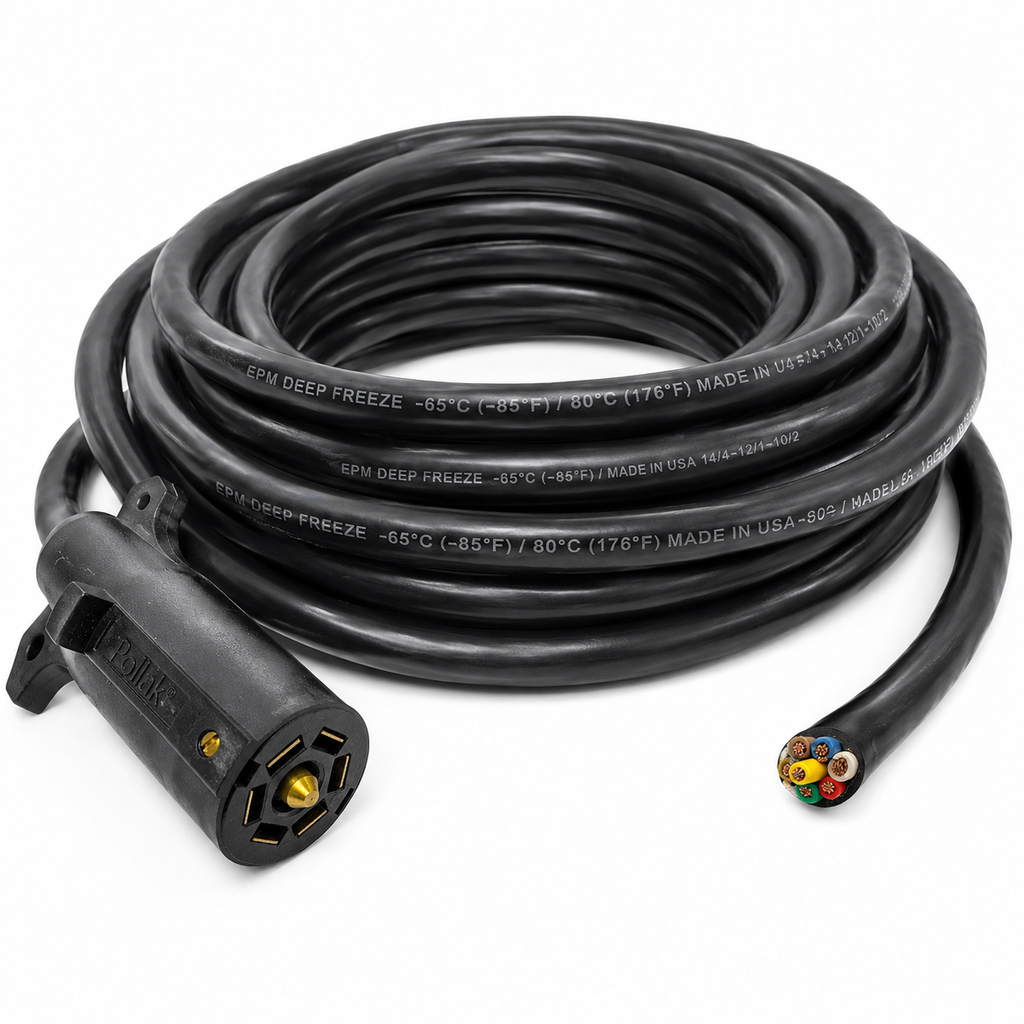

Pre-Assembled 7-Way RV Trailer Plug Wiring Harness – 25 ft
Pre-assembled trailer wiring harness with a 7-way RV-style plug and approximately 25-foot cord. Designed for replacing damaged or worn trailer cords on trailers using a standard 7-way RV-style wiring system.
Overview
This R&P Carriages pre-assembled 7-way RV trailer plug wiring harness is built for trailer electrical service where a worn, damaged, or missing trailer cord needs replacement. The harness includes a single 7-way RV-style plug, approximately 25 feet of cord length, and color-coded multi-gauge conductors for common trailer lighting, brake, ground, reverse, and auxiliary power circuits.
R&P Service Insight
A trailer cord is one of the most exposed electrical components on a trailer. Damage from dragging, pinching, corrosion, or worn plug contacts can cause lighting issues, brake problems, or intermittent power faults.
- Plug Match: Verify the trailer uses a 7-way RV-style connection before ordering.
- Cord Length: Approximate 25-foot length is useful when routing from the plug area back to the trailer junction or wiring point.
- Circuit Check: Match each color-coded conductor to the trailer’s wiring layout before final connection.
R&P Knowledge Hub
Compatibility: Commonly used on trailers equipped with a 7-way RV-style wiring system.
Vehicle / System Fit: Trailer electrical systems using a 7-way RV-style plug for lighting, brake, ground, reverse, and auxiliary power circuits.
Installation Notes: Verify plug configuration, cord length, wire gauge requirements, and trailer-side circuit assignments before installation.
Performance Insight: Color-coded, multi-gauge wiring helps organize the major trailer electrical functions and supports standard trailer service work when the wiring is connected correctly.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: 7-way RV-style references in this listing describe the plug configuration and trailer wiring system style only.
What This Means: This listing is for a R&P Carriages trailer wiring harness, not a guaranteed OEM-branded item unless specifically stated and verified.
Before Ordering: Verify plug style, wiring layout, cord length, wire gauge needs, and included components before installation.
R&P Repair Insight
When replacing a trailer cord, do not rely on color alone if the trailer has been repaired or rewired before. Confirm each circuit at the trailer before tying in the new harness.
- Ground Check: Confirm the white 10 AWG ground circuit is connected to a clean, reliable trailer ground point.
- Brake Circuit Check: Confirm the blue 12 AWG brake circuit is routed to the trailer’s electric brake system where applicable.
- Function Test: Test running lights, left turn/stop, right turn/stop, reverse, auxiliary power, ground, and brakes after installation.
Features

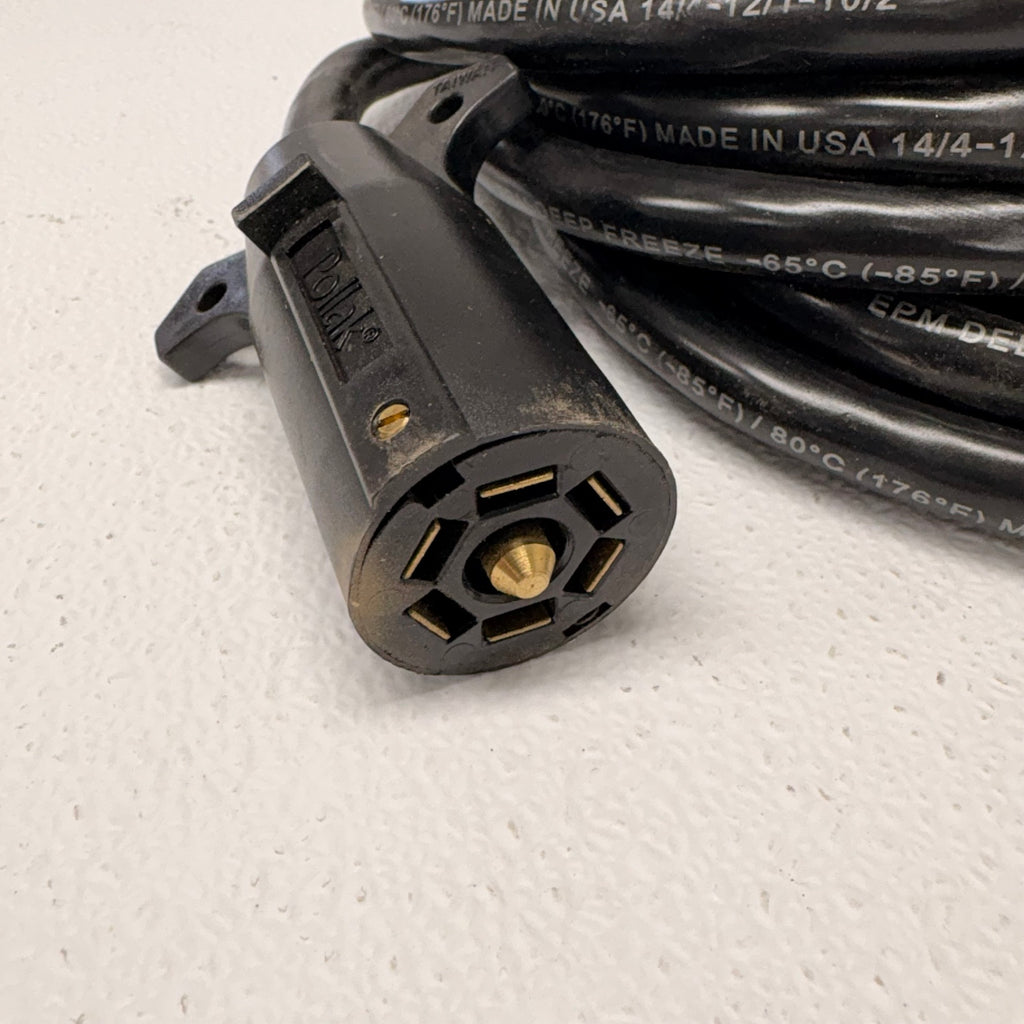

7-Way RV-Style Trailer Plug
Designed for trailers using a 7-way RV-style wiring connection.
Pre-Assembled Harness
Single-plug harness design helps simplify replacement of damaged or worn trailer cords.

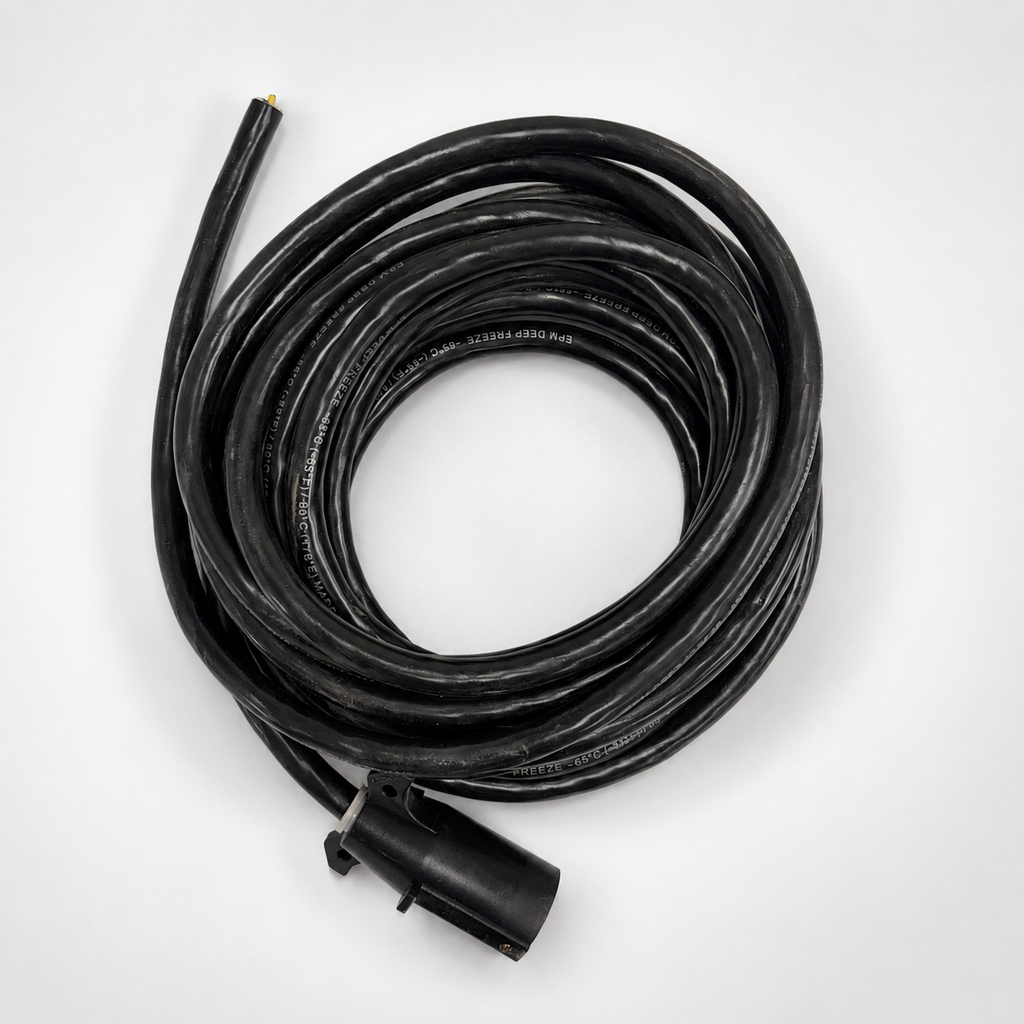

Approx. 25 ft Cord Length
Provides approximately 25 feet of cord for routing into the trailer wiring system.

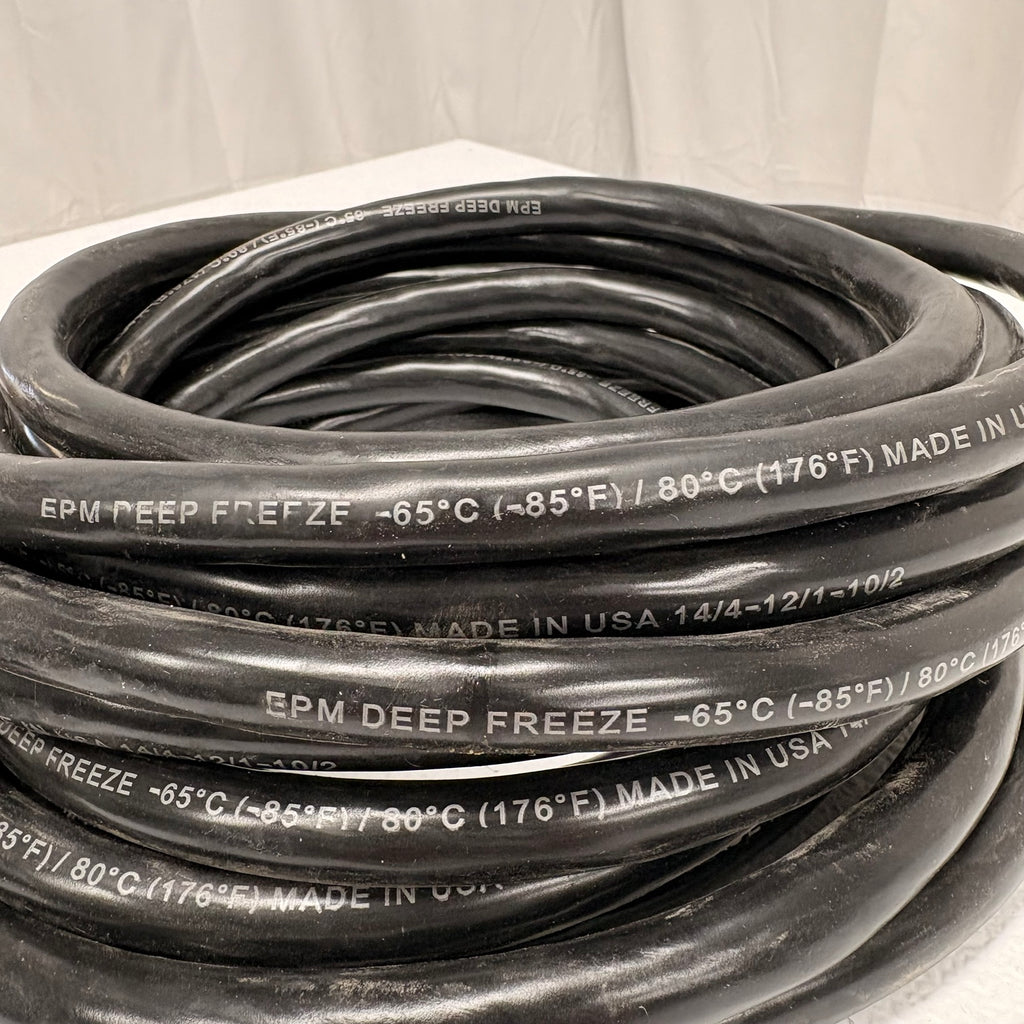

Color-Coded Multi-Gauge Conductors
Includes color-coded conductors with 10 AWG, 12 AWG, and 14 AWG wire functions listed below.

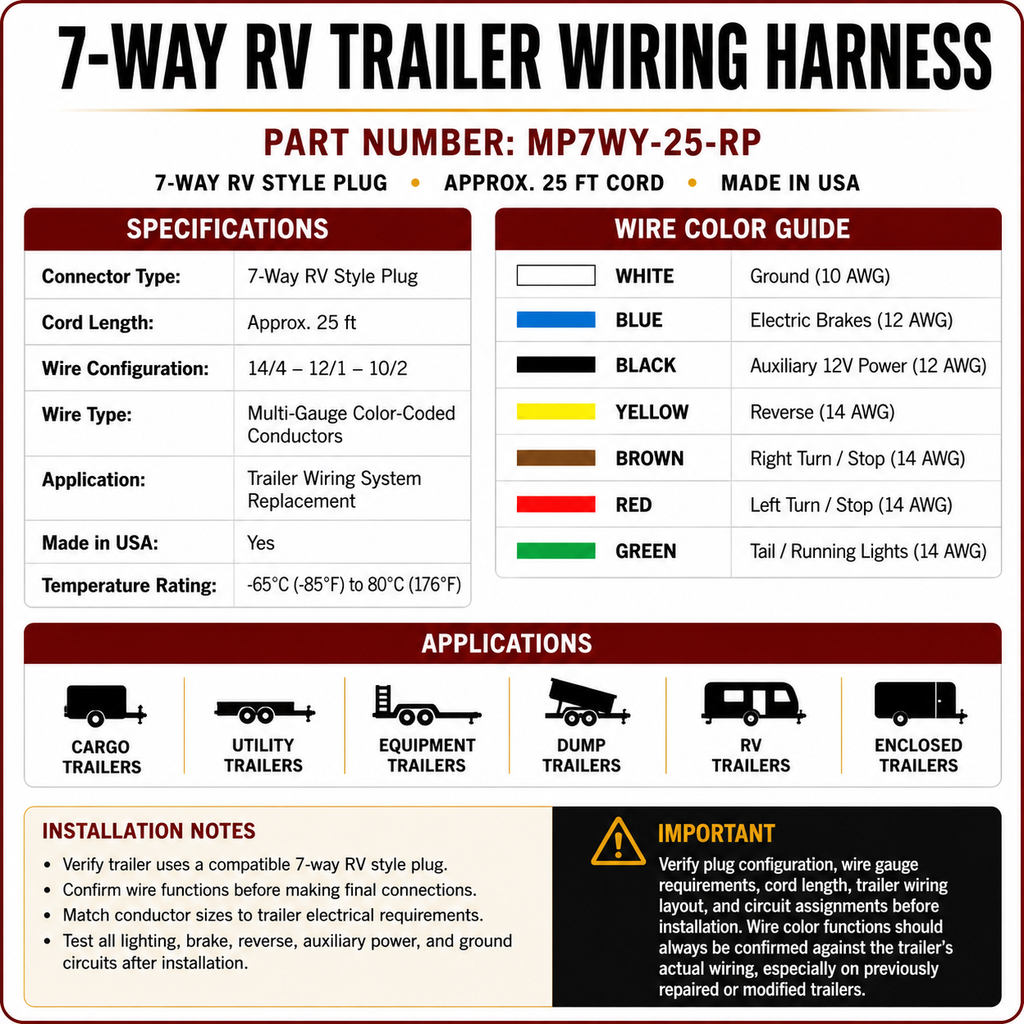

Specifications
| Specification | Detail |
|---|---|
| Part Number | MP7WY-25-RP |
| Brand | R&P Carriages |
| Product Type | Pre-assembled trailer plug wiring harness |
| Connector Type | 7-way RV-style plug |
| Cord Length | Approx. 25 ft |
| Wire Type | Multi-gauge, color-coded conductors |
| Application | Trailer wiring system replacement |
| Fitment | Trailers equipped with a compatible 7-way RV-style wiring system |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer electrical wiring system |
| Primary Fit | Trailers using a 7-way RV-style plug configuration |
| Replacement Use | Replacement for damaged, worn, or missing trailer cords where plug style, cord length, and wiring requirements match |
| Notes | Verify plug configuration, wire gauge requirements, cord length, and trailer-side wiring layout before installation. |

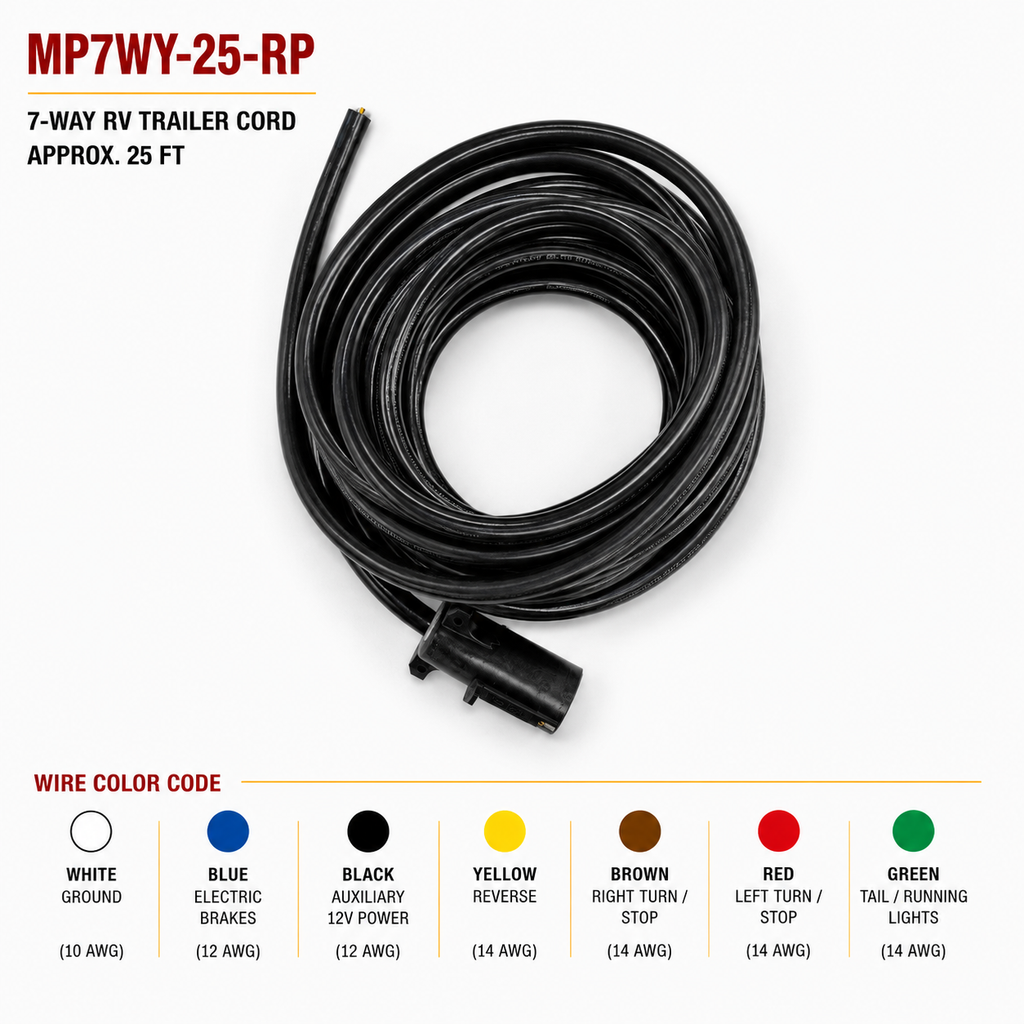

Wire Color Codes
| Wire Color | Function / Gauge |
|---|---|
| White | Ground – 10 AWG |
| Blue | Electric Brakes – 12 AWG |
| Black | Auxiliary 12V Power – 12 AWG |
| Yellow | Reverse – 14 AWG |
| Brown | Right Turn & Stop – 14 AWG |
| Red | Left Turn & Stop – 14 AWG |
| Green | Tail / Running Lights – 14 AWG |
Included Components
| Quantity | Item |
|---|---|
| 1 | Pre-assembled 7-way RV trailer plug wiring harness, approx. 25 ft |
