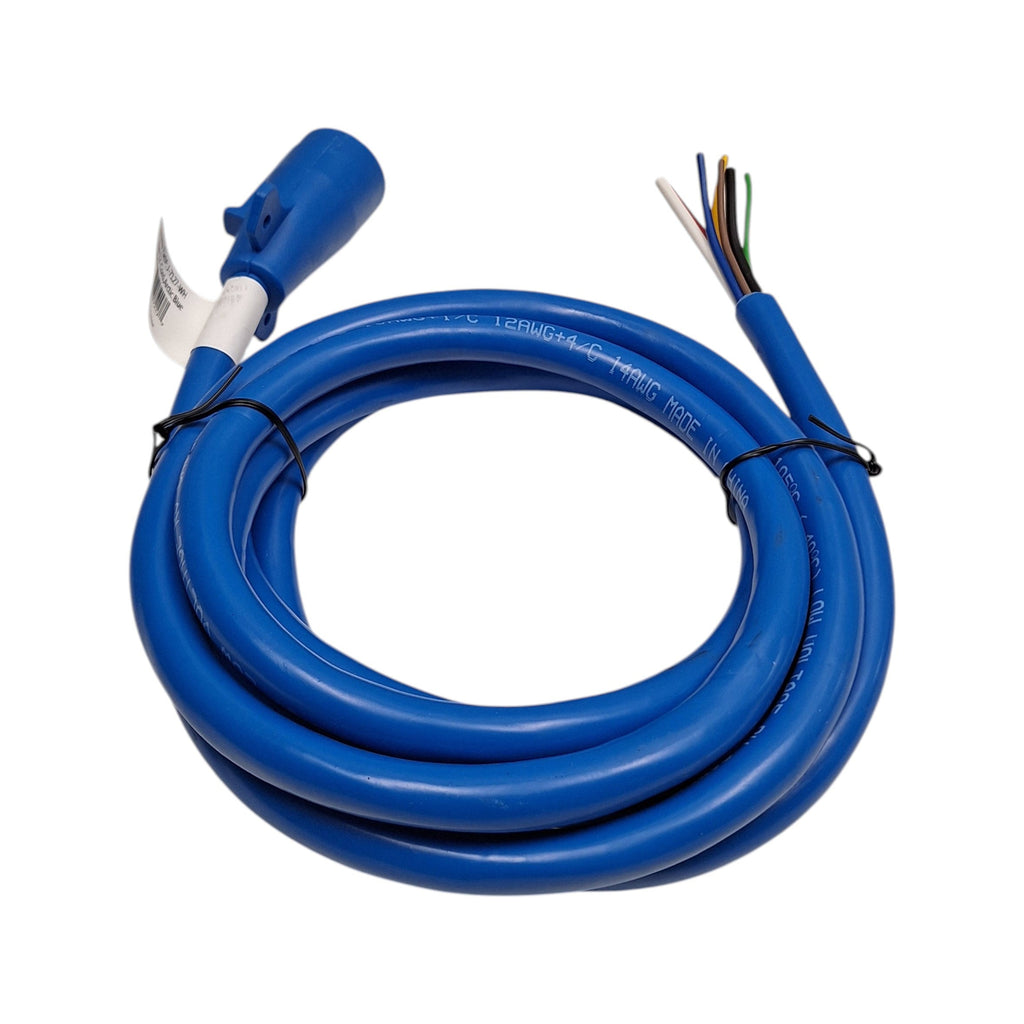

7 Way Trailer End Molded Plug w/ 12 feet of 7 Jacketed Wires RV Double Contact (J-7127-WH)

Jammy

Regular price $56.99

7 Way Trailer End Molded Plug w/ 12 feet of 7 Jacketed Wires RV Double Contact
DOUBLE BLADE BRASS CONTACTS!

Part#: J-7127-WH

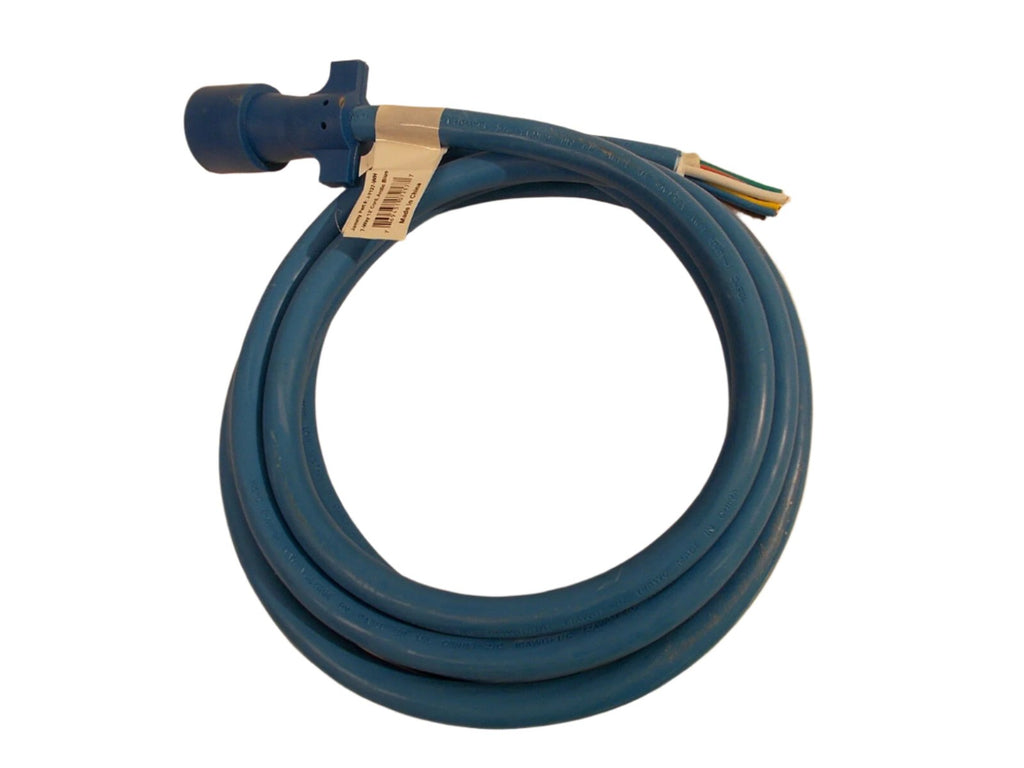

This is a 12' Cord

Just in time for winter, we are stocking a new product line of cold weather cords! Perfect if you're tired of your cord cracking or not working in the cold weather! This cord is conveniently featured with double heavy duty gauge wires and double contact copper contacts. This will ensure that this cord will work even in the cold winter weather!

Features:

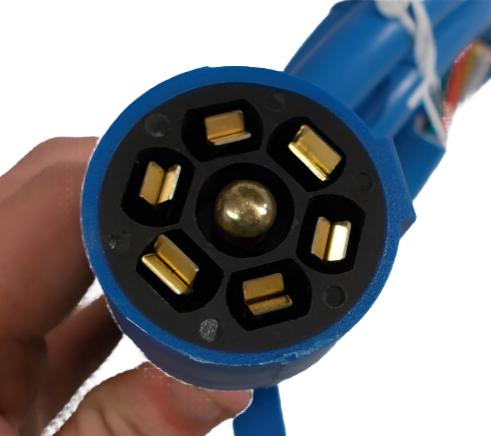

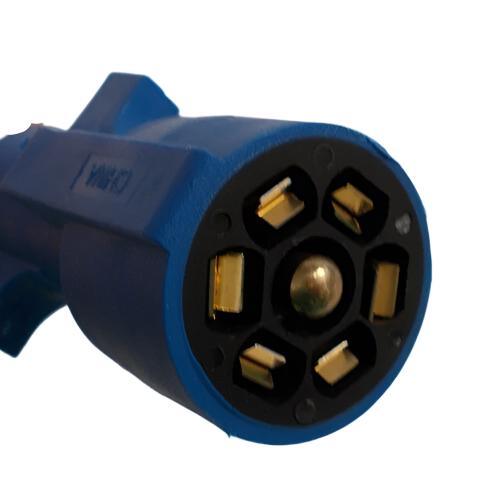

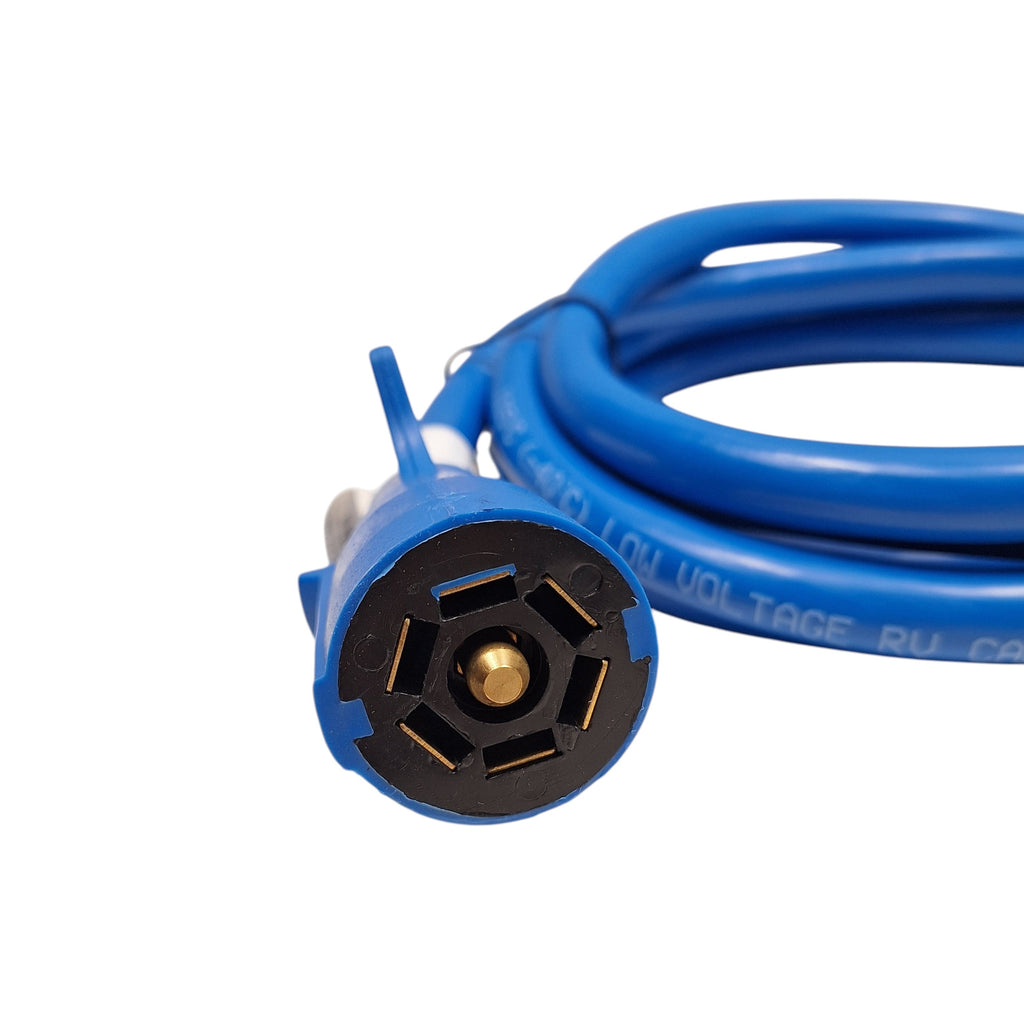

      Double Brass Contact Self cleaning 7 way plug
      Rated for cold weather application from -40 to 105 Degrees Celsius

Heavy Duty Gauge Wires:

2x 10 AWG (White (ground) and Black( 12V POS),
1x 12 AWG (Blue), (Electric Brake)
4x 14 AWG -Red (left stop), Green (Marker light), Brown (right Stop), Yellow, (Back up)

Please contact us if you have wire questions, we un a full service trailer repair shop, so we re-wire trailers daily! And remember, you can not depend on wire colors alone, you should test your particular trailer wire system. we offer phone assistance, but can not be responsible for improper wiring done by the customer..

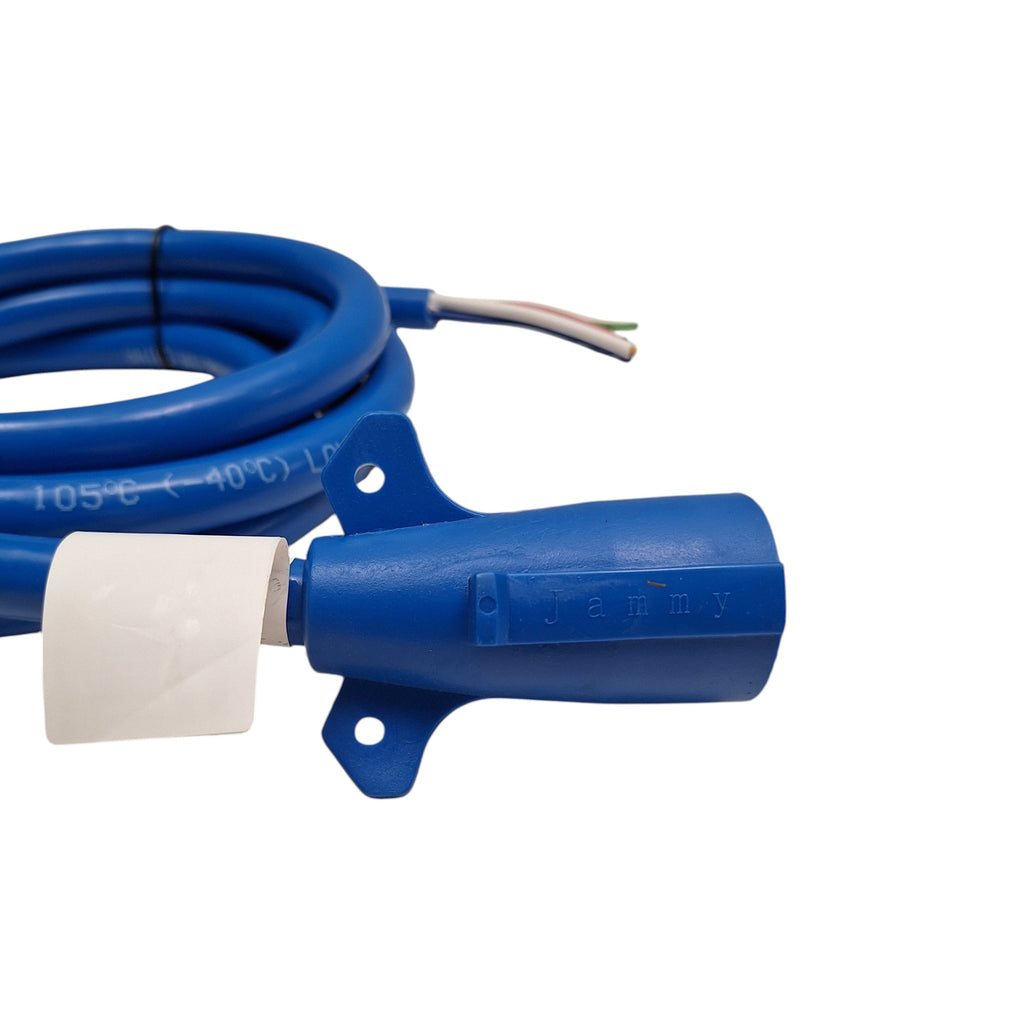

Trailer Connector RV Style 7-Way Blade with molded lead.

Pre-wired 7-Way Trailer Connector
length is including connector

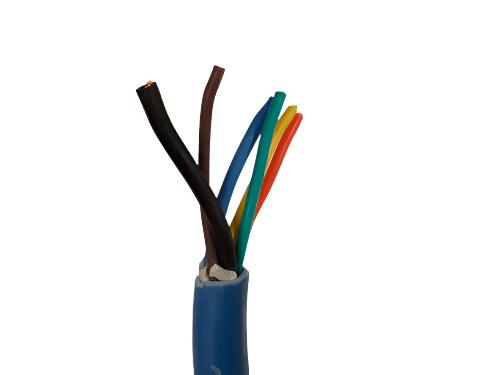

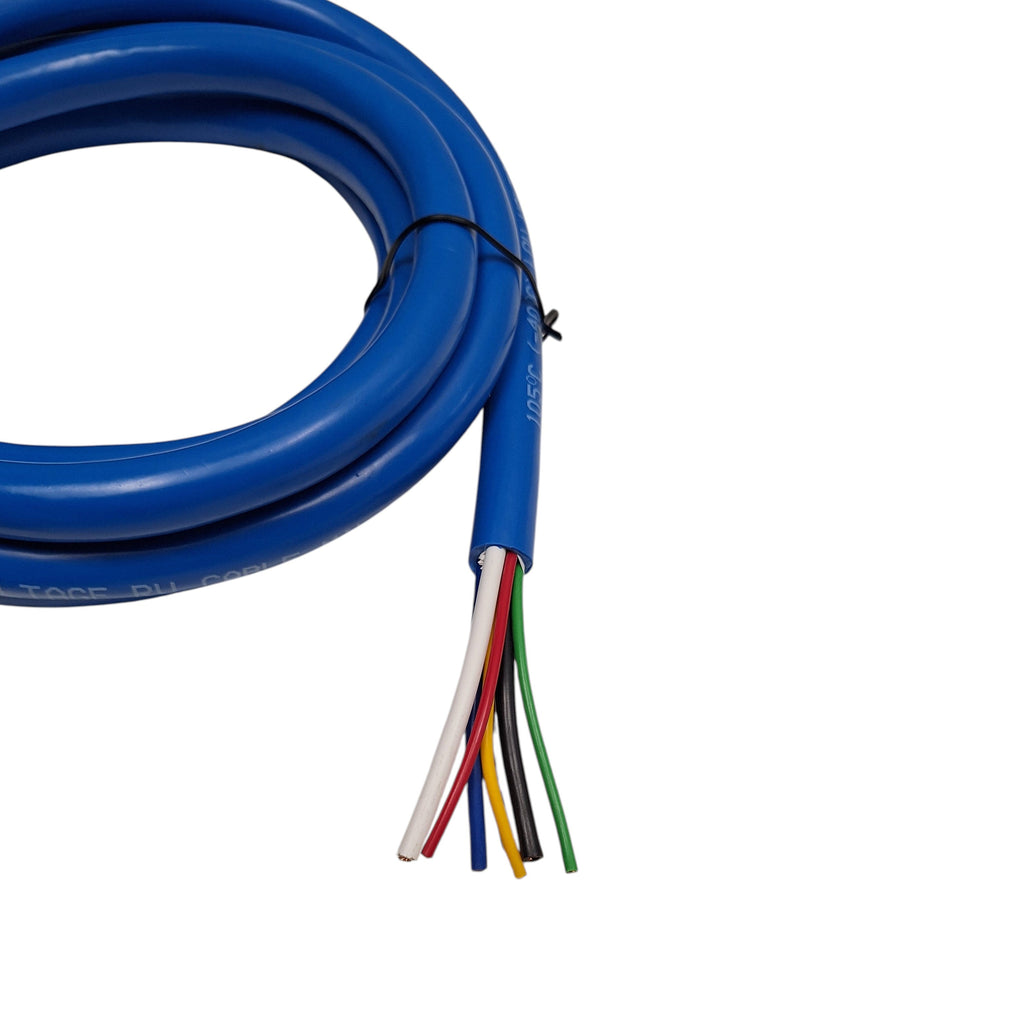

Wire gauges:
- 14 gauge - red, brown, green, and yellow
- 12 gauge - Blue
- 10 gauge - White and Black

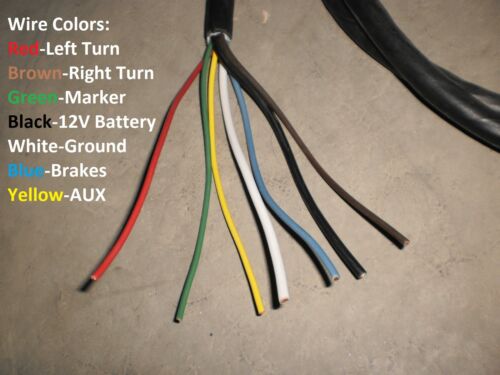

Wiring Code
Molded Connector	Function	Usual Trailer Wire
White Wire	Ground	White Wire
Red Wire	Left Turn and Brake	Yellow Wire
Brown Wire	Right Turn and Brake	Green Wire
Green Wire	Tail Lights	Brown Wire
Blue Wire	Brake Power	Blue Wire
Black Wire	12 volt (hot lead)	Black Wire
Yellow Wire	Aux.	-

7 Way Trailer End Molded Plug w/ 12 feet of 7 Jacketed Wires RV Double Contact (J-7127-WH)
