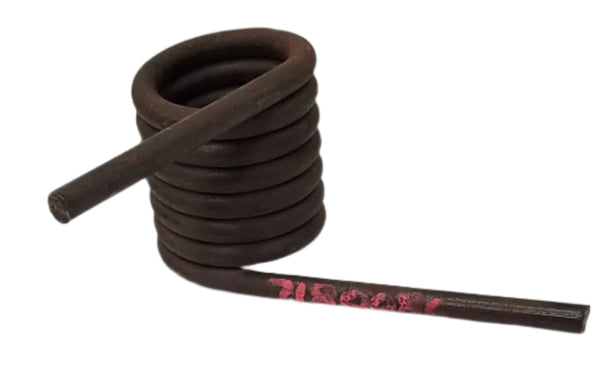

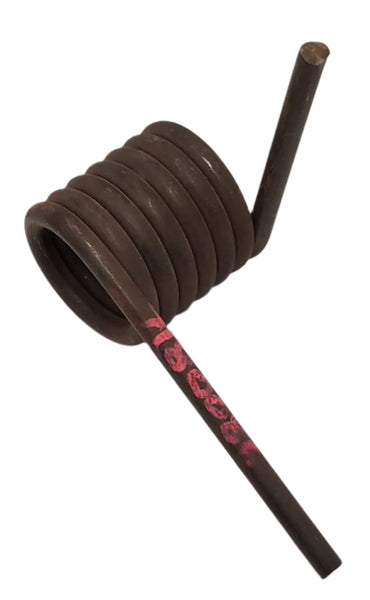

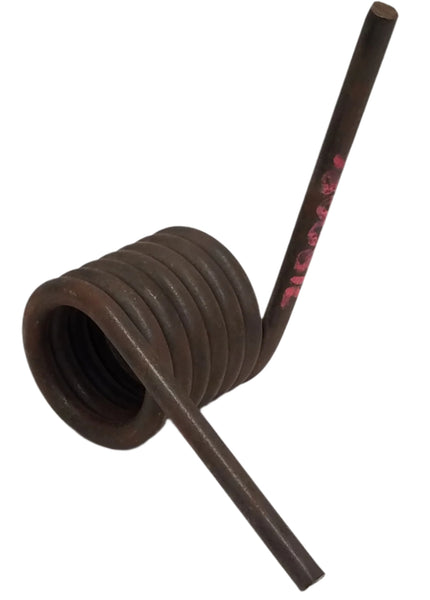

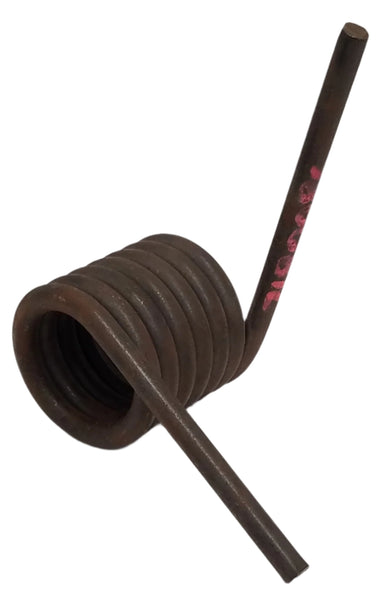

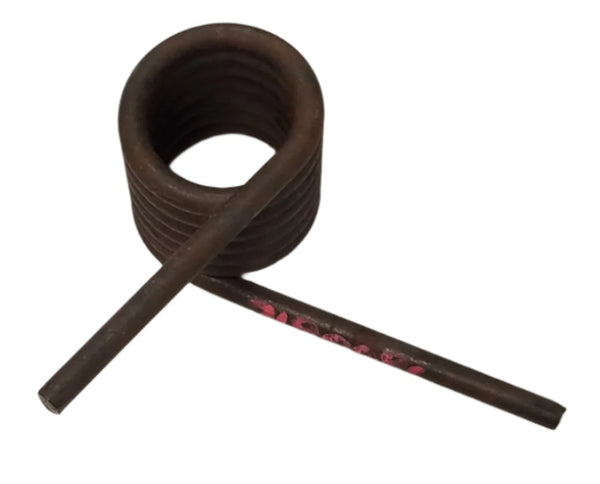

Big Tex RH Torsion Ramp Spring, 90° Leg, 1-1/2" Shaft
Part Number: 7180086
Right-hand torsion ramp spring with a plain finish and a 90-degree leg angle. Designed for use on ramp or door assemblies utilizing a shaft up to 1-1/2 inches in diameter.
Features
- Right-hand torsion configuration
- 90-degree leg angle
- Plain steel finish
- Intended for ramp or door spring applications
- Designed for shafts up to 1-1/2" diameter
Specifications
| Brand | Big Tex Trailer |
|---|---|
| Manufacturer Part Number | 7180086 |
| Hand Orientation | Right Hand (RH) |
| Minimum Inside Diameter | 1.5" |
| Number of Coils | 7 |
| Coil Diameter | 0.375" |
| Leg Lengths | Short: 2-3/4" | Long: 4" |
Verify specifications and hand orientation before installation.
