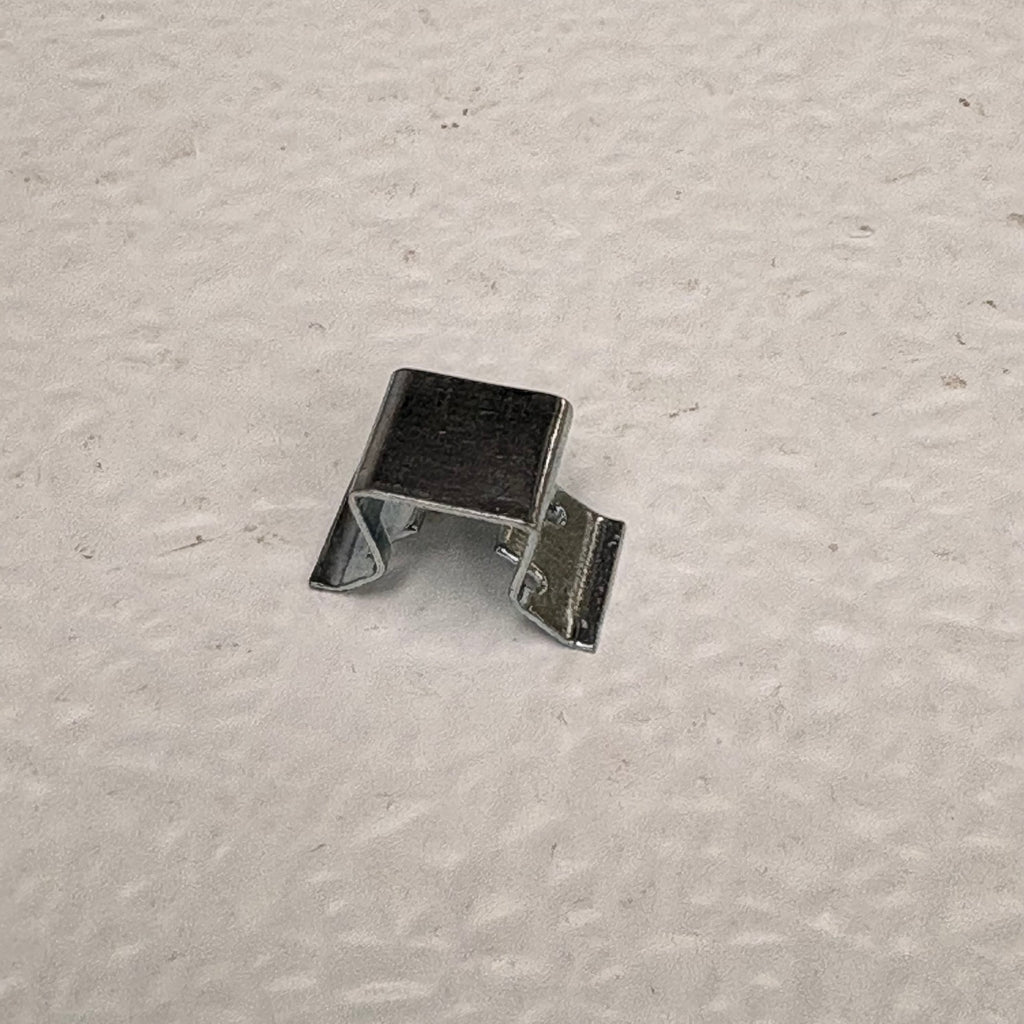

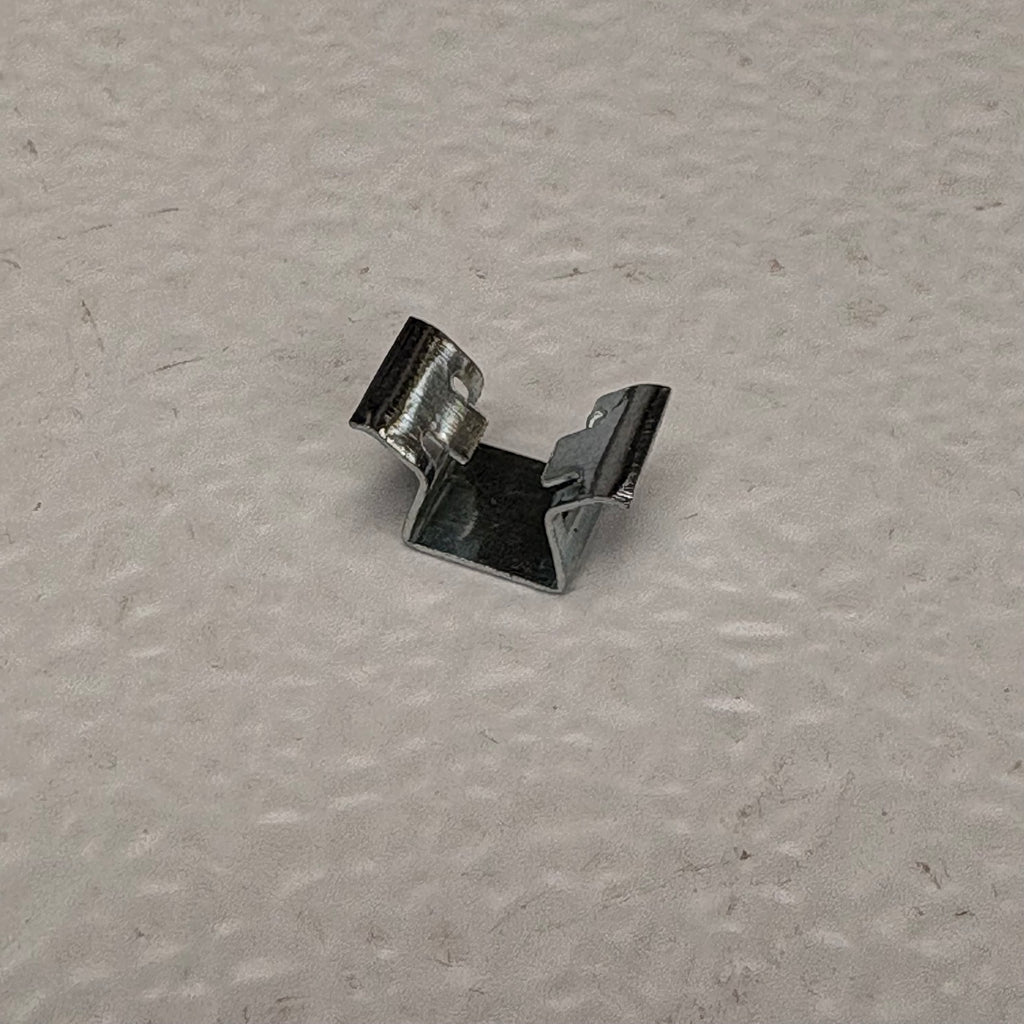

7,200 lb - 15,000 lb Electric Brake Magnet Clip
Replacement electric brake magnet retaining clip for holding the brake magnet in place on compatible backing plate assemblies used with 7,200 lb to 15,000 lb trailer axle brake applications.
Overview
This listing is for one electric brake magnet clip, part number 027-050-00. This clip is used to hold the electric brake magnet in position on the backing plate assembly. It is commonly used with compatible electric brake magnet setups on 7,200 lb through 15,000 lb trailer axle brake applications.
R&P Service Insight
Small brake hardware parts are easy to overlook, but proper magnet retention is important for correct electric brake operation.
- Magnet Position: The clip helps keep the brake magnet held in place on the backing plate.
- Brake Service: Replace missing, worn, bent, or damaged magnet retaining hardware during brake repair.
- Fit Check: Match the part number and brake axle application before ordering.
R&P Knowledge Hub
Compatibility: Intended for compatible electric brake magnet and backing plate assemblies using part number 027-050-00.
Vehicle / System Fit: Trailer electric brake systems on 7,200 lb to 15,000 lb axle brake applications where this magnet clip is required.
Installation Notes: Confirm the existing brake magnet, backing plate, and retaining clip style before installation.
Performance Insight: A properly retained brake magnet helps the electric brake assembly function as intended during braking.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: 027-050-00 electric brake magnet clip.
What This Means: This listing includes the retaining clip used to hold the electric brake magnet on compatible backing plate assemblies.
Before Ordering: Verify your existing part number, axle rating, brake size, and magnet setup before purchasing.
R&P Repair Insight
When servicing trailer electric brakes, inspect the magnet, magnet wires, shoe lining, drum surface, backing plate hardware, and retaining clip together. Replacing the clip is a practical repair when the clip is missing, weakened, damaged, or no longer retaining the magnet properly.
- Check Magnet Wear: Inspect the magnet face for uneven wear, grooving, or damage.
- Check Hardware: Make sure all brake hardware is present, secure, and correctly positioned.
- Check Brake Assembly: Confirm this clip matches your backing plate and magnet style before installation.
Features
Electric Brake Magnet Clip
Designed to retain the brake magnet on compatible trailer electric brake backing plate assemblies.
7,200 lb-15,000 lb Applications
Works with compatible magnet setups used on 7,200 lb through 15,000 lb trailer axle brake applications.
Service Replacement Part
Useful during electric brake magnet replacement, brake inspection, or backing plate hardware service.
Direct Part Number Reference
Listed under part number 027-050-00 for easier matching to existing brake service references.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 027-050-00 |
| Listing SKU | 027-050-00 |
| Brand | R&P Carriages |
| Product Type | Electric brake magnet retaining clip |
| Quantity Included | 1 clip |
| Application | 7,200 lb-15,000 lb trailer electric brake magnet applications |
| Material / Finish | Metal brake hardware clip |
| Key Measurement | Verify by part number and brake application |
| Measurement Note | No dimensional measurement supplied; verify by part number and application. |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer electric brake system |
| Primary Fit | Compatible electric brake magnet setups on 7,200 lb-15,000 lb trailer axle applications |
| Secondary Fit / Common Uses | Brake magnet service, backing plate repair, electric brake hardware replacement |
| Brake Component | Electric brake magnet retaining hardware |
| Notes | Always match the existing clip, brake magnet, backing plate, and part number before ordering. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Electric brake magnet clip, part number 027-050-00 |
