Bolt-On Stake Pocket Set — Qty 8, Heavy-Duty Steel
Part Number: BS-1-LOT8
This listing includes eight (8) bolt-on stake pockets manufactured from heavy-gauge steel. These pockets are designed to provide secure mounting points for wood stake sides on trailers or truck beds. Each pocket is slightly tapered to allow boards to wedge tightly once installed.
Features

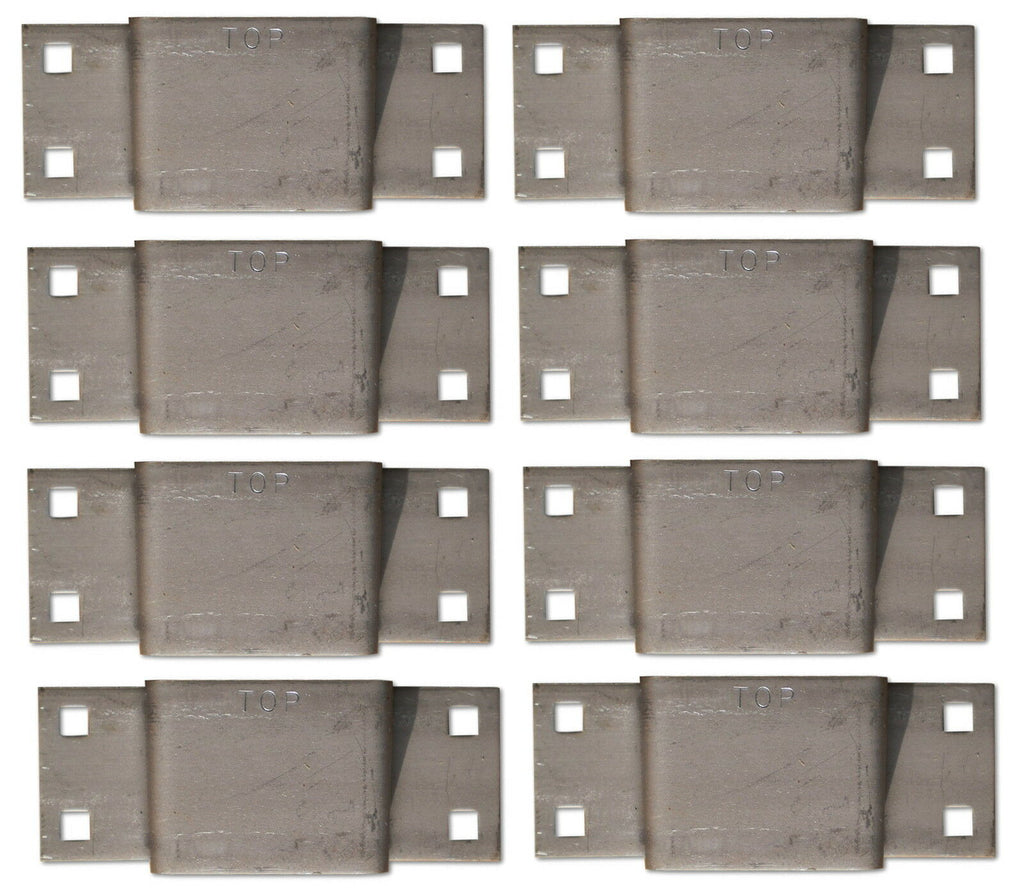

- Set of eight (8) bolt-on stake pockets
- Constructed from approximately 12-gauge steel
- Slightly tapered pocket for improved board retention
- Four square mounting holes suitable for carriage bolts
- Designed for common 2×4 lumber (taper cutting required)
Specifications
| Quantity | 8 stake pockets |
|---|---|
| Material | Steel (approx. 12 gauge) |
| Overall Height | 2-1/2" |
| Overall Width | 6-3/4" |
| Pocket Depth | 1-1/2" |
| Pocket Width (Top) | 3" |
| Mounting Holes | Four square holes, 3/8" |
| Hole Spacing | Approx. 1-1/2" × 5-5/8" (center to center) |
Common 2×4 lumber must be taper-cut to fit properly into each pocket. Verify measurements and mounting requirements before installation.
