Basic Add Brakes to Your Trailer Kit with a 5 x 4.75 Bolt Pattern
Part#: 945475-B-IMP

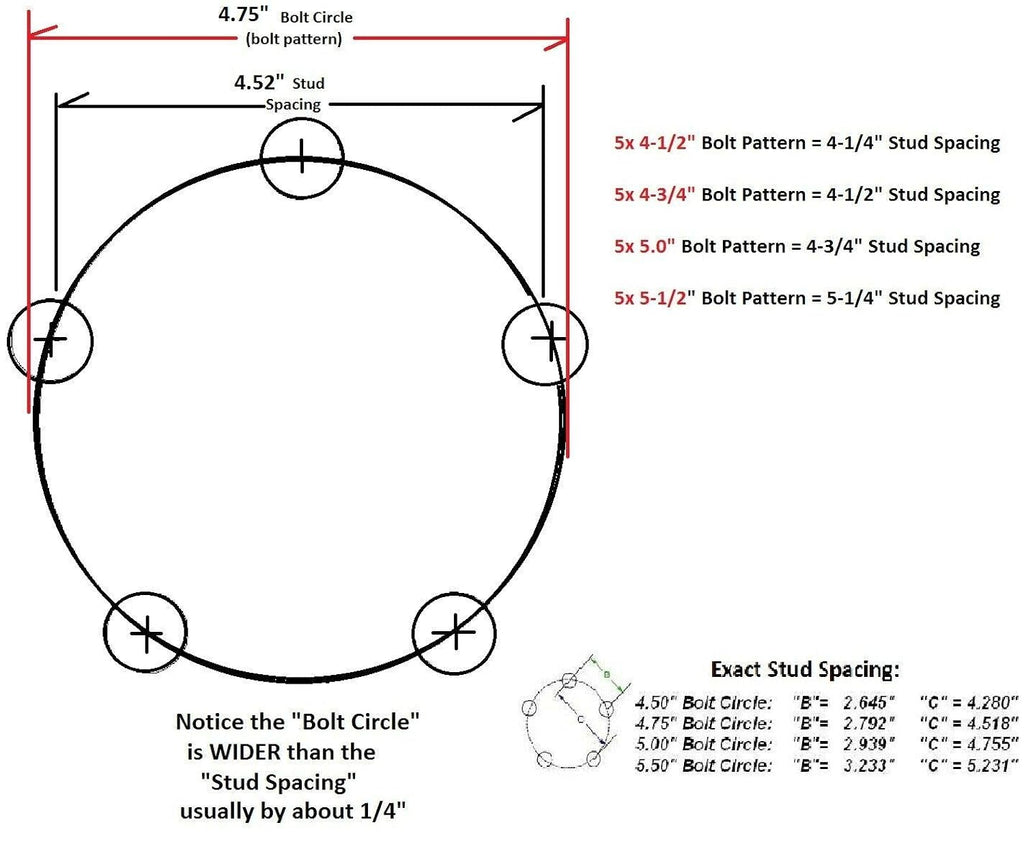

Small GM Bolt pattern, (5 on 4.75")

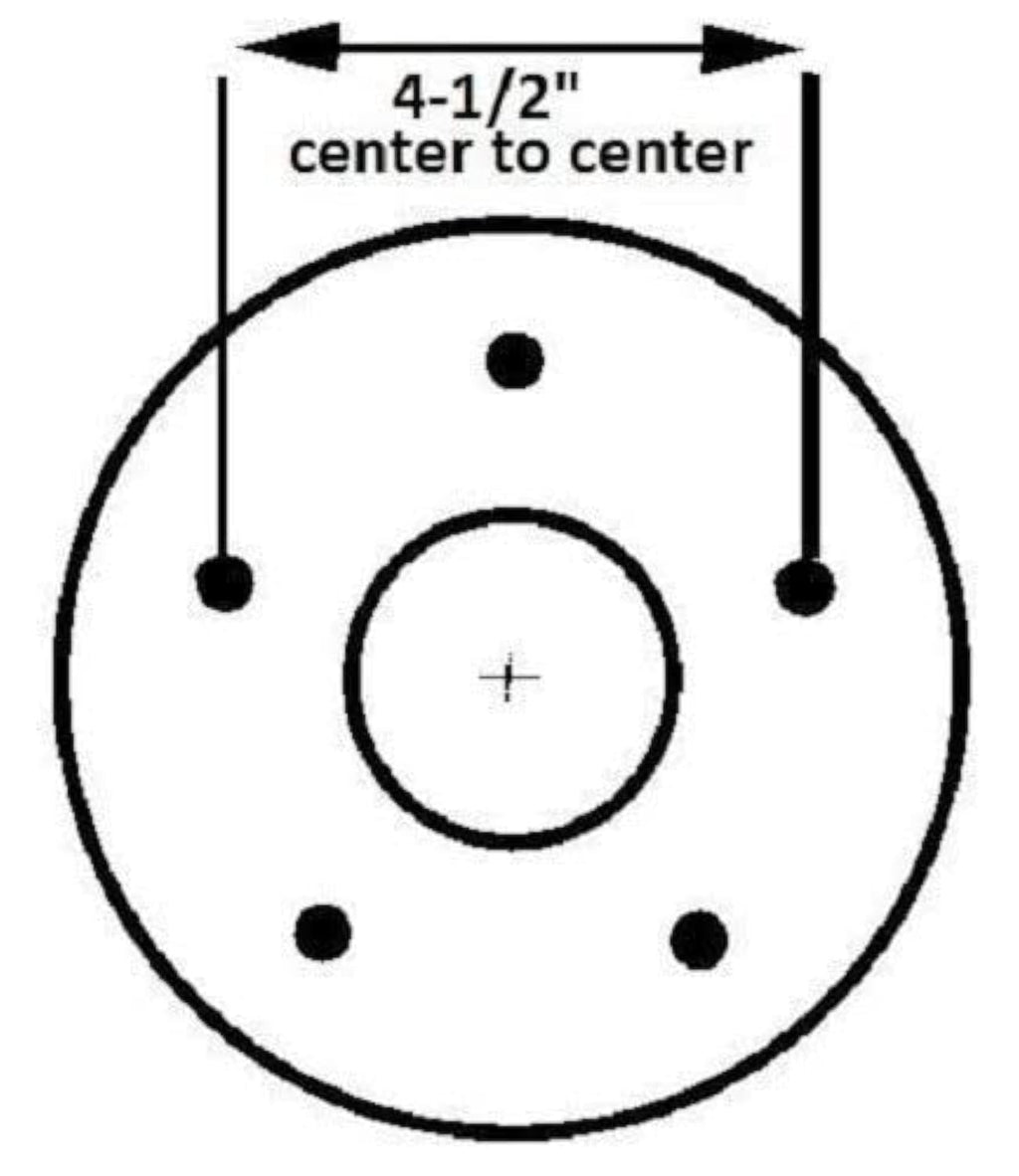

( 4-1/2" Stud Spacing )

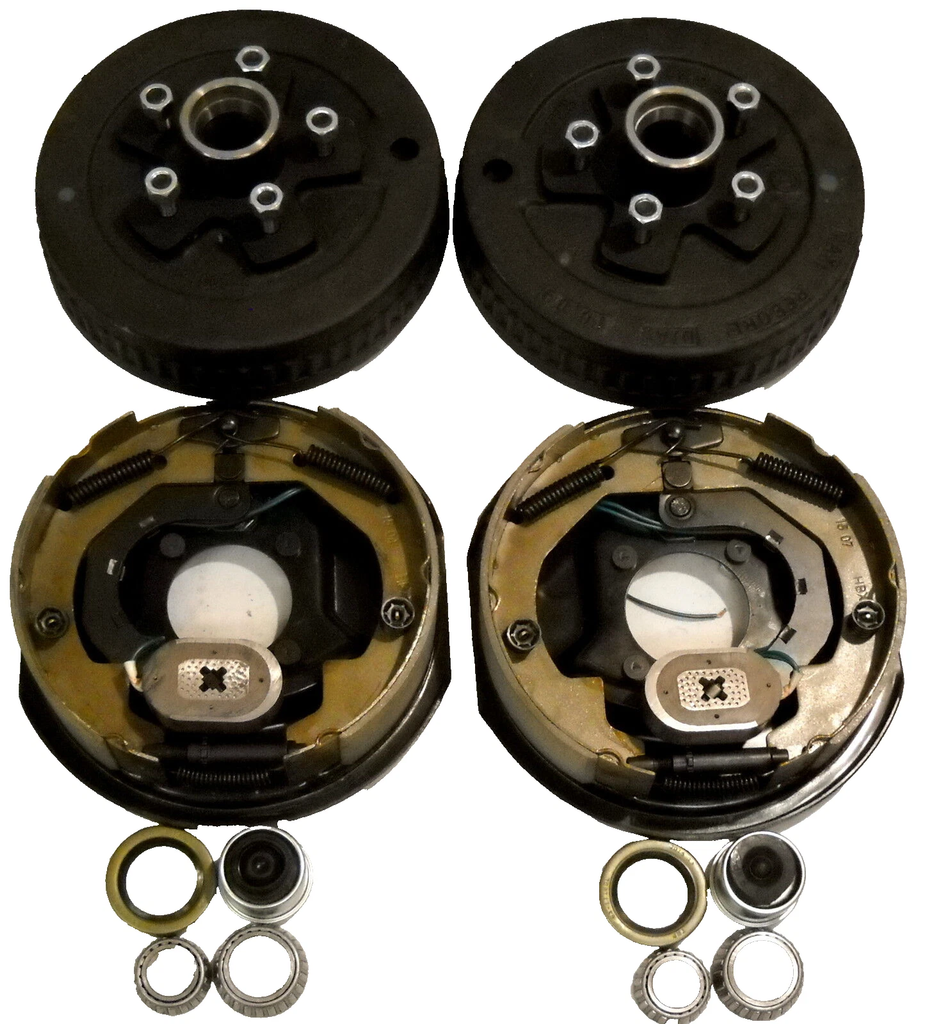

Complete Trailer Brake Setup, with drums, seals, Bearings, Brake shoes, new hardware, backing plates, for one axle!
for 3500# axles from Dexter, AL-KO, AXIS, Quality, and others!
Measurements from Center Bolt Hole to Center Bolt Hole is 2 7/8" on Backing Plate
This Kit Includes:
TWO - Brake backing plates, 3500# per pair, 10" x 2.25, one left, one right
TWO - New 10" brake drums, 4.75" bolt pattern with Races already pressed in (click here for other bolt patterns sizes)
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals
All New Wheel Bearings (Shipping loose with kit):
TWO - 1.7" 10-19 seals
TWO - L44649 bearings
TWO - L68149 bearings
TEN - Matching lug nuts, 1/2-20
TWO - New EZ Lube Dust Caps
TWO - New 10" brake drums, 4.75" bolt pattern with Races already pressed in (click here for other bolt patterns sizes)
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals
All New Wheel Bearings (Shipping loose with kit):
TWO - 1.7" 10-19 seals
TWO - L44649 bearings
TWO - L68149 bearings
TEN - Matching lug nuts, 1/2-20
TWO - New EZ Lube Dust Caps
