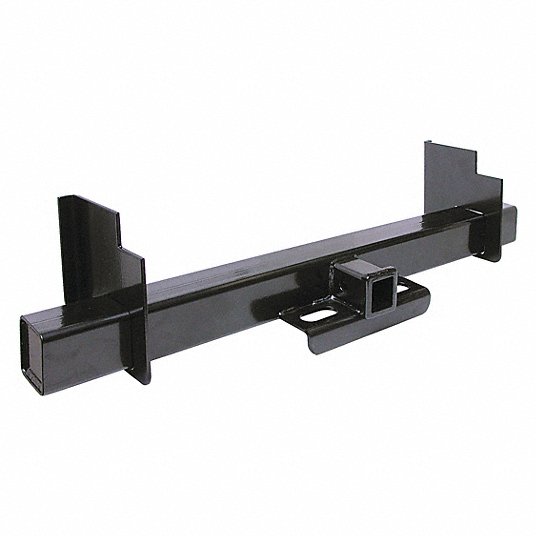

Buyers Products Class V Service Body Hitch – 44" – 2-1/2" Receiver (1801050)
Product Info
Buyers Products Class V Service Body Hitch – 44" – 2-1/2" Receiver
Built for demanding commercial towing applications, the Buyers Products 1801052 Class V Service Body Hitch Receiver combines a 44-inch cross tube with a 2-1/2-inch receiver opening. Designed for service body and platform trucks, this heavy-duty steel hitch is rated for up to 20,000 lb maximum gross trailer weight and 2,000 lb maximum vertical load when properly installed.
Its black powder-coated finish helps resist corrosion, while the included unwelded mounting plates allow the installer to position the hitch for the vehicle's frame and body configuration.
|
20,000 LB
Max Trailer Weight
|
2-1/2"
Receiver Opening
|
44"
Overall Length
|
What's in the Box?
| QTY | COMPONENT | DETAILS |
|---|---|---|
| 1 | Receiver Hitch Assembly | 44" Class V, 2-1/2" opening |
| Set | Mounting Plates | 9" nominal, supplied unwelded |
| 1 | Hitch Pin with Cotter | 5/8" diameter pin |
Knowledge Hub | Fitment & Installation
Designed for commercial service bodies: This receiver hitch is intended for applications requiring a heavy-duty cross-tube receiver installation. It is not a vehicle-specific bolt-on hitch.
Mounting considerations: The supplied mounting plates are unwelded so a qualified installer can position them for the appropriate frame width, body clearance and vehicle configuration. Confirm the frame manufacturer's requirements before installation.
Receiver compatibility: The 2-1/2" receiver accepts compatible 2-1/2" shanks and towing accessories. A standard 2" shank requires an appropriately rated adapter.
Towing capacity: The hitch's 20,000 lb gross trailer weight and 2,000 lb vertical load ratings are maximum component ratings. Actual towing capacity is limited by the lowest-rated component in the complete installed system, including the vehicle, hitch installation, ball mount and coupling.
Features & Benefits
- Class V towing capacity: Rated for up to 20,000 lb maximum gross trailer weight.
- Heavy-duty receiver: 2-1/2" opening for appropriately rated commercial towing equipment.
- Service body configuration: 44" cross tube designed for work trucks and platform bodies.
- Flexible mounting: Unwelded 9" mounting plates allow positioning during installation.
- Durable finish: Corrosion-resistant black powder coating helps protect the steel assembly.
Technical Specifications
| Manufacturer | Buyers Products |
|---|---|
| Manufacturer Part Number | 1801052 |
| Product Type | Service Body Hitch Receiver |
| Hitch Class | Class V |
| Overall Length | 44" |
| Receiver Opening | 2-1/2" |
| Maximum Gross Trailer Weight | 20,000 lb |
| Maximum Vertical Load | 2,000 lb |
| Mounting Plates | 9" nominal, unwelded |
| Mount Type | Weld-on |
| Material | Steel |
| Finish | Black Powder Coat |
| UPC | 724920100908 |
Before replacing or installing a service body receiver, inspect the truck frame, mounting surfaces, existing welds and surrounding structure for damage or corrosion. Confirm receiver height, body clearance and attachment requirements before welding. Installation should follow Buyers Products instructions and vehicle manufacturer requirements.
