Match the part number, measurements and connection points that apply to your trailer.
| Part Number | Match the number stamped on the original bearing or seal. |
|---|---|
| Dimensions | Measure the mating surfaces when a number is unavailable. |
| Hub / Axle | Use capacity as context, not as the only fitment check. |

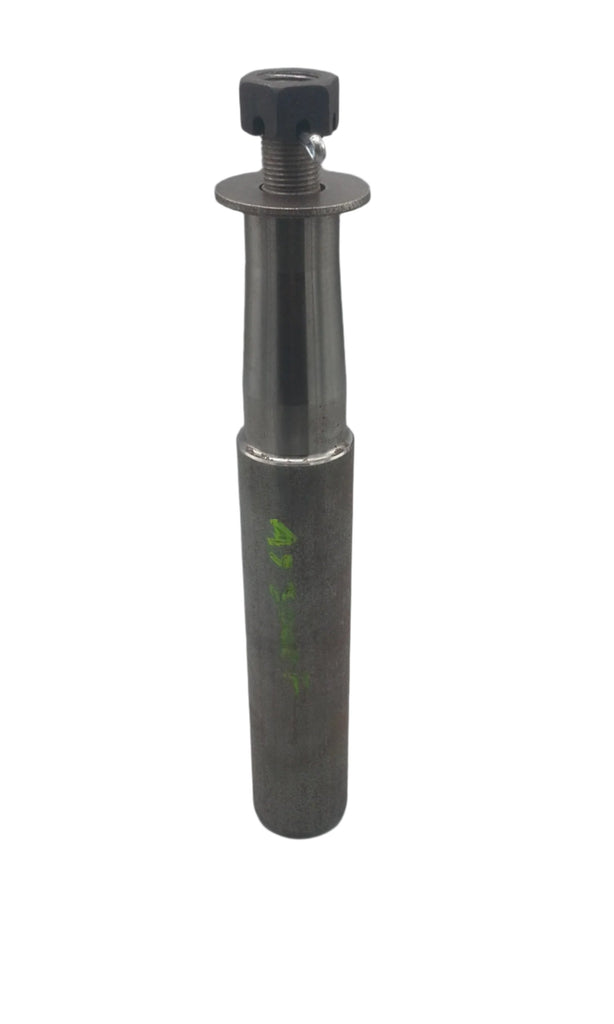

Part Number: AS3000F-KIT
Agricultural-use trailer spindle designed for farm and off-road equipment operating at low speeds. This spindle is intended for applications that do not exceed 20 MPH and is commonly used on implements, wagons, and agricultural trailers.
| Specification | Detail |
|---|---|
| Spindle Type | Agricultural spindle |
| Inner Bearing Surface | 1.75" diameter |
| Outer Bearing Surface | 1.25" diameter |
| Spindle Length | 5" |
| Speed Rating | Farm use only — not to exceed 20 MPH |
| Component | Included |
|---|---|
| Castle Nut | Yes |
| Spindle Washer | Yes |
| Cotter Pin | Yes |
This spindle is intended for agricultural and off-road equipment only. It is not designed for highway use and should not be installed on trailers operated at road speeds.
Confirm bearing sizes, hub compatibility, and application requirements before installation to ensure proper fit and safe operation.
