Dexter AL-KO / Hayes 10K HD–12K Bearing & Wheel-End Hardware Kit – #120 Spindle (K71-840-00)
Product Info
Dexter AL-KO / Hayes 10K HD–12K Bearing & Wheel-End Hardware Kit – #120 Spindle

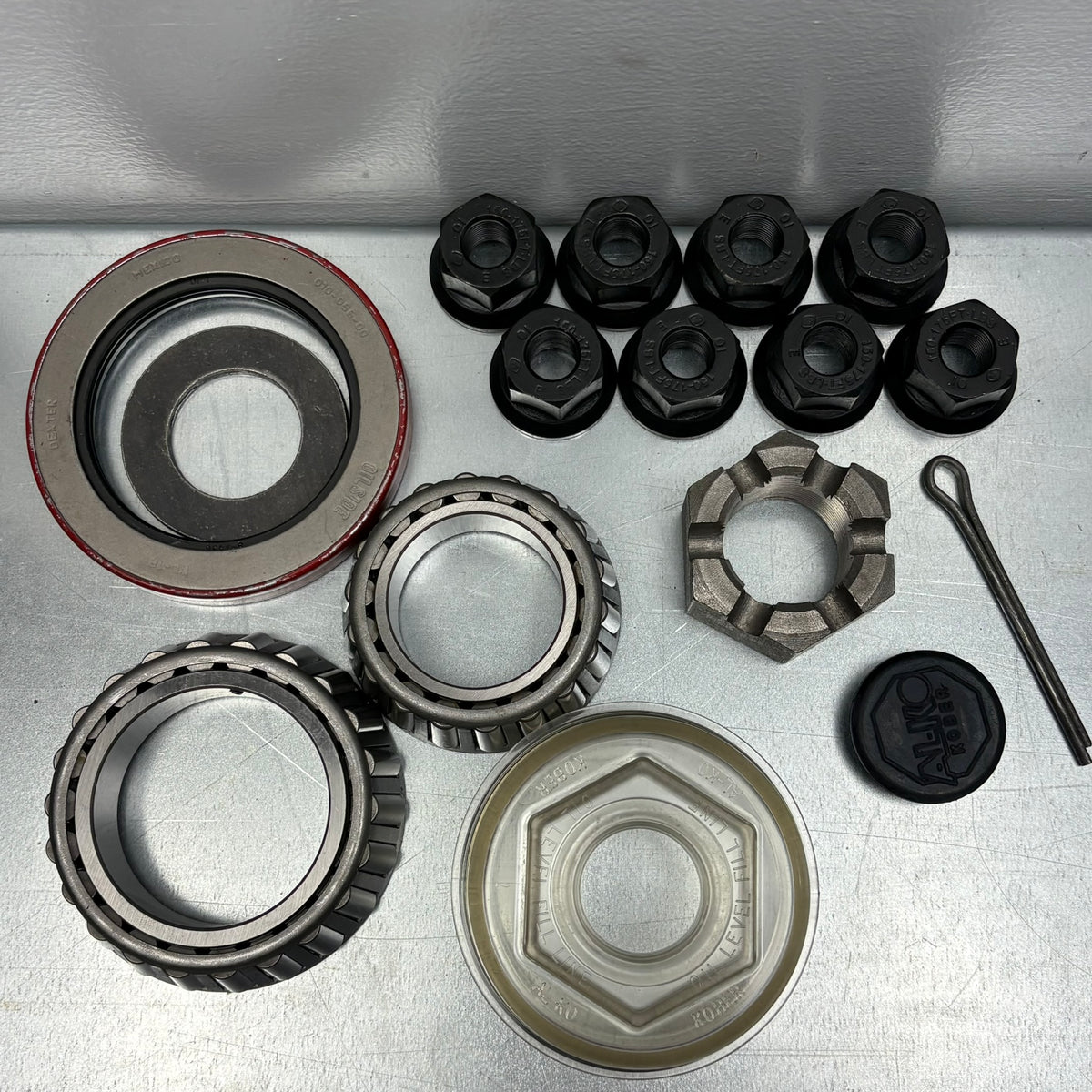

Service the wheel end of a compatible AL-KO or Hayes 10,000 lb heavy-duty or 12,000 lb trailer axle with this Dexter bearing and hardware kit for the #120 spindle. This kit combines two tapered roller bearings, an oil seal, oil cap, spindle-retention hardware, and eight 5/8"-18 swivel wheel nuts for the specified axle configuration.
Key Features
|
Specific #120 spindle fitment
For AL-KO / Hayes 10K HD and 12K axle applications.
|
Two identified bearings
JM205149 and JM511946 tapered roller bearing assemblies.
|
|
Oil-bath service components
Oil cap, oil seal, rubber plug, and O-ring.
|
Wheel and spindle hardware
Eight 5/8"-18 swivel wheel nuts, spindle nut, washer, and cotter pin.
|
Specifications & Fitment
| Manufacturer | Dexter / AL-KO |
|---|---|
| Kit part number | K71-840-00 |
| Legacy AL-KO reference | K1693895 |
| Specified axle application | AL-KO / Hayes 10,000 lb HD and 12,000 lb axles |
| Spindle | #120 |
| Bearing identifiers | JM205149 / JM511946 |
| Wheel nut specification | 5/8"-18 swivel wheel nuts |
| Wheel nut quantity | 8 |
| Lubrication configuration | Oil-bath wheel-end components |
Included Components | Dexter Bill of Materials
The following component numbers and quantities follow the AL-KO Genuine Parts catalog listing for K71-840-00. Confirm the physical kit contents against its packaging before fulfillment.
| Dexter Part # | Qty | Component |
|---|---|---|
| 006-209-00 | 8 | Swivel wheel nut, 5/8"-18 |
| 006-239-00 | 1 | Spindle nut |
| 005-224-00 | 1 | Washer |
| 021-219-00 | 1 | Oil cap |
| 031-091-02 | 1 | Bearing (JM205149) |
| 031-093-02 | 1 | Bearing (JM511946) |
| 019-035-00 | 1 | Cotter pin |
| 085-015-00 | 1 | Rubber plug |
| 010-258-00 | 1 | O-ring |
| 010-056-00 | 1 | Oil seal |
R&P Service Insight | Confirm Before Installation
Inspect the spindle for scoring, corrosion, heat damage, and bearing-seat wear before installing replacement components. Compare the original bearing numbers and oil-seal fitment, and follow the axle manufacturer's lubrication, bearing adjustment, and wheel-fastener torque procedures.
The kit's component list identifies bearings but does not separately list bearing cups or races. Verify whether additional components are required before beginning service.
