Dexter K23-524-00 Hayes / AL-KO Hydraulic Brake Assembly – Left or Right Hand – 12.25" x 3.5" – 10K / 12K – 5 Bolt

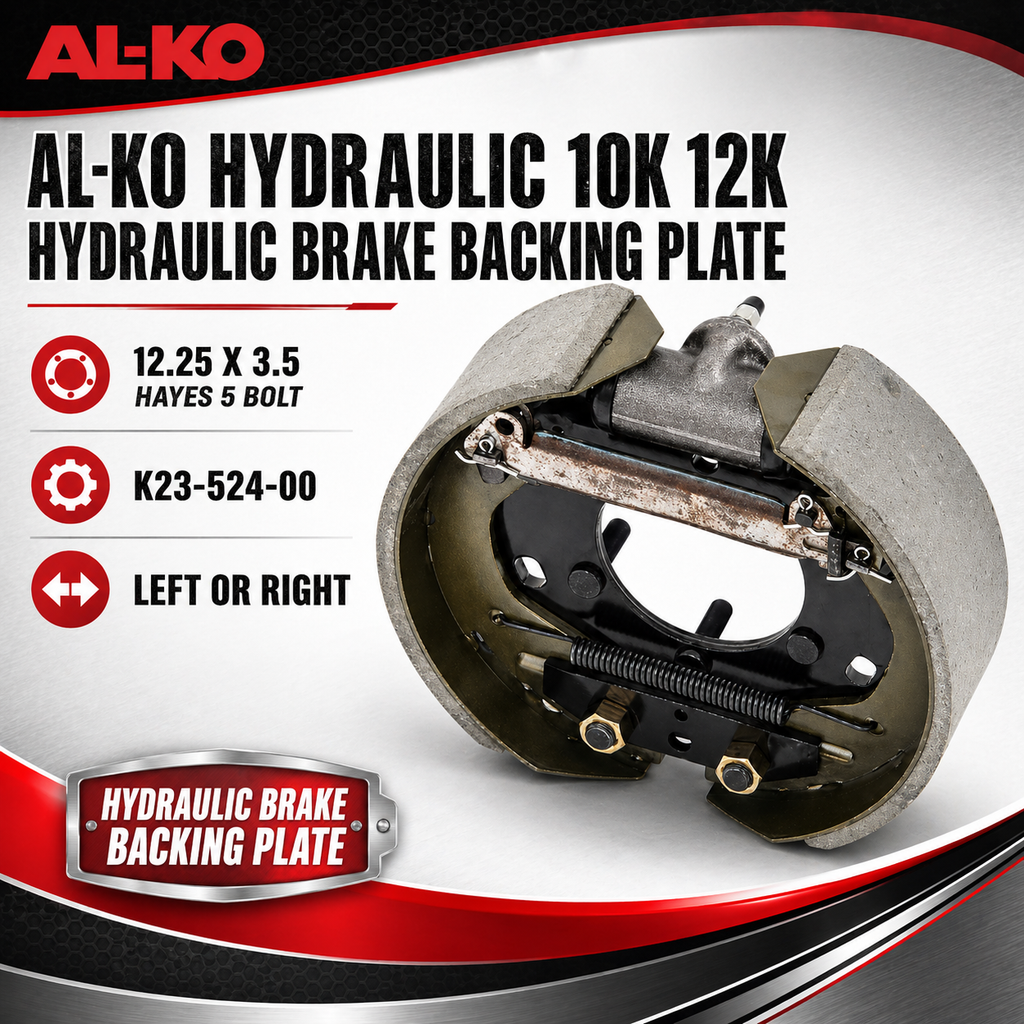

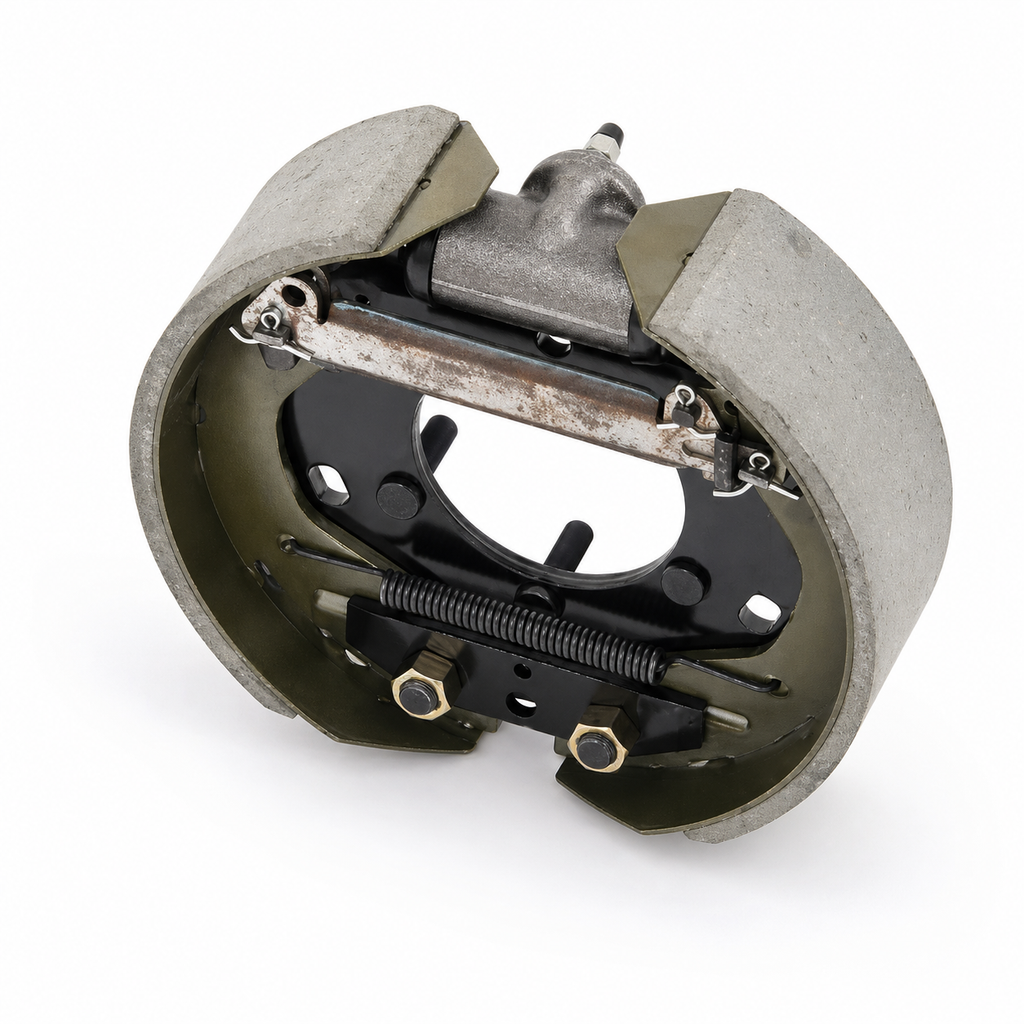

Hydraulic drum brake backing plate assembly for compatible AL-KO / Hayes-style heavy trailer axle applications. This K23-524-00 assembly is listed for left-hand or right-hand use where brake size, mounting pattern, and axle configuration match.
Overview
This K23-524-00 hydraulic brake backing plate assembly is built for heavy-duty trailer brake service on compatible AL-KO / Hayes-style 10,000 lb and 12,000 lb axle systems. It is designed for 12.25" x 3.5" hydraulic drum brake applications using a 5-bolt mounting configuration. Unlike many brake assemblies that are side-specific, this part is listed for left-hand or right-hand application when installed on a matching system.
R&P Service Insight

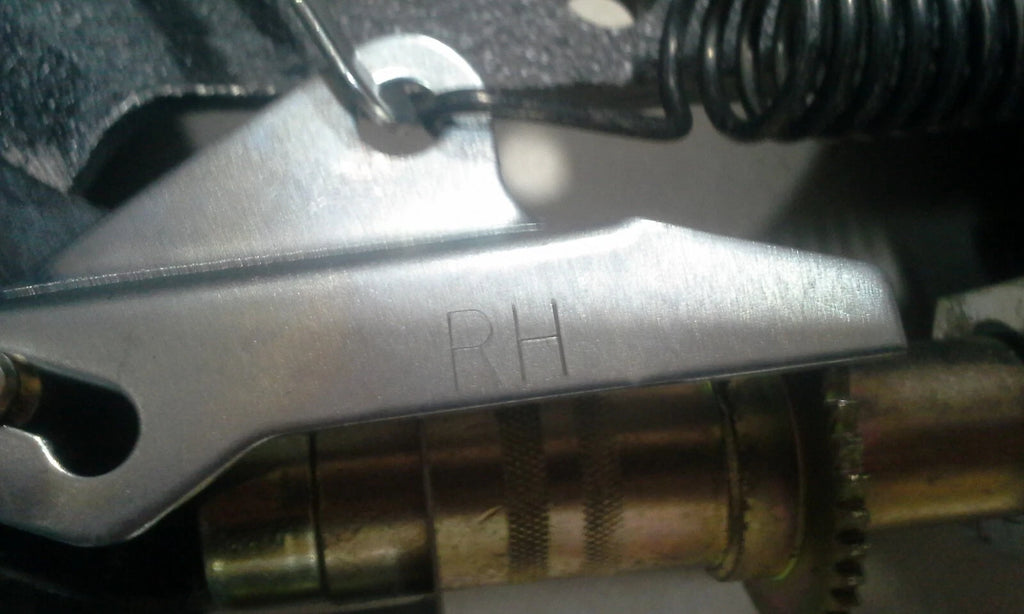

Brake hand orientation matters because left-side and right-side brake assemblies are often different. This listing is specifically written around K23-524-00 as a left-hand or right-hand hydraulic assembly, but the axle, drum, mounting flange, and hydraulic configuration still need to match.
- Orientation: K23-524-00 is listed for left-hand or right-hand use.

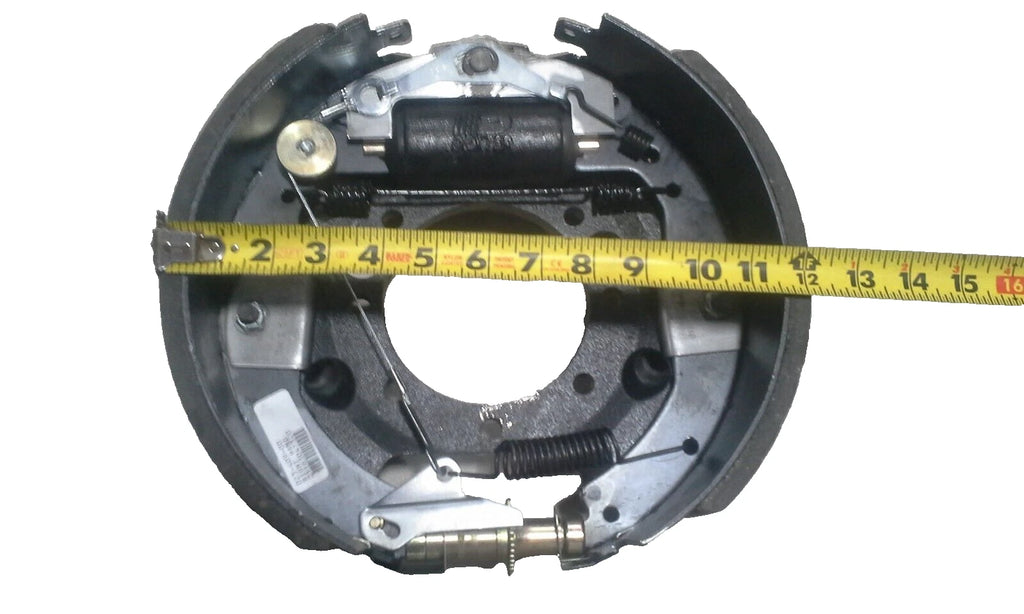

- Brake Size Check: Confirm your drum is designed for a 12.25" diameter x 3.5" wide brake assembly.

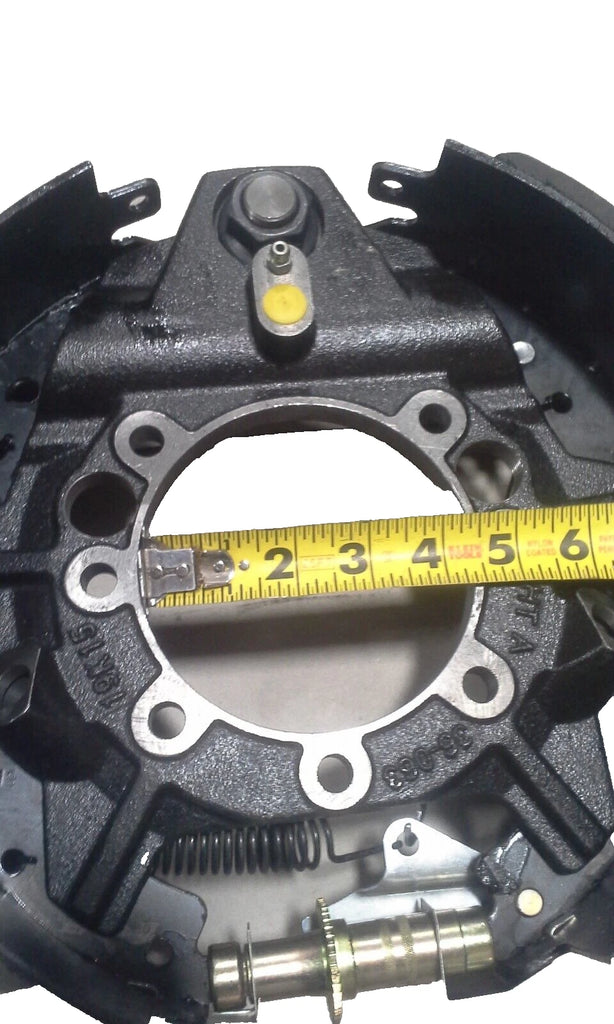

- Mounting Pattern Check: Verify the 5-bolt brake flange pattern before installation.

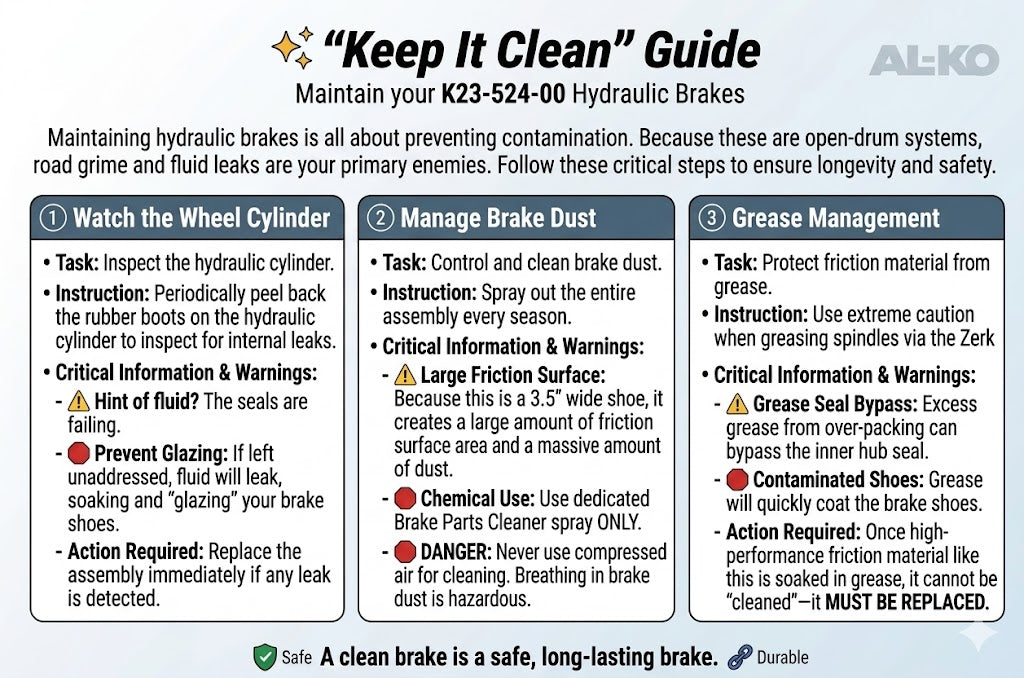

R&P Knowledge Hub
Compatibility: Designed for compatible AL-KO / Hayes hydraulic drum brake applications where brake size, mounting pattern, axle rating, and hydraulic configuration match.
Vehicle / System Fit: Used on heavy-duty trailer axle systems with 12.25" x 3.5" hydraulic drum brakes.
Installation Notes: Confirm brake diameter, brake width, mounting bolt pattern, axle manufacturer, hydraulic line layout, and left/right installation position before installation.

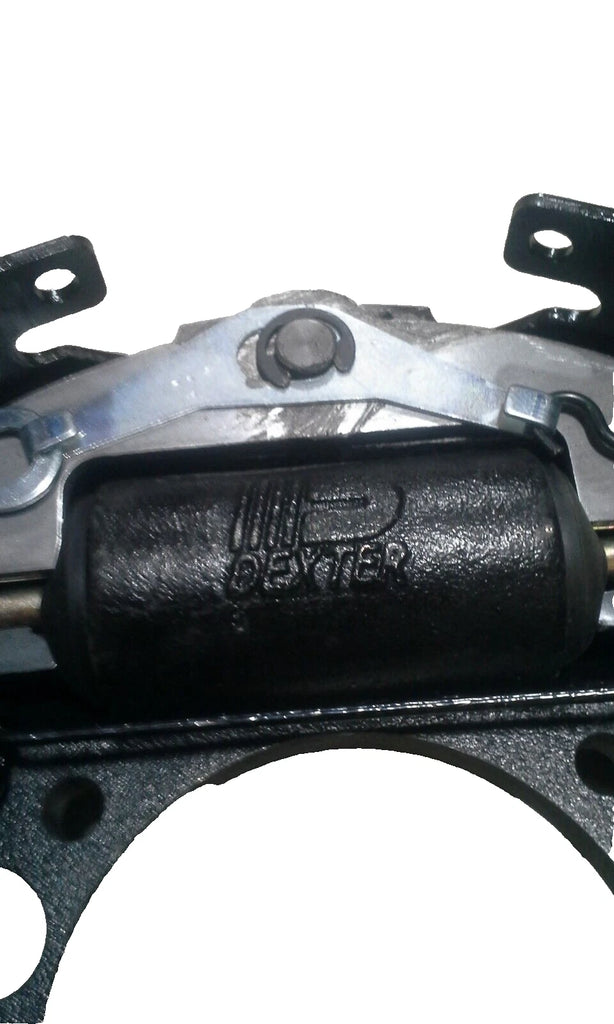

Performance Insight: Duo-servo hydraulic brake assemblies use fluid pressure to expand the brake shoes against the drum. Correct fitment and installation position are critical for even braking, proper adjustment, and safe trailer operation.
Features
Left or Right Hand Application
K23-524-00 is listed for left-hand or right-hand use, helping reduce side-selection confusion when the rest of the brake specifications match.
12.25" x 3.5" Brake Size

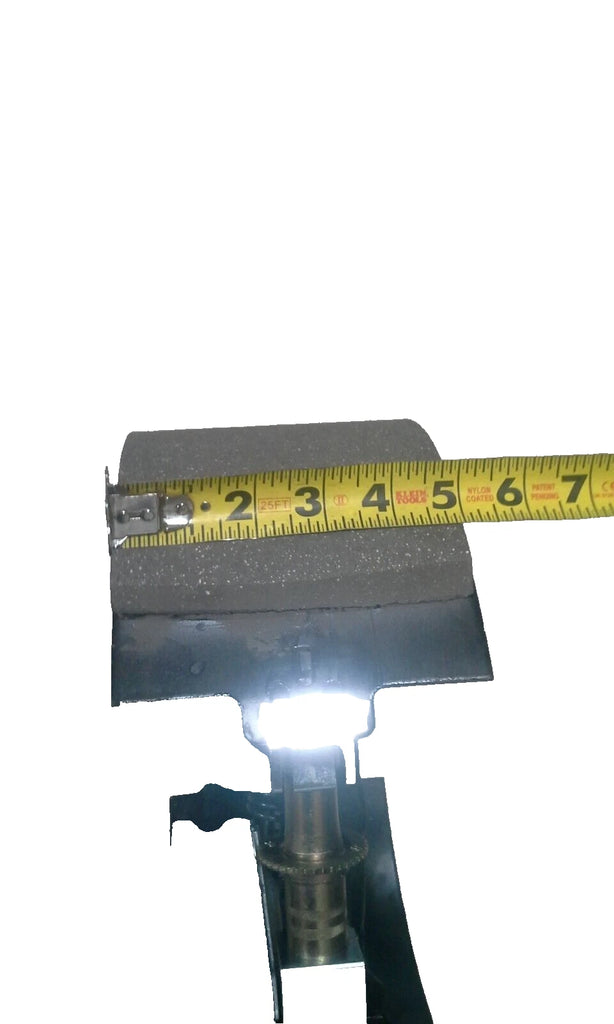

Matches trailer drums requiring a 12.25" diameter and 3.5" brake width.

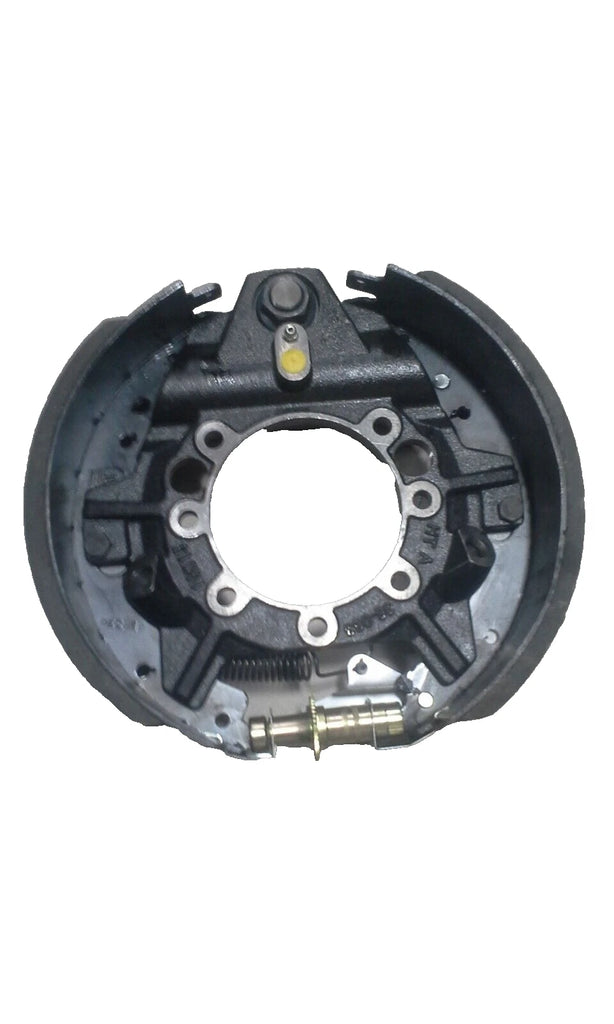

5-Bolt Mounting Configuration
Built for brake flanges using a 5-bolt mounting pattern. Always verify flange pattern before ordering.
Duo-Servo Hydraulic Design
Duo-servo hydraulic brake construction supports strong drum brake engagement when correctly matched to the axle and drum.

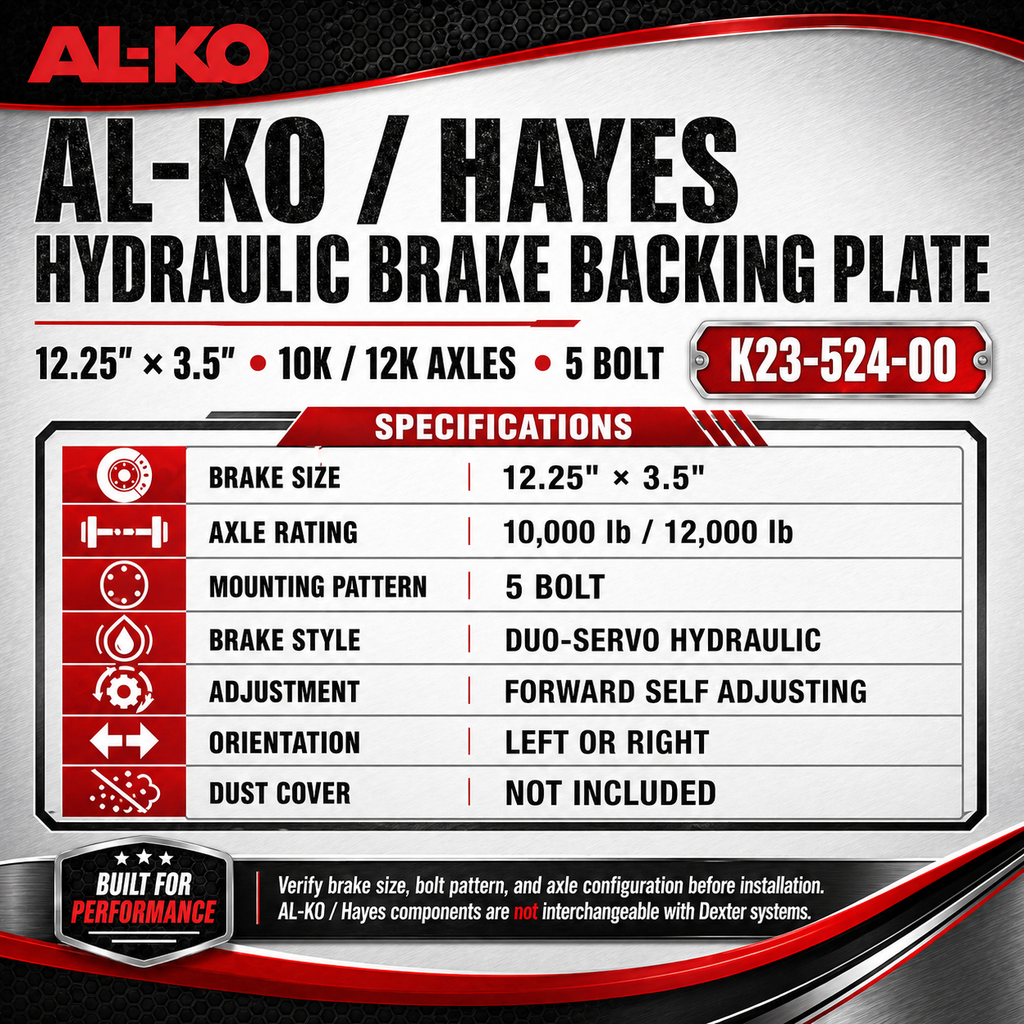

Specifications
| Specification | Detail |
|---|---|
| Part Number | K23-524-00 |
| Brand / Application | Dexter / AL-KO-Hayes application |
| Product Type | Hydraulic brake backing plate assembly |
| Hand / Orientation | Left hand or right hand |
| Brake Diameter | 12.25" |
| Brake Width | 3.5" |
| Axle Rating Application | 10,000 lb / 12,000 lb AL-KO / Hayes-style hydraulic axle systems |
| Mounting Pattern | 5-bolt brake flange |
| Brake Style | Duo-servo hydraulic drum brake |
| Adjustment | Forward self-adjusting |
| Dust Cover | Not included |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Heavy-duty trailer hydraulic drum brake system |
| Primary Fit | AL-KO / Hayes 10K and 12K axle applications using 12.25" x 3.5" hydraulic drum brakes |
| Side Application | Left-hand or right-hand installation where part number, brake size, mounting pattern, and hydraulic configuration match |
| Notes | Verify brake size, bolt pattern, axle configuration, hydraulic system compatibility, and installation position before installation. AL-KO / Hayes application references do not guarantee interchange with every Dexter, Lippert, or other axle system. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Hydraulic brake backing plate assembly, part number K23-524-00, left-hand or right-hand application |
| Not Included | Dust cover |
| Verify Before Ordering | Mounting hardware, hydraulic fittings, brake line components, and related service parts |
