Aluminum H-Style Spare Tire Wall Mount — 5×4.5" Bolt Pattern — 24" Stud Spacing
Part Number: STC-AH-24-KIT

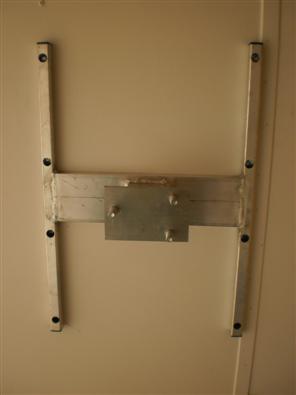

The STC-AH-24-KIT is a custom-fabricated aluminum H-style spare tire wall mount designed for cargo trailers and RVs with approximately 24" wall stud spacing. It mounts directly to trailer wall cross members and is engineered specifically for standard 5×4.5" trailer wheels.
Features
- All-aluminum H-style spare tire wall mount bracket

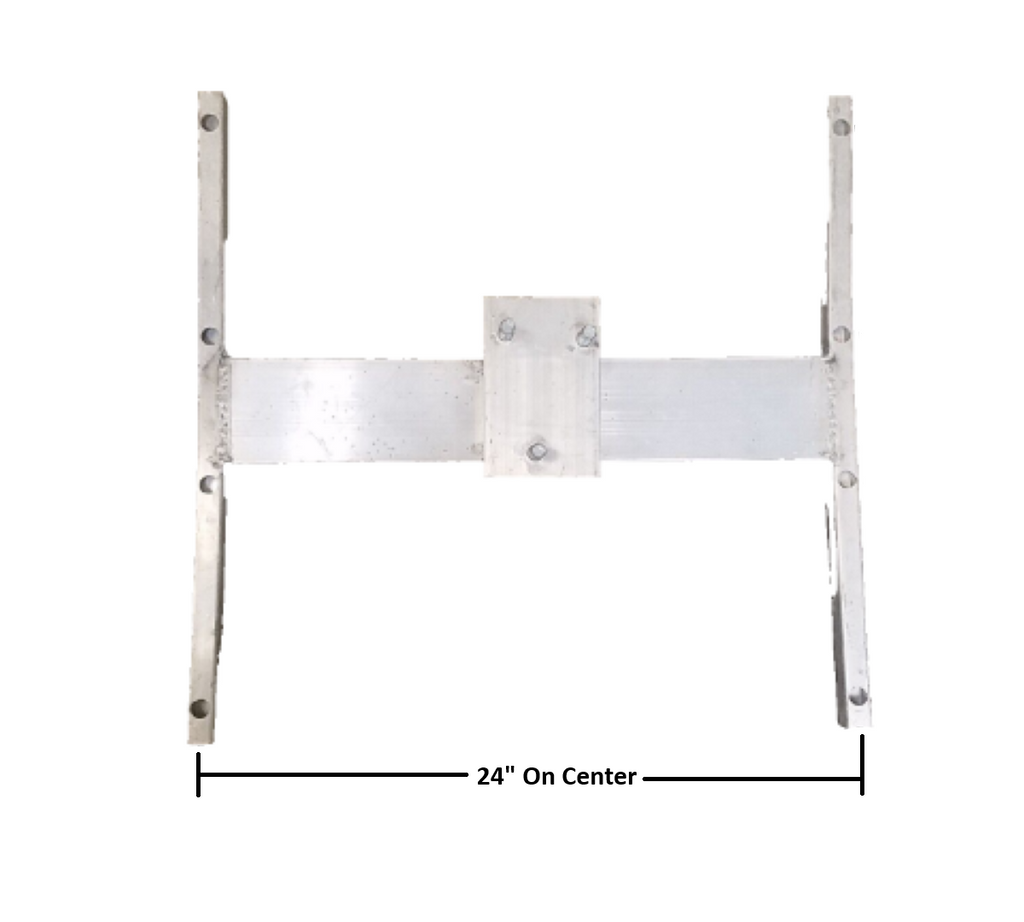

- Designed for 24" on-center trailer wall studs
- Accepts standard 5×4.5" (5-lug) trailer wheels only
- Equipped with 1/2-20 fine-thread axle studs (not machine bolts)
- Allows use of standard or locking trailer lug nuts
- Constructed from 1" thick aluminum tubing
Specifications
| Part Number | STC-AH-24-KIT |
|---|---|
| Mount Style | H-Style Wall Mount |
| Wall Stud Spacing | 24" on center |
| Wheel Bolt Pattern | 5×4.5" (5-lug only) |
| Stud Thread | 1/2-20 fine-thread axle studs |
| Overall Dimensions | Approx. 24" tall × 25" wide |
| Tubing Size | 1" aluminum tubing |
| Maximum Wheel Backspace | Approx. 3-3/4" |
| Hardware Included | Self-drilling mounting screws; wheel lug nuts |
| Tire Included | No |
| Plastic End Caps | Not included |
This mount is designed exclusively for 5×4.5" trailer wheels. Verify wall stud spacing, wheel bolt pattern, and wheel backspace before installation. Tire not included.
