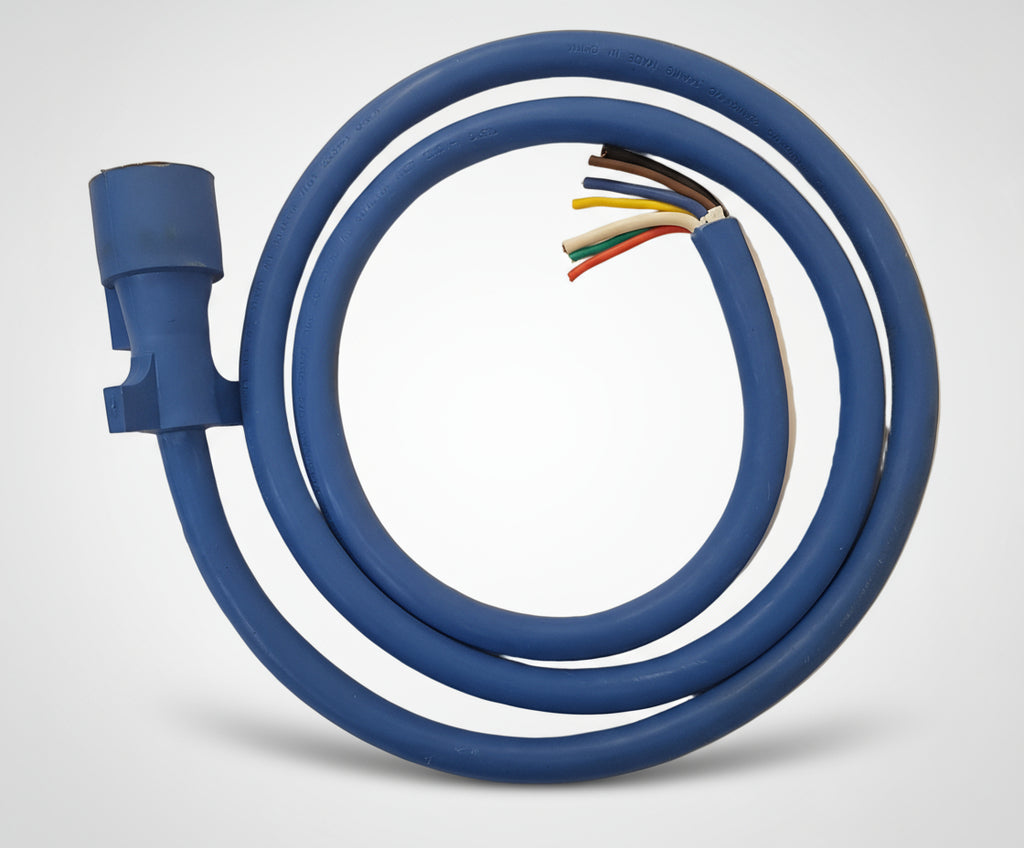

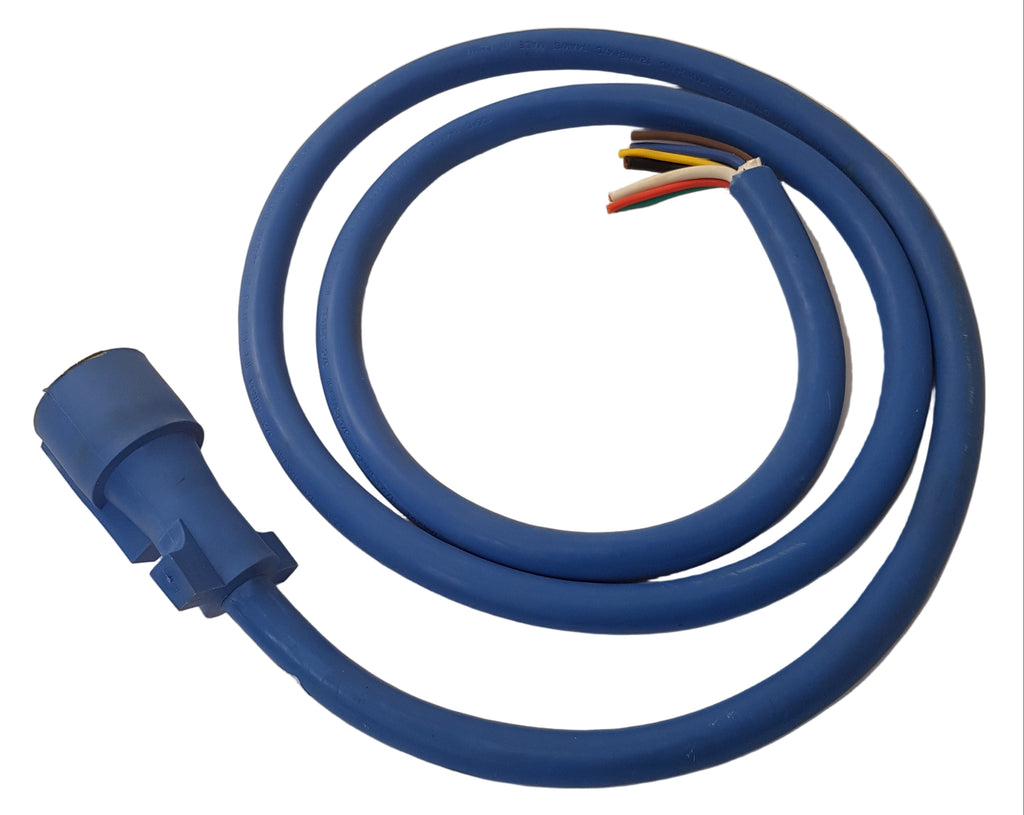

6 Foot Long, 7 Way
DOUBLE BLADE BRASS CONTACTS!
This is an 6' Cord
We also have these cords in various different sizes, click here to see!

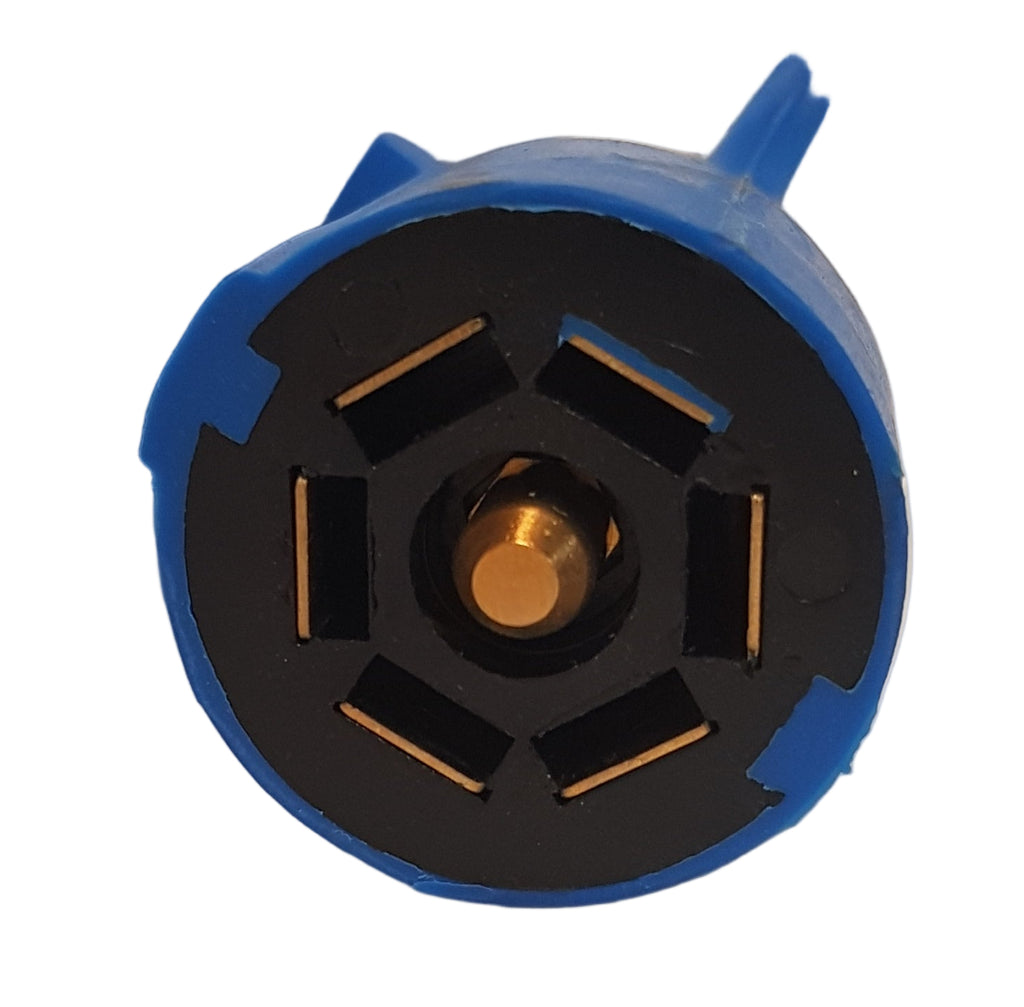

Double Contact Self cleaning 7 way plug
Rated for cold weather application from -40 to 105 Degrees Celsius

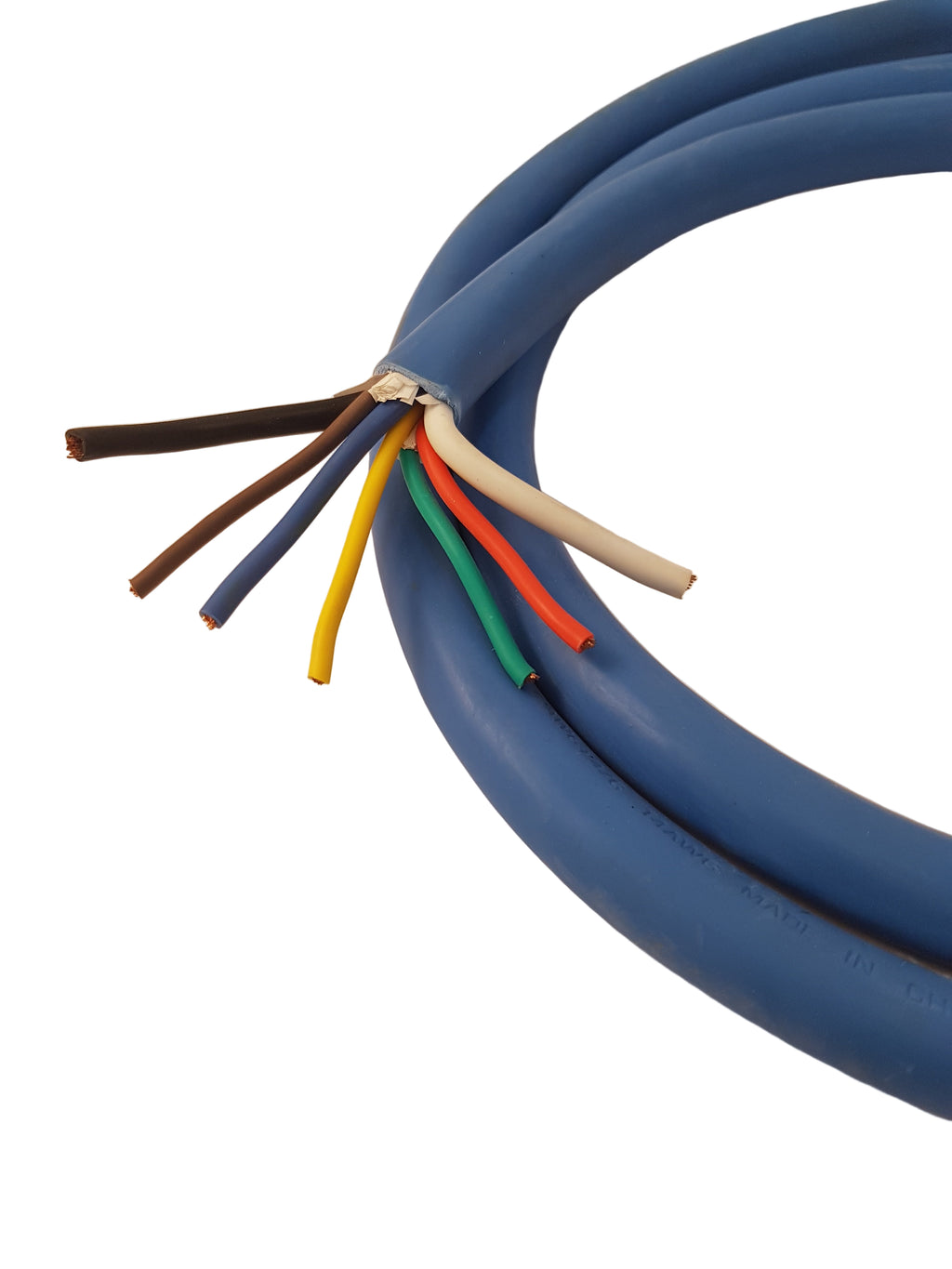

Heavy Duty Gauge Wires:
- 2x 10 AWG (White (ground) and Black( 12V POS),
- 1x 12 AWG (Blue), (Electric Brake)
- 4x 14 AWG -Red (left stop), Green (Marker light), Brown (right Stop), Yellow, (Back up)

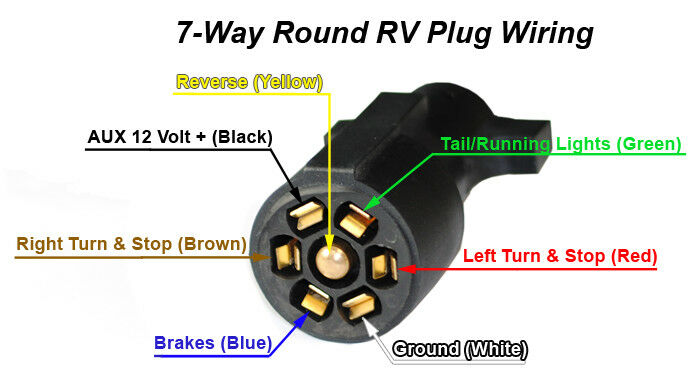

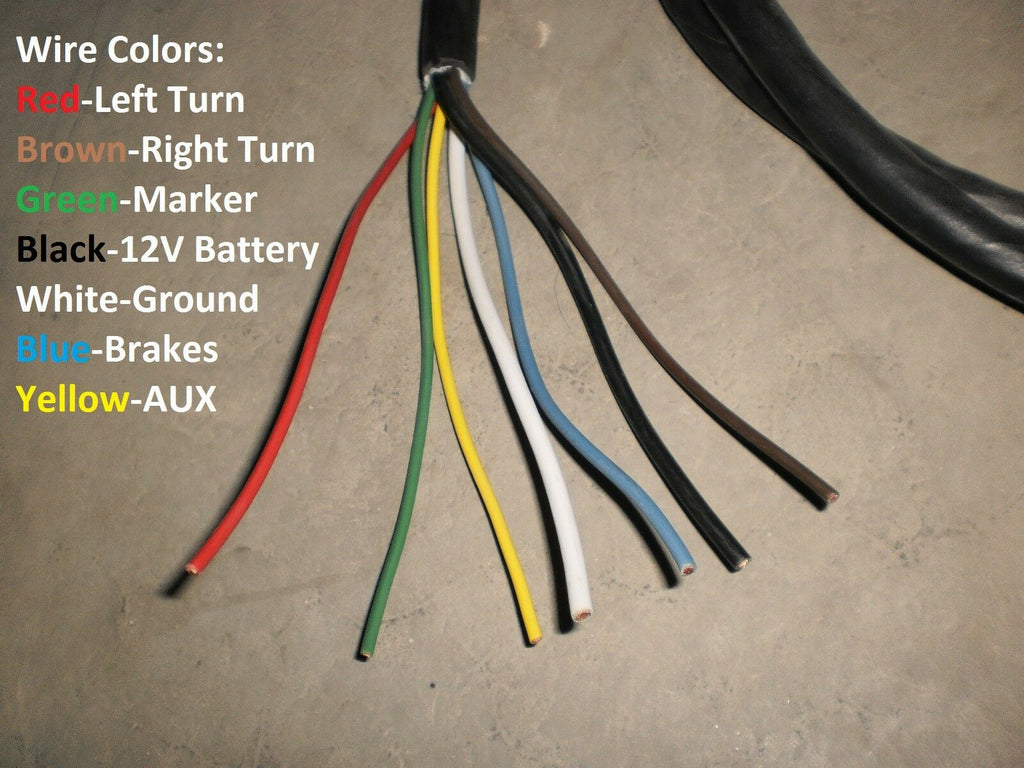

Need help sorting out the wire colors? Click here for help!
Please contact us if you have wire questions, we are a full service trailer repair shop, so we re-wire trailers daily! And remember, you can not depend on wire colors alone, you should test your particular trailer wire system. we offer phone assistance, but can not be responsible for improper wiring done by the customer..

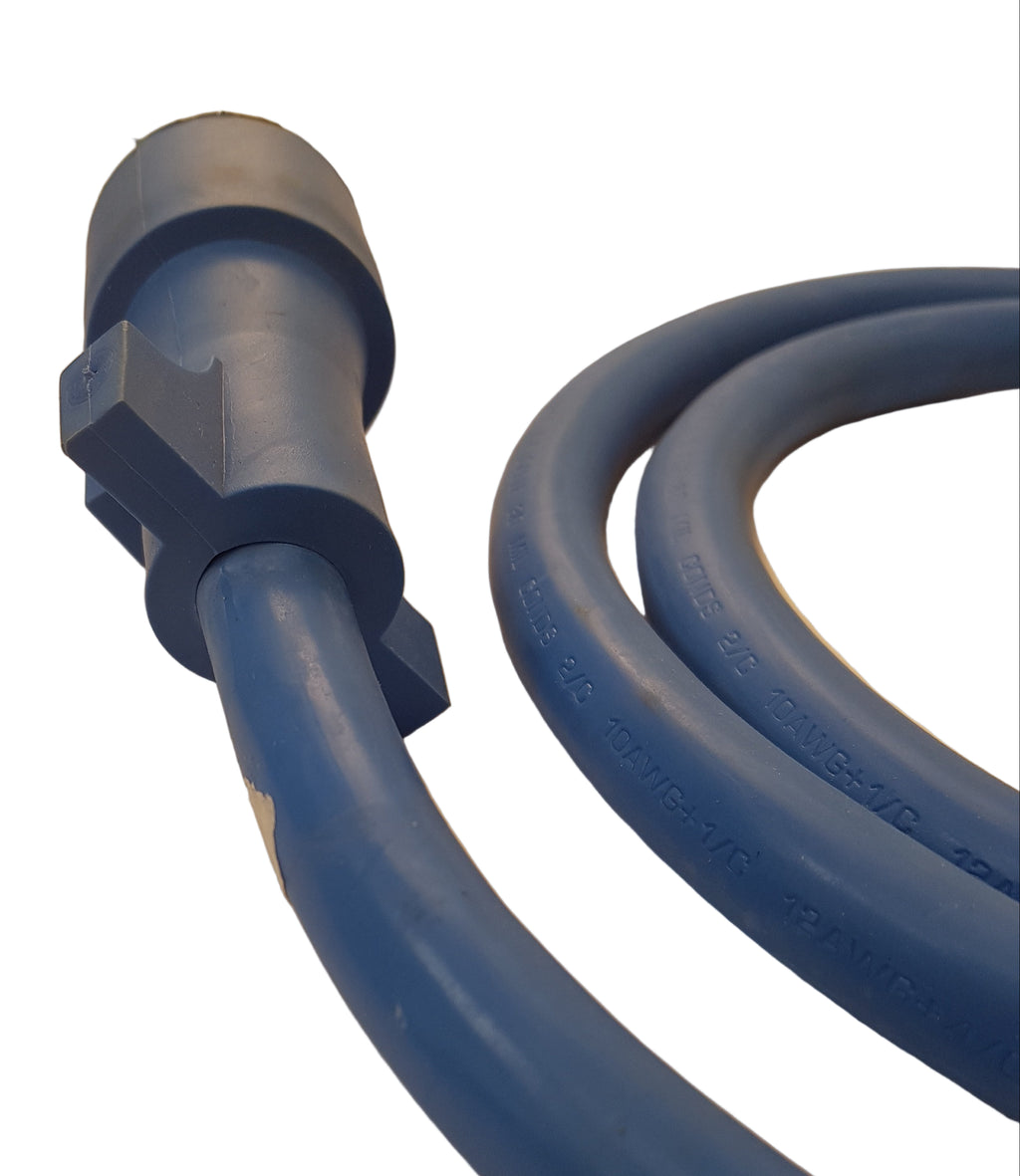

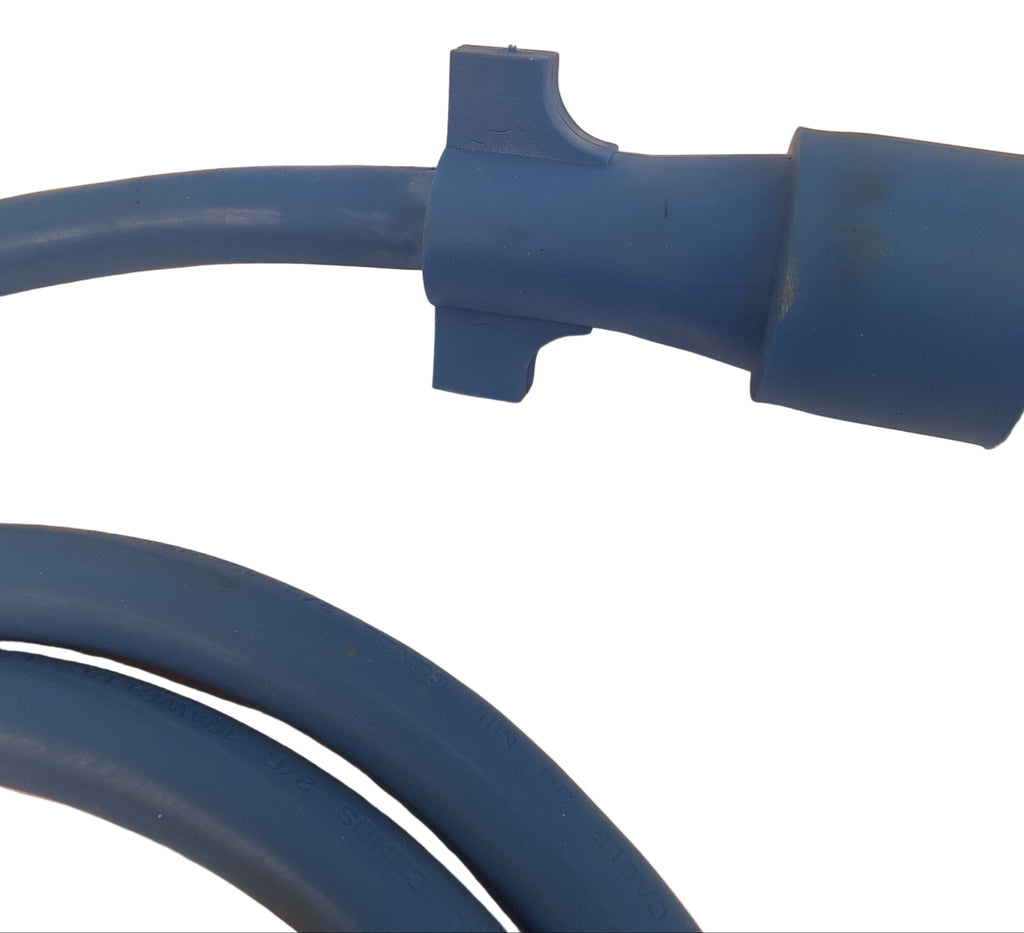

Trailer Connector RV Style 7-Way Blade with molded lead.
- Pre-wired 7-Way Trailer Connector
- length is including connector
- Wire gauges:
- 14 gauge - red, brown, green, and yellow
- 12 gauge - Blue
- 10 gauge - White and Black
