Electric Trailer Brake Assembly
Dexter 10" x 2.25" Electric Trailer Brake Assembly - 3.5K - 4 Bolt - Left Side
Left-hand Dexter electric trailer brake assembly for 3,500 lb axle applications using a 10" x 2.25" brake size and 4-bolt brake mounting flange.

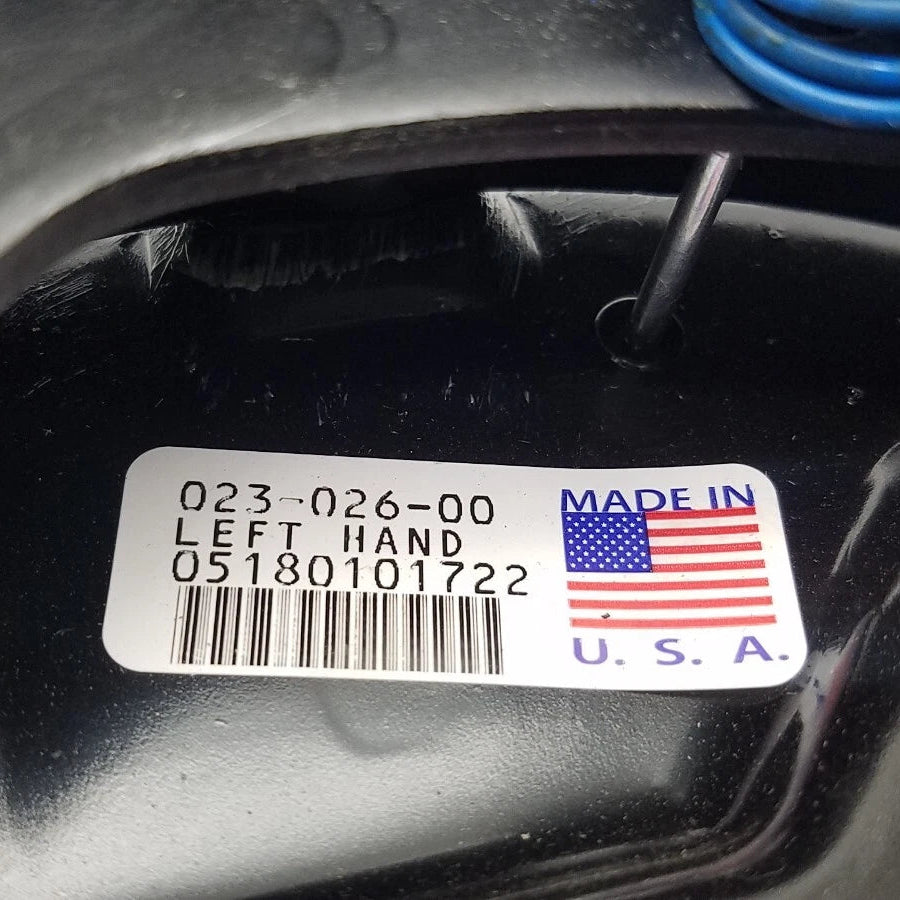

Part Number: 023-026-00 10" x 2.25" Brake Size Left-Hand Assembly
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 023-026-00 |
| Brand | Dexter |
| Product Type | Electric trailer brake assembly |

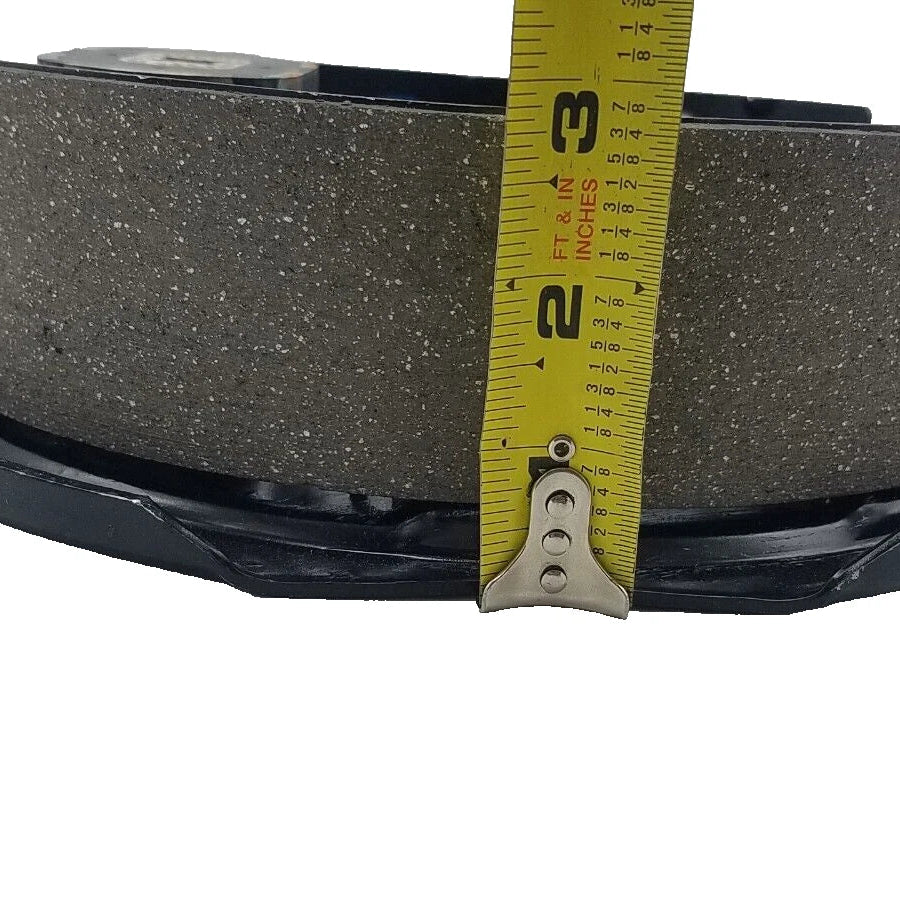

| Brake Size | 10" diameter x 2.25" shoe width |
| Axle Application | 3,500 lb trailer axle applications |

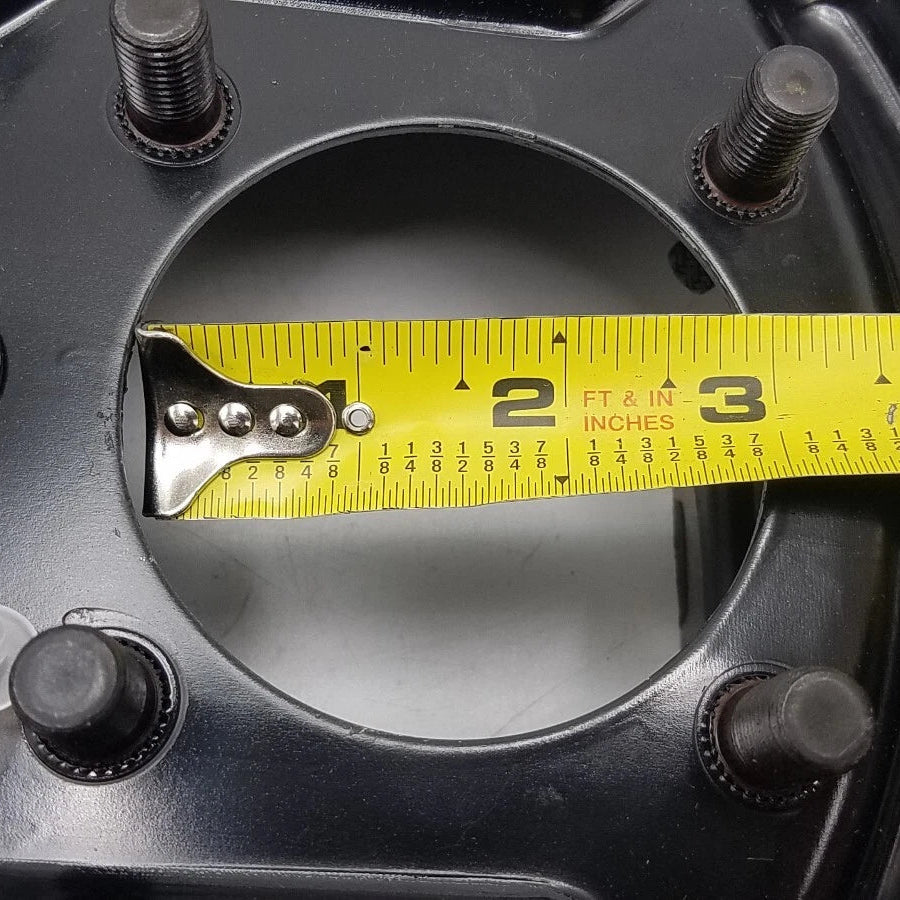

| Mounting Flange | 4-bolt brake mounting flange |
| Material / Finish | Not specified |
| Quantity Included | 1 left-hand brake assembly |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / Trailer / System | Trailer electric brake system |
| Primary Fit | 3,500 lb axles with 10" x 2.25" electric brakes |
| Brake Flange | 4-bolt mounting flange |
| Fitment Method | Verify brake size, axle rating, bolt pattern, and left-hand orientation against the existing brake assembly. |
| Important Note | This listing is for the left-hand brake assembly only. Right-hand brake assembly is not included. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Electric Brake Assembly | Replacement assembly for compatible electric trailer brake systems. |
| Left-Hand Configuration | Built for the left-hand side of compatible trailer brake setups. |
| 10" x 2.25" Size | Matches common 3,500 lb axle brake applications using this drum and shoe size. |
| 4-Bolt Mounting | Designed for Dexter-style 4-bolt brake mounting flanges. |
Overview
This Dexter 023-026-00 electric trailer brake assembly is designed for 3,500 lb trailer axle applications using a 10" x 2.25" brake setup. It is a left-hand brake assembly intended for 4-bolt brake mounting flanges. This is a practical replacement option when servicing worn, weak, damaged, or contaminated electric trailer brakes.
R&P Service Insight
When replacing trailer brakes, always confirm the brake size, axle rating, mounting flange pattern, and left/right orientation before ordering.
- Brake Size: Fits 10" x 2.25" electric brake applications.
- Mounting Pattern: Designed for 4-bolt brake mounting flanges.
- Side Orientation: This listing is for the left-hand brake assembly only.
R&P Knowledge Hub
Compatibility: Commonly used on 3,500 lb trailer axles equipped with 10" x 2.25" electric brakes.
Brake Flange Fit: Intended for Dexter-style 4-bolt brake mounting flanges.
Installation Notes: Verify left-hand orientation before installation. Brake wiring and final adjustment should be completed according to proper trailer brake service procedures.
Performance Insight: Replacing weak or worn brake assemblies can help restore trailer stopping performance, brake response, and safer towing control.
Brand & Fitment Note

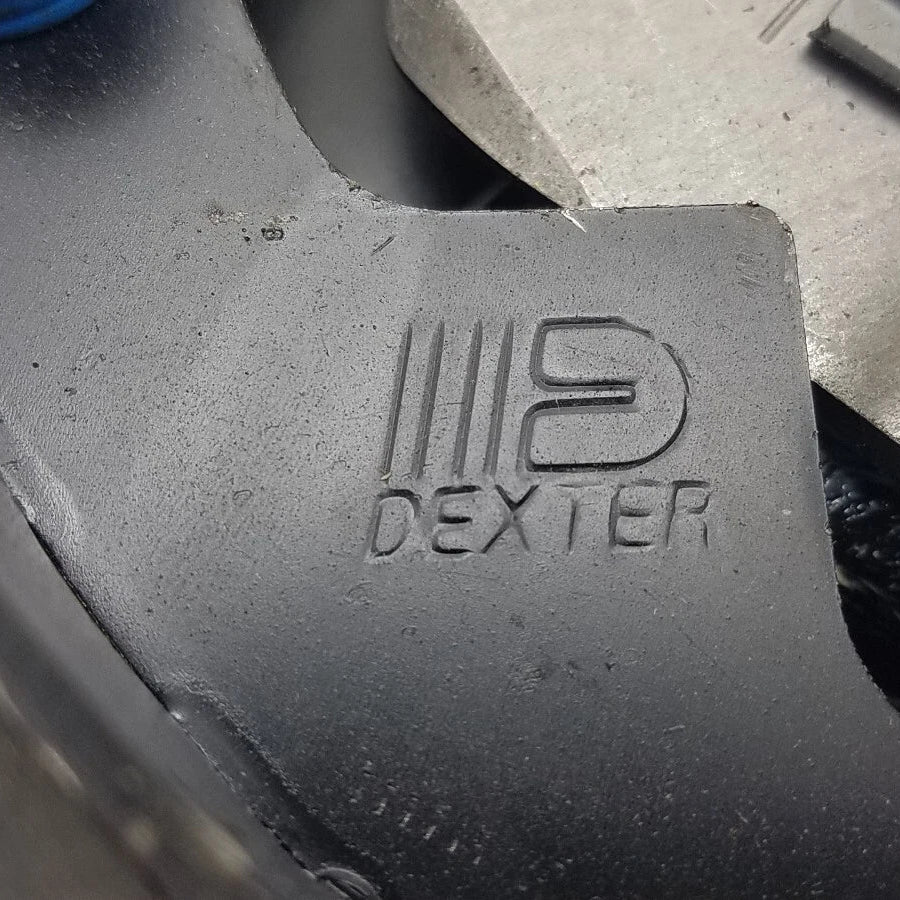

Selling Brand / Reference: Dexter - Part Number 023-026-00.
Application Reference: 3,500 lb trailer axle electric brake systems using 10" x 2.25" brake assemblies.
What This Listing Includes: One Dexter left-hand electric trailer brake assembly.
Before Ordering: Confirm your existing brake size, axle rating, flange bolt pattern, and left/right side requirement.
R&P Repair Insight
Electric brake assemblies should be inspected when braking feels weak, uneven, noisy, delayed, or inconsistent. Also check for grease contamination, worn shoes, damaged magnets, poor wiring connections, or out-of-adjustment brake shoes.
- Inspect the Drum: Check for scoring, heat damage, uneven wear, or grease contamination.
- Check Wiring: Make sure brake wiring, grounds, and connectors are clean and secure.
- Adjust After Install: Electric brakes require proper adjustment and break-in for best performance.
Features
Electric Brake Assembly
Designed for electric trailer brake systems commonly used on 3,500 lb trailer axles.
Left-Hand Configuration
This listing is for the left-hand brake assembly. Confirm trailer side before ordering.
10" x 2.25" Brake Size
Built for trailer brake applications using a 10" drum diameter and 2.25" shoe width.
4-Bolt Mounting Pattern
Designed for Dexter-style 4-bolt brake mounting flanges found on many 3,500 lb axle setups.
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexter 023-026-00 left-hand electric trailer brake assembly |
| Not specified | Additional mounting hardware is not specified unless shown separately in product photos or order details. |
Important Fitment Note: Verify brake size, axle rating, 4-bolt mounting flange pattern, drum condition, wiring condition, and left-hand side orientation before installation. This listing is for one left-hand electric trailer brake assembly only.
