Replace Your
Right Brake with a
5 x 5.5 Bolt Pattern Drum and
a Right 10" Backing Plate
Part#: 94555-B-IMP-R
Right Brake with a
5 x 5.5 Bolt Pattern Drum and
a Right 10" Backing Plate
Part#: 94555-B-IMP-R

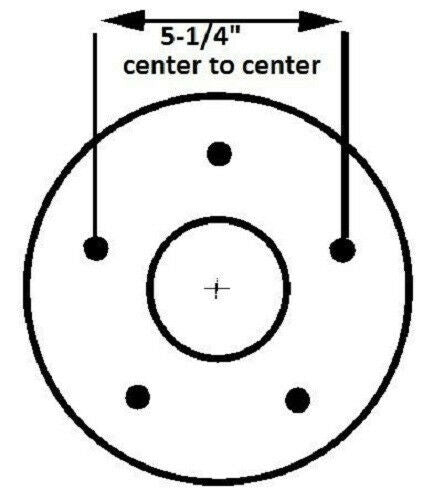

(5-1/4" Stud Spacing)
If you have a trailer with a bad left brake that needs to be replaced, this kit has what you will need. This kit fits standard 3500# axle, either Spring or Torsion, EZ lube or Standard. Complete Trailer Brake Setup, with drums, seals, Bearings, Brake shoes, new hardware, backing plates, for one side of an axle!
for 3500# axles from Dexter, AL-KO, AXIS, Quality, and others!
In addition, you should see a small square plate welded to the axle tube, with 4 holes, (to bolt the brake plate to) and your axle tube will be about 2 1/4" OD
If you have a trailer with a bad left brake that needs to be replaced, this kit has what you will need. This kit fits standard 3500# axle, either Spring or Torsion, EZ lube or Standard. Complete Trailer Brake Setup, with drums, seals, Bearings, Brake shoes, new hardware, backing plates, for one side of an axle!
for 3500# axles from Dexter, AL-KO, AXIS, Quality, and others!
Most 5 bolt wheel trailers are 3500# axles. (does yours have a 2-3/8" axle tube?) Some small trailers (usually with small tires and a 1-5/8" axle tube) will have the smaller spindles, and for those you will need a smaller (or larger) brake kit
Measurements from Center Bolt Hole to Center Bolt Hole is 2 7/8" on Backing Plate

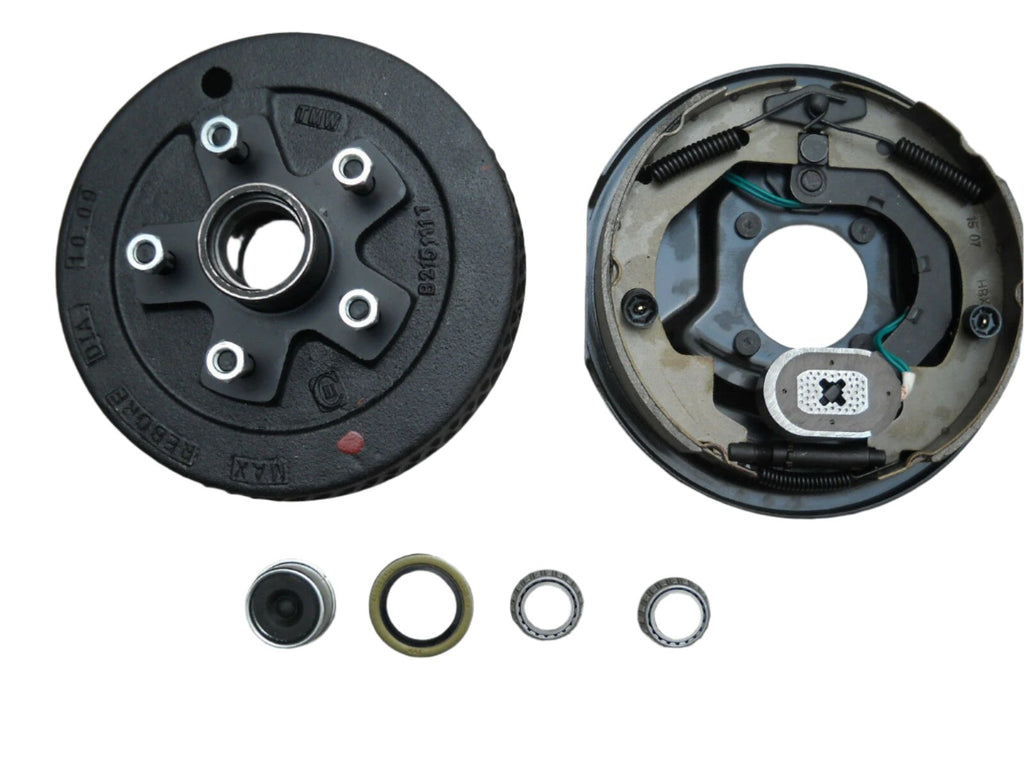

This Kit Includes:

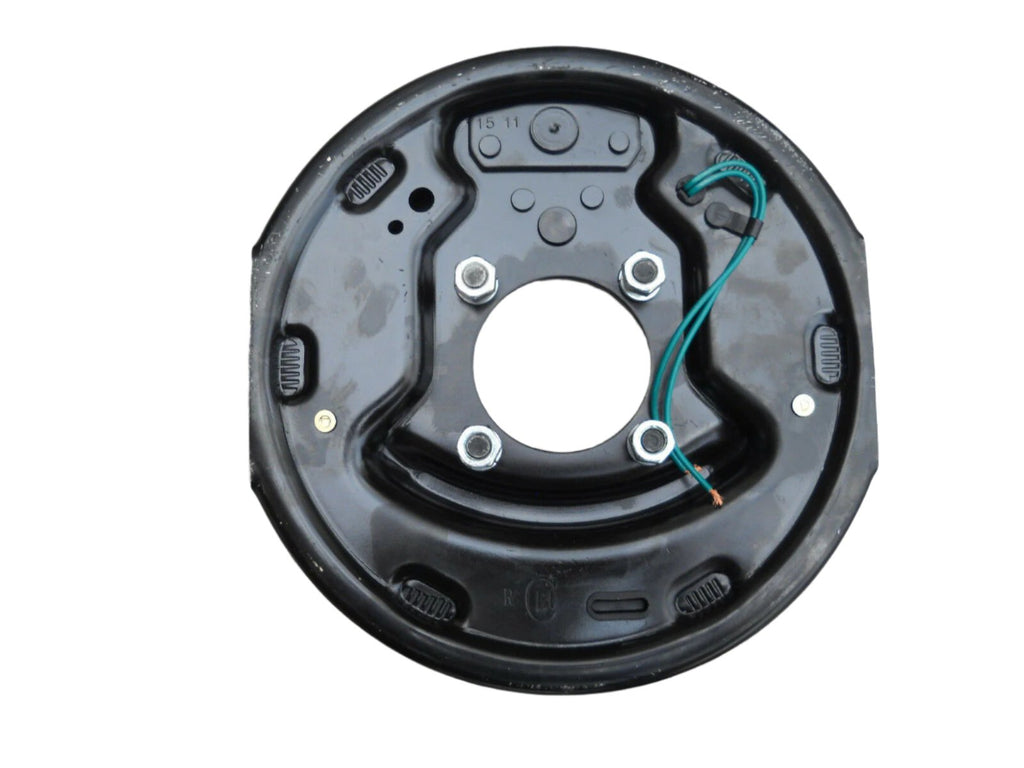

ONE- RIGHT Brake backing plate, 3500# per pair, 10" x 2.25

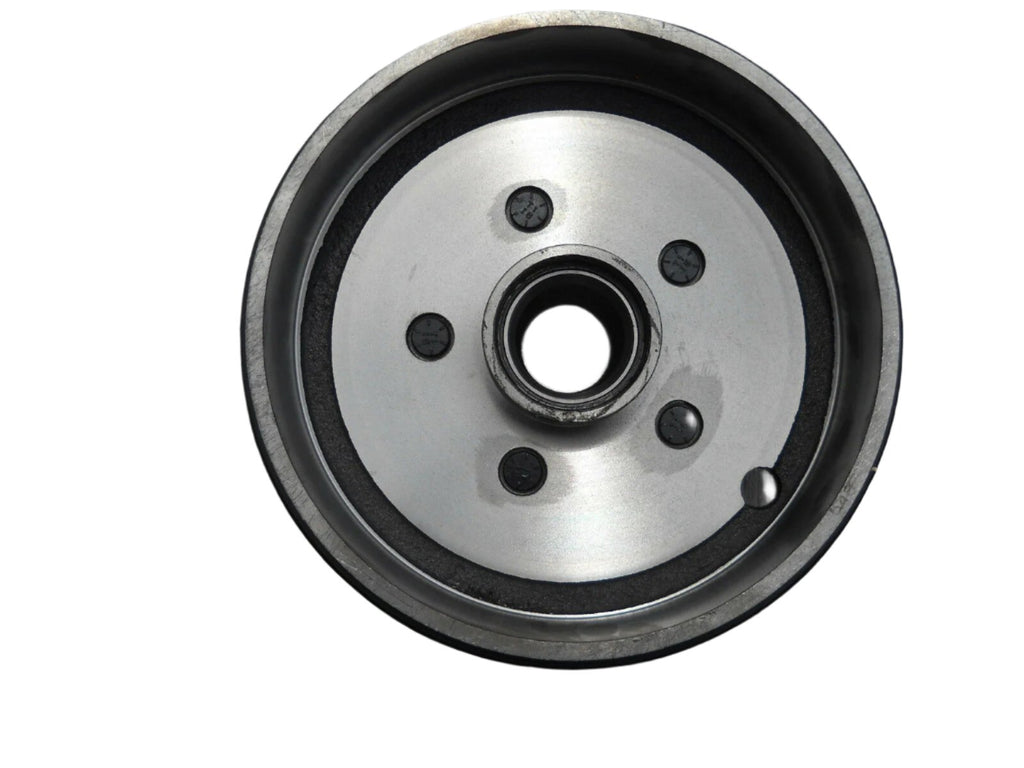

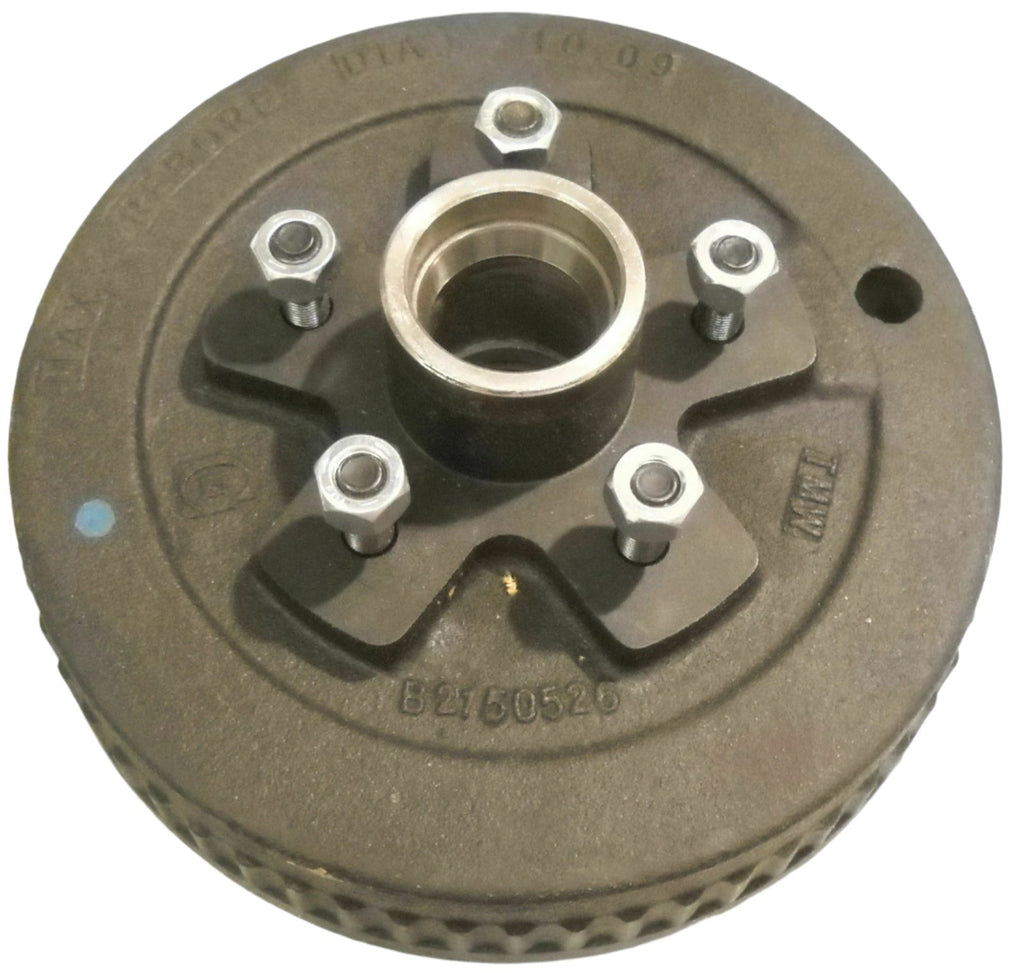

ONE - New 10" brake drum, 5.5" bolt pattern with races already pressed in (click here for other bolt patterns sizes)
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals

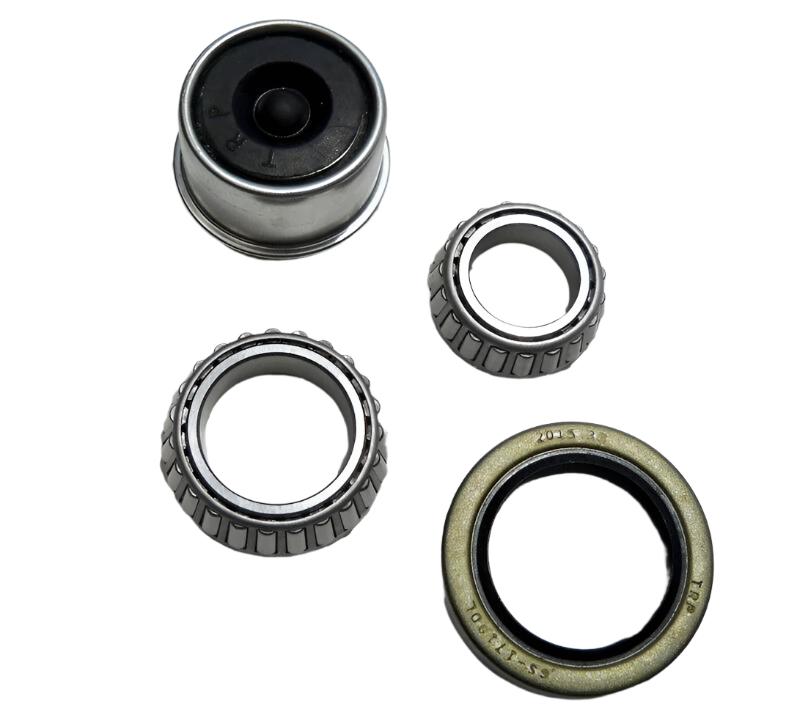

All New Wheel Bearings (Shipping loose with kit):
ONE- 1.7" 10-19 seal
ONE- L44649 bearing
ONE- L68149 bearing
FIVE- Matching lug nuts, 1/2-20
ONE- New EZ Lube Dust Cap
ONE - New 10" brake drum, 5.5" bolt pattern with races already pressed in (click here for other bolt patterns sizes)
All hardware to attach backing plates to axle mount plate (special 7/16 nuts).
All brake hardware, springs, levers, magnets, shoes, etc.
New inner grease seals
All New Wheel Bearings (Shipping loose with kit):
ONE- 1.7" 10-19 seal
ONE- L44649 bearing
ONE- L68149 bearing
FIVE- Matching lug nuts, 1/2-20
ONE- New EZ Lube Dust Cap
In addition, you should see a small square plate welded to the axle tube, with 4 holes, (to bolt the brake plate to) and your axle tube will be about 2 1/4" OD
If you have a 2.75" axle tube, it is the larger 5200, 6000, or 7000# axle
If you have the smaller 1-5/8" axle tube, it has the smaller 2000/2200# axle
This auction is for a trailer with a 5 bolt, 5.5" bolt pattern! I stock all sizes, so please check my other auctions or specify you want a different size!
