Install Your Own Brake Controller – Hard Wire Kit
Complete hard-wire installation kit for installing a trailer brake controller in a tow vehicle. Includes wiring, connectors, mounting hardware, breaker, and 7-way components required for universal installations.
Brake controller is NOT included. This kit is not vehicle-specific and requires knowledge of automotive wiring.
R&P Knowledge Hub

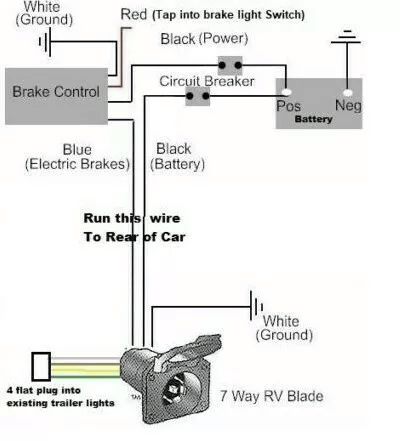

Hard-wiring a brake controller involves routing a dedicated brake signal wire to the rear of the vehicle, providing 12V power protection through a circuit breaker, and ensuring a proper ground connection.
Always confirm wiring diagrams for your vehicle before installation. Improper connections can damage electrical systems or brake components.
Features
- Universal brake controller hard-wire kit

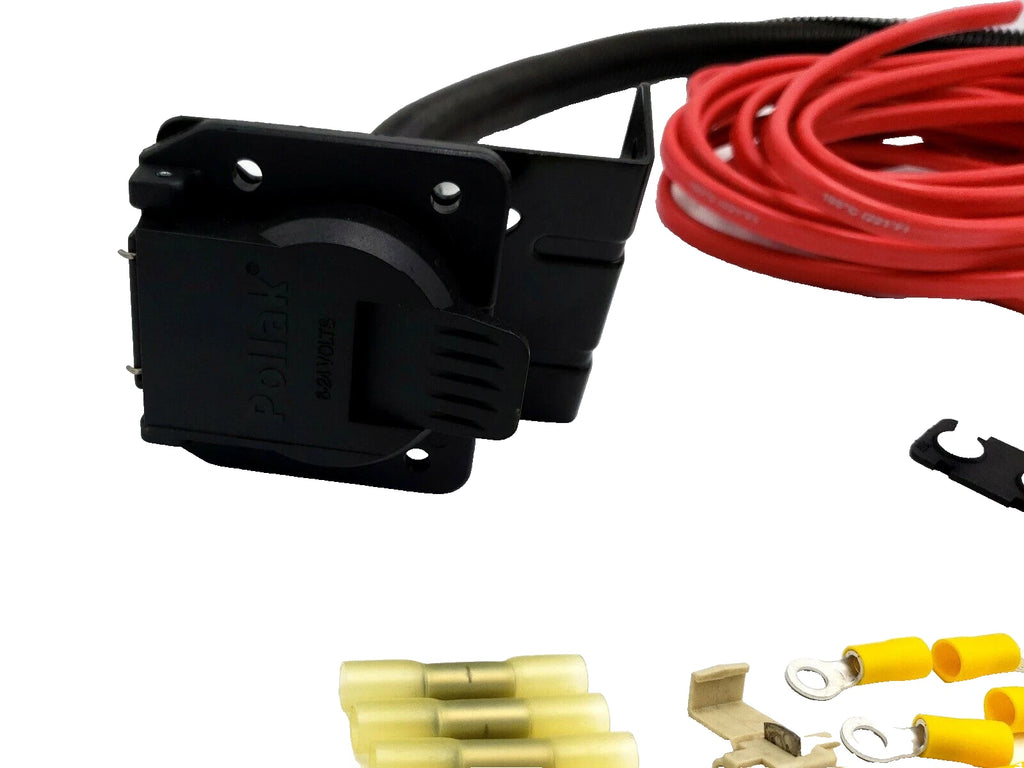

- Includes vehicle-side 7-way blade plug
- Includes mounting bracket for 7-way connector
- Includes circuit protection and hardware
- Instruction sheet included

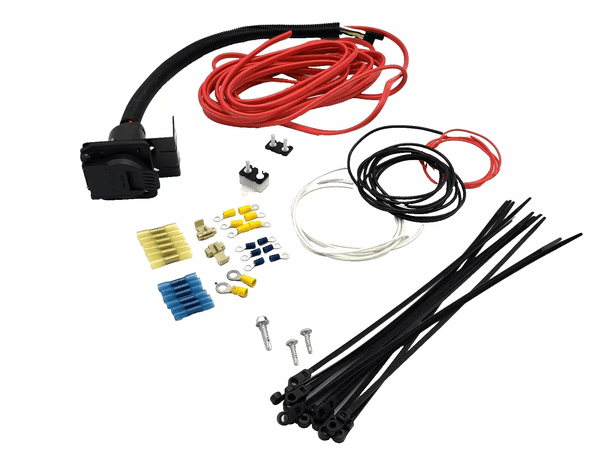

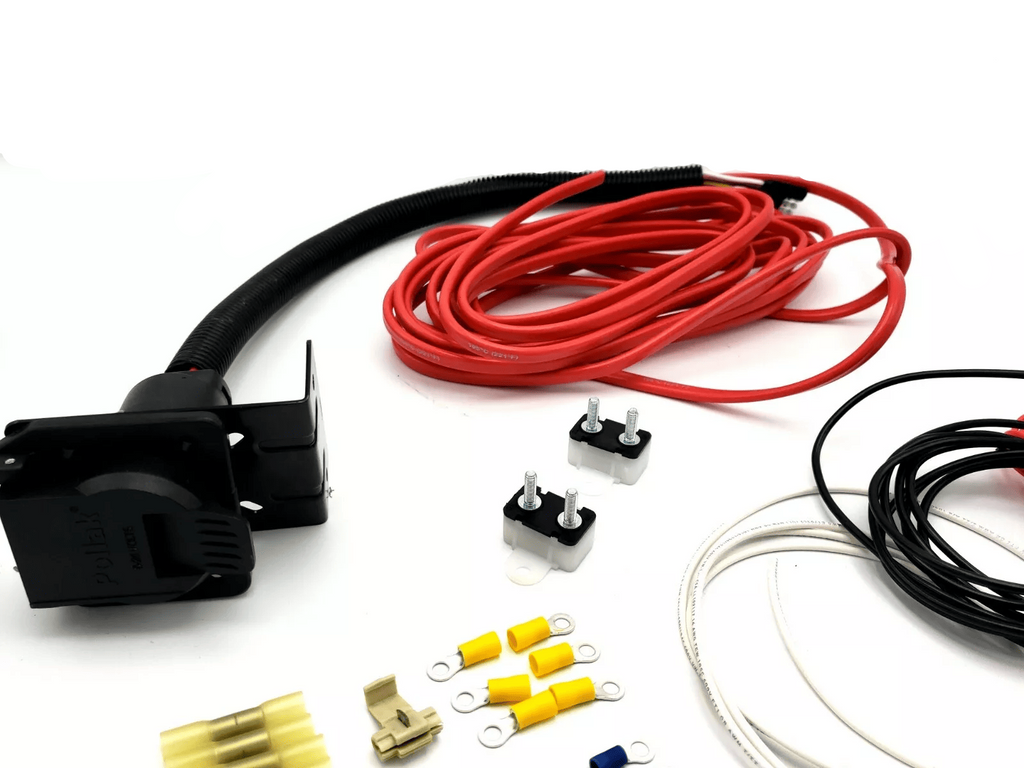

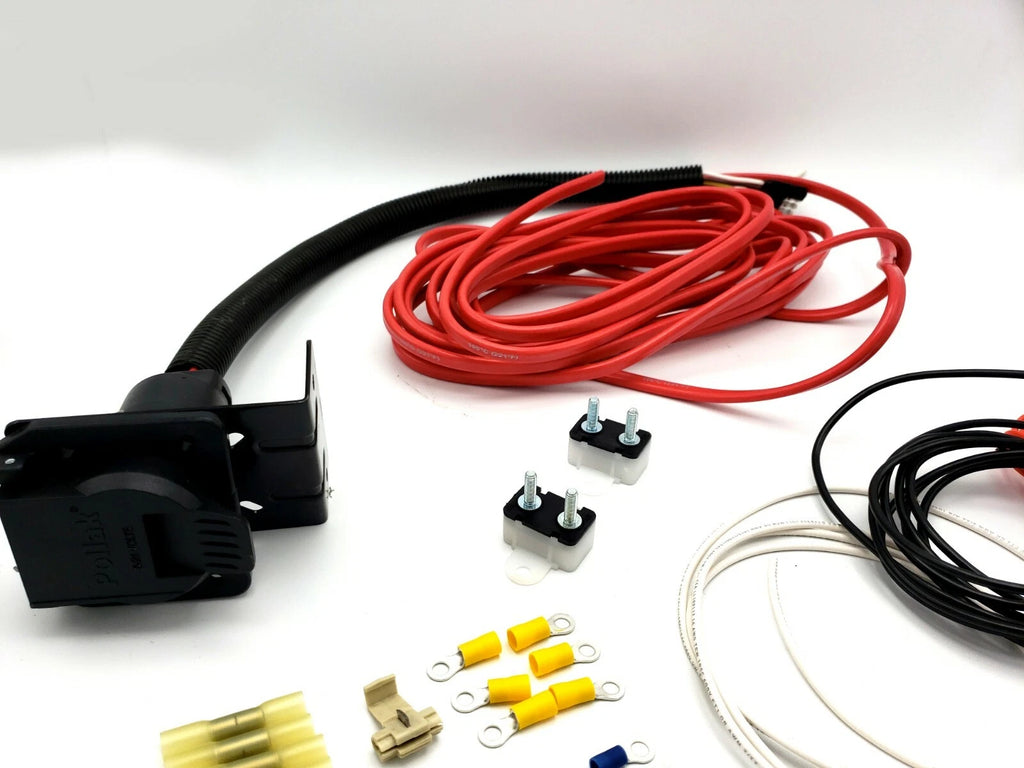

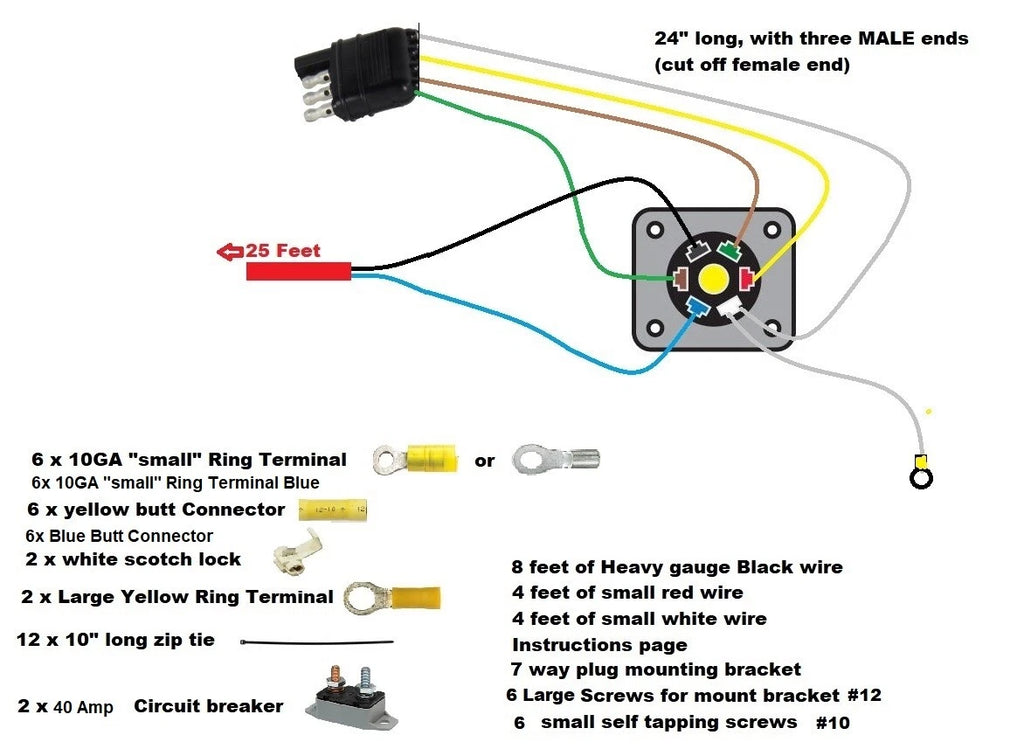

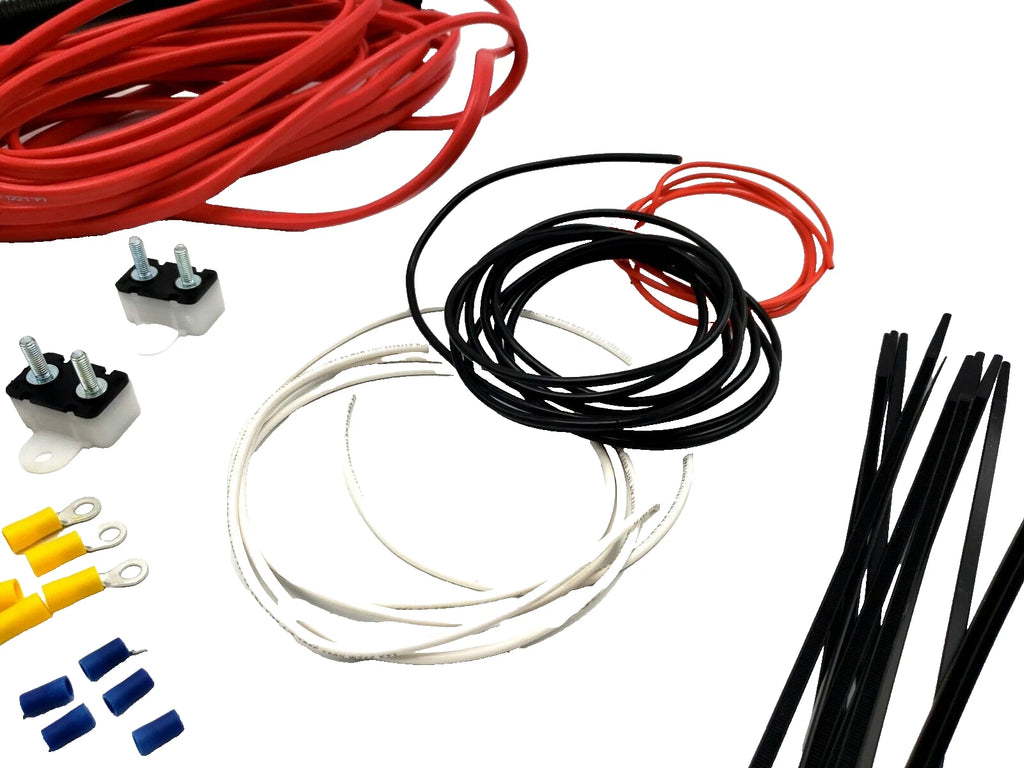

What’s Included
| Component | Quantity |
| BCCK Base Controller Wiring Kit | 1 |

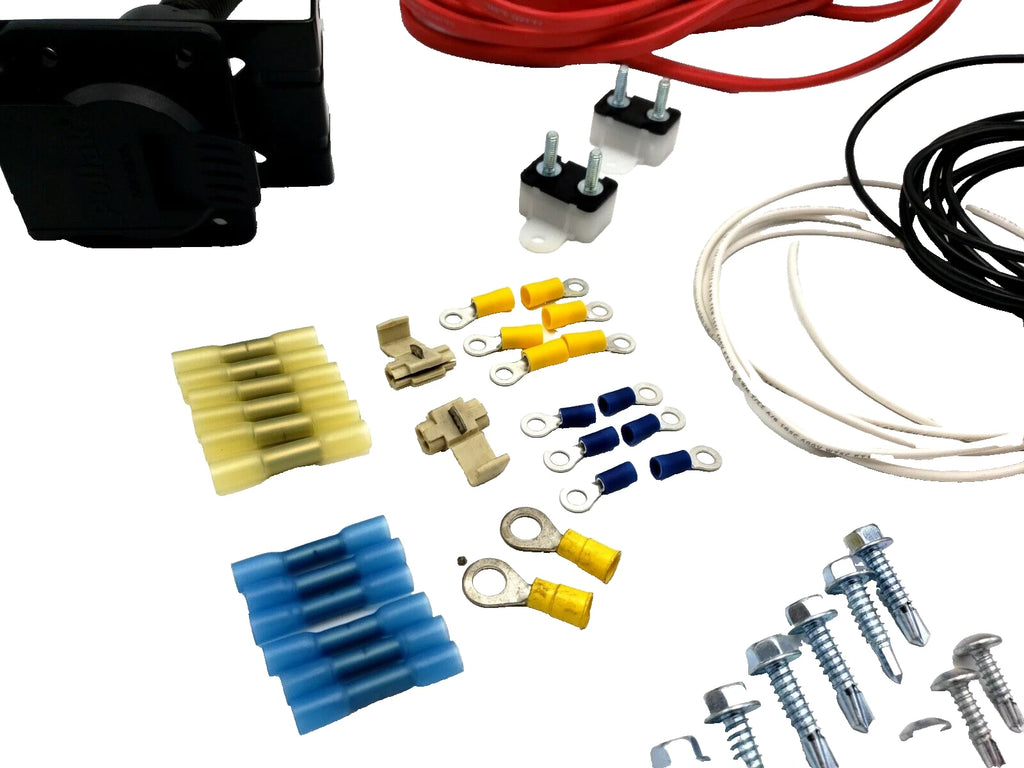

| Yellow Small Ring Terminals | 6 |
| Blue Small Ring Terminals | 6 |
| Scotch Locks | 2 |
| Large Yellow Ring Terminals | 2 |
| Yellow Butt Connectors | 6 |
| Blue Butt Connectors | 6 |
| 12/2 Brake Wire (Black & Blue) | 26 ft |
| Heavy Gauge Black Wire | 8 ft |
| Small Red Wire (14 GA) | 4 ft |
| Small White Wire | 4 ft |
| Brophy Universal 7-Way Mounting Bracket (BKU7) | 1 |
| 7 Way Blade Truck End Plug (12-707) | 1 |
| 24" 4-Flat Trailer Extension (412-24) | 1 |
| 20 Amp Circuit Breaker (B20A) | 2 |

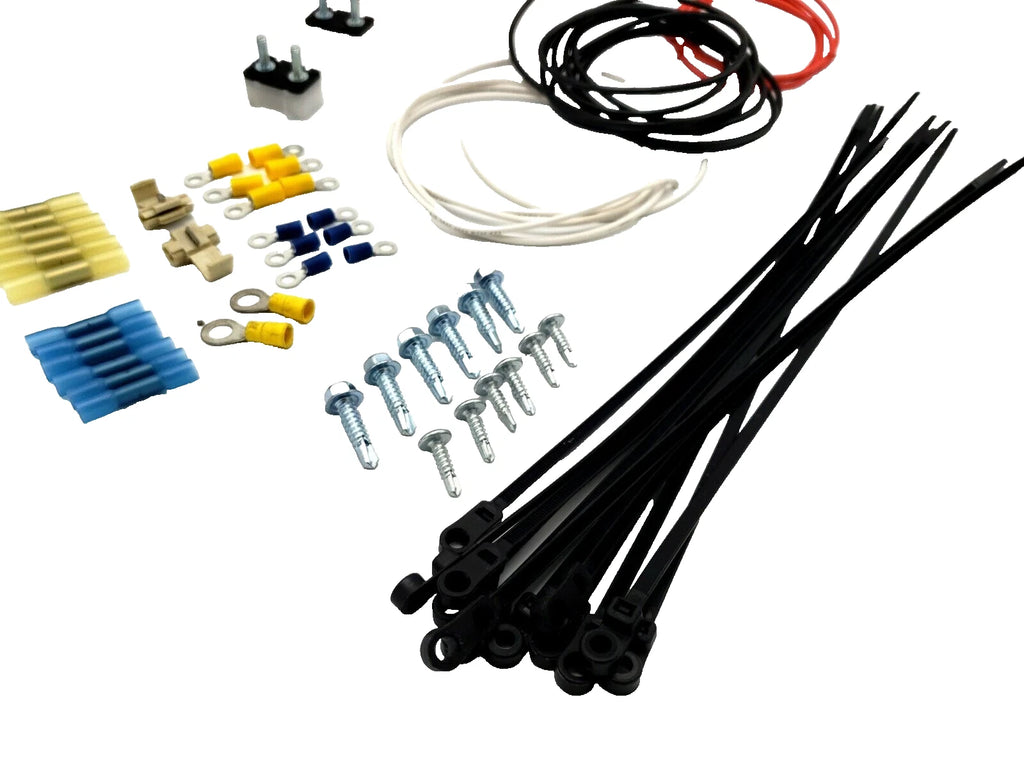

| Self Tapping & Self Drilling Screws | Various |
| 11" Zip Ties | 12 |
| Instruction Sheet | 1 |
Verify specifications before installation.
