Brake Flange – 7,200 lb & 8,000 lb Trailer Axles – 4 Bolt – 2.53" Pilot – 4.62" Square

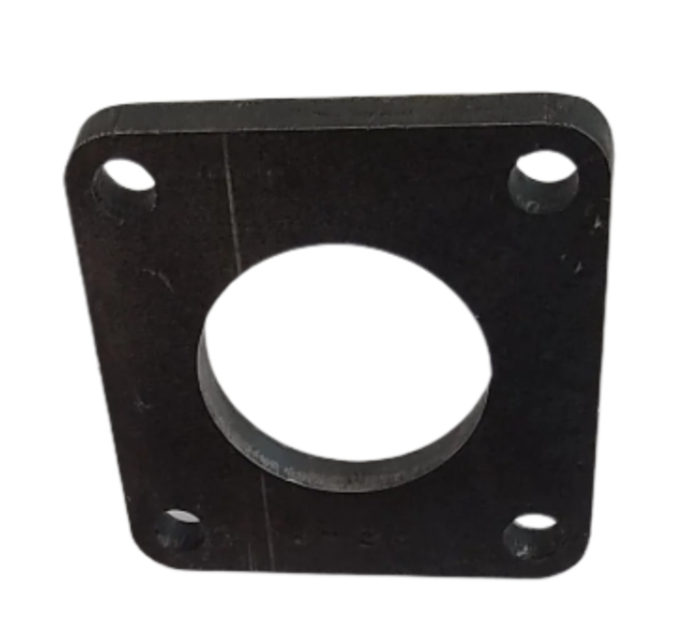

Brake mounting flange designed for 7,200 lb and 8,000 lb trailer axles. This weld-on flange provides the mounting surface required for compatible electric or hydraulic brake backing plate assemblies.
Commonly used on heavy-duty equipment, utility, and enclosed trailers utilizing 7K–8K axle configurations.
Specifications
| Specification | Detail |
| Axle Compatibility | 7,200 lb & 8,000 lb Trailer Axles |
| Mounting Holes | 4 Bolt Pattern |
| Overall Pattern | 4.62" Square |
| Pilot (Center) Hole | 2.53" |
| Hole Diameter | 0.51" |
| Material Thickness | 0.425" |
| Installation Type | Weld-On |
R&P Knowledge Hub
Brake flanges are welded directly to the axle tube and serve as the mounting surface for electric or hydraulic brake backing plates. The 2.53" pilot centers the brake assembly while the 4.62" square bolt pattern secures it in place.
Proper alignment during welding is critical. Confirm axle rating, brake size compatibility, bolt pattern, pilot diameter, and square dimensions before installation. Incorrect flange selection can result in improper brake alignment and premature wear.
IMPORTANT: Confirm axle rating, pilot size, square pattern, and hole diameter before welding. Professional installation recommended.
