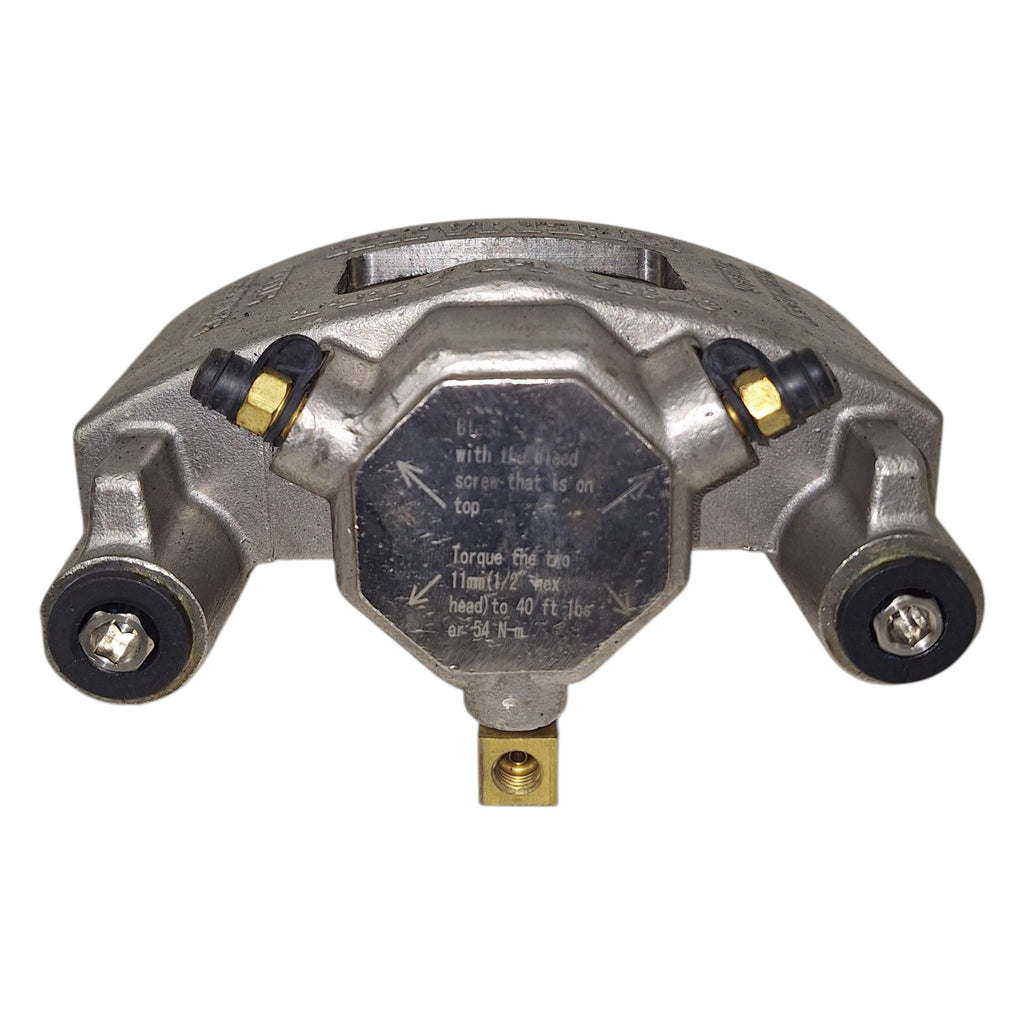

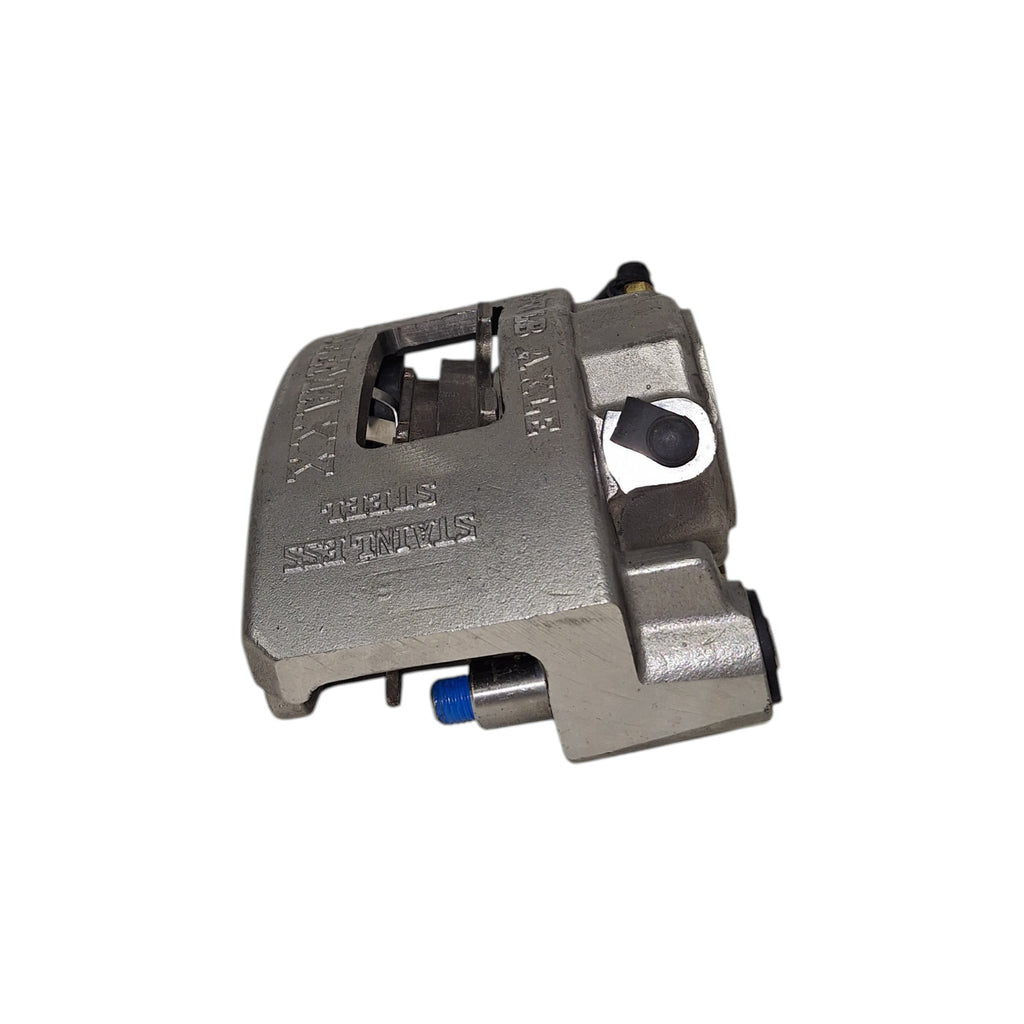

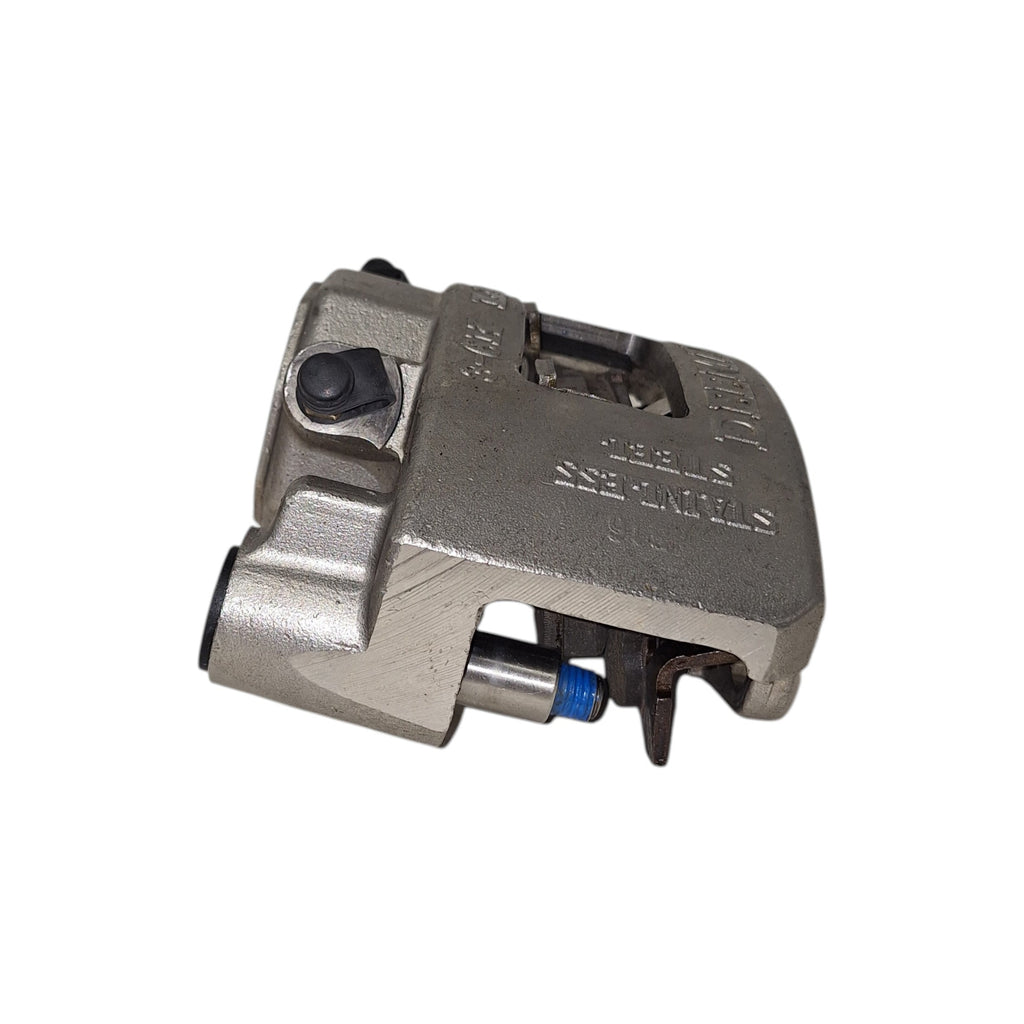

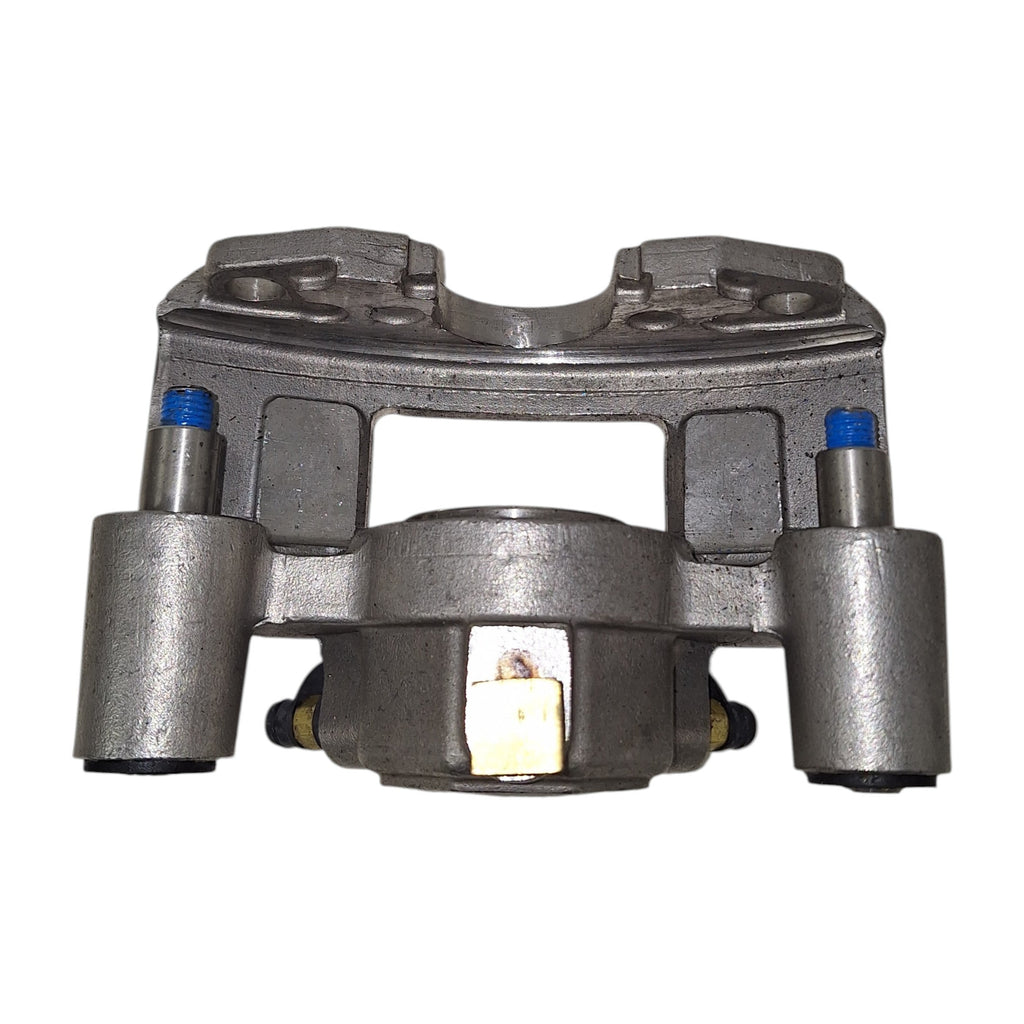

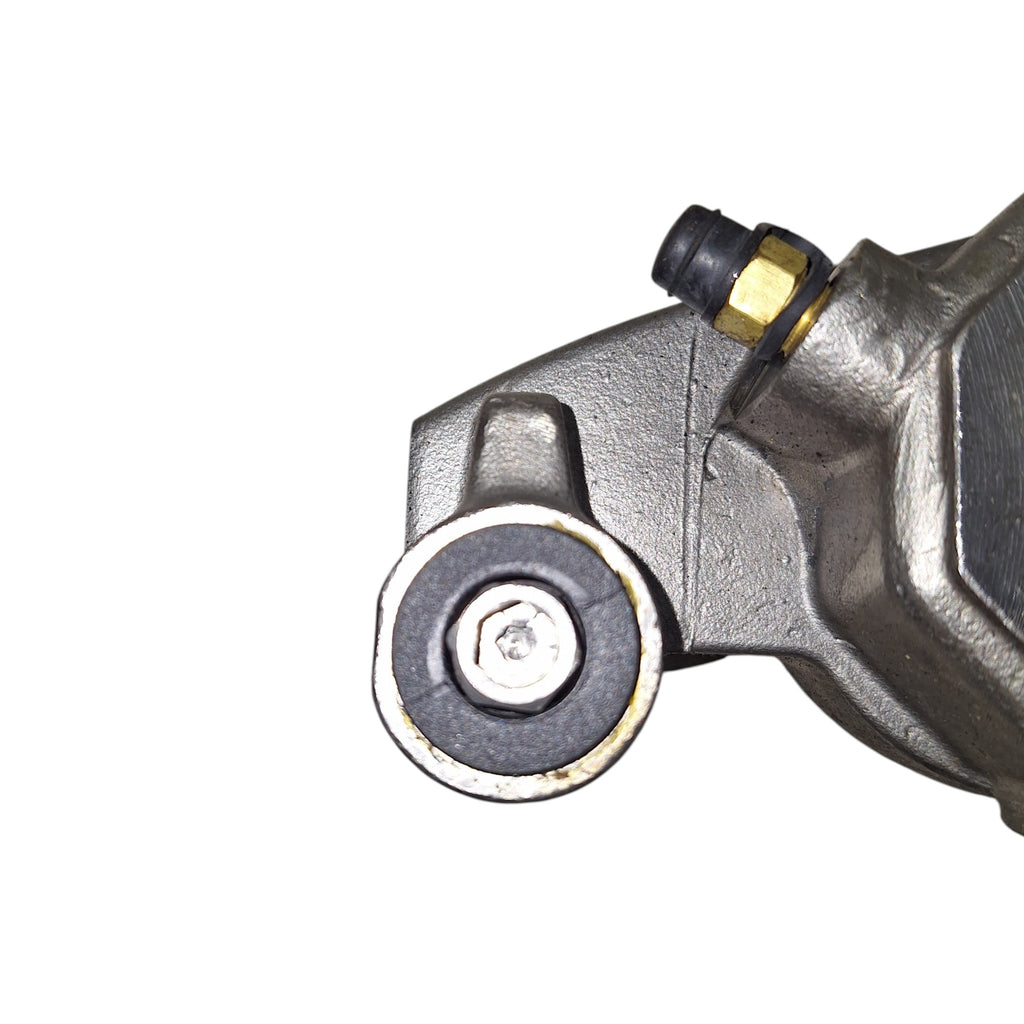

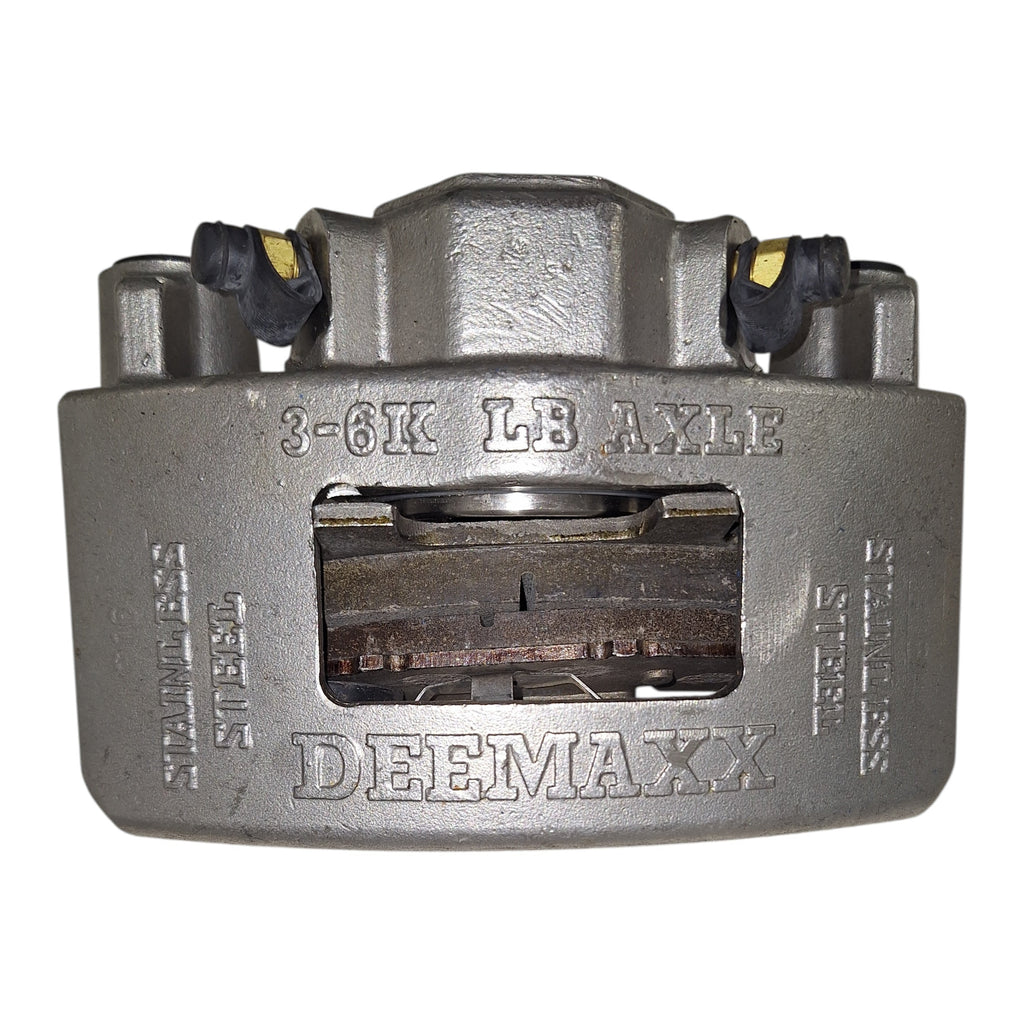

DeeMaxx Stainless Steel 3.5K-6K Trailer Brake Caliper with Ceramic Pads
This premium DeeMaxx all-stainless steel caliper provides ultimate corrosion protection for boat and utility trailers. It delivers consistent stopping power in harsh saltwater environments and is a direct, high-performance replacement for industry-standard 3,500lb to 6,000lb brake systems.
R&P Knowledge Hub
Compatibility: Direct interchange for Kodiak DBC-225-D calipers. Fits most standard 10" and 12" disc brake setups using a 2-1/4" piston.
Vehicle / System Fit: Optimized for marine trailers (saltwater/freshwater) and heavy-duty utility trailers with 3,500lb to 6,000lb axles.
Installation Notes: Ensure your mounting bracket matches your axle capacity (4-bolt for 3.5K, 5-bolt for 6K). Use only high-quality brake fluid and bleed the system thoroughly after installation.
Performance Insight: The all-stainless construction prevents the common "seizing" seen in cast iron calipers, while ceramic pads offer superior heat dissipation and quieter operation compared to metallic pads.
Features
- Fully Loaded: Comes "ready to rock" with high-quality Ceramic Brake Pads and stainless steel mounting pins included.
- Floating Design: Single-piston floating architecture allows the caliper to self-center, reducing uneven wear and preventing brake "drag."
- Bi-Directional Fit: Non-side-specific design; the same unit works perfectly on either the driver (Left) or passenger (Right) side.
- Ceramic Pad Technology: Engineered to handle higher temperatures for more consistent stopping power and a quieter ride than semi-metallic pads.
Specifications
| Specification | Detail |
| Type | Hydraulic Disc Brake Caliper |
| Application | Marine / Boat and Utility Trailers |
| Fitment | Direct Replacement for Kodiak DBC-225-D |
| Material / Finish | Full Stainless Steel (Body, Piston, and Pins) |
| Key Measurement | 3,500 - 6,000 lb. Axle Rating |

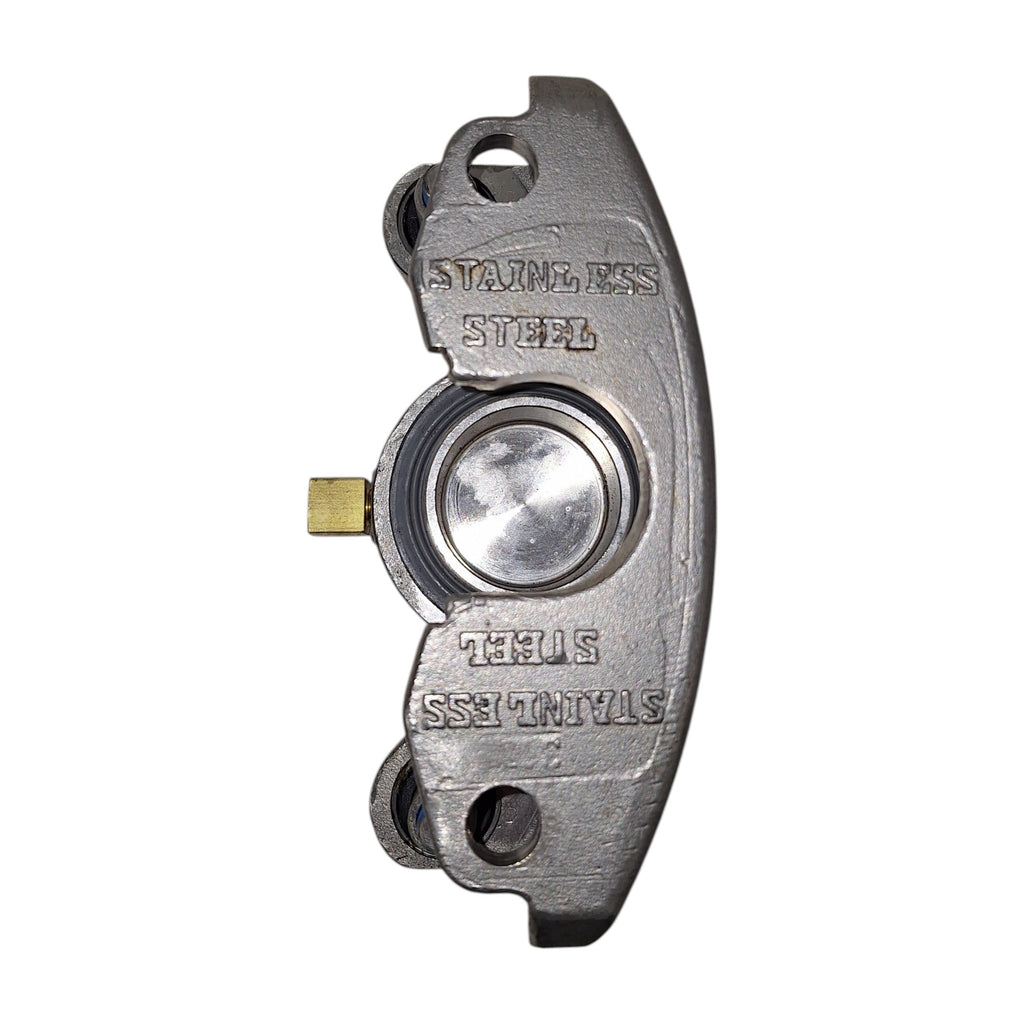

| Piston Size | 2.25 inches (Large single piston) |
Fitment / Application
| Category | Details |
| Vehicle / System | Trailer Disc Brake Systems |
| Axle / Capacity | Fits 3,500lb, 5,200lb, and 6,000lb Axles |
| Notes | Compatible with 10" and 12" Slip-on or Integral Rotors. |

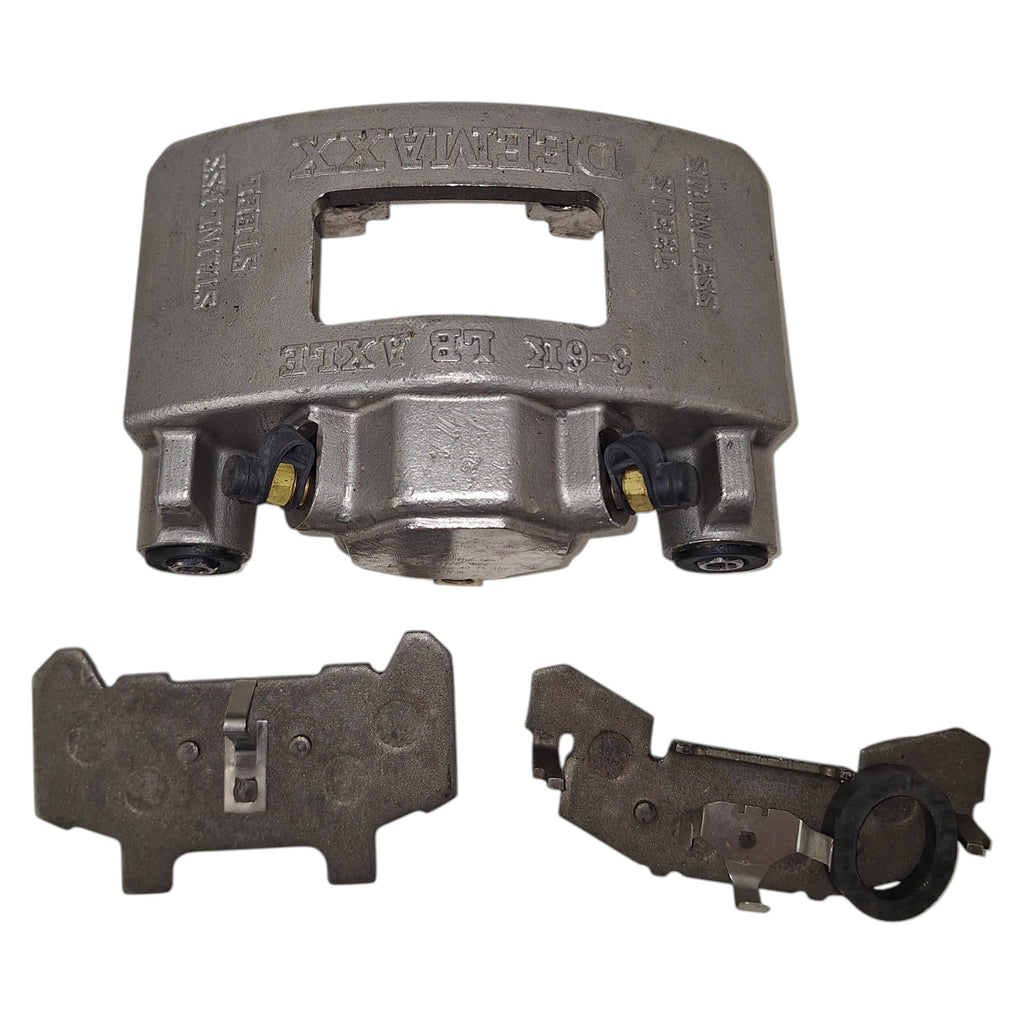

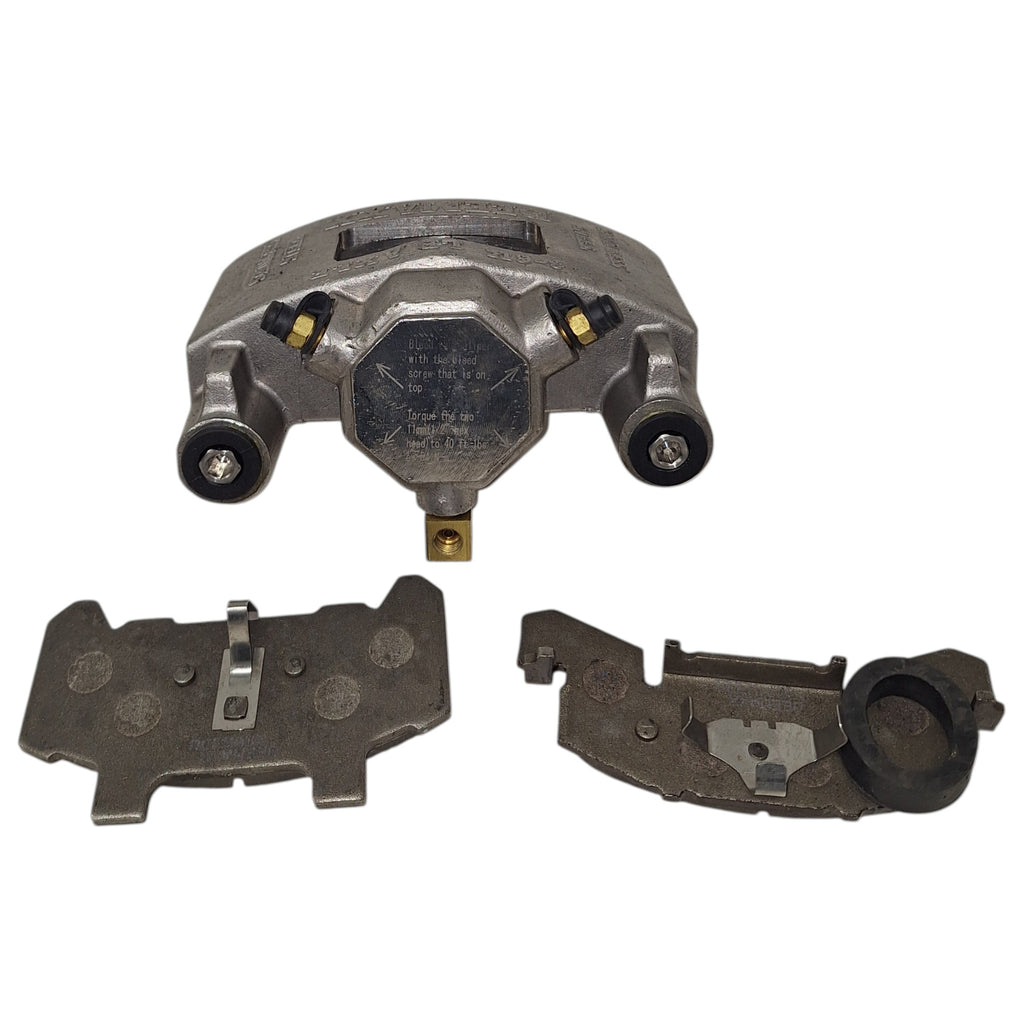

Included Components
| Quantity | Item |
| 1 | DeeMaxx Stainless Steel Caliper Body |
| 2 | Ceramic Brake Pads (Installed) |
| 2 | Stainless Steel Mounting Guide Bolts/Pins |

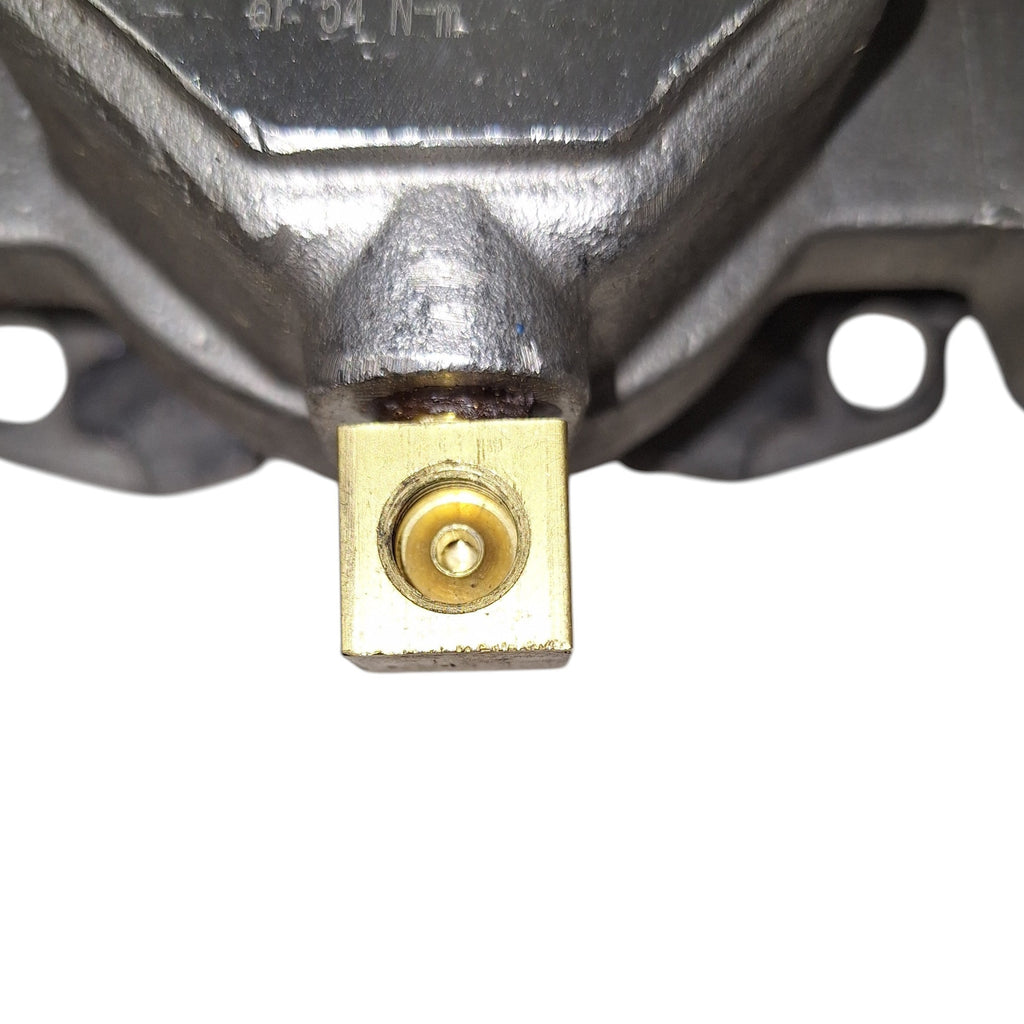

Verify all specifications, measurements, and compatibility before installation. This caliper uses a 3/16" Brass Flare Fitting for the inlet port.
