Single Axle Rebuild Kit with 2" Shackles, LF-205-1K Leaf Springs, and Mounting U-Bolts
Part Number: CSRK-SA-SB-2-LF-205-1K
This is a complete single axle suspension rebuild kit intended for light-duty trailers using double-eye leaf springs. The kit includes matched suspension components designed to work together on a 2,000 lb rated single axle.
Features
- Single axle rebuild kit for double-eye leaf spring suspension

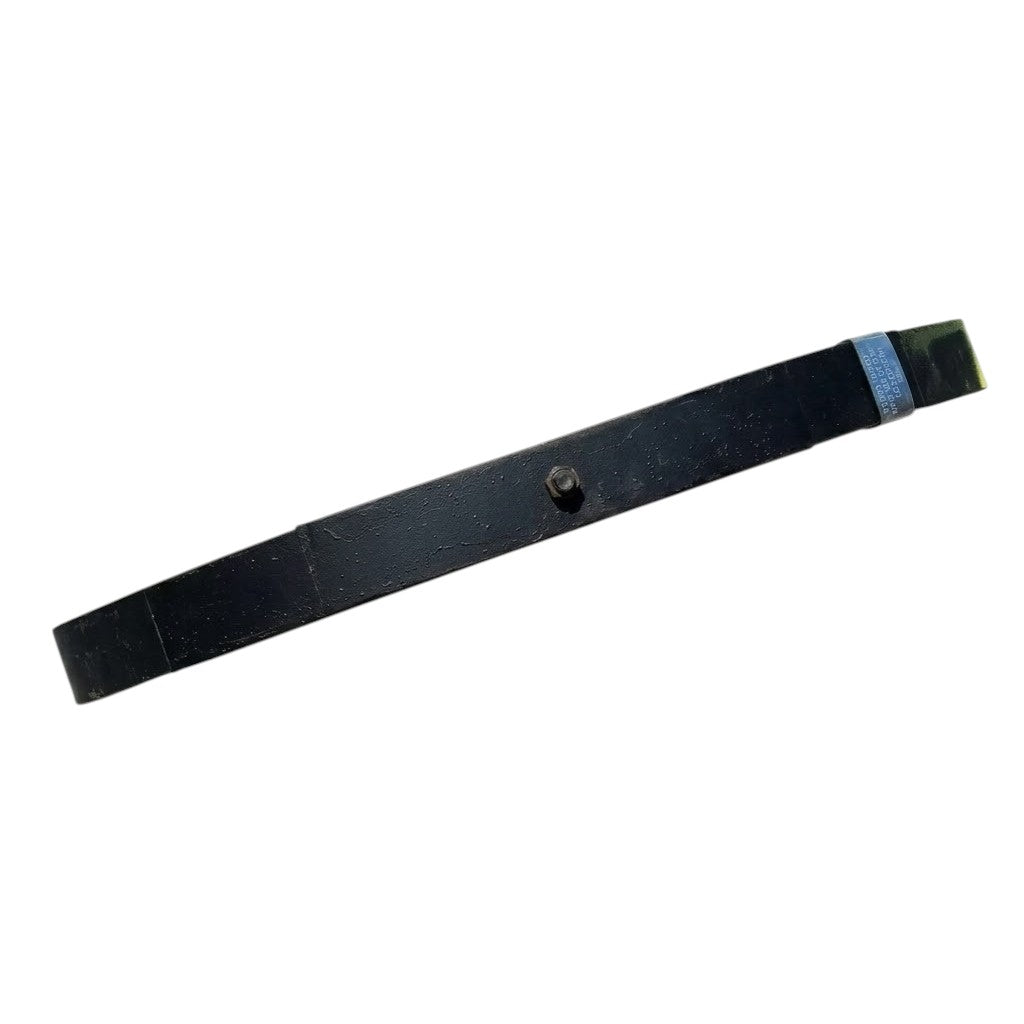

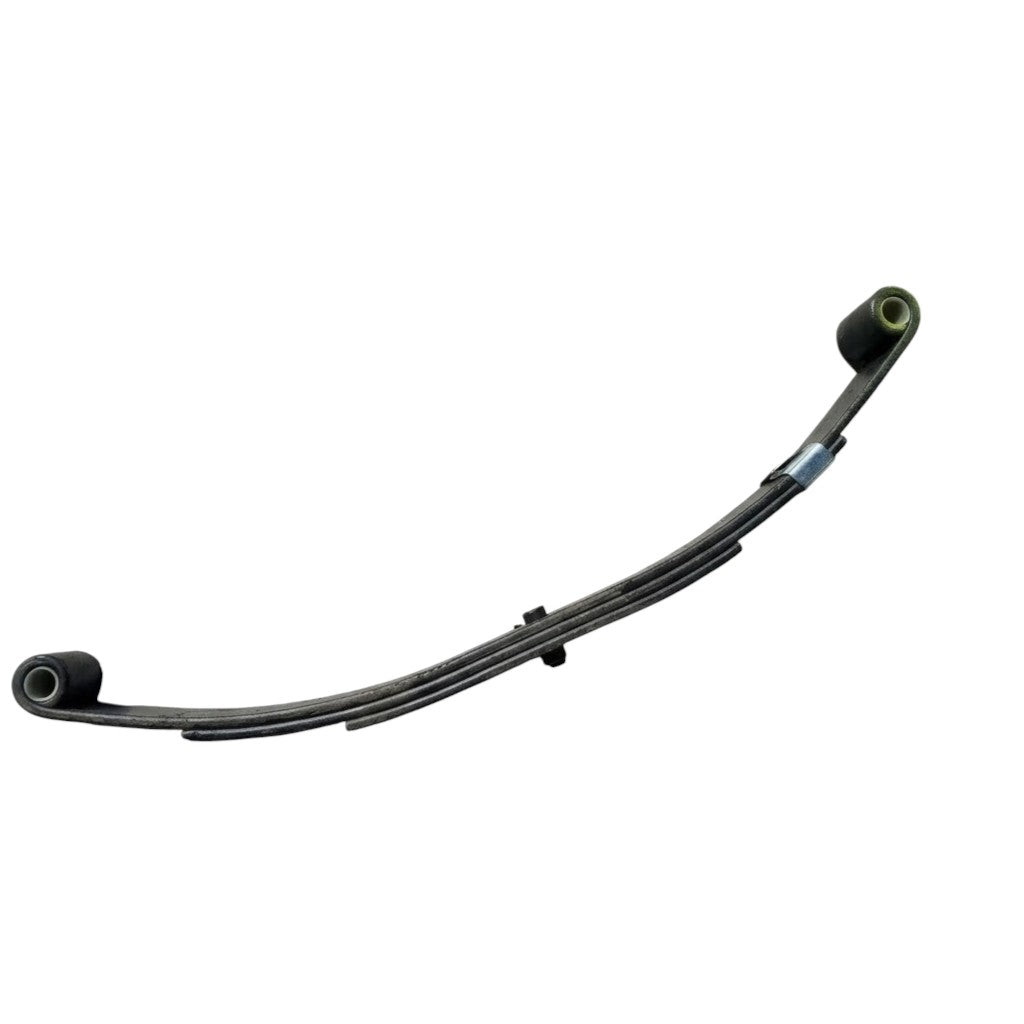

- Includes two LF-205-1K leaf springs rated at 1,000 lb each
- Uses 2" hole center shackle straps with standard shackle bolts
- Nylon spring eye bushings included
- Includes round U-bolt kit for 2,000 lb axle applications
Specifications
| Axle Capacity | 2,000 lb |
|---|---|
| Spring Type | Double Eye |

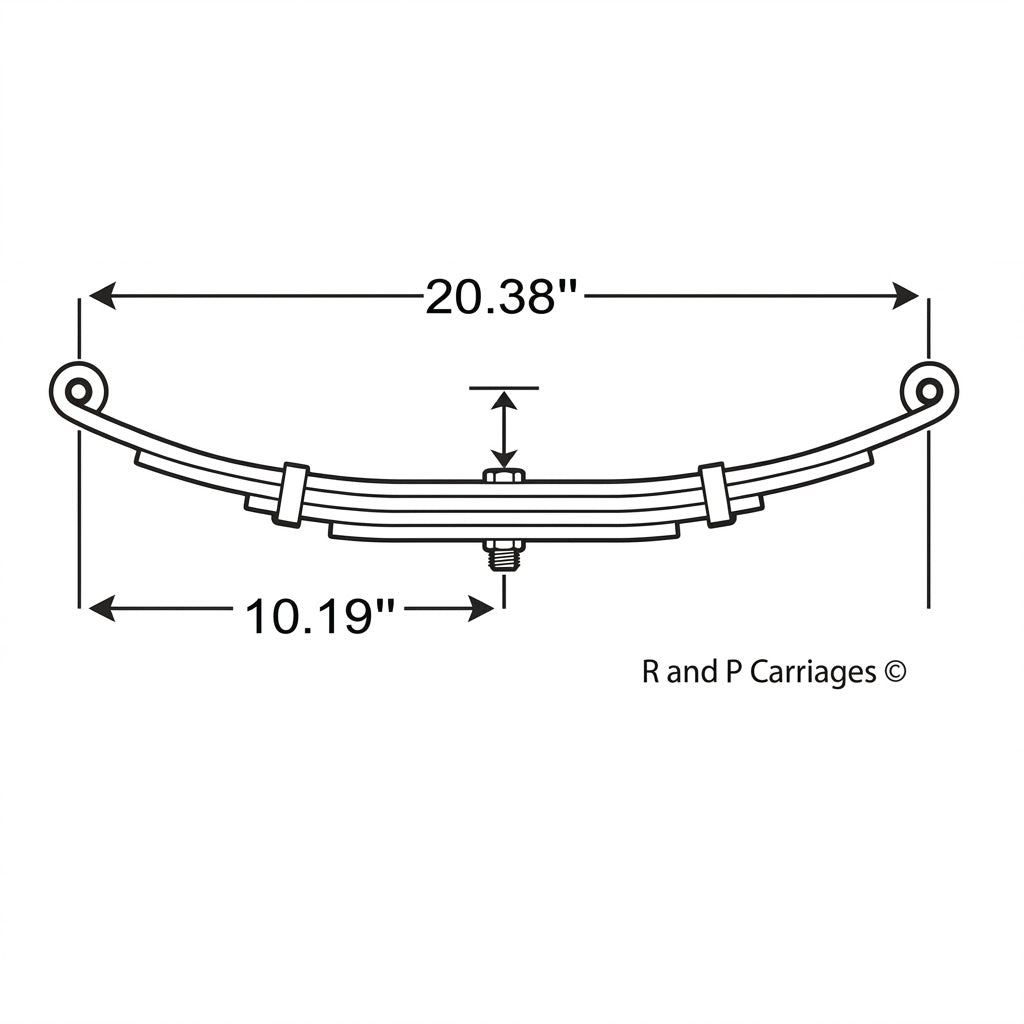

| Spring Length | 20.5 inches |
| Spring Width | 1.75 inches |
| Spring Rating | 1,000 lb per spring |
| Shackle Length | 2 inches (hole center) |
| Bolt Type | Standard |
| Bushings | Nylon |
| Includes Hangers | No |
This rebuild kit is designed for single-axle trailers using 20.5" double-eye leaf springs and does not include frame hangers. Not for tandem axles, slipper spring suspensions, or axles rated above 2,000 lb. Verify specifications before installation.
