9K & 10K GD Backing Plate Hardware Kit — Lot of 28 Sets
Part Number: BRHK10K-LOTOF28
This complete hardware kit includes everything needed to mount two 7-bolt 10K General Duty brake backing plates to your axle flanges. Each set includes bolts, lock washers, and nuts — 28 of each — matching the requirements for 12.25" x 3.375" Rockwell-style 10K General Duty brakes. These components do not fit Heavy-Duty (HD) 10K/12K brake assemblies.
Buying more than one reduces shipping costs.

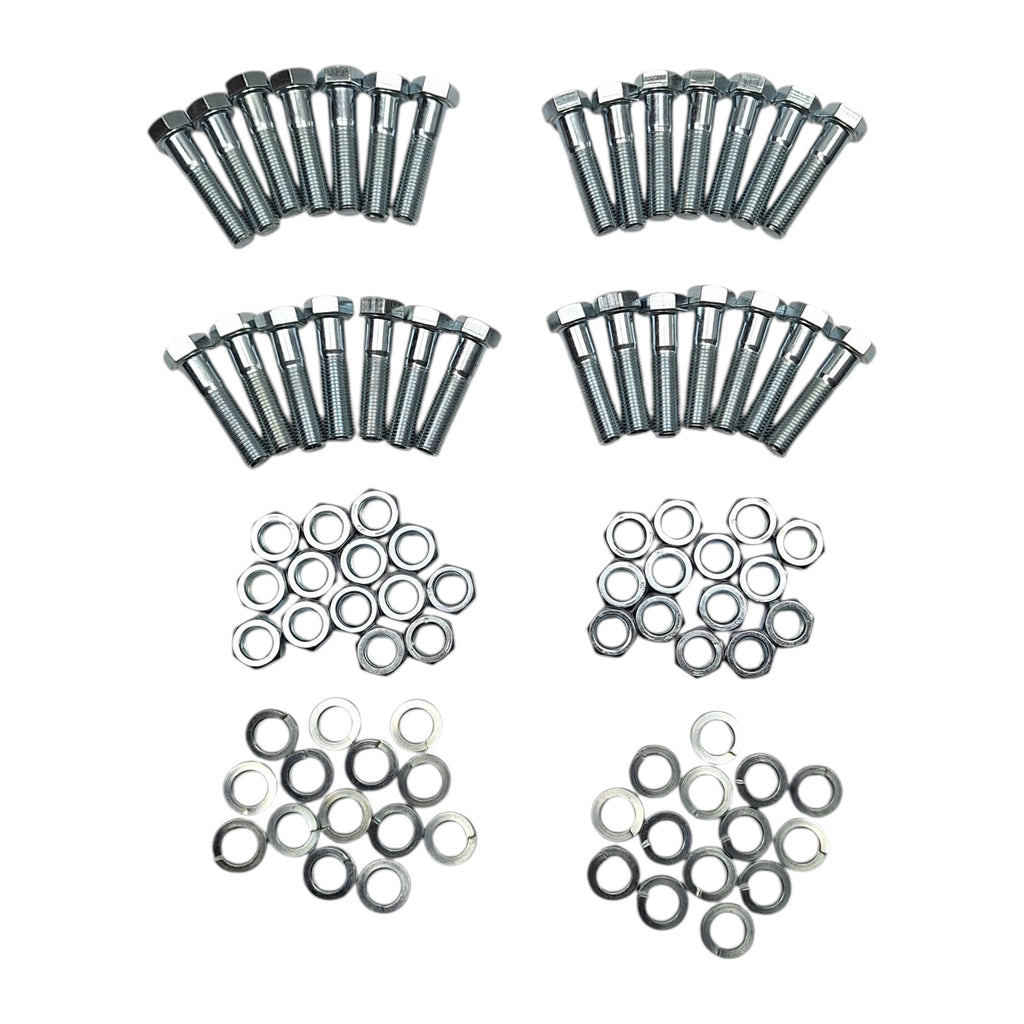

Included in This Kit (Lot of 28 Sets)
- (28) 6-17
- 7/16"-20 hex nut
- Zinc plated
- (28) 5-8
- 7/16" split lock washer
- (28) 007-116-00
- 7/16"-20 hex head cap screw
- 1.75" overall length
- 1" thread length
Specifications
| Fits Brake Type | 9K & 10K General Duty (7-bolt) |
| Brake Size | 12.25" x 3.375" |
| Hardware Included | Bolts, nuts, lock washers (28 each) |
| Part Number | BRHK10K-LOTOF28 |
Fitment Notes
This hardware kit is designed for General Duty brake assemblies only. Heavy-Duty (HD) 10K / 12K brake plates use different hardware and bolt spacing. Always confirm bolt size, thread pitch, and your backing plate configuration prior to installation.
