Build Your Own 3500 Electric Brake Trailer Axle Kit w/EZ Lube Spinde 5x4.75 Drum (BYOAK-84-D5475-2.0R)

R & P Carriages

Regular price $299.99

Build your 3500# trailer Axle with electric brakes with 5 x 4.75 Bolt Pattern!

 Part Number:


MEASURE your Bolt Pattern if you are not sure!


Use the chart below to determine your bolt pattern, and remember,
 on any 5 lug stud hub, measure stud to stud (skipping one) and basically add 1/4" to that measurement.

This kit includes:

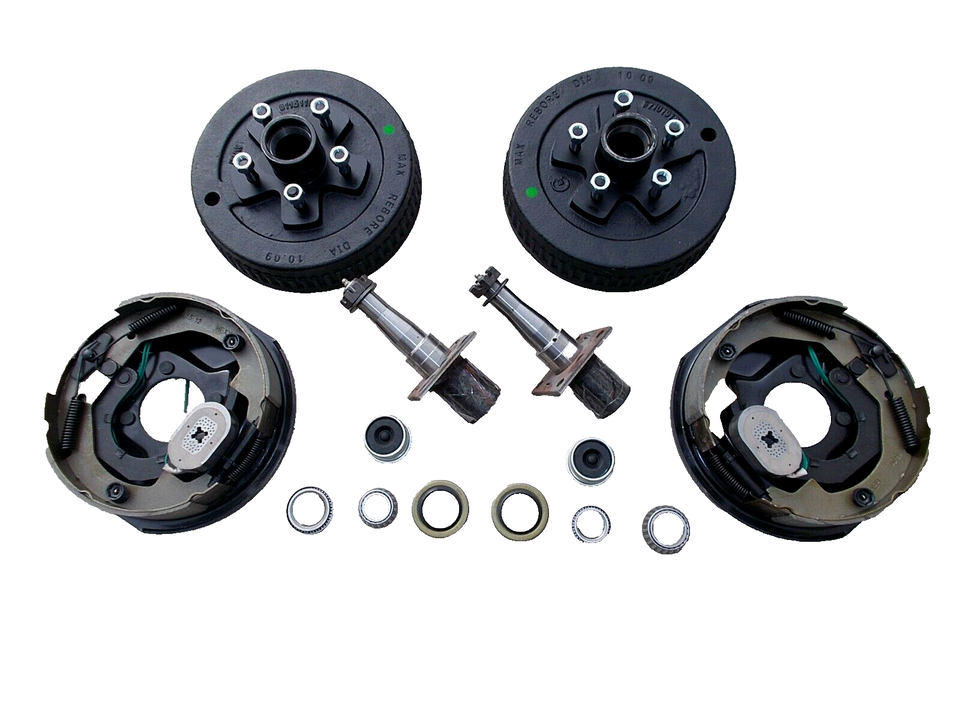

2 x EZ lube Spindles, with brake flanges already welded in place, in the proper position, perfectly lined up and square!
2 x 10" hub drums, 5 x 4.75" bolt pattern (Code Green) (other bolt patterns available, 5x4.50", 5x5.0" 5x5.5" and 6x5.5")
2 x 10" electric backing plates, one left, one right (Nev-R-Adjust is also available.
2 x Spindle Castle Nuts
2 x Spindle Round washers
2 x Spindle Cotter Pins
2 x L68149 1-3/8" inner bearings
2 x 2:44649 1-1/16" outer bearings
2 x 1.75" Double lip grease seals
2 x 1.98" EZ lube dust caps
10 x 1/2-20 Lug nuts
2 x Rubber plugs for dust caps
2 x 2.375" weld on spring perches (RP code blue)
8 x 7/16" fine thread nuts to bolt brake plates to axle


In short, every part you will need to build a trailer axle except the pipe or tube.
Just add common 2" Schedule 40 Steel Pipe! (Standard 2" sch 40 pipe is 2.375" OD, 2.04" ID)


Details on some of the parts supplied below:

This is a 3500# axle kit  used on many standard trailer and camper axles. Unit has standard brake backing plate mount flange already welded in place for the standard 10" brakes Included

Spindle details (kit includes two):


2" Weldable Base
3.37" Long Shaft
8.25" Long Overall
2.5" From Bottom of Spindle to Bottom Of Flange
5.25" From Top of Flange to Top of Spindle
3.75" Wide Brake Flange
This is a EZ Lube style (includes grease fitting to grease bearings, right on the end of the spindle!)
5.0 lbs.

Uses standard Dexter or AL KO Axle parts See Below (click picture to enlarge)





Brake and Drum Details
Includes common 10 x 2.2" Electric brakes (green wire) on each left and right.

MEASURE your Bolt Pattern if you are not sure!
Use the chart below to determine your bolt pattern, and remember,
 on any 5 lug stud hub, measure stud to stud (skipping one) and basically add 1/4" to that measurement.



Also includes 5 x 4.75" bolt pattern Drums, with Races already pressed in, and all bearings, double lip seals, and mounting hardware included.  All Lug nuts and dust caps included (we ship EZ lube style dust caps with removable rubber center plug..




MEASURE your Bolt Pattern if you are not sure!
