D80N Narrow 4-Wheel Brake & Hub Drum Kit 8-393 5/8" Studs 12-1/4" x 2-1/2" Self-Adjusting
Complete 4-wheel brake and hub drum package for Dexter D80N narrow axle applications using 8-393 style hub/drums, 5/8" wheel studs, and 12-1/4" x 2-1/2" self-adjusting electric brake assemblies.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | D80N-4W-8393-1208HB-PACKX2 |
| Brand | R&P Carriages |
| Product Type | Brake & Hub Drum Kit |
| Axle Application | Dexter D80N narrow axle applications |
| Brake Size | 12-1/4" x 2-1/2" |
| Brake Type | Electric self-adjusting brake assemblies |
| Bolt Pattern | 8 on 6.5" |
| Wheel Stud Size | 5/8" |
| Quantity Included | 1 complete 4-wheel package |
Fitment / Application
| Category | Details |
|---|---|
| Primary Application | Dexter D80N narrow brake axle applications |
| Axle Rating | 7.2K-8K narrow brake axle applications |
| Hub/Drum Fitment | 8-393 style hub/drum applications with 8 on 6.5" bolt pattern and 5/8" wheel studs |
| Brake Fitment | 12-1/4" x 2-1/2" electric self-adjusting brake applications |
| Fitment Method | Verify axle model, hub/drum number, brake size, bearing numbers, seal size, bolt pattern, stud size, and narrow brake offset before ordering. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Complete 4-Wheel Package | Includes hub/drum parts and brake assemblies needed to service four wheel ends. |
| 8-393 Style Hub/Drums | Built around the D80N narrow 8-393 style hub/drum reference with 5/8" wheel studs. |
| Self-Adjusting Electric Brakes | Includes 12-1/4" x 2-1/2" self-adjusting brake assemblies for compatible narrow applications. |
| Bearings, Seals, Caps & Lug Nuts Included | Bundles common service components for the matching hub/drum setup. |
Overview
This complete D80N narrow 4-wheel brake and hub drum kit is built for compatible Dexter D80N narrow brake axle applications using 8-393 style hub/drums with 5/8" studs and 12-1/4" x 2-1/2" self-adjusting electric brake assemblies. One listing quantity equals one complete four-wheel package.
R&P Service Insight
This kit is intended to make a four-wheel brake and hub/drum service more straightforward by bundling the major wheel-end components for the matching D80N narrow axle setup.
- Before Ordering: Verify the existing hub/drum reference, bearing numbers, seal size, brake size, bolt pattern, and stud size.
- Side Matching: The kit includes two side 1 and two side 2 brake assemblies to service four wheel ends.
- Wheel-End Service: Inspect spindles, wiring, magnets, mounting hardware, and related components during installation.
R&P Knowledge Hub
Compatibility: Designed for 7.2K-8K narrow brake axle applications using the listed hub/drum, bearing, seal, bolt pattern, stud size, and brake size combination.
Vehicle / System Fit: Trailer axle brake and hub/drum service package for D80N narrow-style applications where measurements and part references match.
Installation Notes: Confirm bearing numbers, seal dimensions, bolt pattern, wheel stud size, brake assembly size, and brake flange/mounting compatibility before installation.
Performance Insight: Narrow D80N brake setups should not be treated as the same as standard-width 8K brake setups. Match the complete hub/drum and brake configuration before ordering.
Brand & Fitment Note
Selling Brand: Unbranded
Application Reference: Dexter D80N, 8-393, 7.2K-8K, 8 on 6.5", 5/8" studs, 12-1/4" x 2-1/2" brakes, 25580 inner bearing, 2475 outer bearing, and 2.25" x 3.38" oil seal references are used for fitment identification.
What This Means: This listing is for an unbranded brake and hub drum kit, not a guaranteed OEM-branded item.
Before Ordering: Verify your axle, hub/drum number, brake size, bearing numbers, seal size, bolt pattern, stud size, and narrow D80N application before installation.
R&P Repair Insight
The most important fitment check on this package is confirming that the trailer uses the narrow D80N configuration. Standard-width 12-1/4" brake applications may look similar but should not be assumed interchangeable.
- Check the Hub/Drum: Confirm 8-393 style reference and 8 on 6.5" bolt pattern.
- Check the Studs: Confirm 5/8" wheel studs and matching 5/8"-18 lug nut requirement.
- Check the Brakes: Confirm 12-1/4" x 2-1/2" self-adjusting electric brake compatibility for your axle setup.
Features
Complete 4-Wheel Service Package
Includes brake and hub drum components for four compatible D80N narrow wheel ends.
8-393 Style Hub/Drums

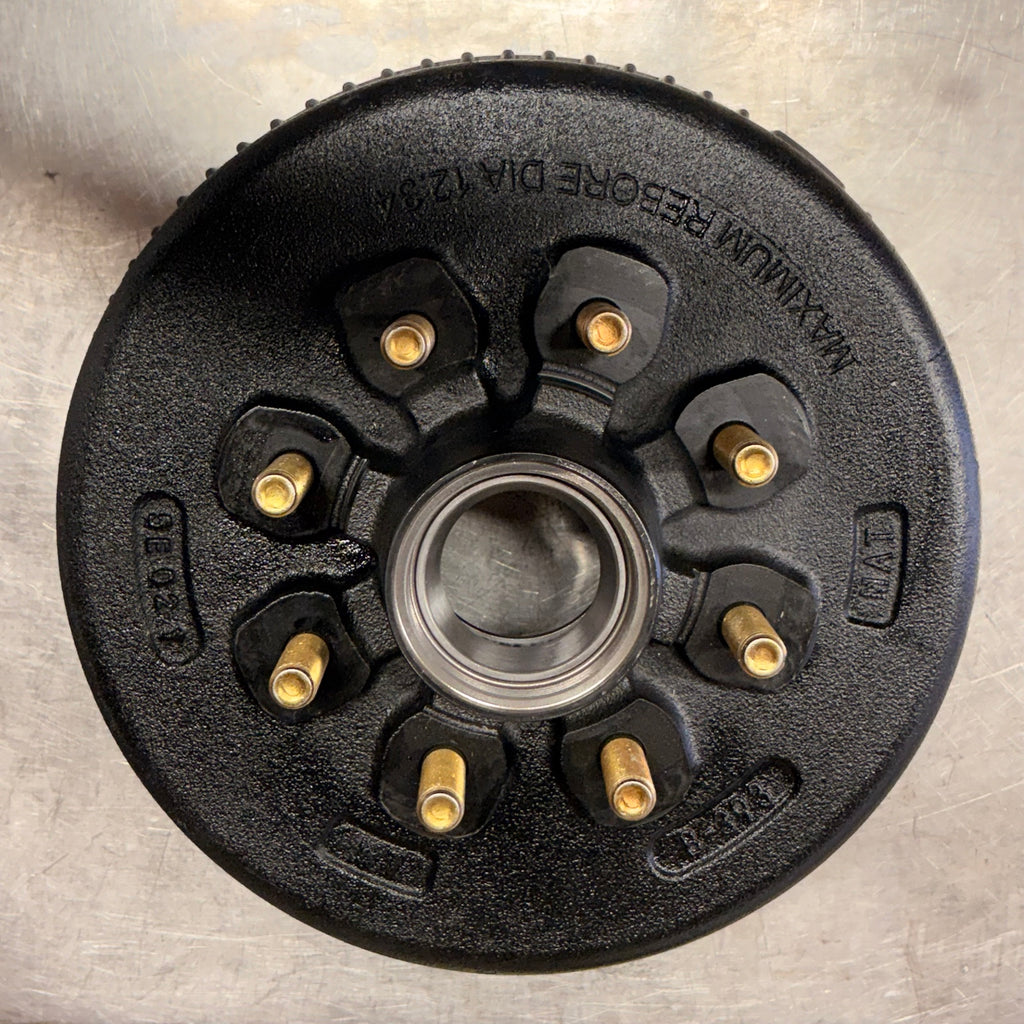

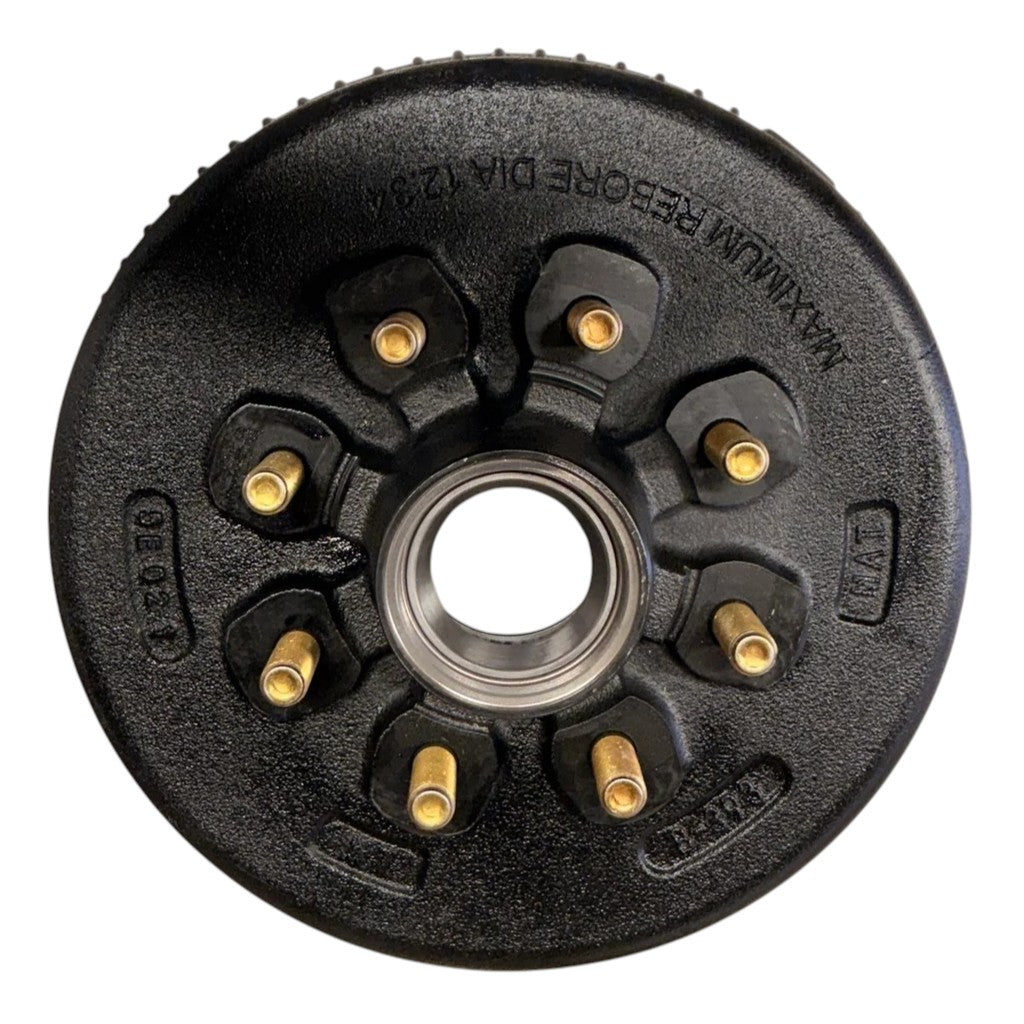

Includes four 8-393 style hub/drums with 8 on 6.5" bolt pattern and 5/8" studs.
Self-Adjusting Electric Brakes

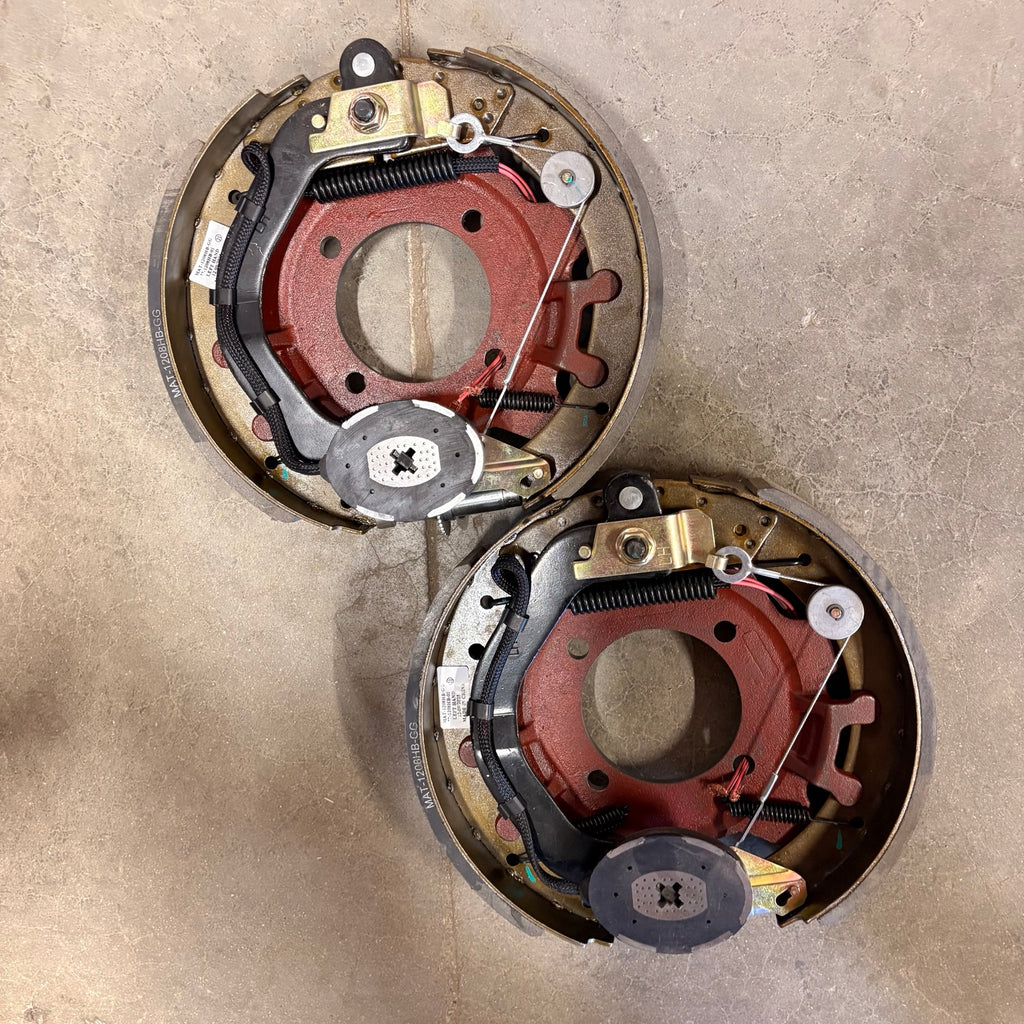

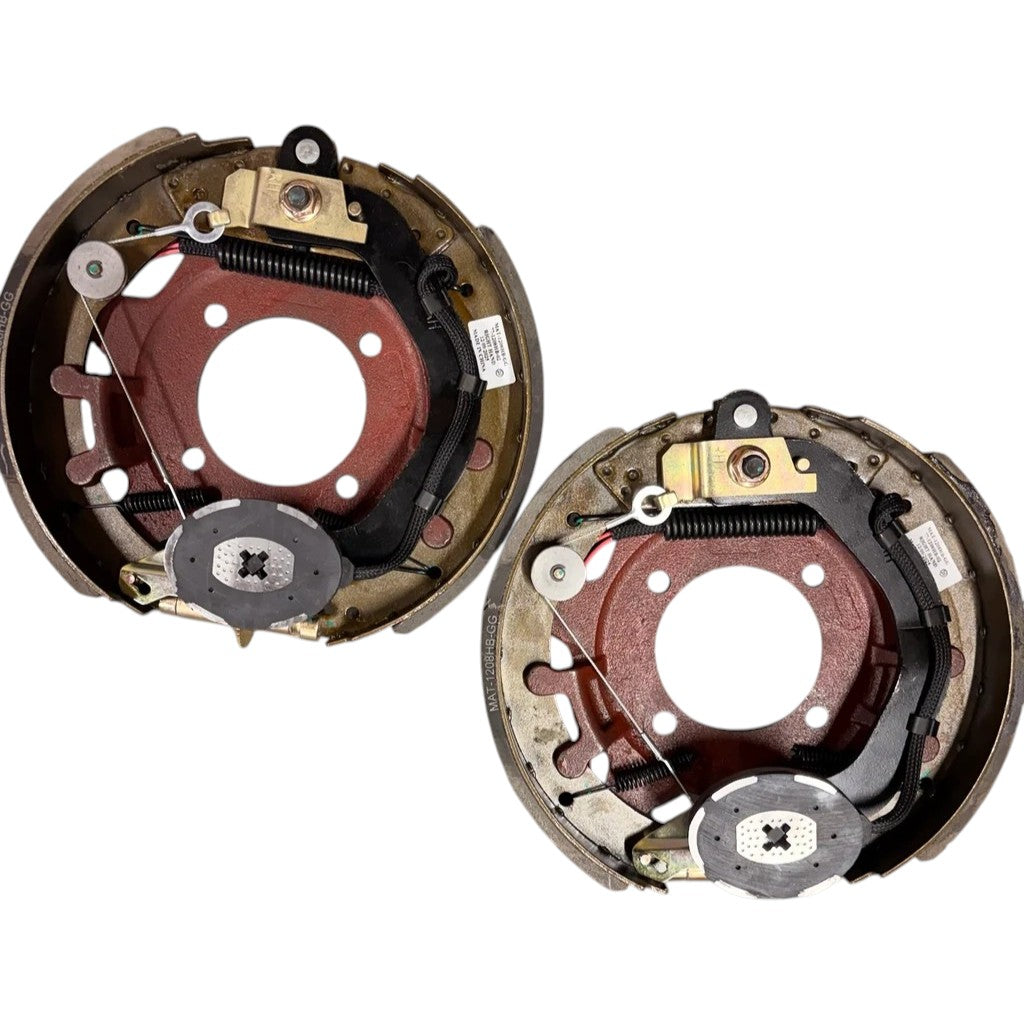

Includes two side 1 and two side 2 12-1/4" x 2-1/2" self-adjusting electric brake assemblies.
Service Components Included
Includes bearings, oil seals, oil caps, and 5/8"-18 wheel lug nuts for the listed configuration.

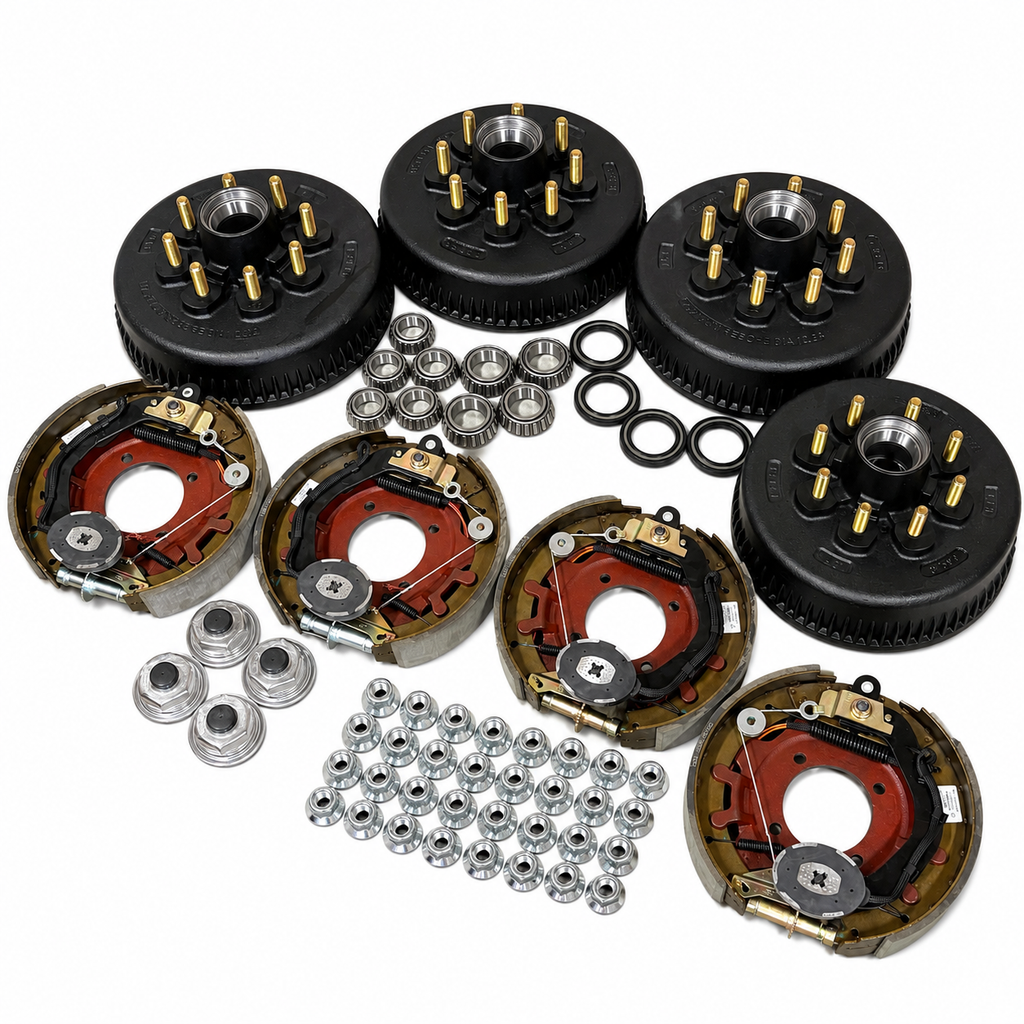

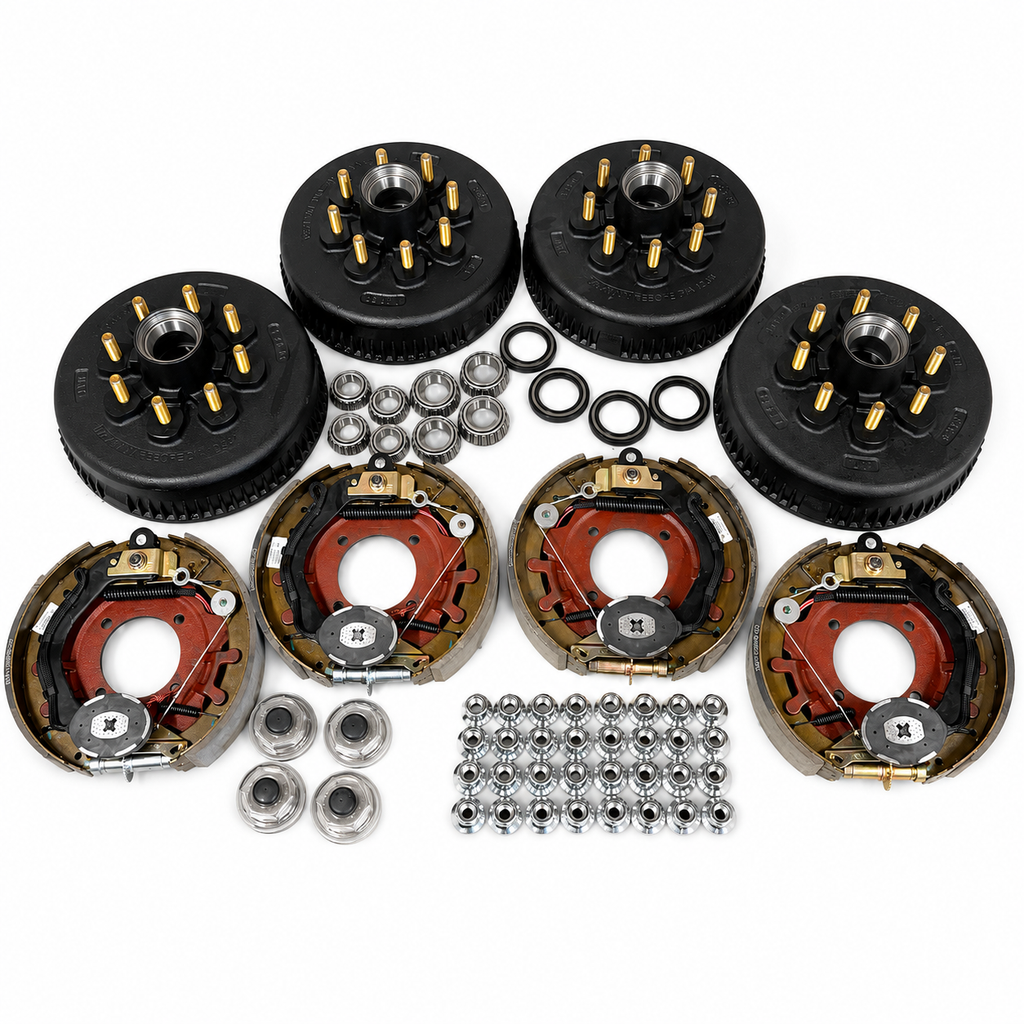

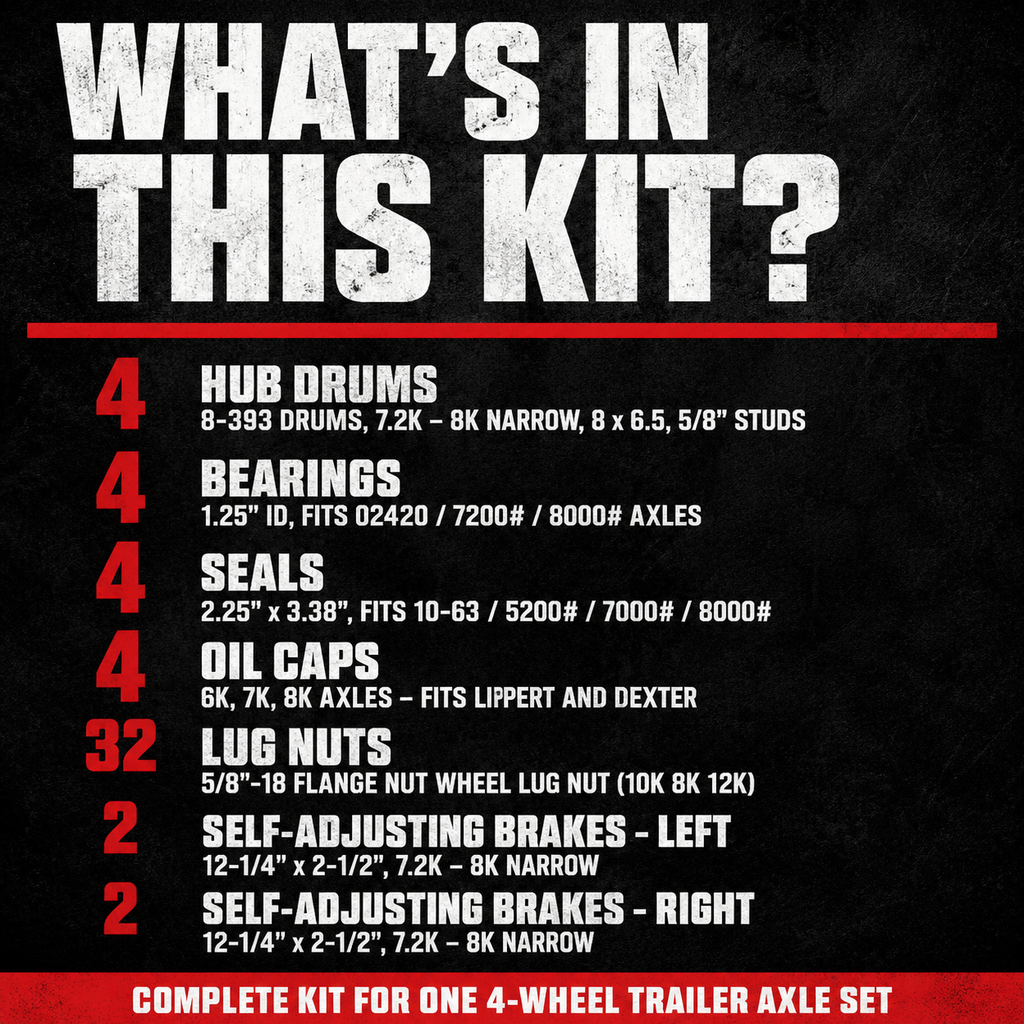

Included Components
| Quantity | Component SKU | Item Included |
|---|---|---|
| 4 | 99-86580-393-58 | Hub drum, 7.2K-8K narrow, 8 x 6.5", 5/8" studs, 8-393 style reference |
| 32 | 006-058-00 | 5/8"-18 flange nut / wheel lug nut |

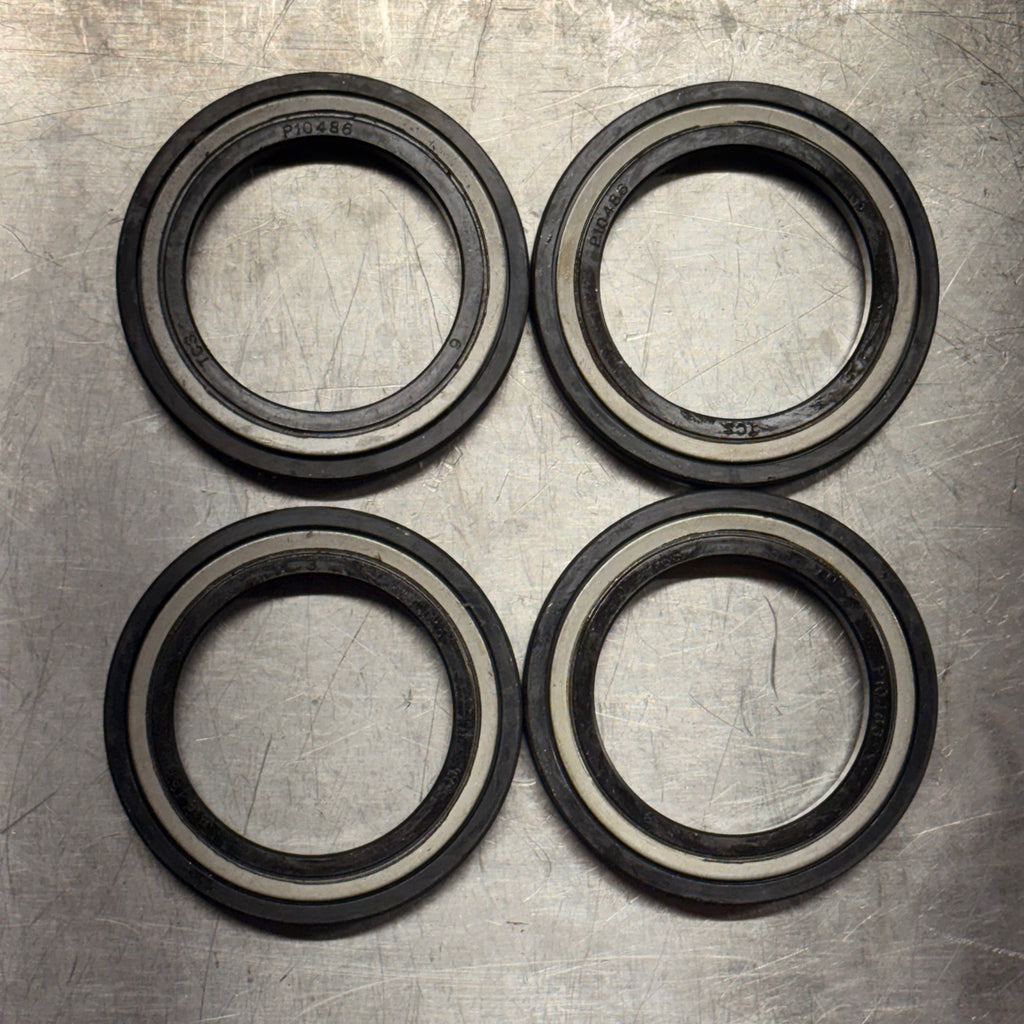

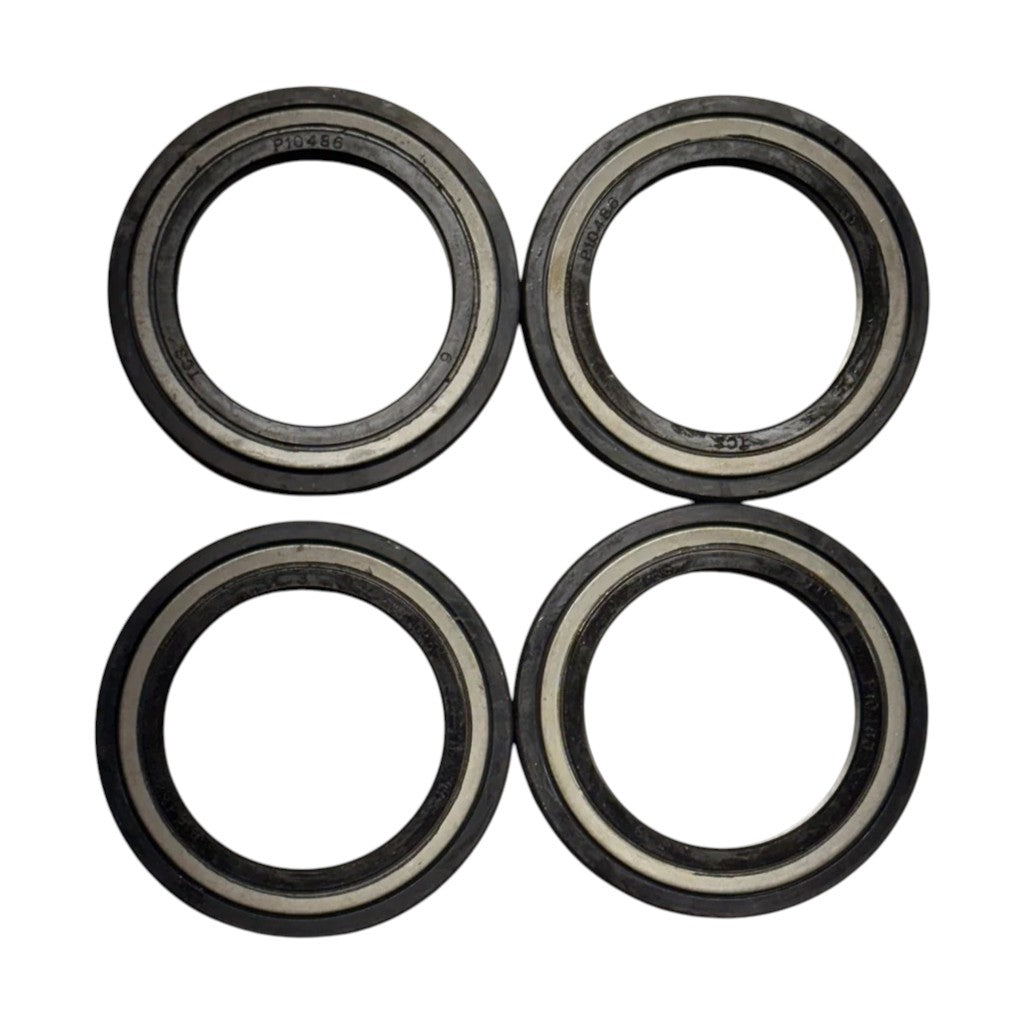

| 4 | 10-225-15 | Oil seal, 2.25" x 3.38" |

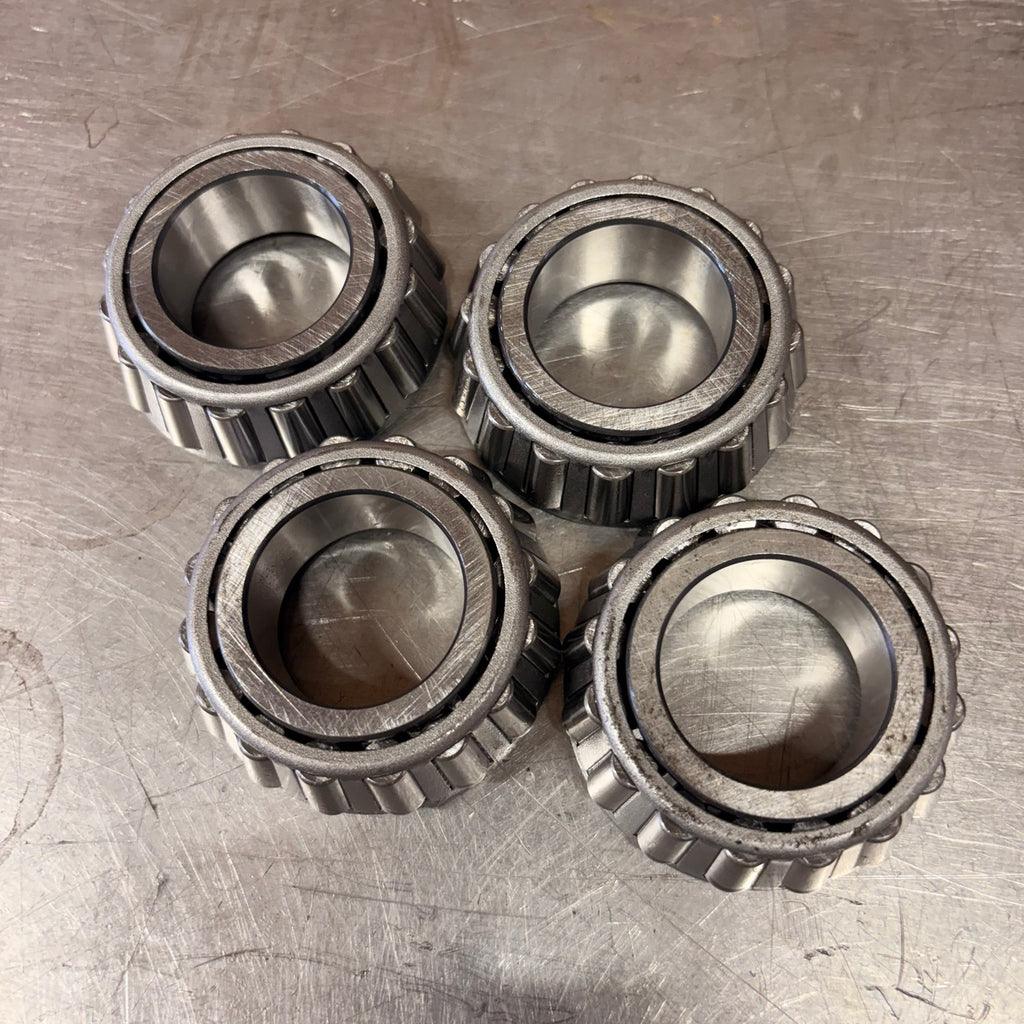

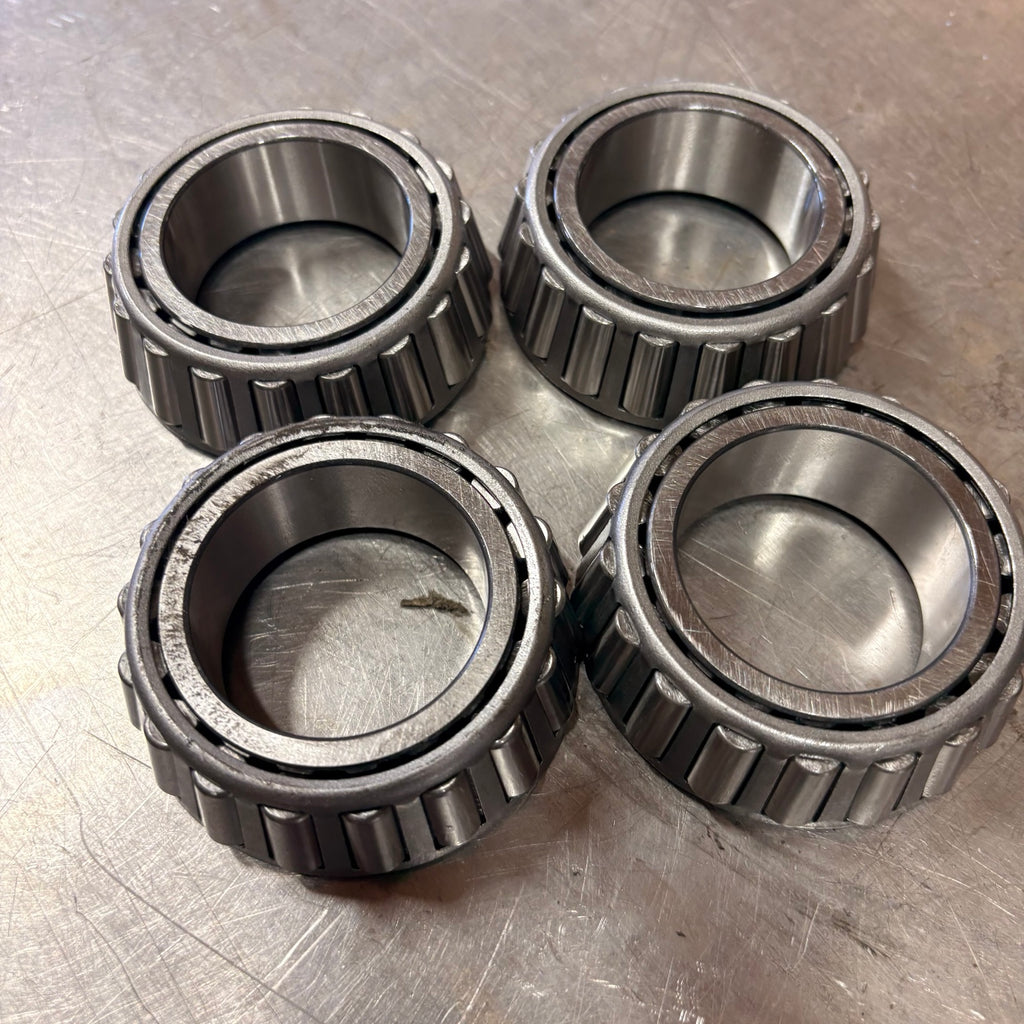

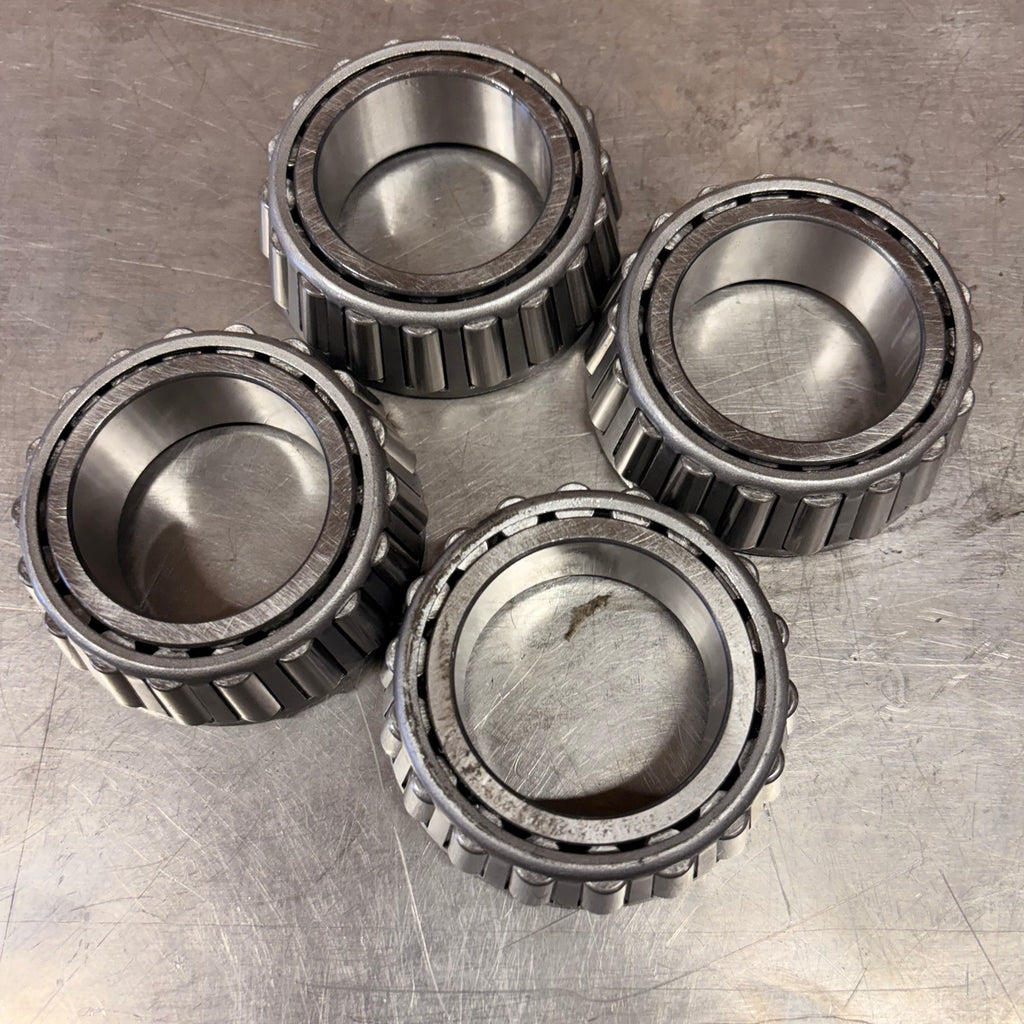

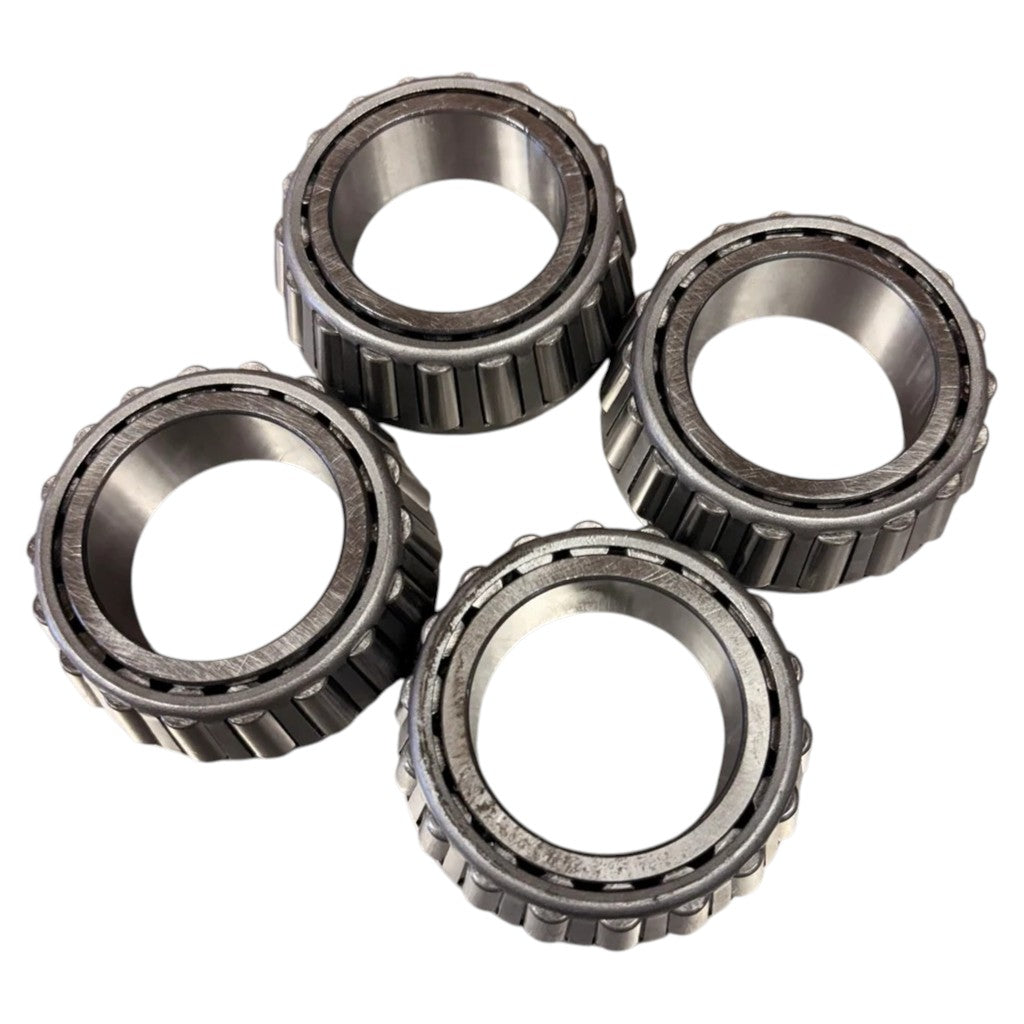

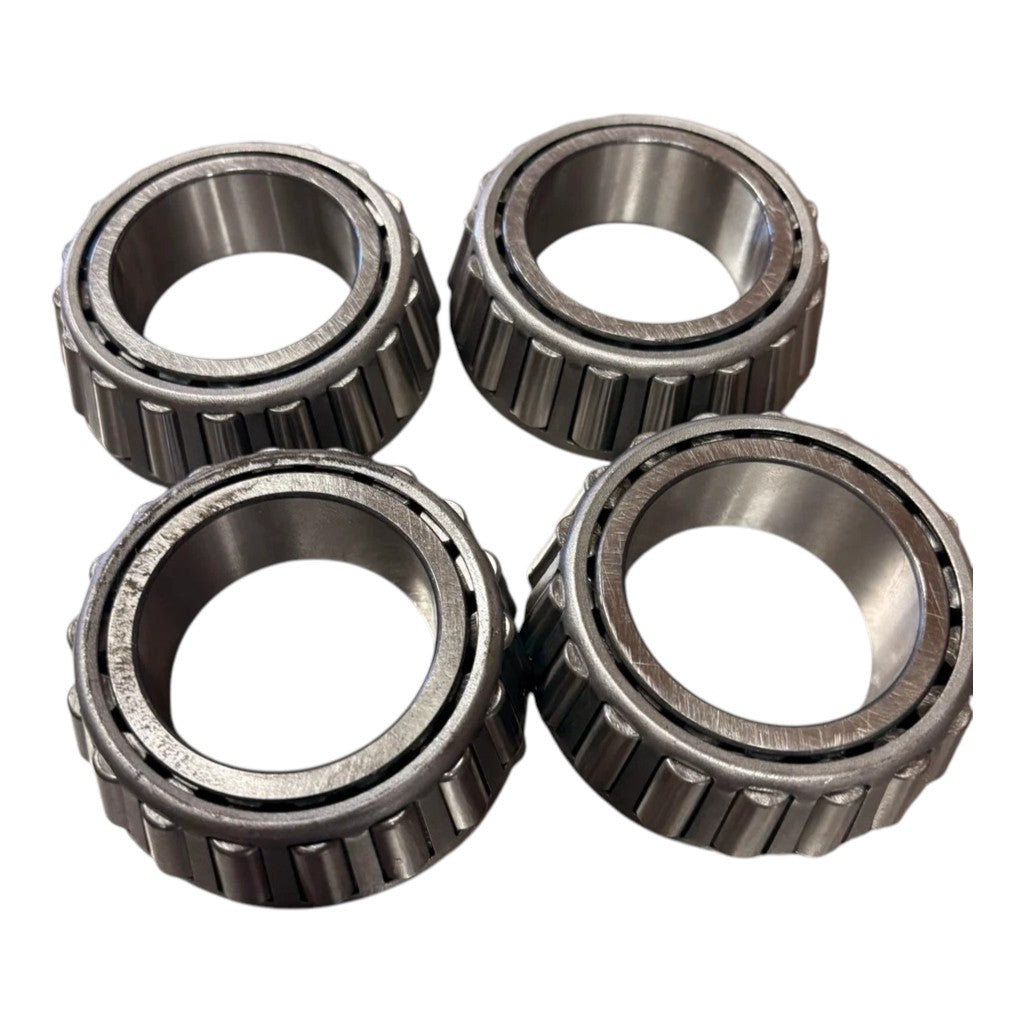

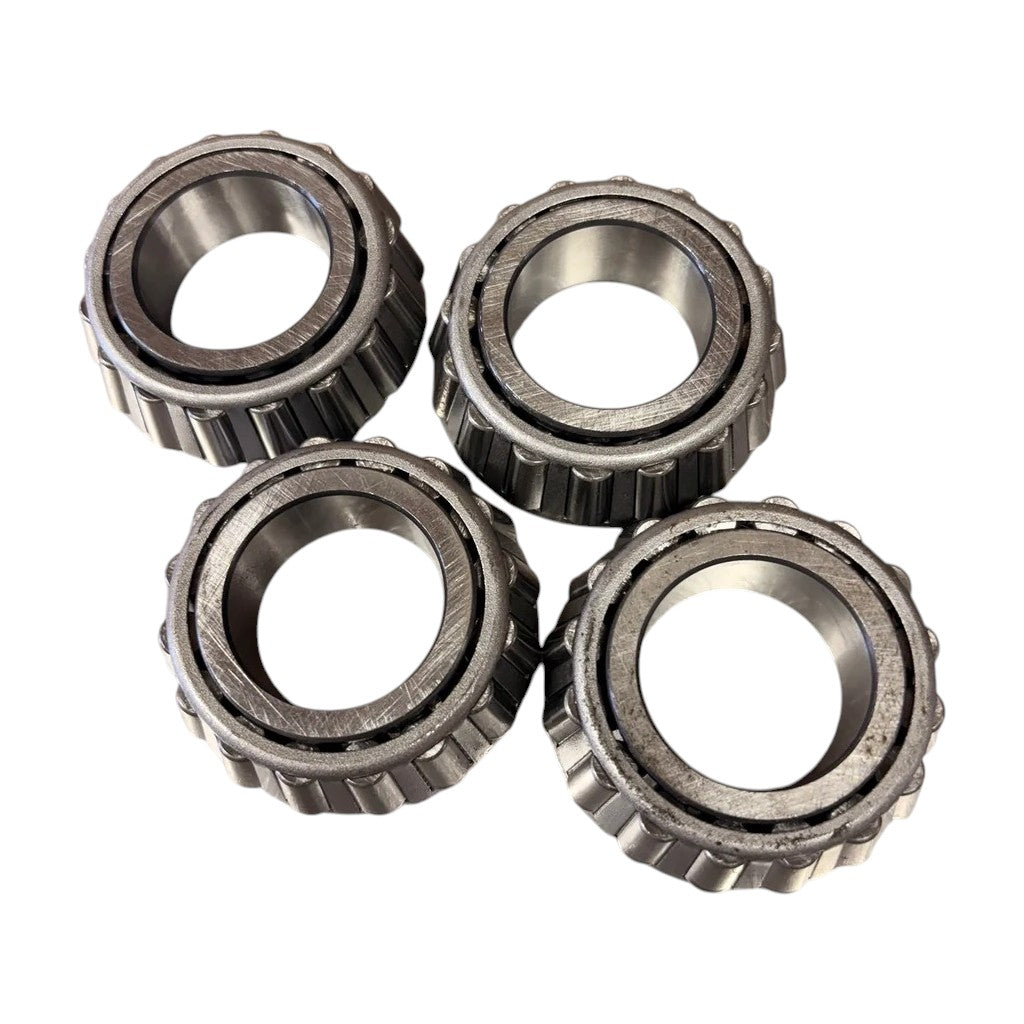

| 4 | 25580 | Inner bearing, 1.75" ID |

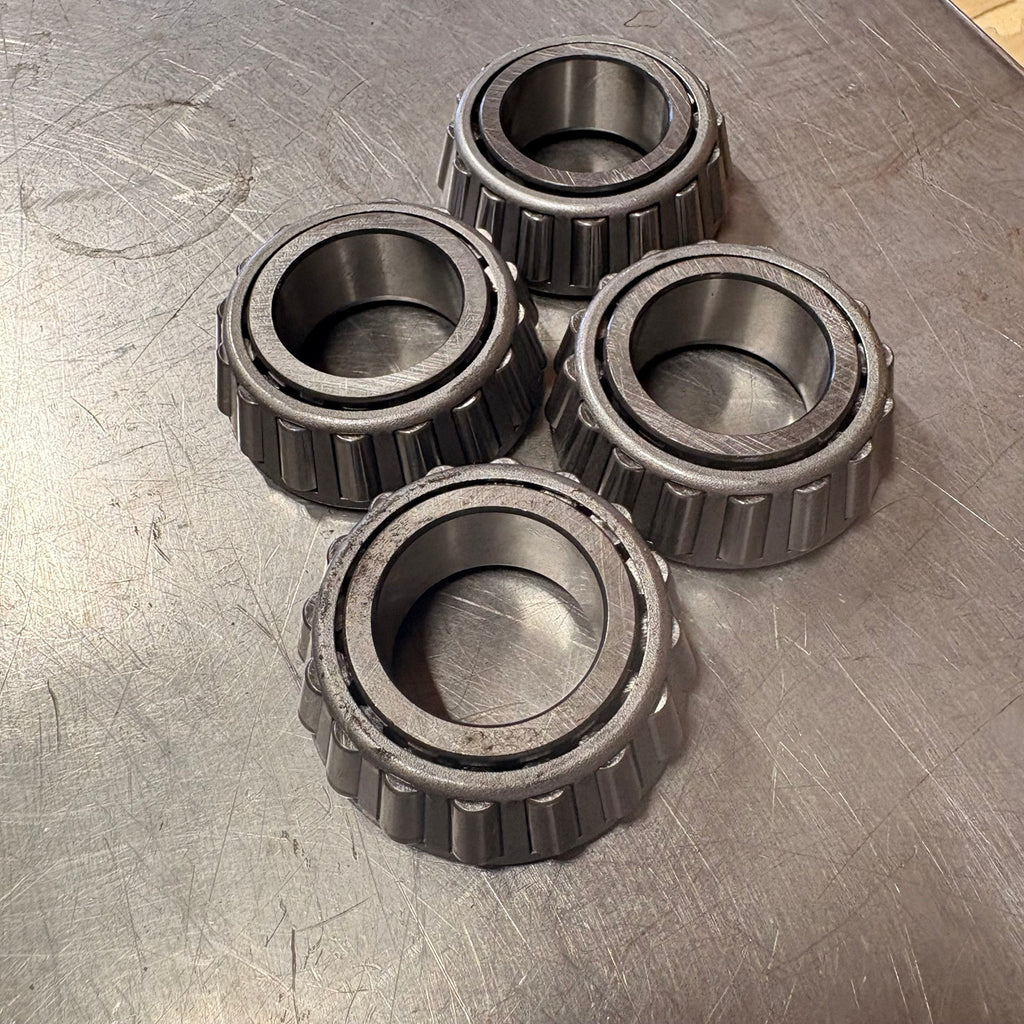

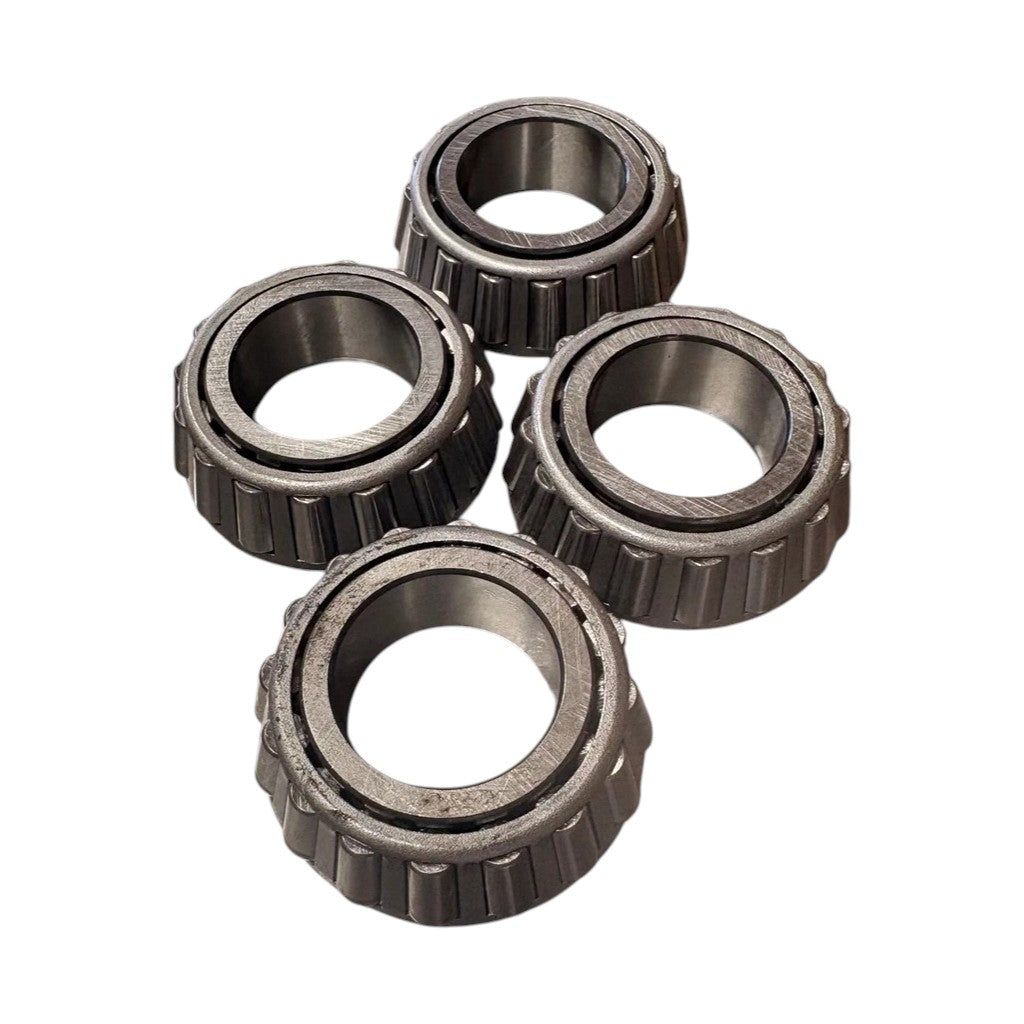

| 4 | 2475 | Outer bearing, 1.25" ID |

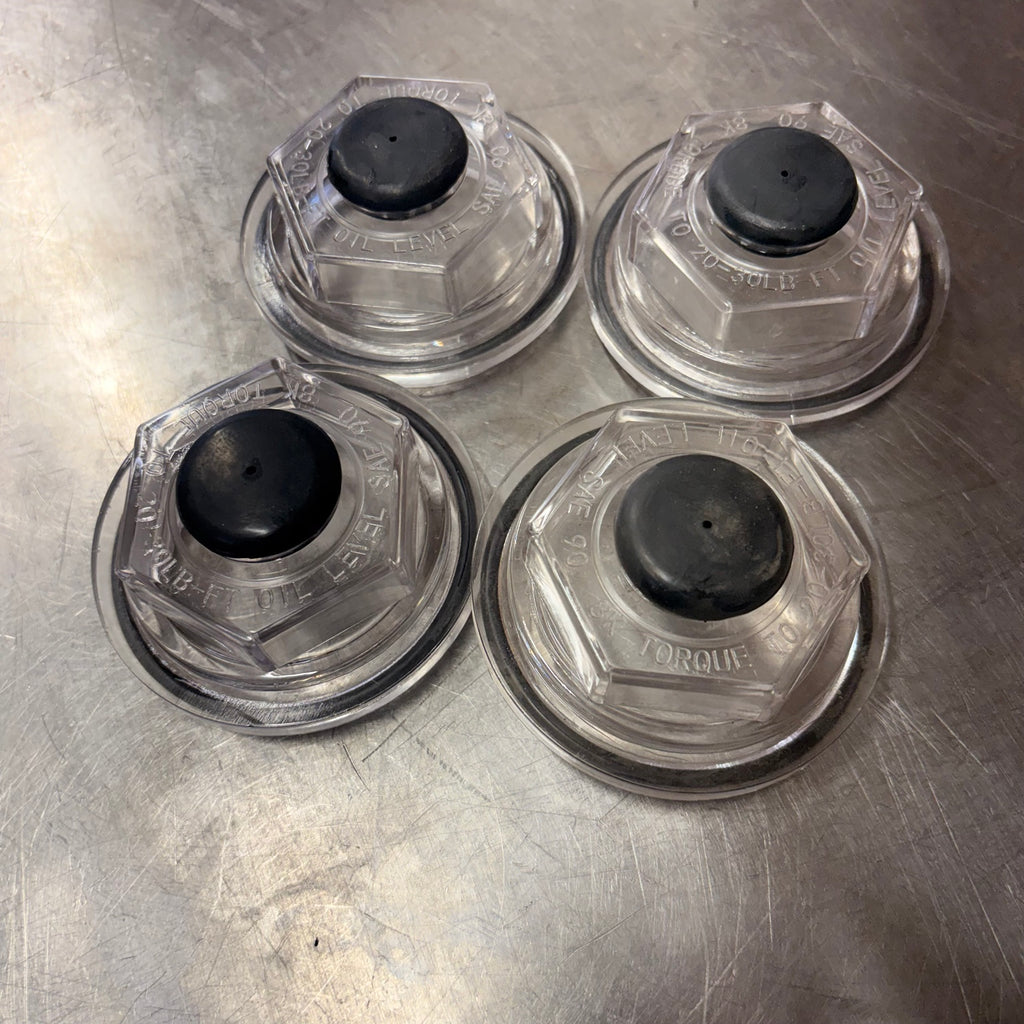

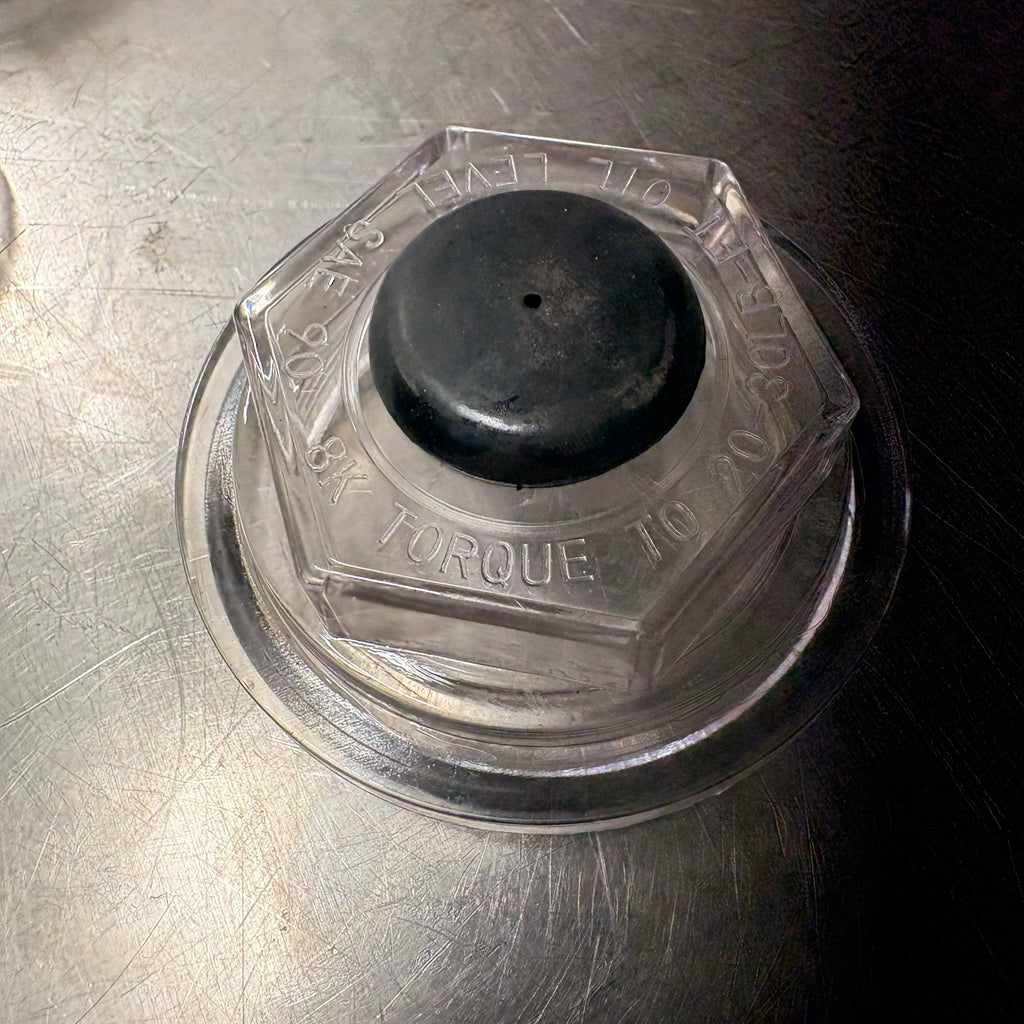

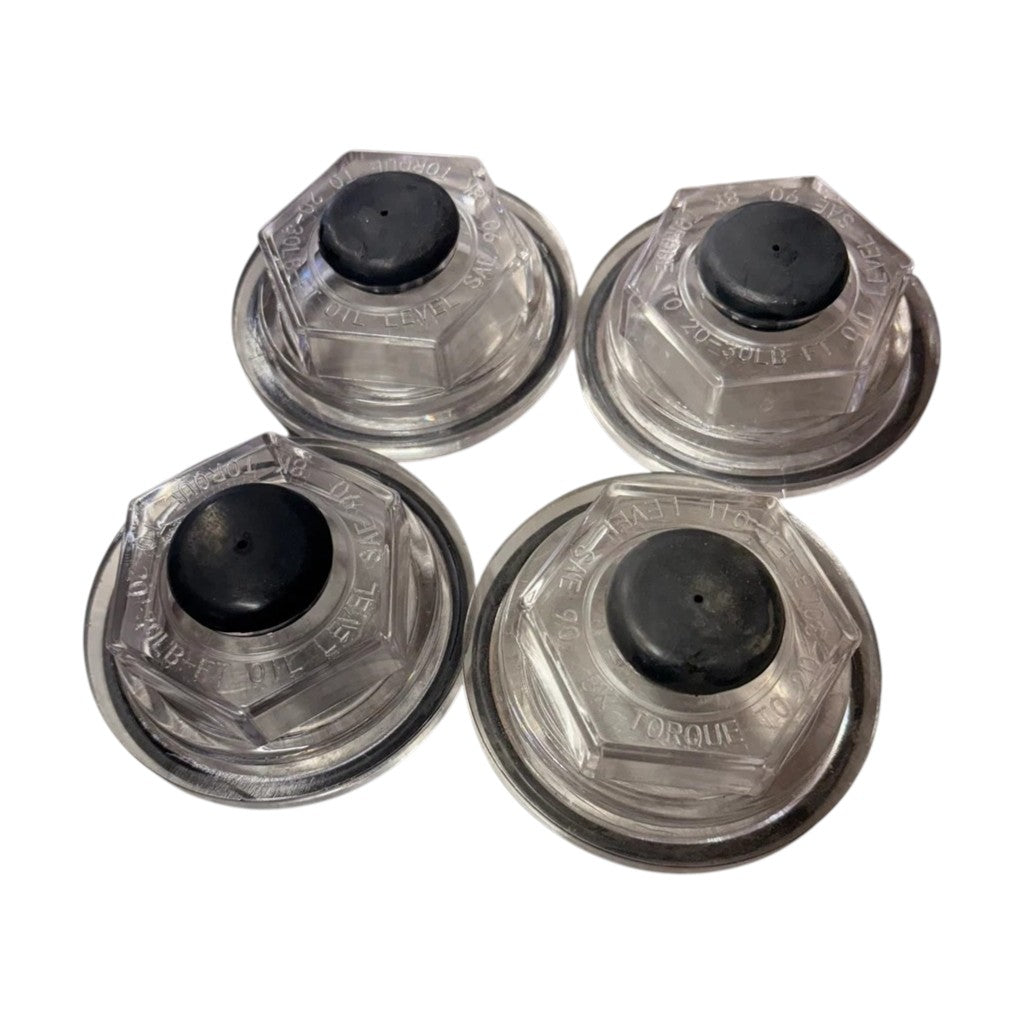

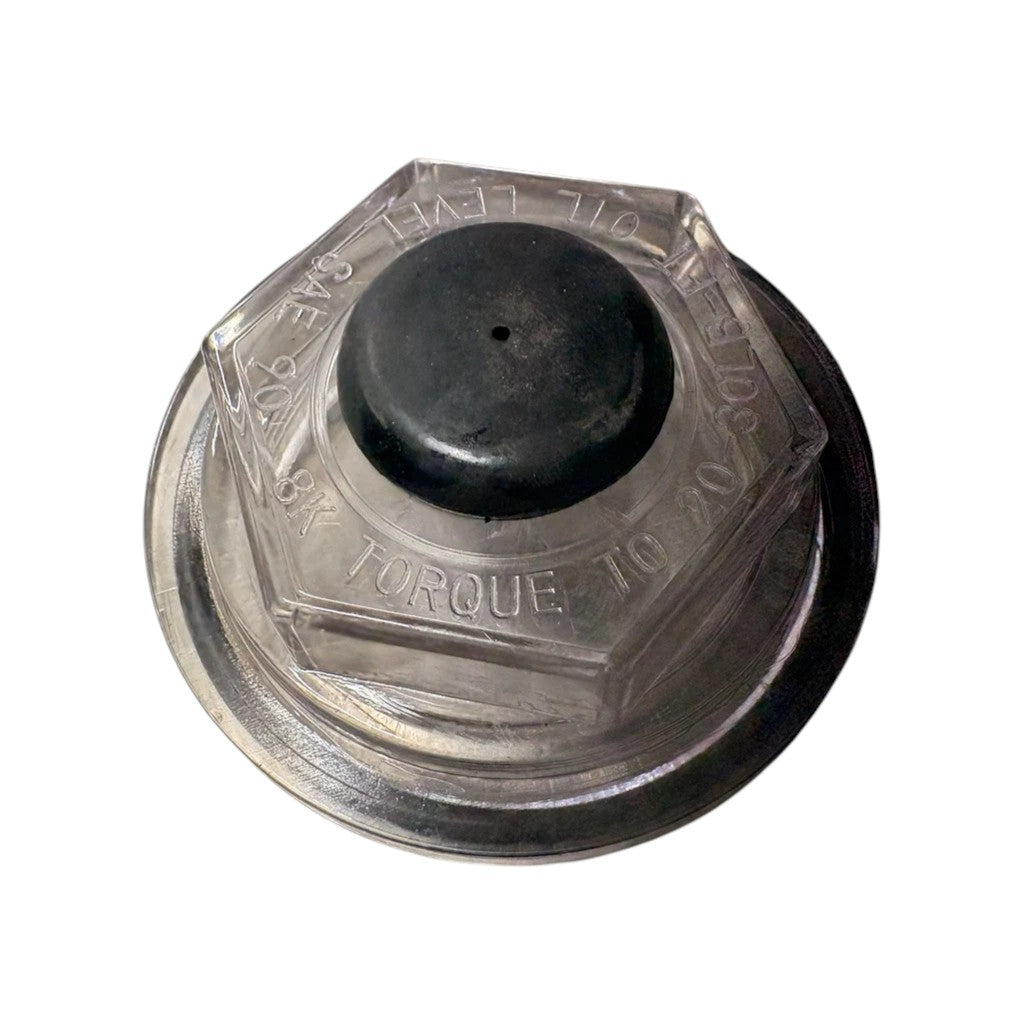

| 4 | OC-86580-26 | Oil cap for 6K, 7K, 8K axle hub/drum application |

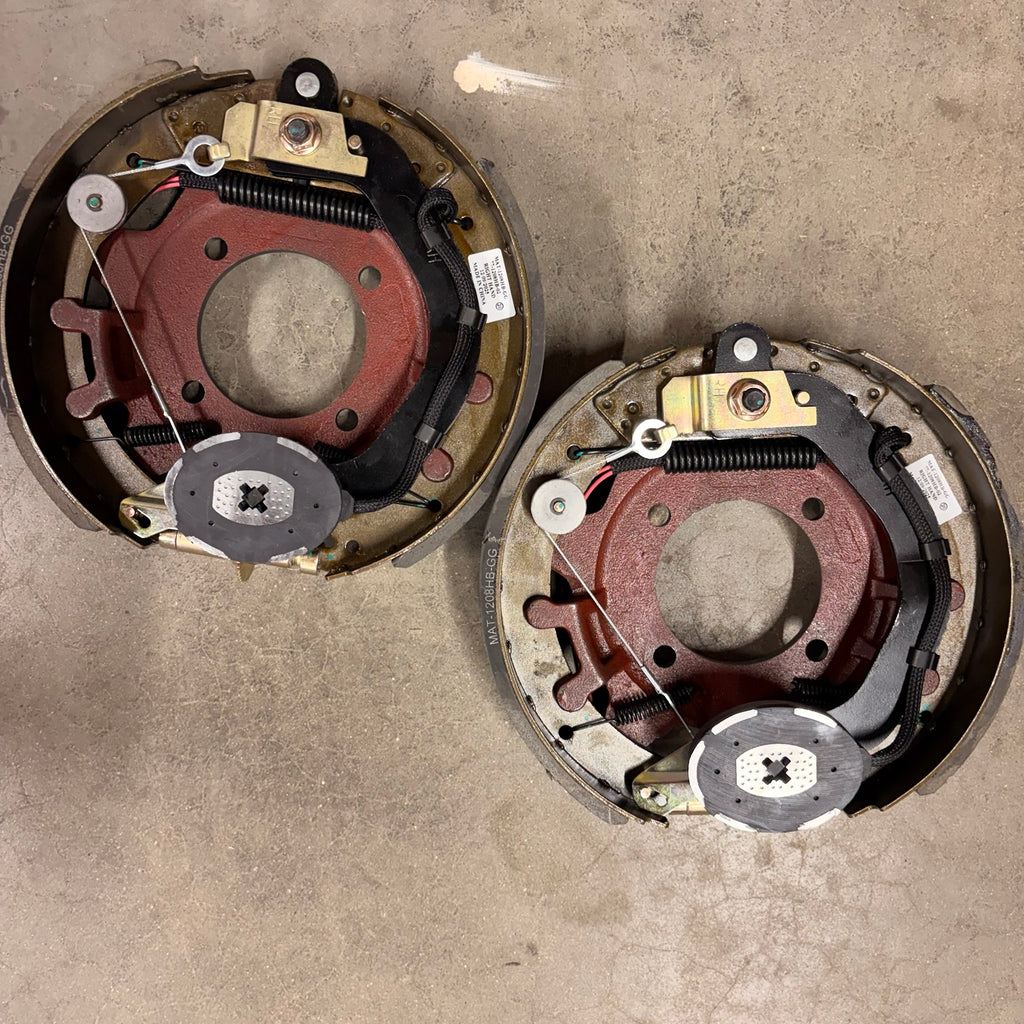

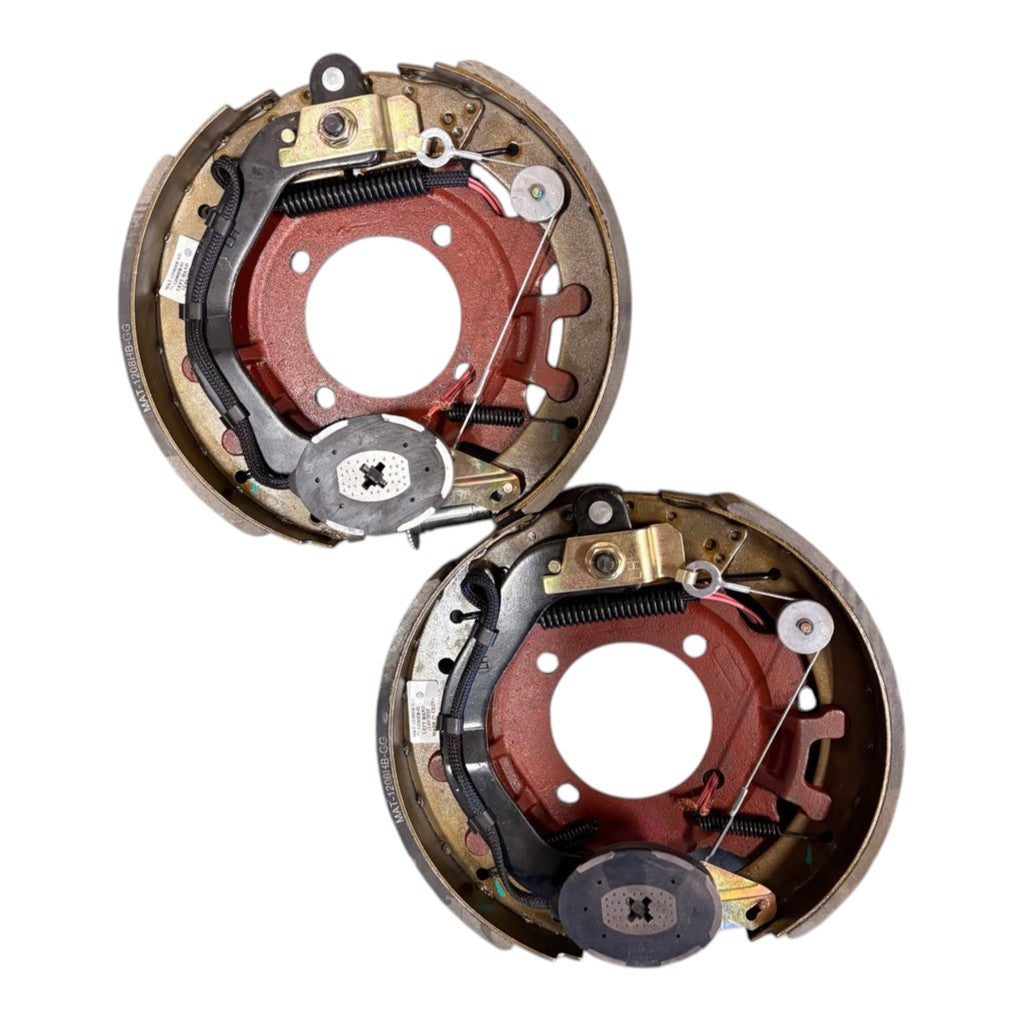

| 2 | 77-1208HB-1 | Electric brake assembly, 12-1/4" x 2-1/2", 7.2K-8K narrow, self-adjusting, side 1 |
| 2 | 77-1208HB-2 | Electric brake assembly, 12-1/4" x 2-1/2", 7.2K-8K narrow, self-adjusting, side 2 |
