Match the part number, measurements and connection points that apply to your trailer.
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |
Heavy-duty stainless steel disc brake conversion kit featuring vented slip-on rotors, ceramic brake pads, and laser-etched calipers designed for 7,000 lb trailer axles. Alternative Part Number (DE64VR).
| Specification | Detail |
|---|---|
| Part Number / SKU | DBSO-7K-SS |
| Brand | DeMaxx |
| Product Type | Disc Brake Kit |
| Axle Capacity | 7,000 lbs |
| Rotor Diameter | 13-1/8" (Slip-On Vented) |
| Piston Diameter | 2-1/2" |
| Bolt Pattern | 8 on 6-1/2" |
| Brake Flange Pattern | 5 Bolt |
| Wheel Bolt Diameter | 1/2" |
| Material / Finish | All Stainless Steel (Rotors, Calipers, Brackets) |
| Quantity Included | 1 Brake Kit Assembly (Verify exact axle coverage/hardware before ordering) |
| Category | Details |
|---|---|
| Vehicle / Trailer / System | 7,000 lb Trailer Axles with 5-Bolt Brake Flanges |
| Primary Fit | Fits standard 7,000 lb idler hubs with 8 on 6-1/2" bolt pattern |
| Fitment Method | Slip-on rotor design fits over existing idler hub stud pattern; 5-bolt flange bracket mounting |
| Important Note | Verify flange bolt pattern, hub dimensions, and wheel clearance before ordering. Compatible with hydraulic disc brake actuation systems. |
| Feature | Buyer Benefit |
|---|---|
| Smooth & Fast Braking | Disc design paired with premium ceramic pads provides shorter, controlled stopping distances. |
| All-Stainless Build | Stainless rotors, calipers, and brackets fight rust and corrosion in harsh marine, saltwater, or winter environments. |
| Vented Slip-On Rotor | Integrated drainage holes shed heat and moisture quickly to maintain performance and extend pad life. |
| Hassle-Free Install | Slip-on rotor mounts directly over standard idler hubs without needing a complete hub replacement. |
Important Fitment Note: Verify all measurements, specifications, mounting points, side orientation, connector style, compatibility details, and included components before installation. OEM or platform references describe application fitment only unless OEM status is specifically verified.
Compatibility: Designed for standard 7,000 lb capacity trailer axles utilizing 5-bolt brake mounting flanges and 8-bolt wheel hubs (8 on 6-1/2"). Verify wheel stud diameter (1/2") and rim clearance prior to ordering.
Vehicle / System Fit: Ideal for heavy-duty marine, boat, livestock, equipment, and utility trailers operating in high-corrosion or heavy-load environments.
Installation Notes: Slip-on rotors slide directly over existing idler hubs with matching bolt patterns, significantly reducing installation time and eliminating the need to pack new inner wheel bearings or install new hub grease seals.
Performance Insight: Vented rotor engineering combined with 2-1/2" diameter pistons maximizes clamping force while rapidly shedding heat and water, minimizing fade under continuous heavy braking.
Disc design with ceramic pads gives shorter, more controlled braking performance under heavy loads.
All-stainless rotors, calipers, and brackets stay strong and resist degradation in saltwater or snow exposure.
Vented, slip-on rotors with drainage holes quickly shed heat and moisture to prevent brake fade.
Slip-on rotors fit directly over standard idler hubs—no full hub teardown or replacement required.
Precision-rated for 7,000-lb axles with robust 13-1/8" rotors, 2-1/2" pistons, and 8 on 6-1/2" bolt configuration.
Laser-etched caliper instructions provide clear step-by-step guidance for bleeding lines and pad changes.

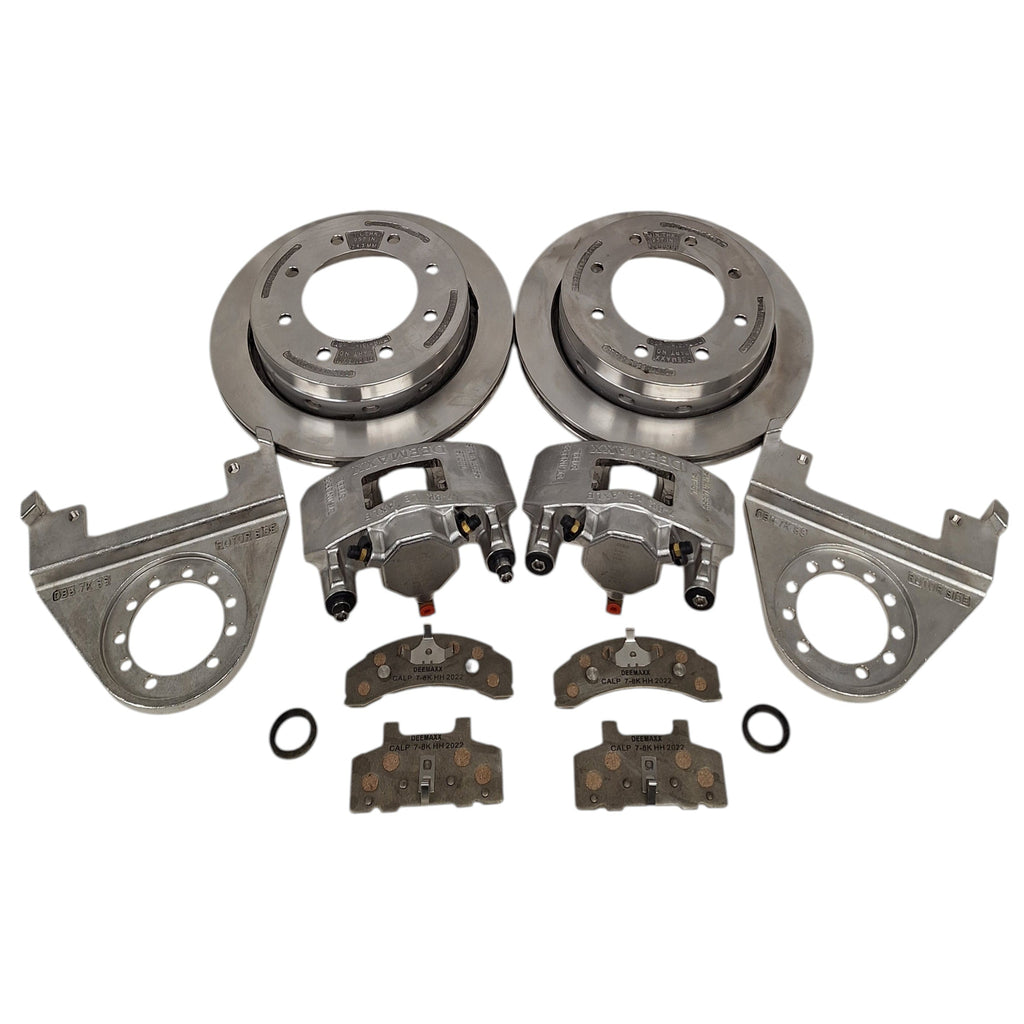

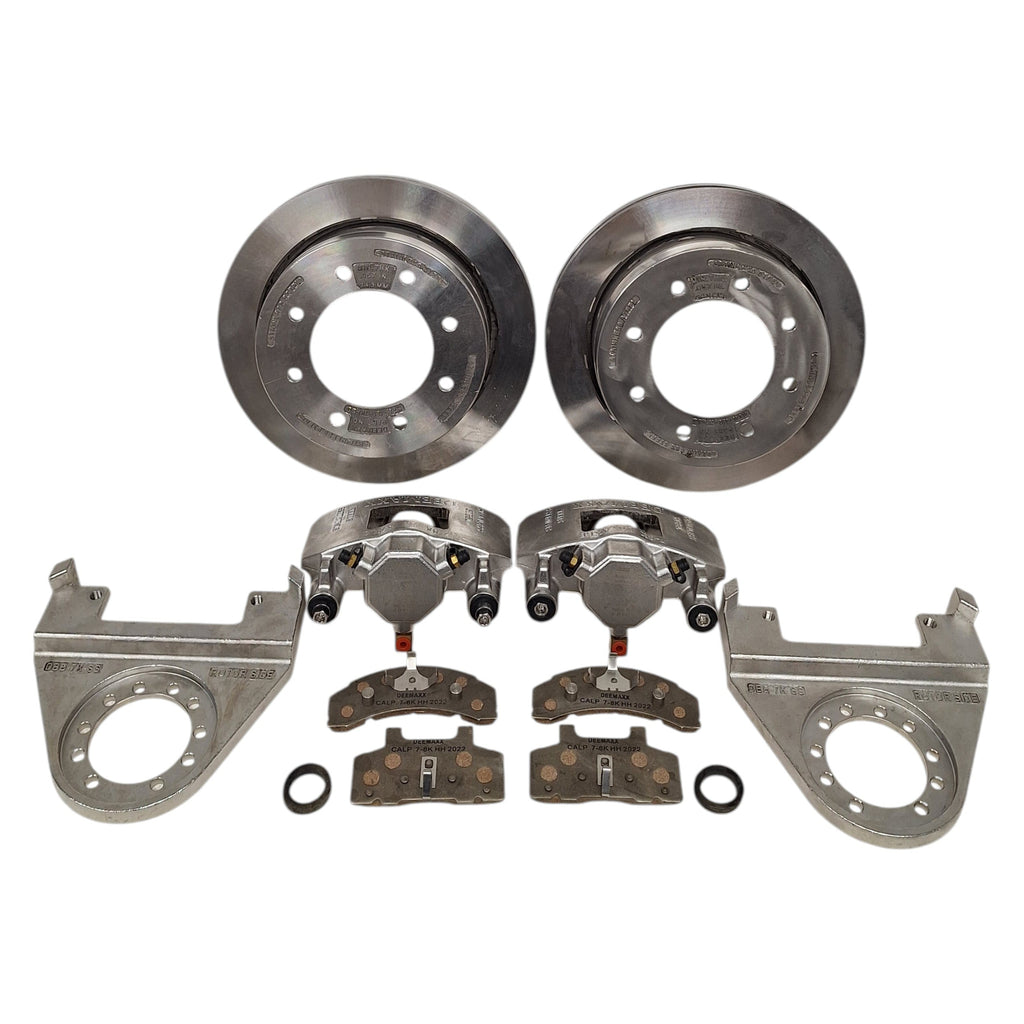

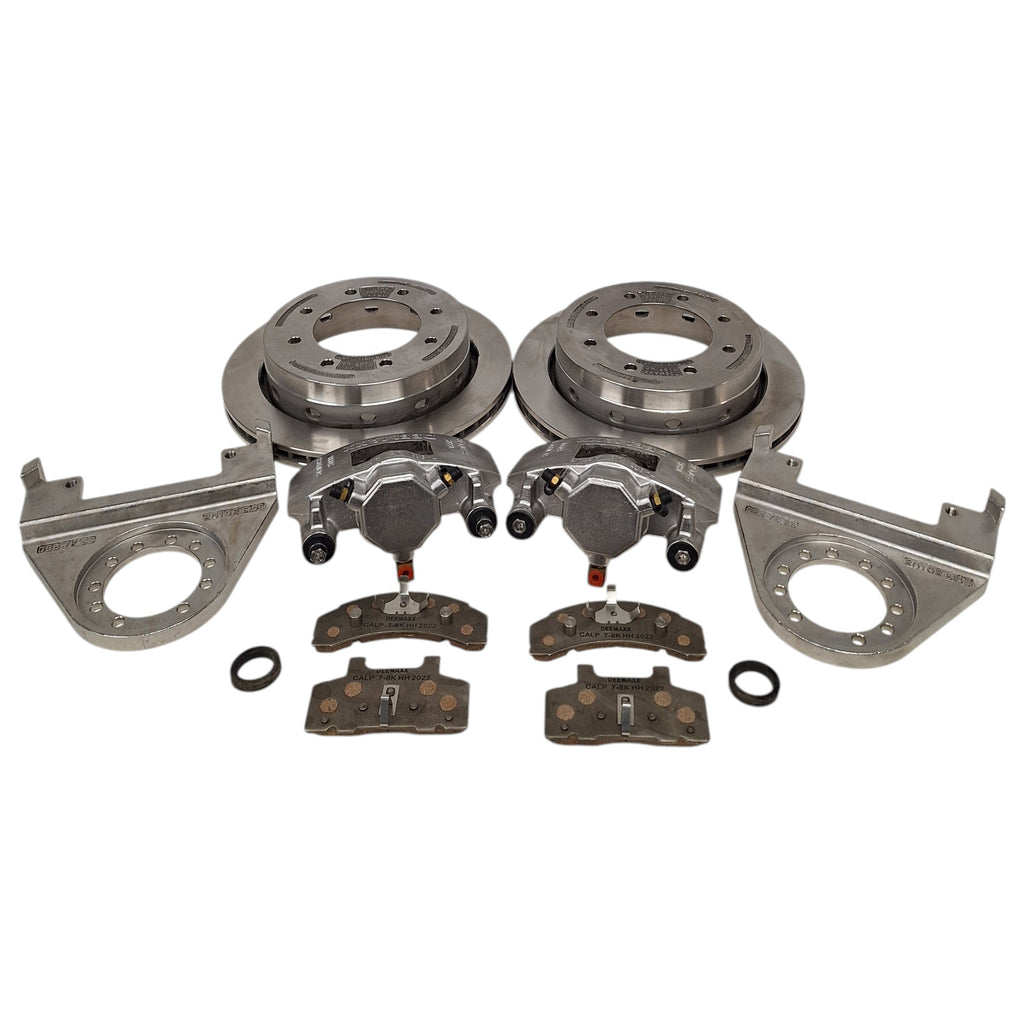

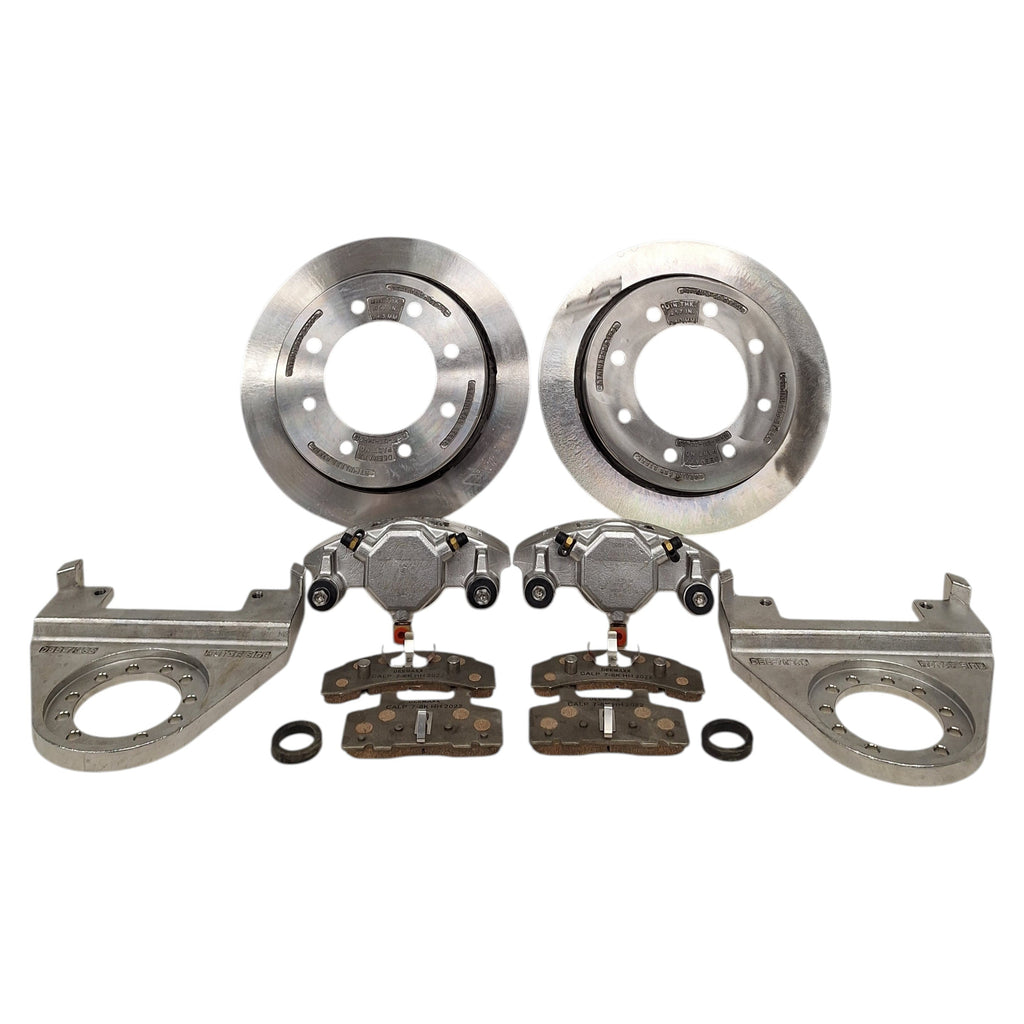

| Quantity | Item |
|---|---|

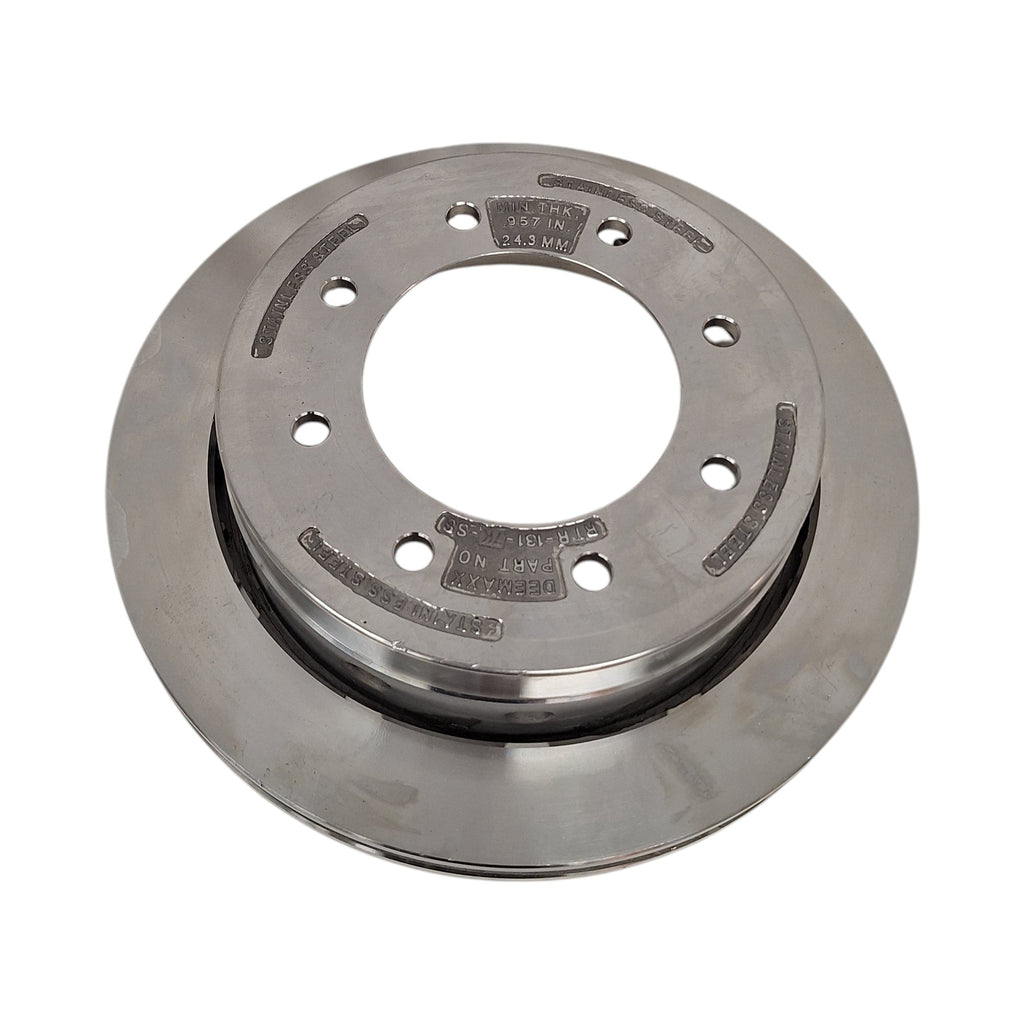

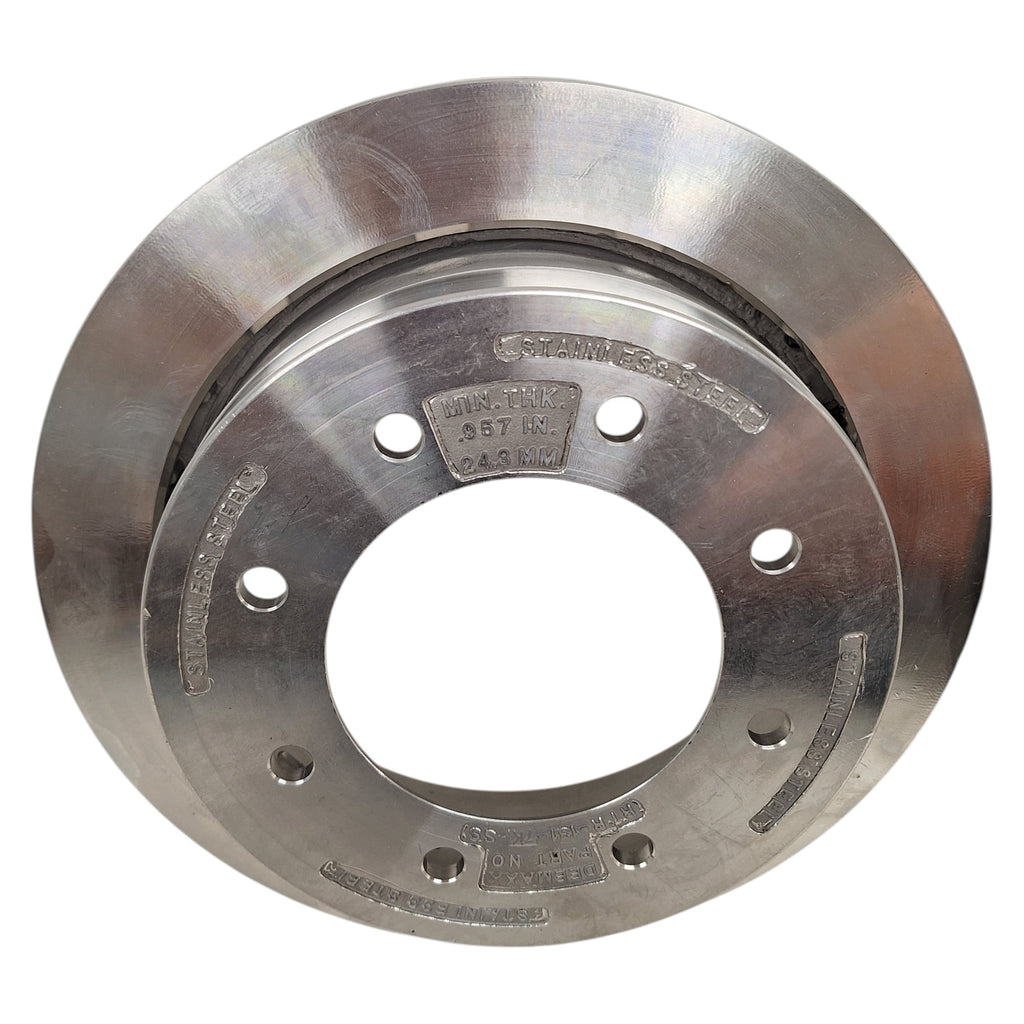

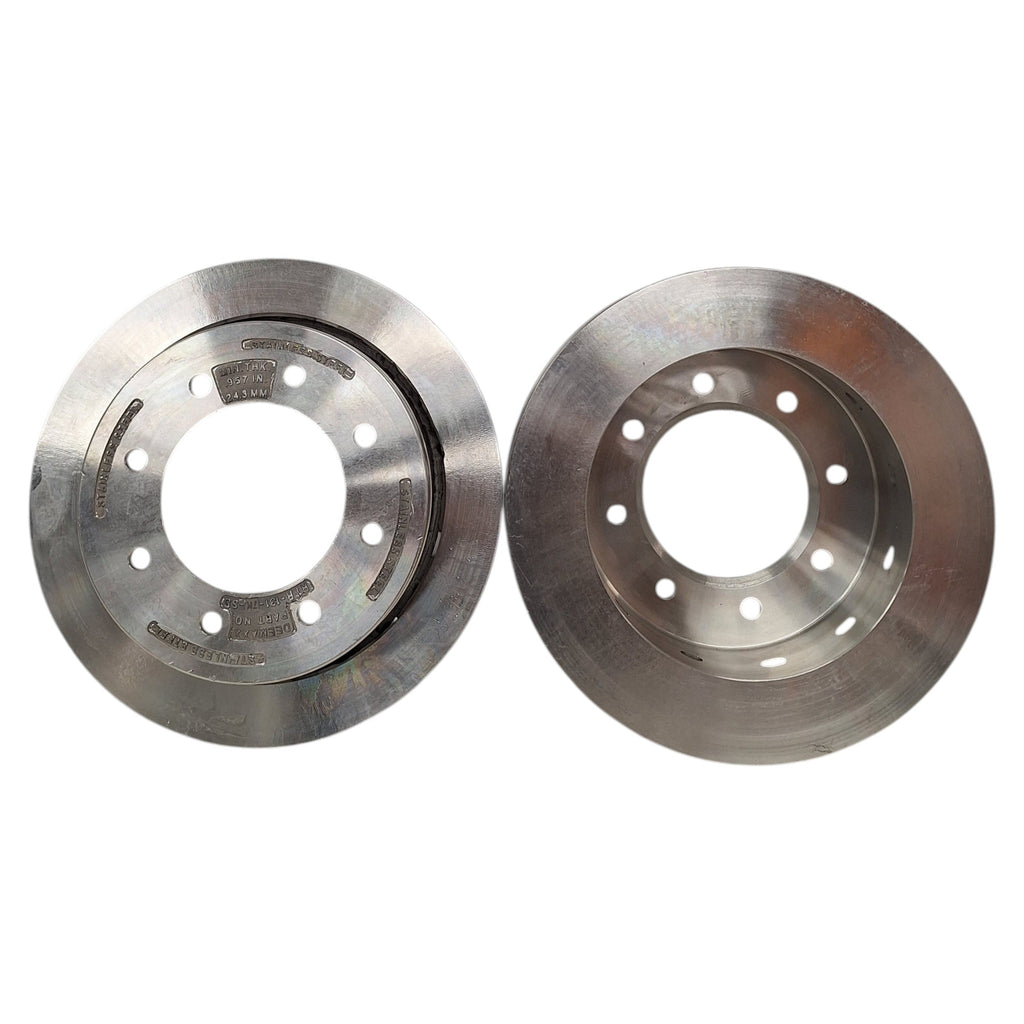

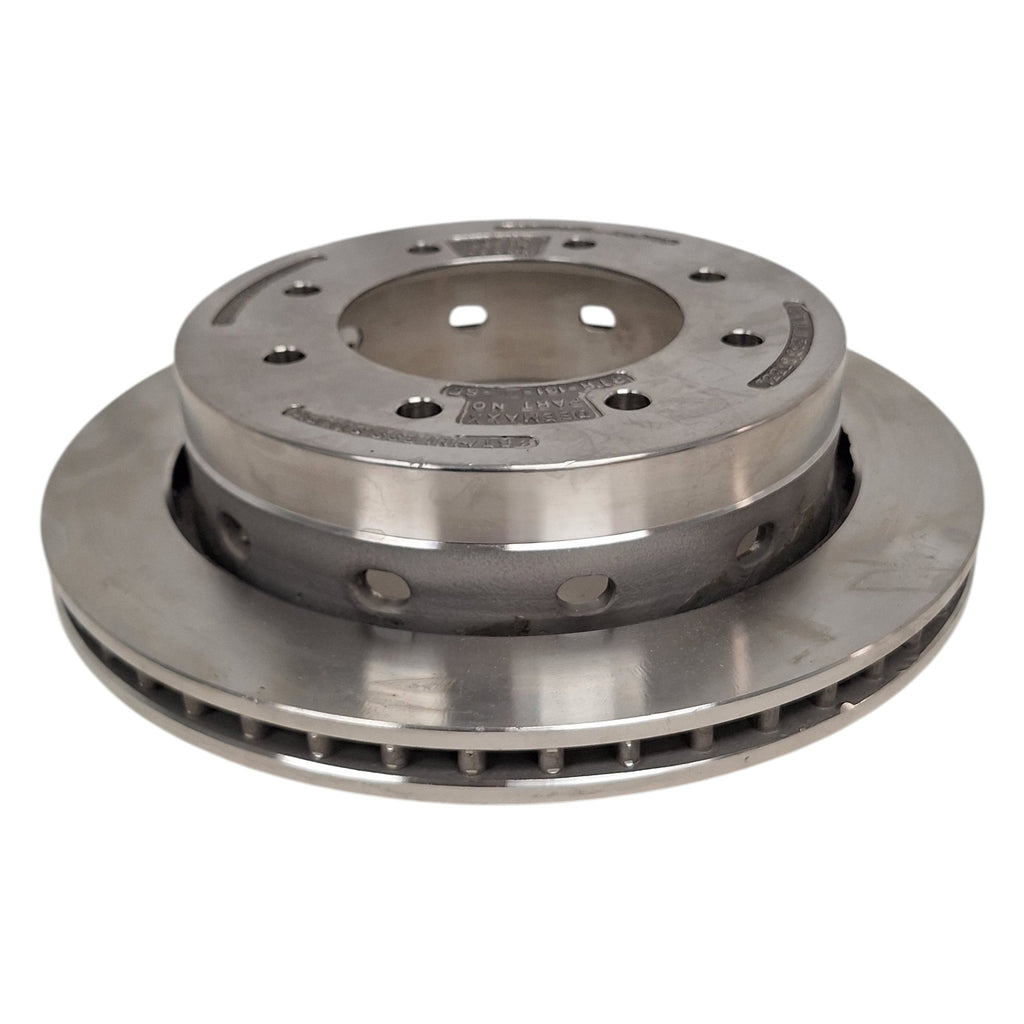

| 2 | DeMaxx 13-1/8" Stainless Steel Vented Slip-On Rotor (8 on 6-1/2" Pattern) |

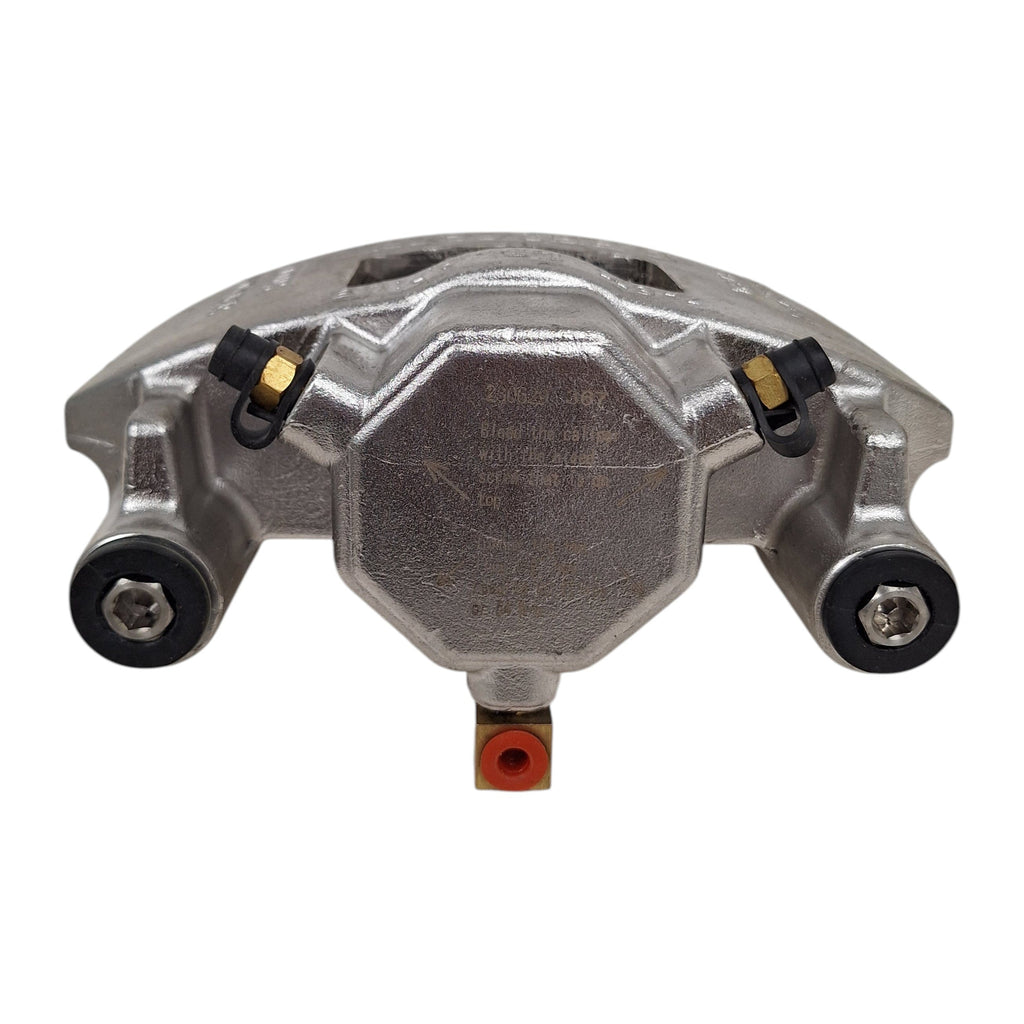

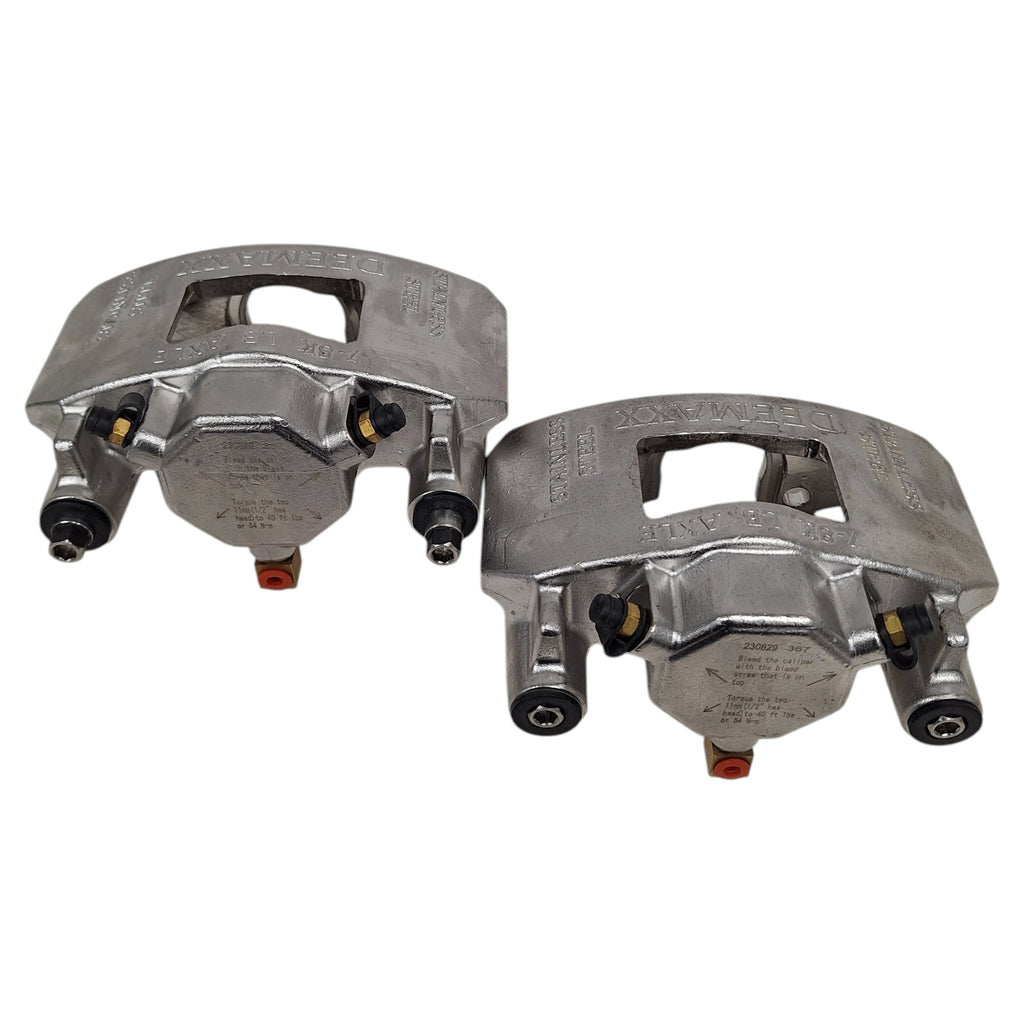

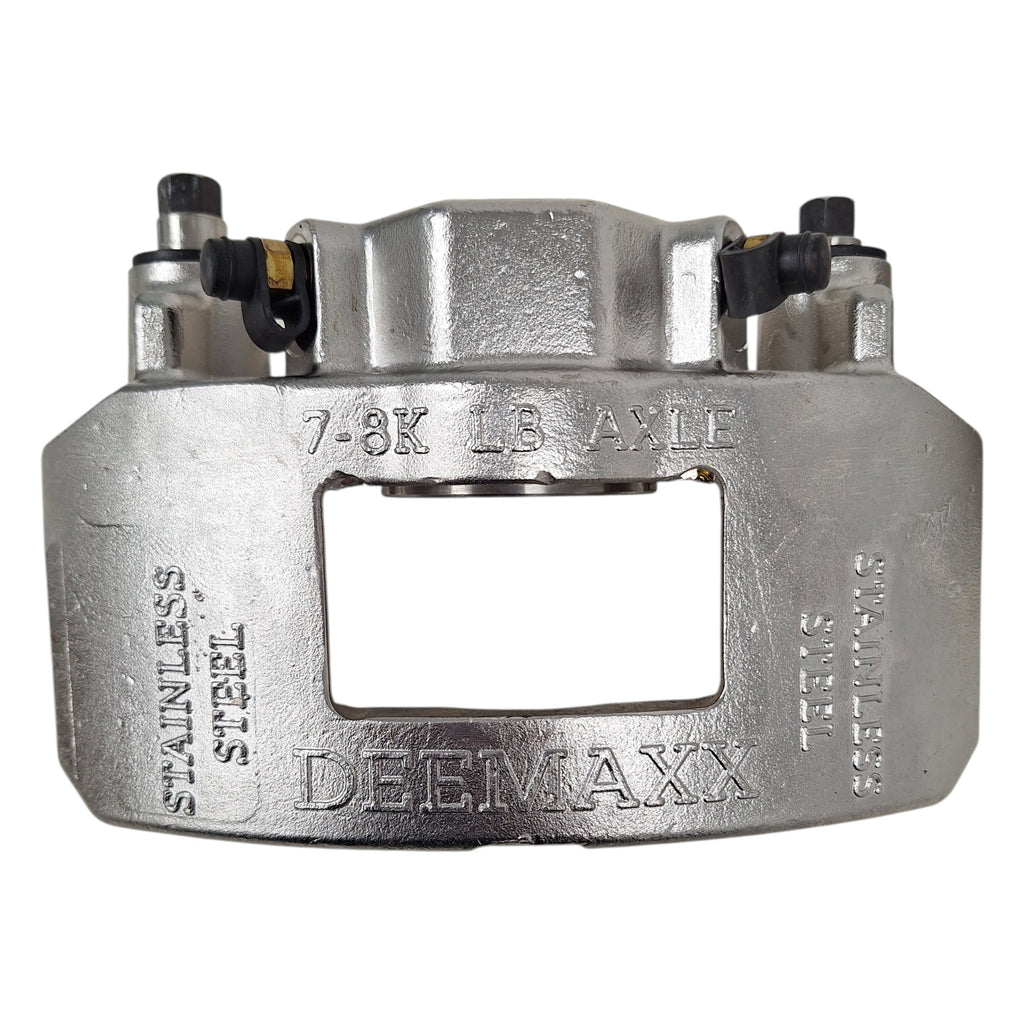

| 2 | DeMaxx Stainless Steel Caliper with 2-1/2" Piston & Laser-Etched Instructions |
| 1 Set | Ceramic Brake Pads (Pre-Installed / Included) |

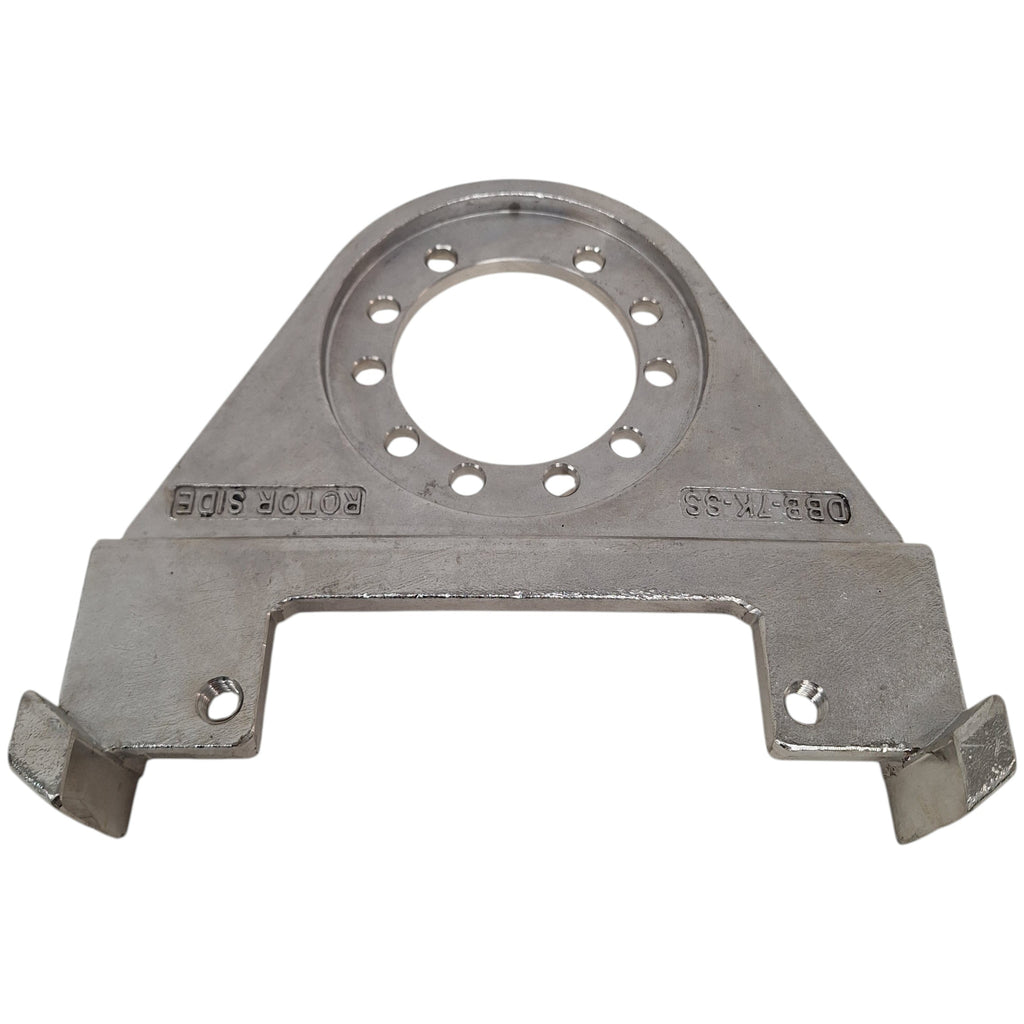

| 2 | Stainless Steel 5-Bolt Mounting Bracket |
| Note | Verify kit configuration and additional axle mounting hardware prior to installation. |
