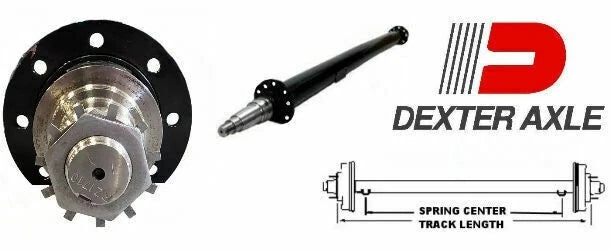

Dexter 10K General Duty Trailer Axle 5" Tube 71.5" Hub Face 72" Track Perches
Replacement trailer axle beam with a 10,000 lb rating, 71.5-inch hub face, 72-inch track width, straight 5-inch tube and loose weld-on spring perches.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 10KGD-AF09-715-5-KIT |
| Product Type | Trailer axle beam |
| Capacity Rating | 10,000 lbs |
| Hub Face Measurement | 71.5" |
| Track Width | 72" |
| Tube Type | Straight |
| Tube Diameter | 5" |
| Spring Perches | Loose, weld-on style |
| Quantity Included | 1 axle beam with loose spring perches |
Fitment / Application
| Category | Details |
|---|---|
| Application | 10,000 lb trailer axle beam replacement |
| Dexter Application | Designed as a replacement beam for certain Dexter axles produced after 2009 |
| LCI Application | Designed as a replacement beam for certain LCI axles produced approximately after 2022 |
| Fitment Method | Verify hub face, track width, tube diameter, capacity rating and manufacturer style |
| Mounting Configuration | Loose spring perches must be positioned before welding |
| Important Note | Manufacturer and production-year references do not replace measurement-based fitment verification. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 10,000 lb Rating | Provides a clearly identified axle capacity specification |
| 71.5" Hub Face | Allows comparison with the trailer’s required wheel-mounting width |
| Straight 5" Tube | Identifies the beam configuration and tube diameter for fitment verification |
| Loose Spring Perches | Permits weld-on placement for the required suspension alignment |
Overview
This listing is for one 10,000 lb rated trailer axle beam with a 71.5-inch hub face measurement and 72-inch track width. The beam uses a straight 5-inch tube and includes loose spring perches for weld-on installation. Hub and drum assemblies are not included.
R&P Service Insight
Axle beam replacement requires measurement-based verification. Compare the replacement beam with the existing axle and trailer suspension configuration before positioning or welding the spring perches.
- Hub Face: Confirm the required 71.5-inch hub face measurement.
- Beam Configuration: Confirm that the application requires a straight 5-inch tube.
- Perch Placement: Position the loose spring perches for the required suspension alignment before welding.
R&P Knowledge Hub
Compatibility: Designed as a replacement beam for certain Dexter axles produced after 2009 and certain LCI axles produced approximately after 2022.

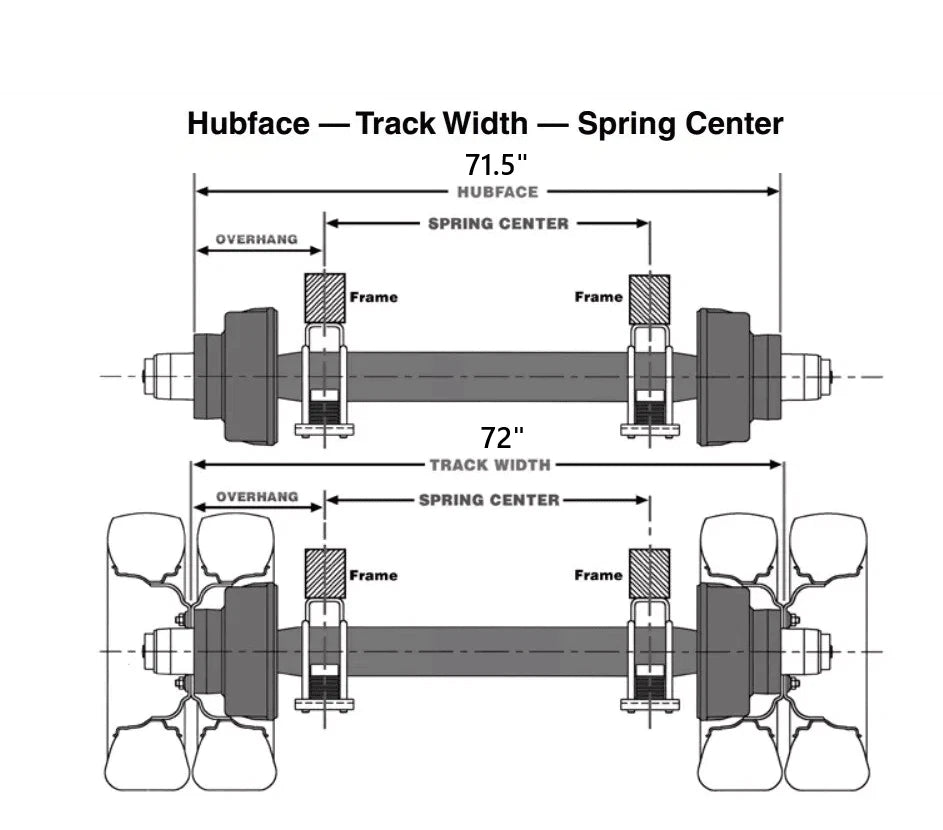

Axle Fit: The replacement application must match the 10,000 lb rating, 71.5-inch hub face, 72-inch track width and straight 5-inch tube configuration.
Installation Notes: The included loose spring perches must be correctly positioned before they are welded to the axle beam.
Performance Insight: Matching the beam dimensions, capacity and manufacturer style is necessary when comparing this axle beam with the trailer’s existing configuration.
Brand & Fitment Note
Selling Brand: Not specified.
Application Reference: Dexter and LCI names are used only to describe the stated replacement applications.
What This Means: This listing is for one replacement trailer axle beam and is not represented as a Dexter-branded or LCI-branded axle beam.
Before Ordering: Verify the hub face, track width, tube diameter, capacity rating, manufacturer style and required spring-perch position.
R&P Repair Insight
Do not select an axle beam from capacity alone. The required measurements, tube configuration and manufacturer style must also match the trailer application.
- Measurement Check: Confirm both the 71.5-inch hub face and 72-inch track width.
- Style Check: Confirm the existing axle uses the applicable Dexter or LCI manufacturer style.
- Component Check: Account for the fact that hub and drum assemblies are not included.
Features
10,000 lb Rated Beam
Clearly identified 10,000 lb capacity rating for comparison with the trailer’s required axle specification.
71.5-Inch Hub Face
Provides a defined hub face measurement for comparison with the trailer’s required wheel-mounting width.
Straight 5-Inch Tube
Uses a straight tube configuration with a 5-inch tube diameter for application and fitment verification.
Loose Weld-On Spring Perches
Allows the spring perches to be positioned for the required suspension alignment before welding.
Included Components
| Quantity | Item |
|---|---|
| 1 | 10,000 lb trailer axle beam |
| Included | Loose weld-on spring perches |
| Not Included | Hub assemblies |
| Not Included | Drum assemblies |
