NEW Dexter 3,500 lb Torflex Torsion Brake Axle – 91" Hub Face – 77" Outside Bracket – 22.5° Up
Send us your measurements or application before you buy.
Pick Up at R&P Carriages
This exact item is available from our Seneca, Illinois location and is not set up for standard shipping.
Seneca, IL 61360 R&P Carriages
Please confirm measurements and availability before making the trip. We want to make sure the item waiting here is the one you need.
Details
Clearance Yard · Limited-quantity inventory

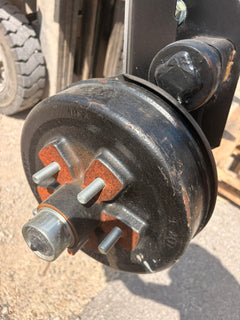

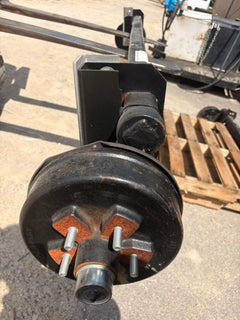

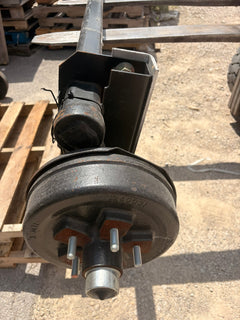

NEW Dexter 3,500 lb Torflex torsion trailer axle with electric brakes, 91" hub face, 77" outside bracket measurement and 22.5° up start angle.
| Weight Capacity | 3,500 lb |
|---|---|
| Axle Type | Dexter Torflex Torsion |
| Hub Face | 91" |

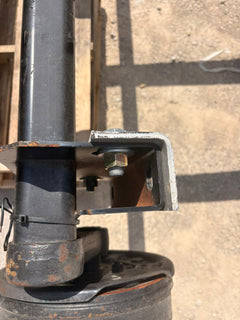

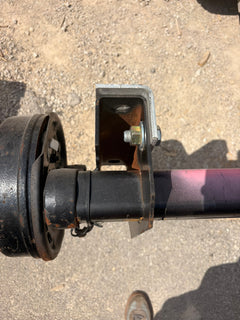

| Outside Bracket | 77" |
| Start Angle | 22.5° Up |
| Brake Type | Electric Drum |
| Bolt Pattern | 5 on 4.5 |

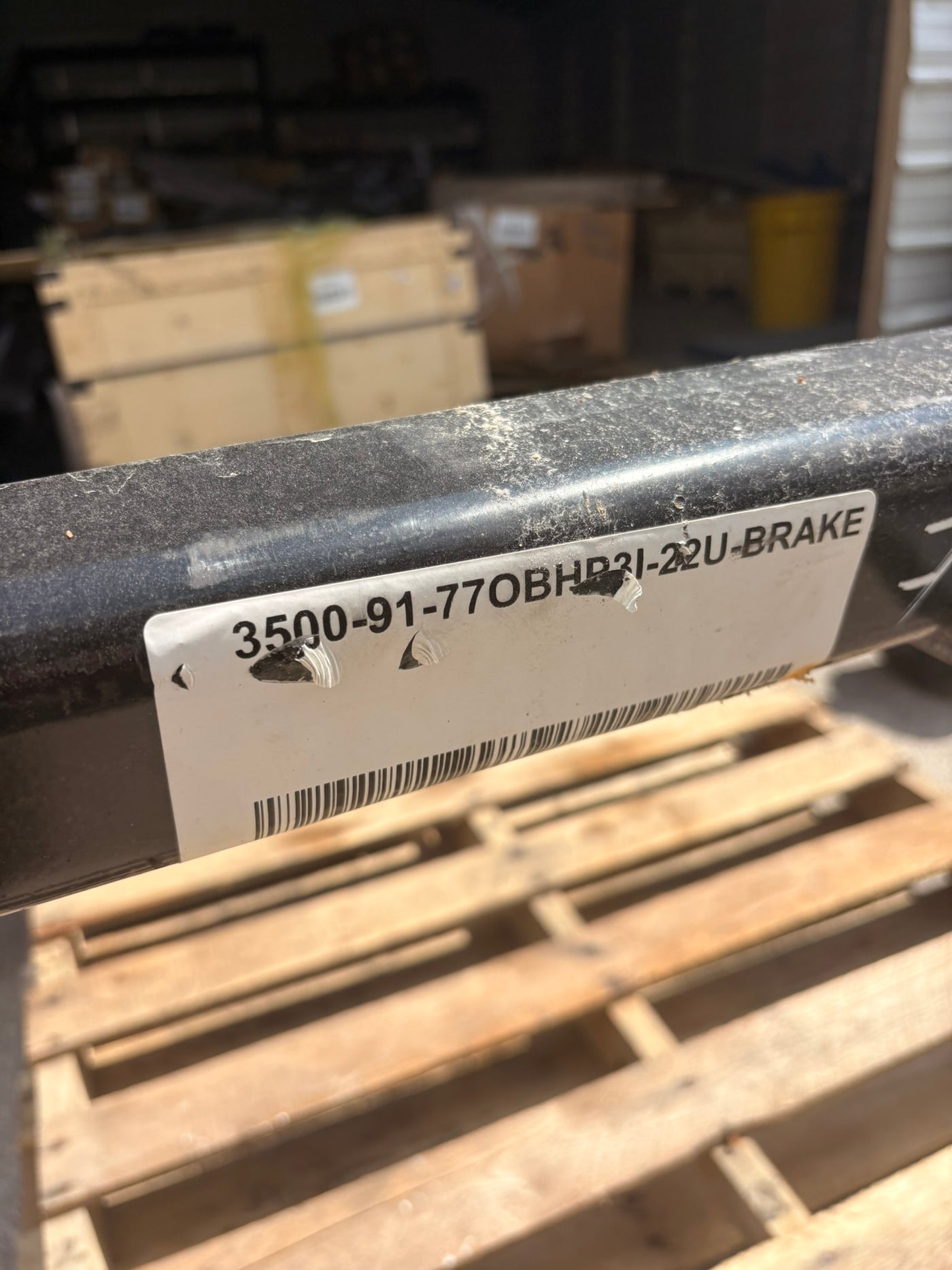

Fitment depends on the actual measurements—not trailer year or model alone. Factory identification confirms the 22.5° up configuration.
Fulfillment: Local pickup in Seneca, Illinois.
