Dexter DX20 20K Surge Brake Actuator, 6-Hole Adjustable Channel, Primed Finish
Heavy-duty Dexter DX20EX hydraulic surge brake actuator for trailers up to 20,000 lbs GVWR. This weld-on center mount unit is designed for hydraulic drum brake systems and pairs high-capacity control with a vertically adjustable channel and clevis-style front connection.
Overview
The Dexter DX20EX is a high-capacity hydraulic surge brake actuator designed for heavy-duty trailers with a GVWR of up to 20,000 lbs. This weld-on center mount unit provides automatic braking for hydraulic drum brake systems by using trailer momentum to apply pressure to the master cylinder. It is a strong fit for equipment haulers, flatbeds, and industrial trailers where a channel-mounted heavy-duty actuator is required.
R&P Service Insight
This component is typically replaced due to wear, environmental exposure, or repeated load stress over time rather than sudden failure.
- Wear: Internal seals and the dual-shock dampening system can lose efficiency after long-term heavy cycling.
- Exposure: Moisture absorption in brake fluid can contribute to internal master cylinder corrosion over time.
- Load Stress: Repeated hauling at the upper end of the weight range can fatigue weld areas or slider components.
What Our D068-434-00 Is

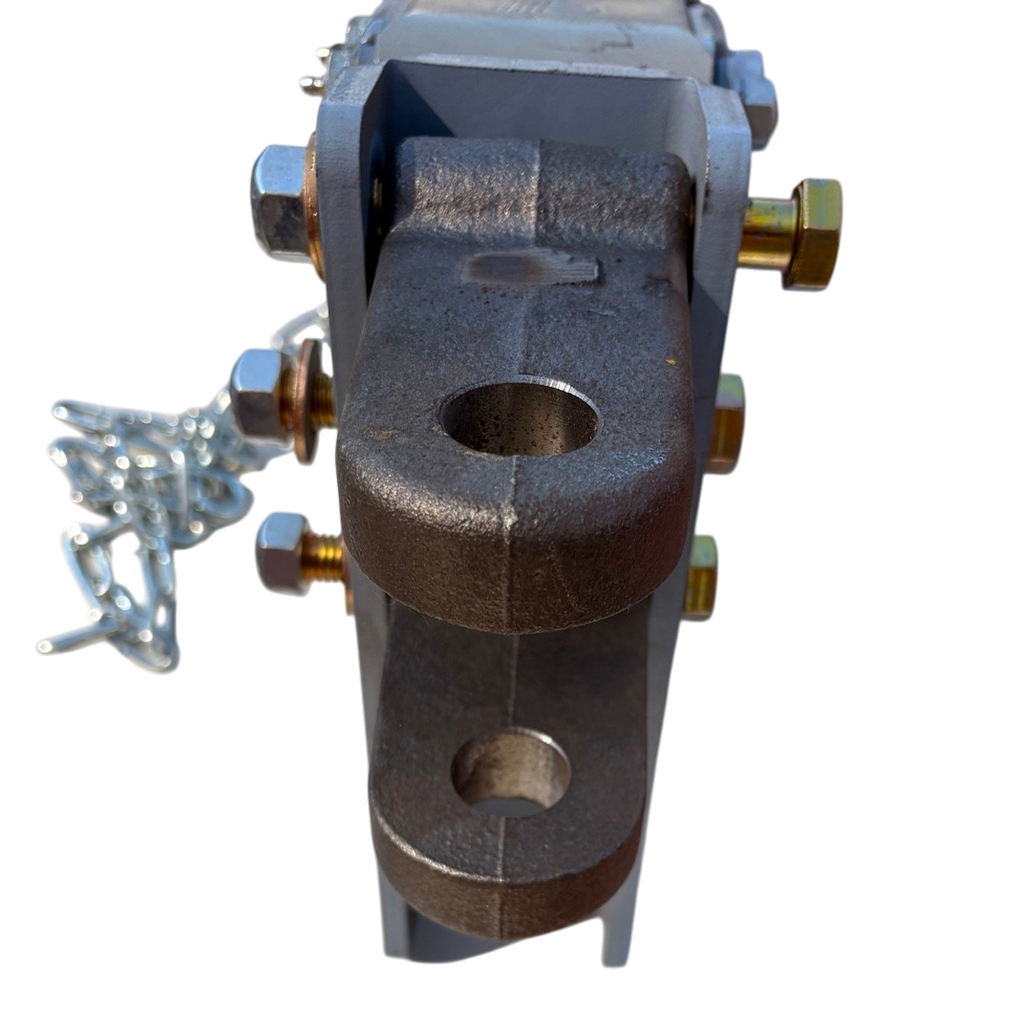

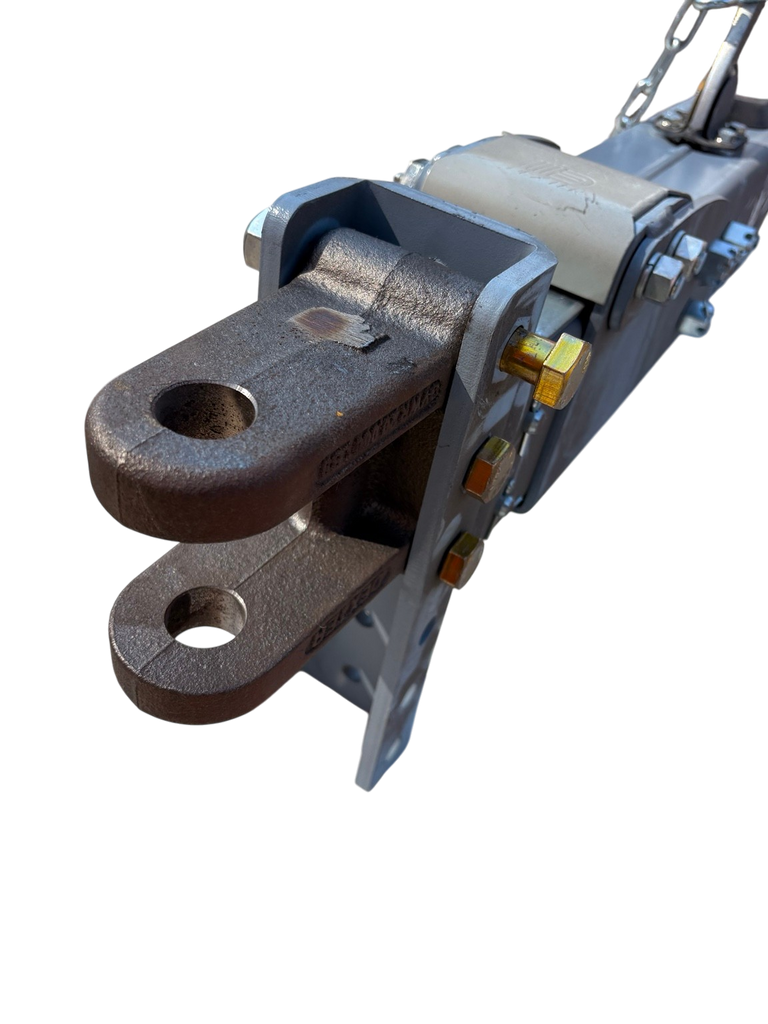

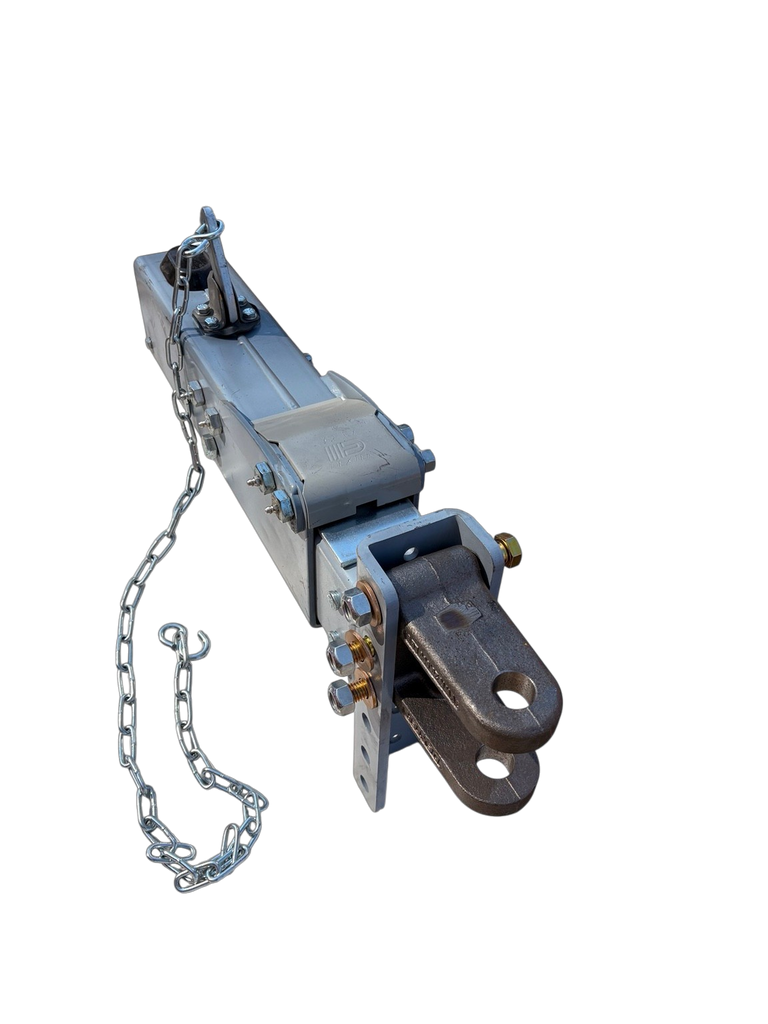

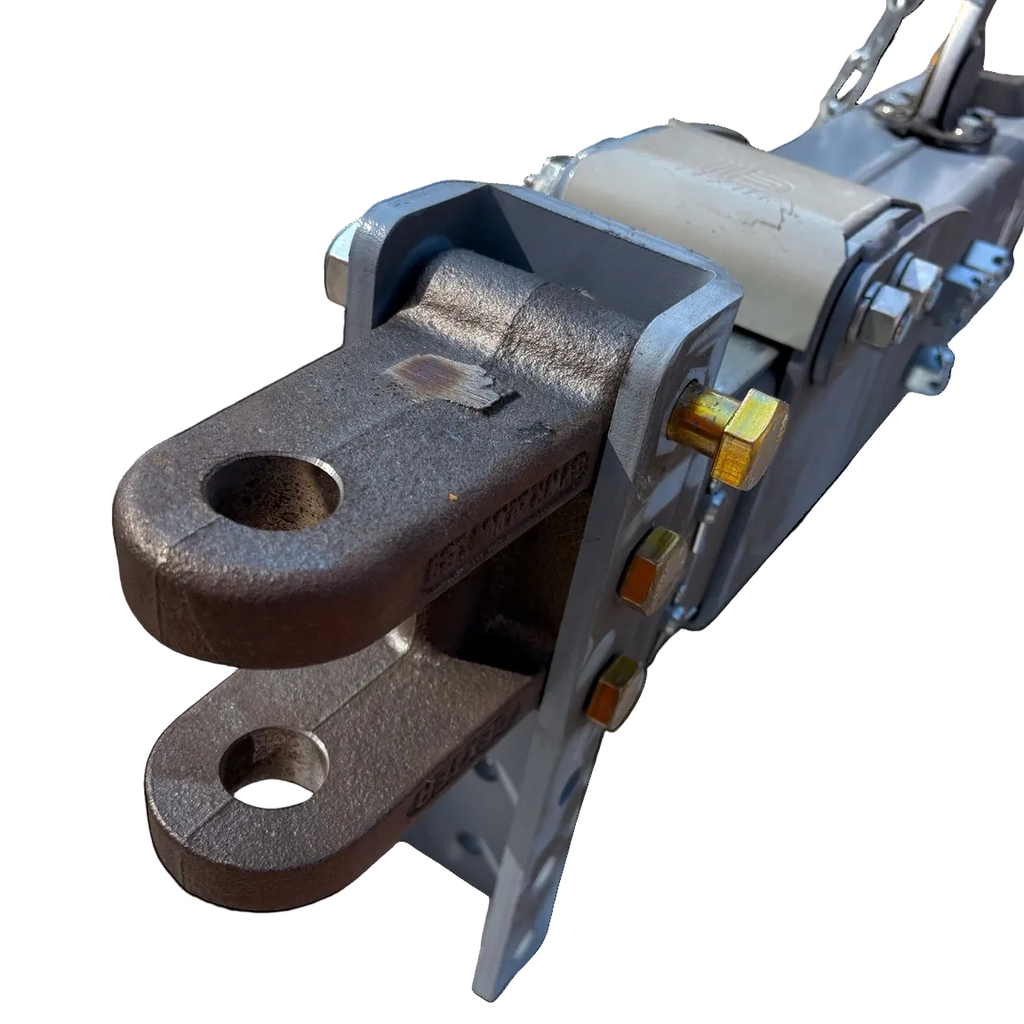

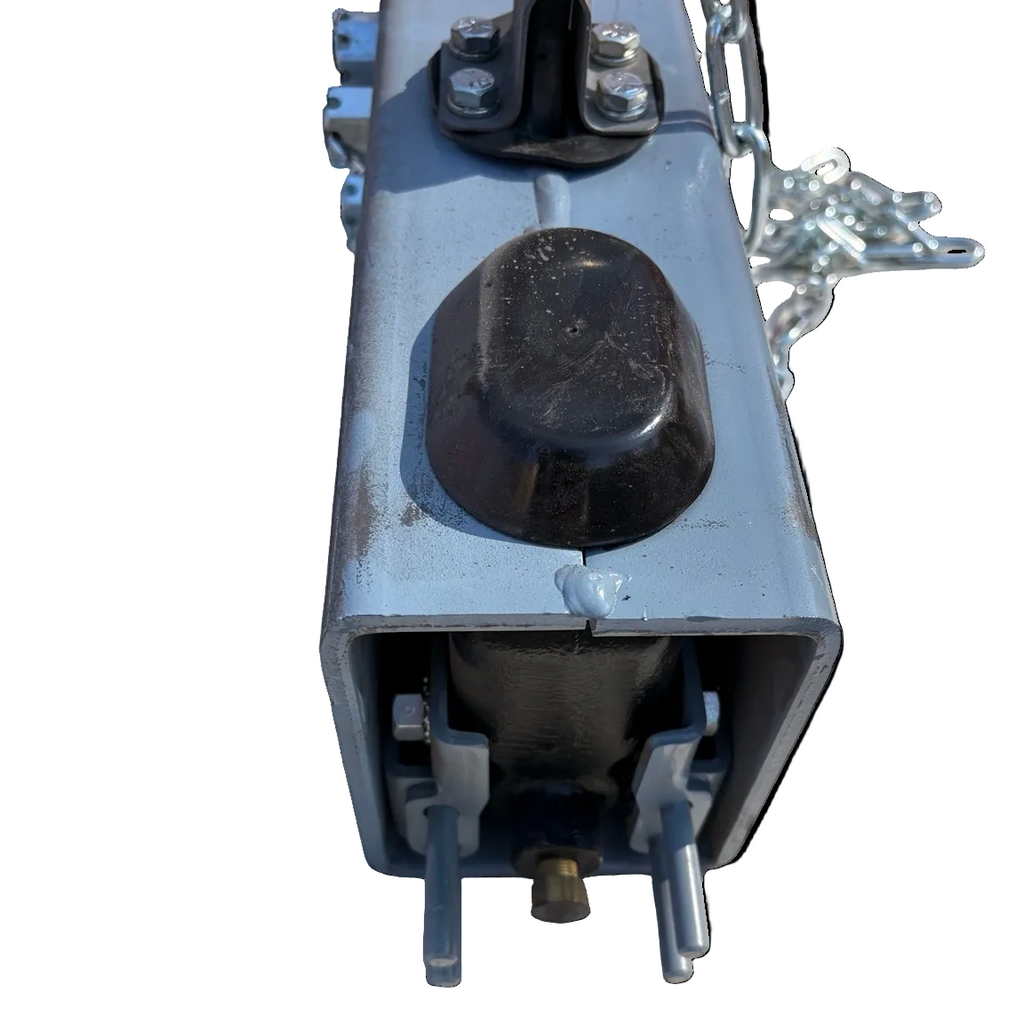

D068-434-00 is an adjustable channel-mount surge brake actuator with a clevis front end. It is not a standard hitch ball coupler. Instead, this unit uses a double-ear clevis connection at the front, designed for a pin-style attachment point.

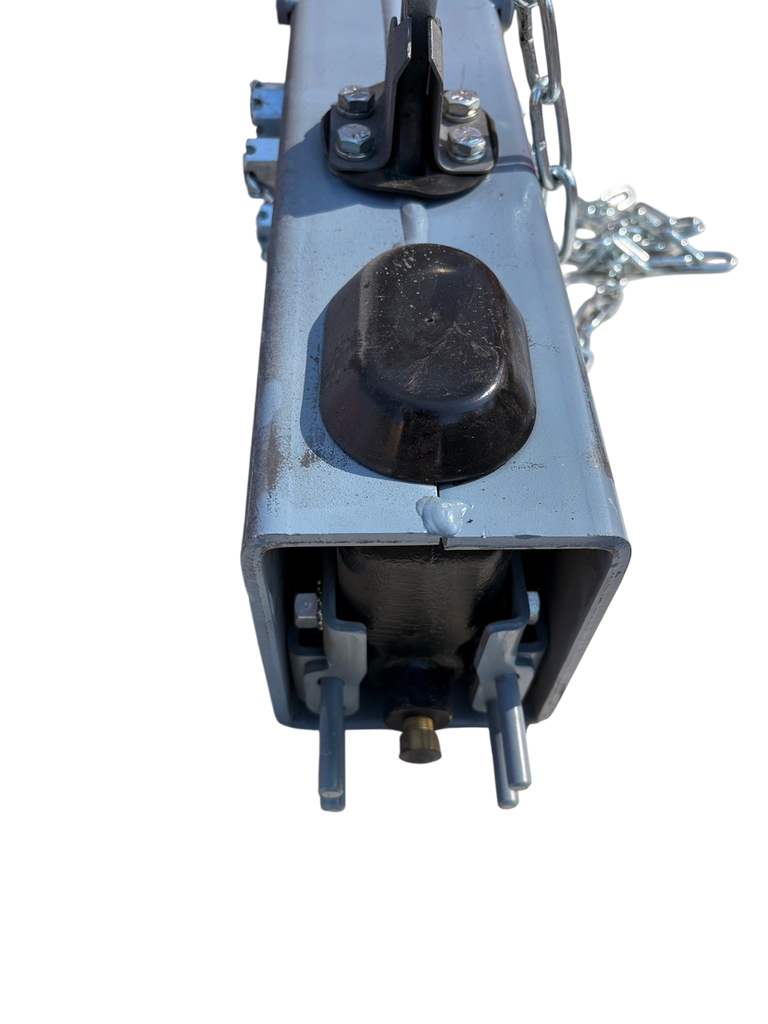

The actuator body mounts into an adjustable channel, allowing height positioning through the side hole pattern. When towing, the surge actuator compresses under braking force and applies hydraulic pressure to the trailer’s brake system.
- Type: Hydraulic surge brake actuator
- Mounting Style: Adjustable channel mount

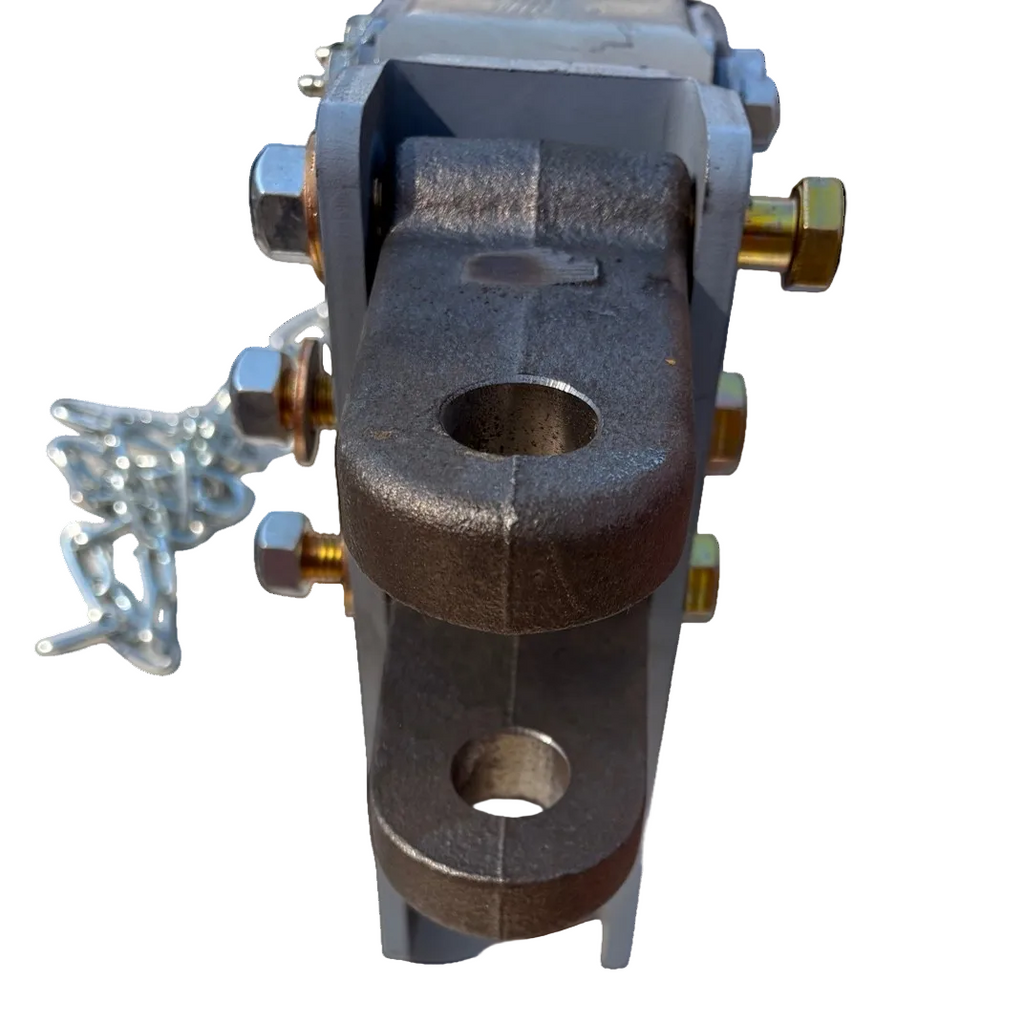

- Front Connection: Clevis / double-ear pin-style end
- Use Case: Trailer braking applications requiring a channel-mounted surge actuator with clevis attachment
R&P Knowledge Hub
Compatibility: Engineered specifically for hydraulic drum brakes. This unit does not include a reverse lockout solenoid required for disc brake applications.
Vehicle / System Fit: Fits 3-inch wide trailer tongues. The weld-on design is ideal for trailers requiring maximum structural integrity under high loads.
Installation Notes: Must be professionally welded to the trailer tongue. Features a grey primed finish that is ready for custom painting to match your trailer frame.
Performance Insight: The 6-hole, 5-position vertical adjustable channel offers maximum flexibility, allowing you to level your trailer across various tow vehicle hitch heights.
Component Reference

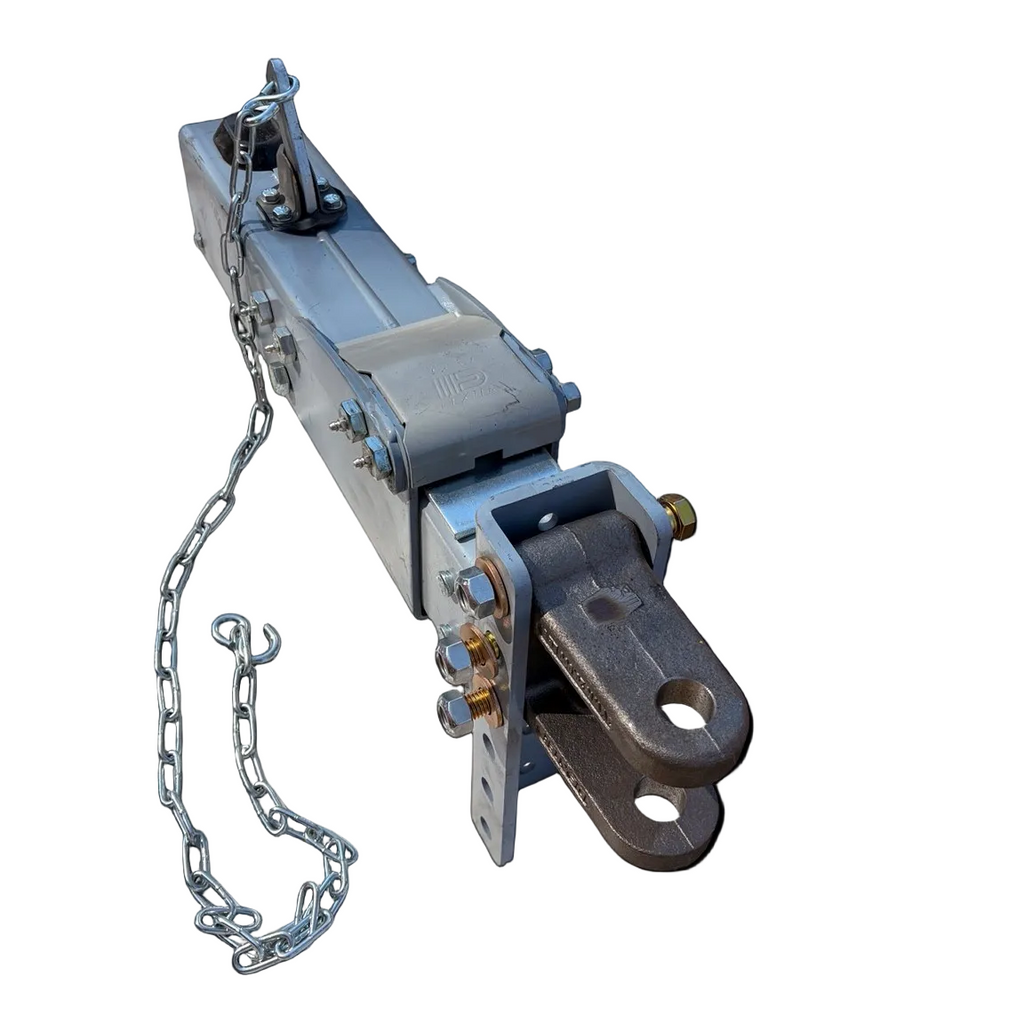

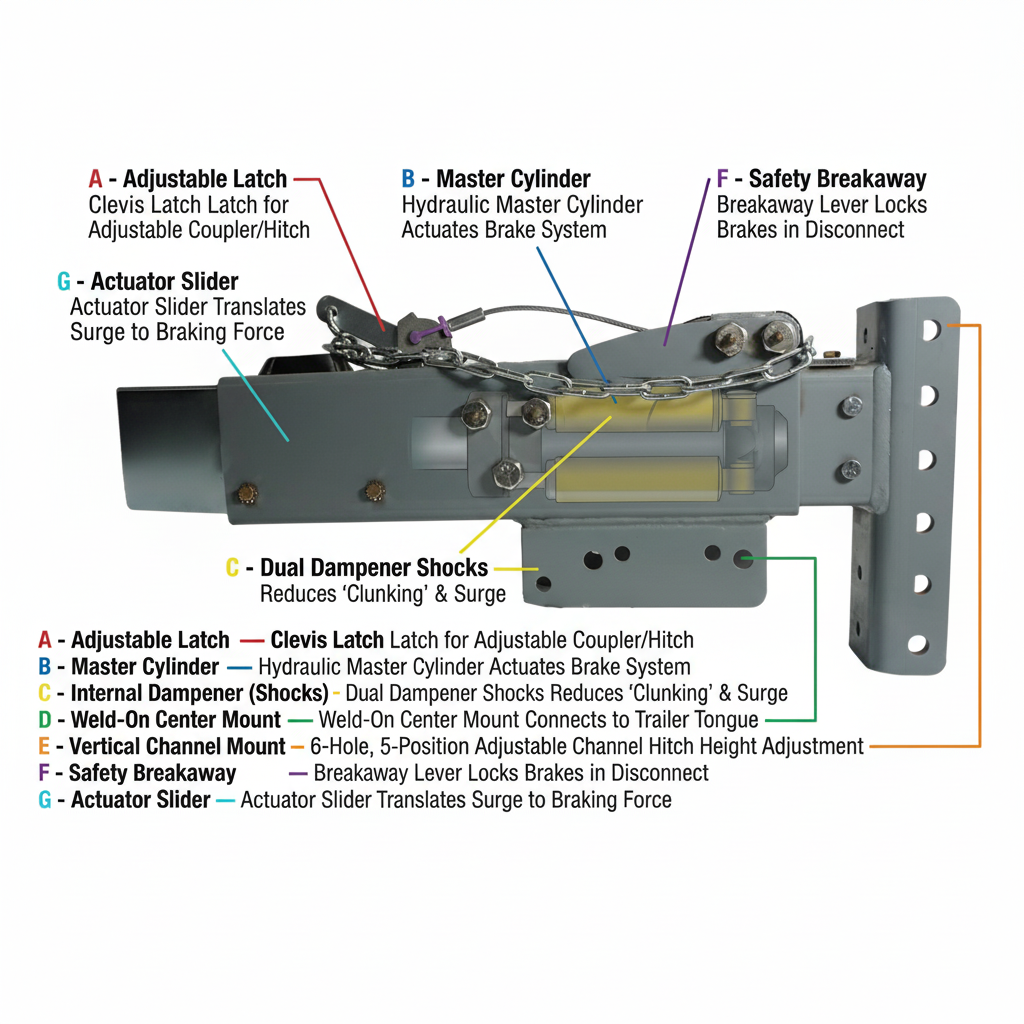

| Label | Component | Description |
|---|---|---|
| A | Adjustable Latch | Clevis latch for adjustable coupler/hitch |
| B | Master Cylinder | Hydraulic master cylinder actuates brake system |
| C | Internal Dampener (Shocks) | Dual dampener shocks reduce “clunking” and surge |
| D | Weld-On Center Mount | Weld-on center mount connects to trailer tongue |
| E | Vertical Channel Mount | 6-hole, 5-position adjustable channel hitch height adjustment |
| F | Safety Breakaway | Breakaway lever locks brakes in disconnect |
| G | Actuator Slider | Actuator slider translates surge to braking force |
R&P Repair Insight
Before ordering, buyers should confirm brake type, mount style, and front connection style together. This actuator is for hydraulic drum brake systems and uses a channel-mounted clevis front end rather than a standard hitch ball coupler nose.
- Brake Type Check: This unit is for hydraulic drum brakes and is not the disc-brake version.
- Mount Check: Confirm your trailer uses a 3-inch weld-on tongue arrangement and needs an adjustable channel mount.
- Connection Check: Verify your setup requires a clevis / double-ear pin-style front attachment.
Features
Industrial Strength

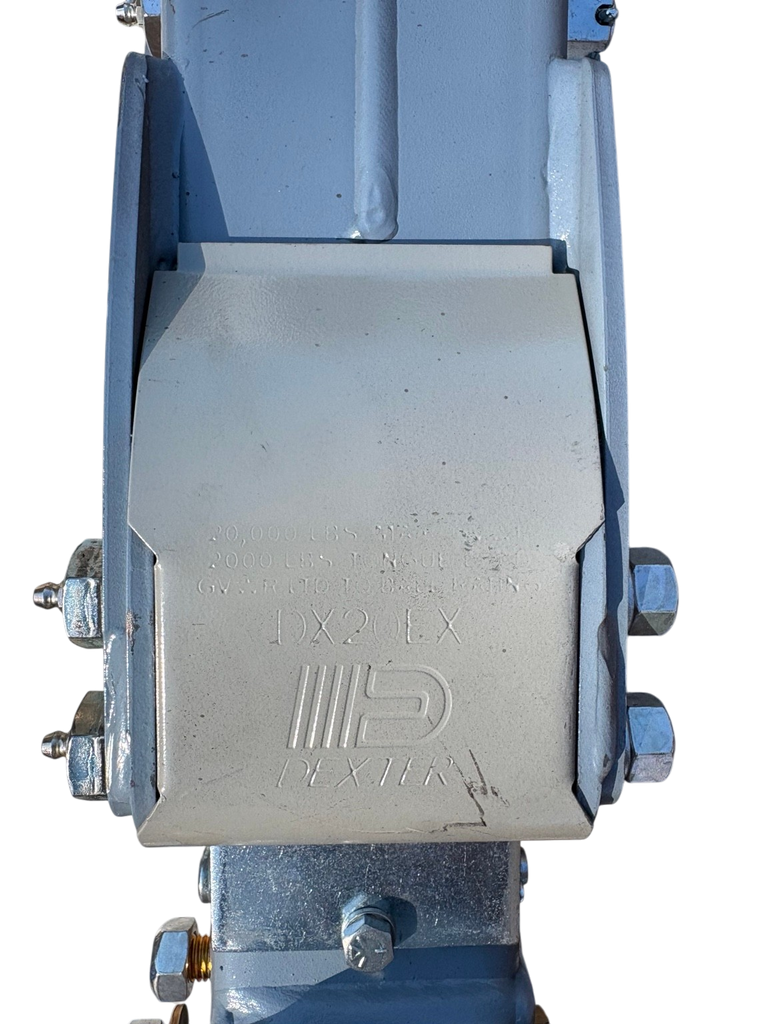

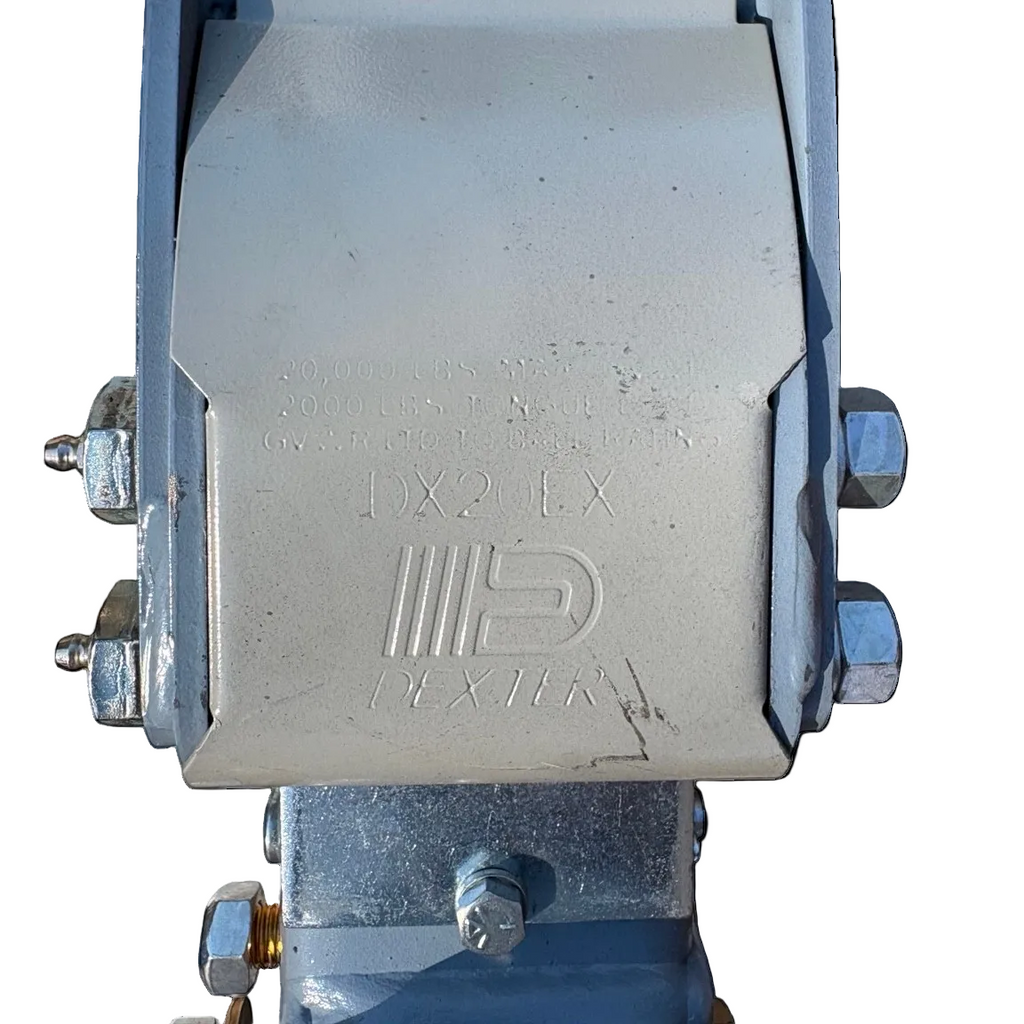

Rated for 20,000 lbs gross trailer weight with a 2,000 lb tongue weight capacity.
Superior Adjustment
6-hole, 5-position vertical channel design helps fine-tune trailer height and hitch geometry.
Weld-On Mounting
Center-mount design for 3-inch trailer tongues creates a permanent, high-strength installation.
Smooth Operation
Integrated dual shock dampeners help reduce clunking and surging during stops.
Specifications
| Specification | Detail |
|---|---|
| Part Number | D068-434-00 |
| Model | Dexter DX20EX |
| Type | Hydraulic Surge Brake Actuator |
| Application | Drum Brake Systems |
| Fitment | 3" Wide Trailer Tongue (Weld-On) |
| Material / Finish | Steel / Primed Grey |
| Key Measurement | 20,000 lbs GTW / 2,000 lbs Tongue Weight |
| Front Connection | Clevis / double-ear pin-style end |
| Channel Style | 6-hole, 5-position vertical adjustable channel |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Heavy duty equipment, utility, flatbed, and industrial trailers |
| Axle / Capacity | Up to 20,000 lbs (single, tandem, or triple axle applications as appropriate to the trailer setup) |
| Mount Requirement | 3" wide weld-on trailer tongue |
| Notes | Requires compatible clevis, pintle, or coupler attachment sold separately. Verify brake system type, front connection style, and channel arrangement before installation. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexter DX20EX Surge Actuator Assembly |
| 1 | Breakaway Cable and Safety Lever Assembly |
