At a Glance
- SKU: D068-078-00
PRODUCT INFORMATION
Product Details
Hydraulic Surge Actuators

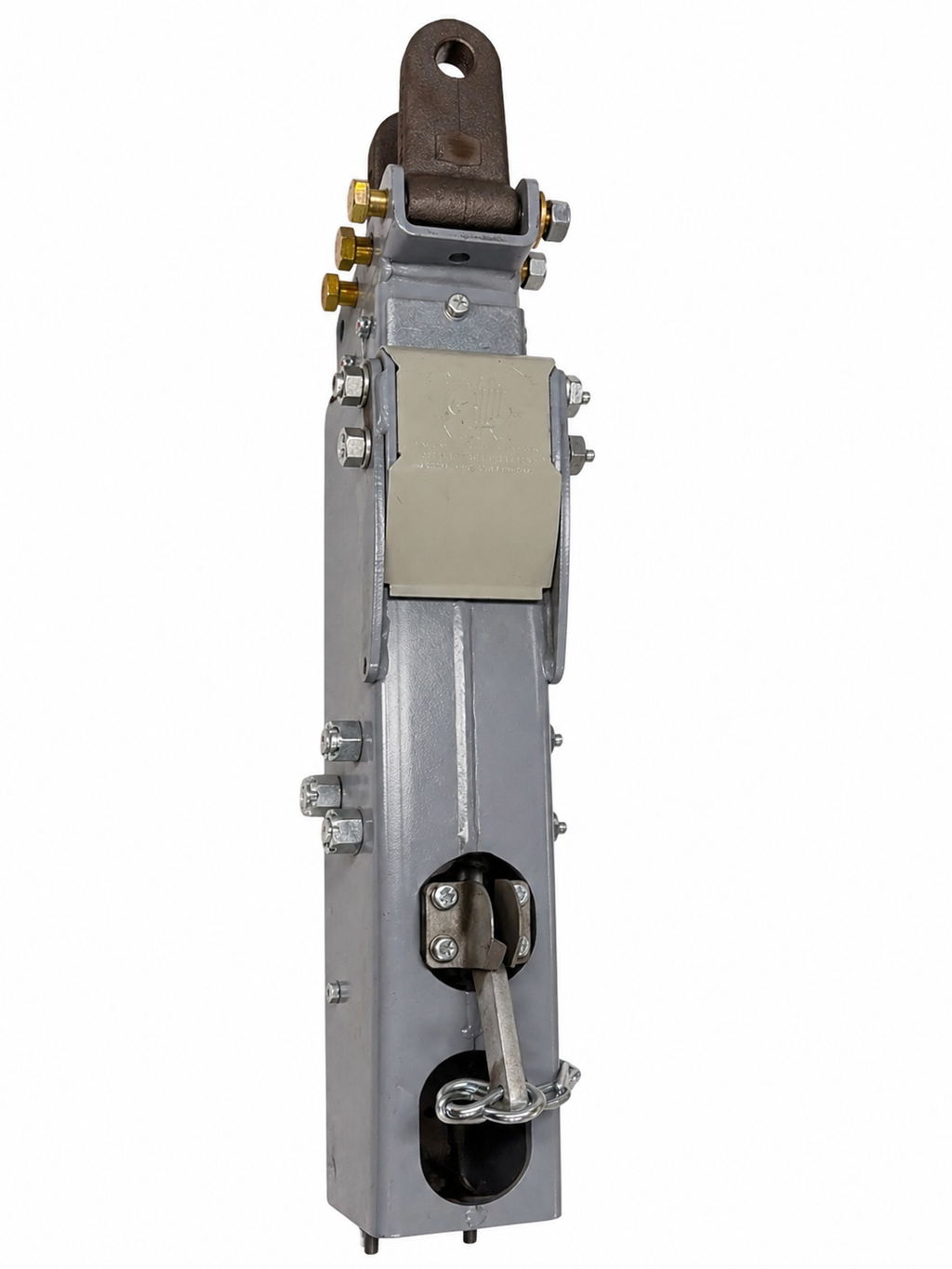

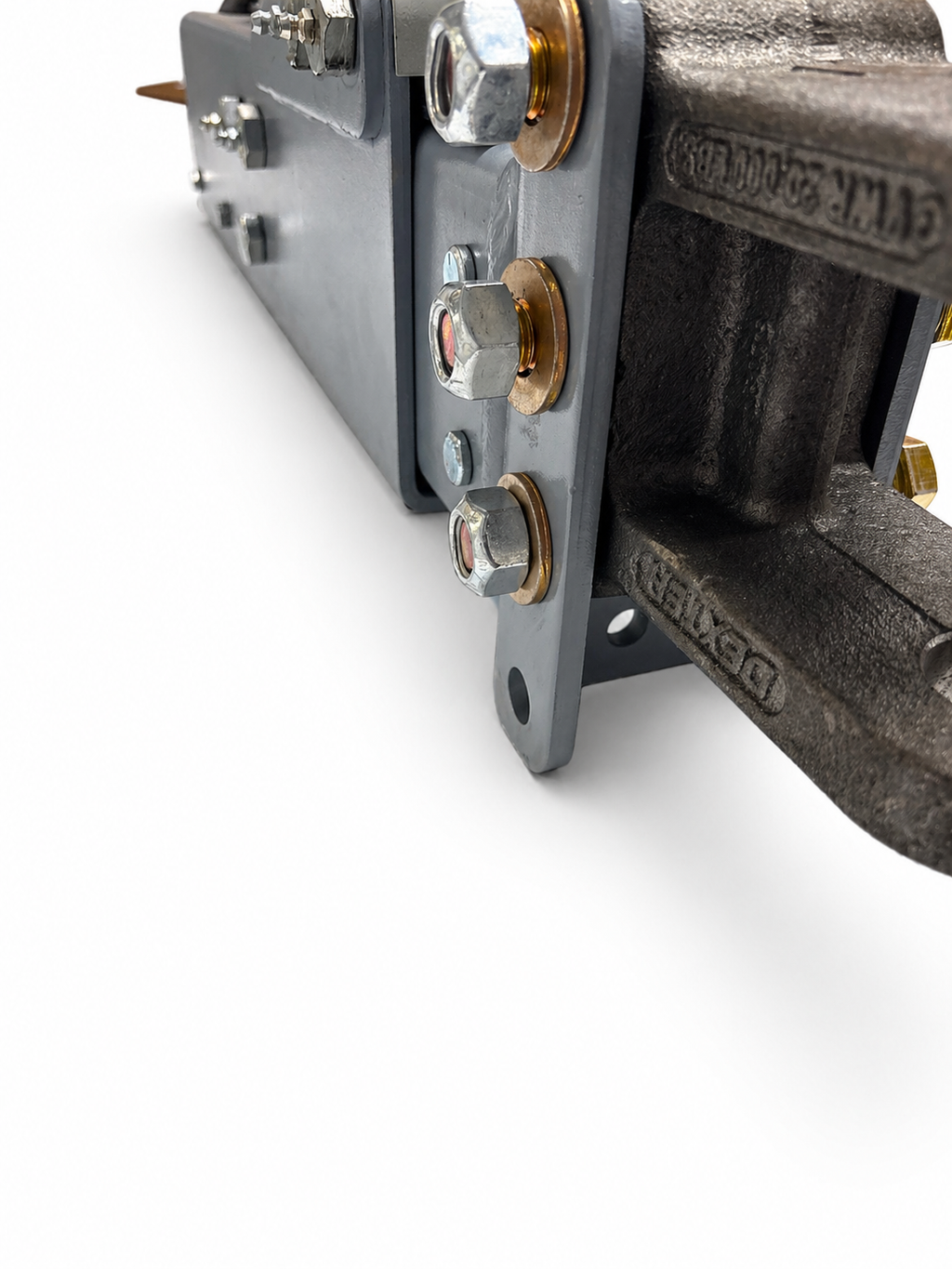

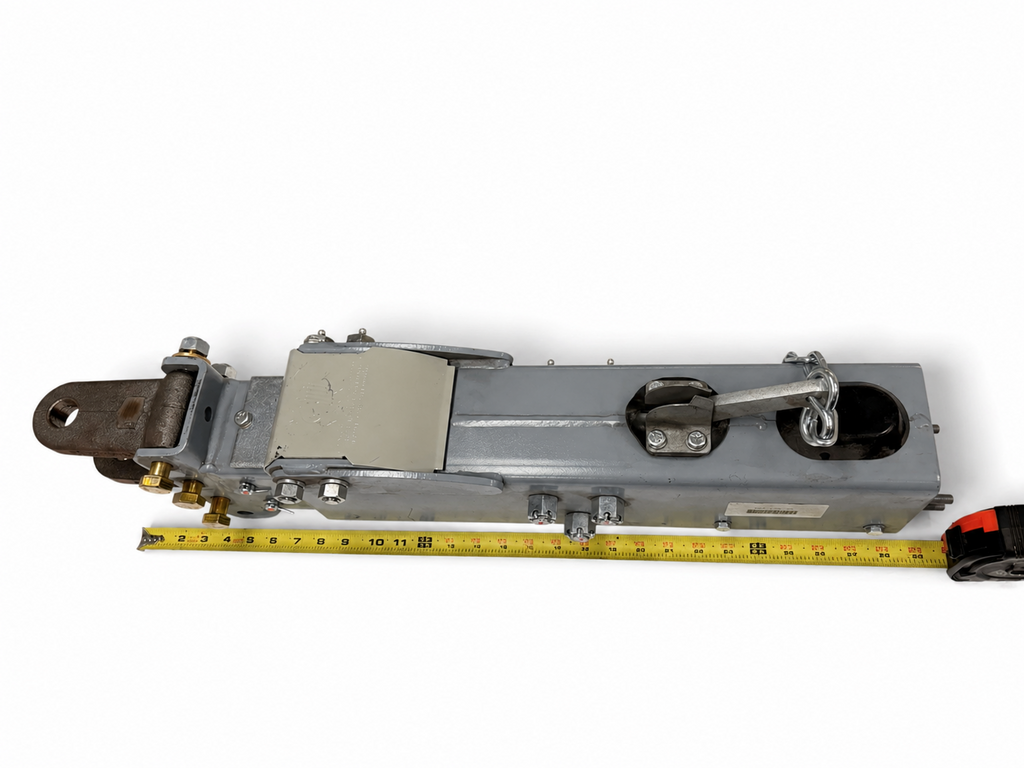

Dexter DX20EX Clevis Hitch 20K Surge Brake Actuator | Weld-On Center Mount for Drum Brakes
Heavy-duty Dexter DX20EX hydraulic surge brake actuator with clevis hitch attachment for 20,000 lb trailer drum brake applications. Built for weld-on center-mount installation with an adjustable channel and emergency breakaway assembly.
Part Number: D068-078-00 20,000 lb GTW Drum Brake Systems
Overview
The Dexter DX20EX clevis hitch surge brake actuator is designed for heavy-duty trailer hydraulic drum brake systems where a weld-on center-mount actuator and clevis-style hitch connection are required. This assembly combines the DX20EX actuator body, adjustable channel, mounted clevis hitch attachment, master cylinder, and emergency breakaway cable assembly into one service-ready replacement solution.
R&P Service Insight
Surge brake actuators are high-load components that control braking force every time the tow vehicle slows. Matching the actuator style, brake type, and hitch connection is critical before replacement.
- Brake System Match: This listing is for drum brake systems, not disc brake systems.
- Hitch Style: This version includes a clevis hitch attachment mounted in the adjustable channel.
- Mounting Check: Weld-on center-mount installation should be performed by a qualified installer.
R&P Knowledge Hub
Compatibility: Designed for hydraulic drum brake trailer systems using a 20,000 lb rated surge actuator and clevis-style hitch connection.
Vehicle / System Fit: Commonly used on heavy-duty equipment, utility, flatbed, and industrial trailers equipped with hydraulic drum brakes.
Installation Notes: Verify trailer tongue configuration, weld-on mounting location, brake line connection, clevis hitch requirements, and actuator rating before installation.
Performance Insight: The adjustable channel allows the clevis hitch position to be set for proper trailer height and towing alignment.
Brand & Fitment Note
Selling Brand: Dexter
Application Reference: This listing describes a Dexter DX20EX clevis hitch hydraulic surge actuator for supported hydraulic drum brake trailer applications.
What This Means: This listing is for the Dexter DX20EX actuator assembly with clevis hitch attachment as identified by part number D068-078-00.
Before Ordering: Verify part number, brake type, mounting style, clevis hitch requirements, trailer tongue setup, hydraulic connection, and included components before installation.
R&P Repair Insight
Replacing a surge actuator usually means the original unit has worn internal seals, damaged slide components, corrosion, or poor brake response. Always confirm the brake type and hitch connection before ordering, because drum and disc actuator setups are not the same.
- Drum vs. Disc: Confirm your trailer uses hydraulic drum brakes before installing this actuator.
- Clevis Fit Check: Confirm the clevis connection matches your tow setup and pin requirements.
- Brake Fluid Service: After installation, fill and bleed the hydraulic brake system according to proper brake service procedure.
Features
20K Heavy-Duty Capacity
Rated for 20,000 lb gross trailer weight applications where a high-capacity hydraulic surge actuator is required.

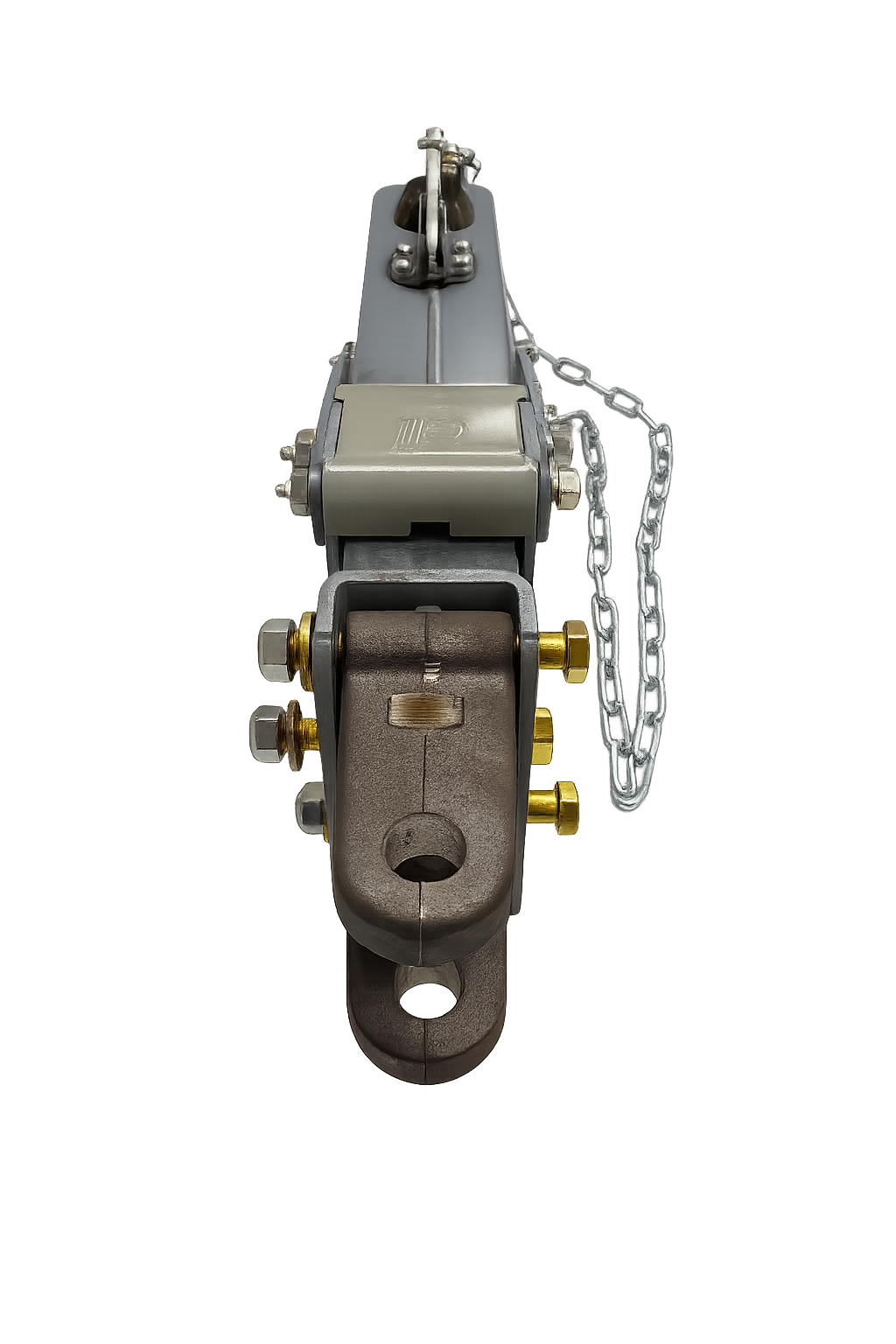

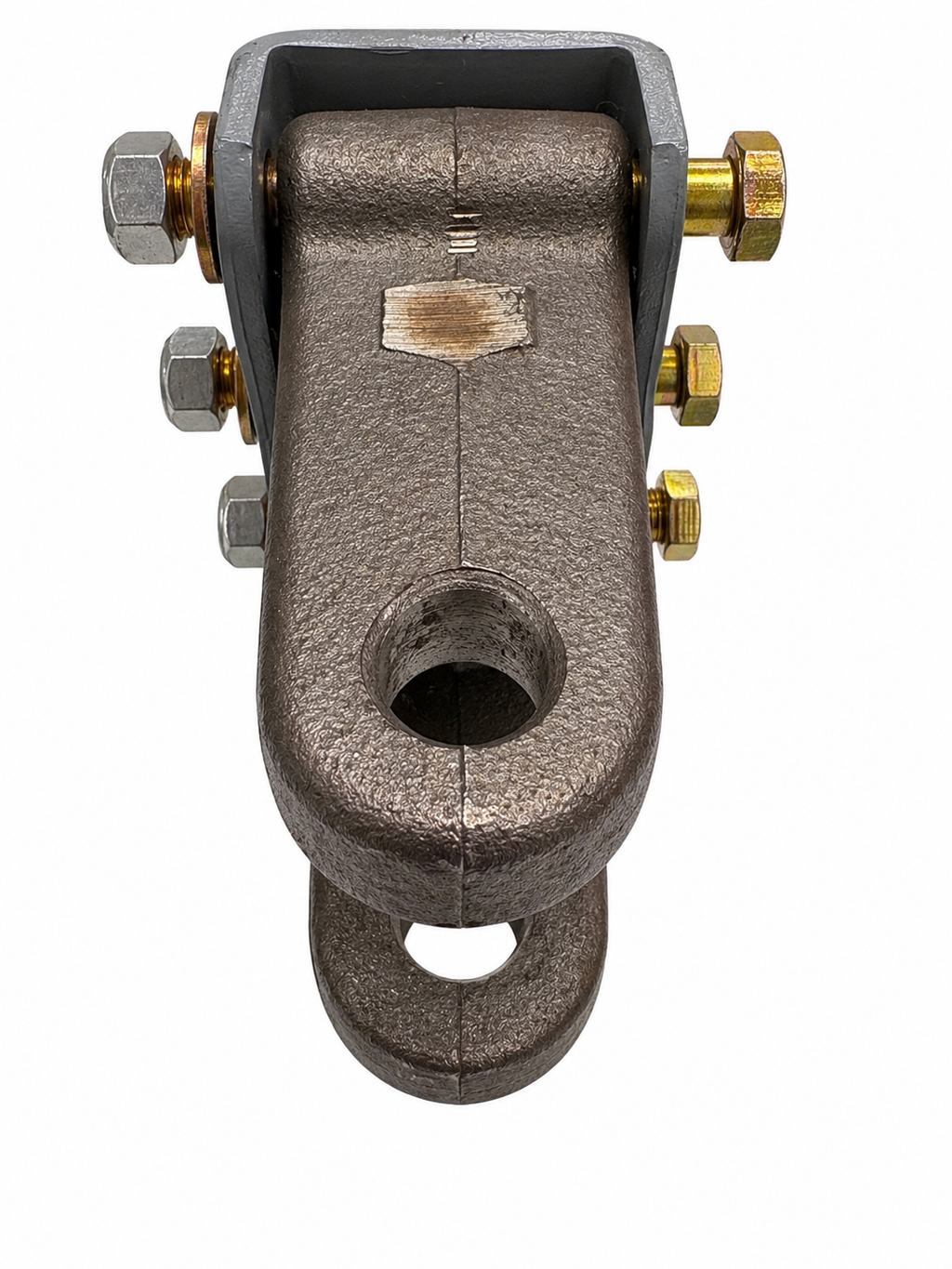

Clevis Hitch Attachment
Includes the clevis-style hitch attachment mounted in the actuator’s adjustable front channel.
Weld-On Center Mount
Designed for weld-on center-mount trailer installation in heavy-duty hydraulic brake applications.
Drum Brake Application

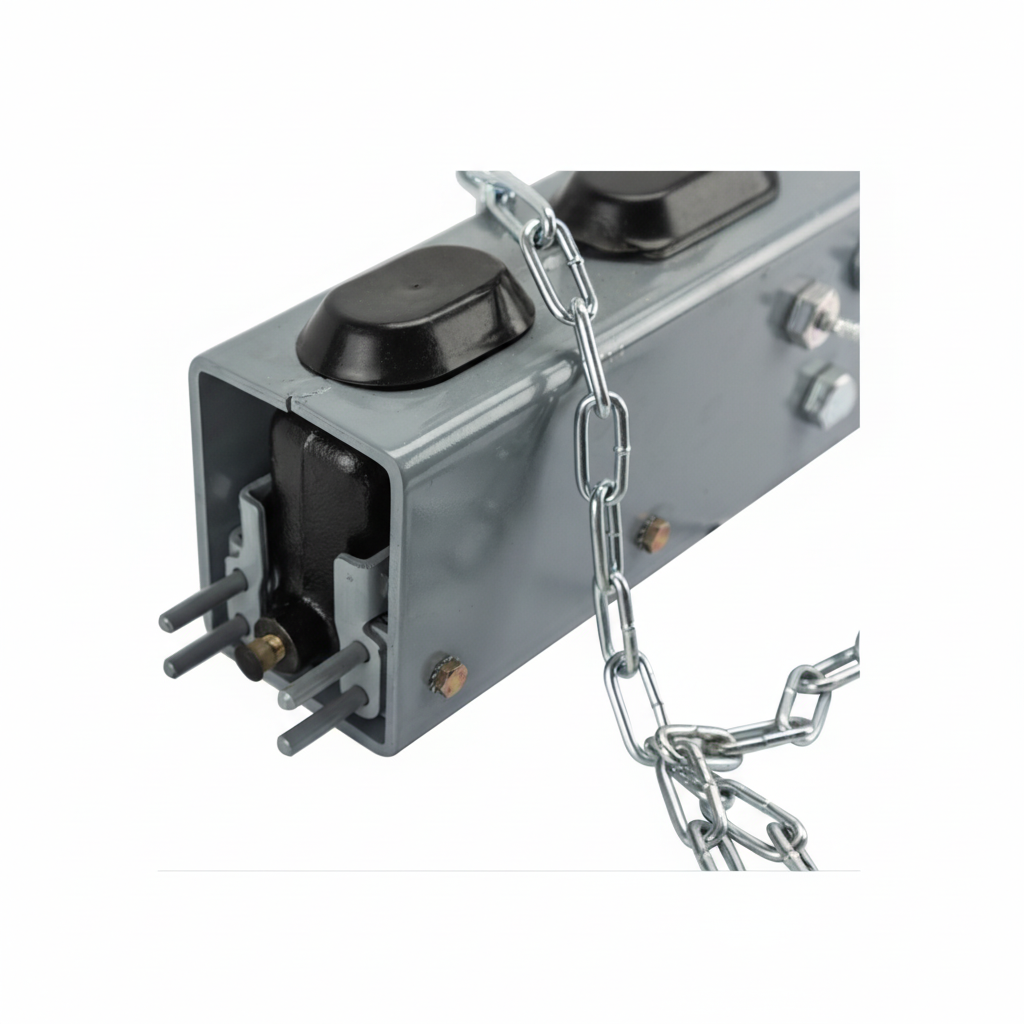

Configured for hydraulic drum brake trailer systems and includes the actuator master cylinder assembly.
Specifications
| Specification | Detail |
|---|---|
| Part Number | D068-078-00 |
| Brand | Dexter |
| Product Type | Hydraulic surge brake actuator |
| Model / Series | DX20EX |
| Application | Hydraulic drum brake systems |
| Gross Capacity | 20,000 lb GTW |
| Tongue Weight | 2,000 lb max |
| Mounting Style | Weld-on center mount |
| Hitch Style | Clevis hitch attachment |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Heavy-duty trailer hydraulic braking |
| Primary Fit | Trailers requiring a 20K DX20EX weld-on center-mount surge actuator |
| Brake Type | Hydraulic drum brakes |
| Connection Style | Clevis hitch setup |
| Notes | Verify part number D068-078-00, clevis compatibility, mounting location, brake type, and hydraulic line connection before ordering or installing. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexter DX20EX hydraulic surge brake actuator with master cylinder |
| 1 | Mounted clevis hitch attachment |

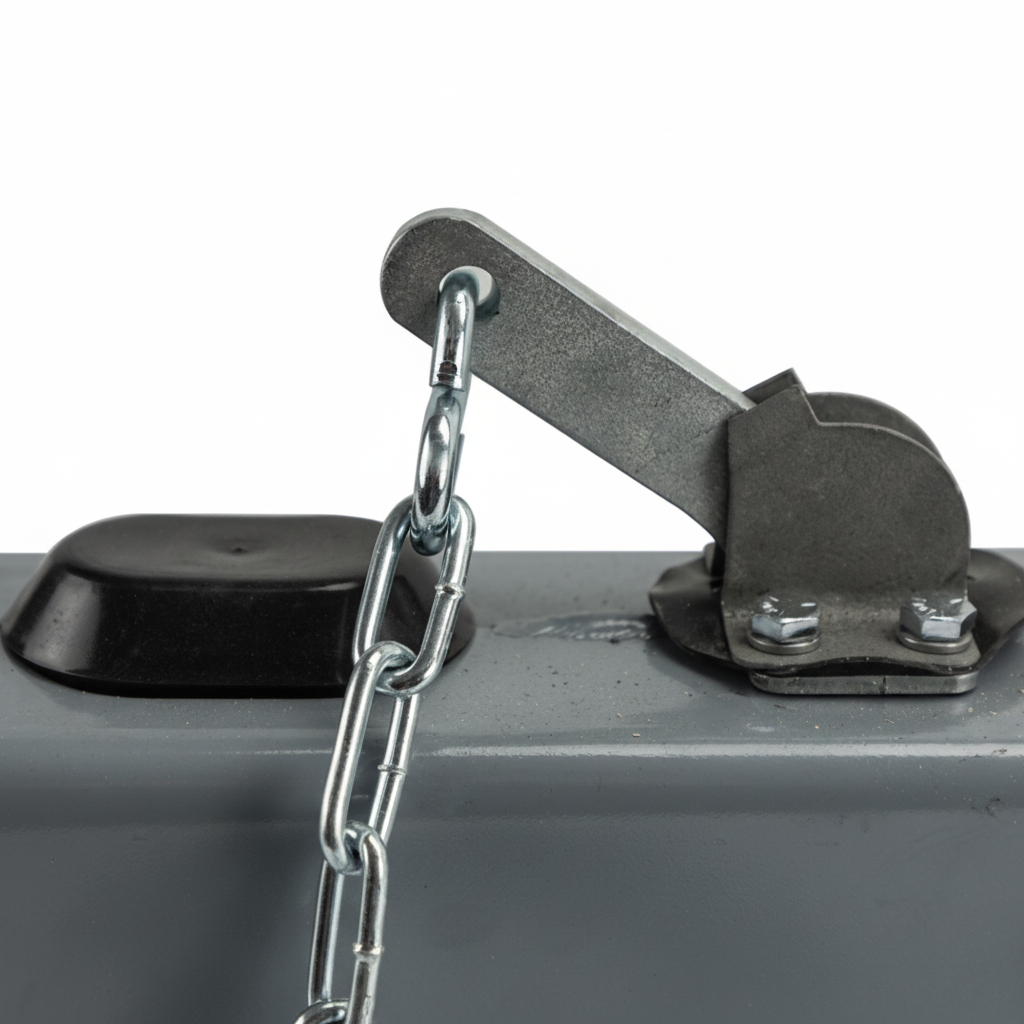

| 1 | Emergency breakaway cable and lever assembly |
| 1 | Adjustable mounting channel |
| Included | Visible mounting hardware for clevis/channel assembly as shown |
Verify all measurements, specifications, brake type, clevis hitch compatibility, mounting points, hydraulic connections, and included components before installation. This actuator is listed for hydraulic drum brake systems. Professional welding and brake system bleeding are required for proper installation.
