Dexter Type 10" Slipper Equalizer Kit – Pair – 33" Axle Spacing – 2" Springs
Complete suspension equalizer kit designed for tandem or triple axle trailer systems using 2" wide slipper springs with approximately 33" center-to-center axle spacing. This kit includes equalizers and matching hardware to service both equalizer pivot points in a multi-axle suspension system.
Common Applications
- Tandem axle equipment trailers
- Triple axle flatbed or deck-over trailers
- Utility trailers using slipper spring suspension
- Heavy-duty trailer suspension rebuilds
- Preventative maintenance on high-mileage suspension systems
Fitment
- 2" wide slipper springs
- 33" axle spacing (center-to-center)
- Tandem or triple axle suspension systems
- 7/8" center pivot configuration
- 9/16" spring eye bolt configuration

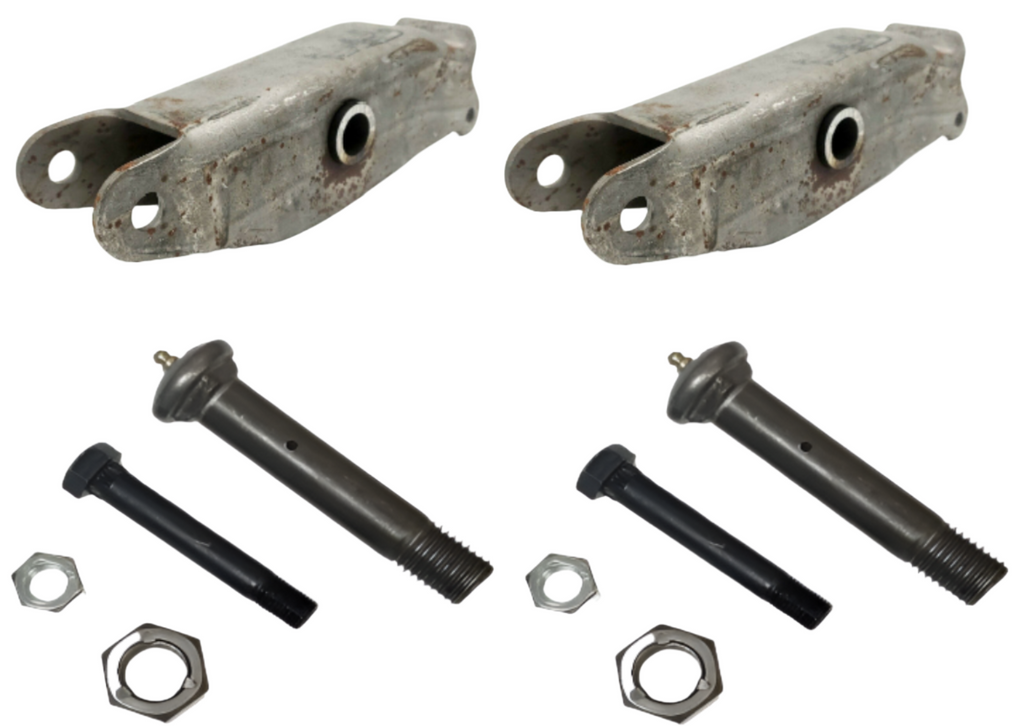

Included Components – Complete Pair Kit
| Part Number | Quantity | Description |
| 013-004-00 | 2 | Swan Equalizer, 0.875" Center Bolt Hole, Fits 2" Slipper Springs |
| 007-001-01 | 2 | Dexter Carriage Bolt, 7/8"-9 x 4.62" Greaseable Center Bolt |
| 006-111-00 | 2 | Lock Nut, 7/8"-9, Center Pivot Bolt Nut |
| 91635B | 2 | Equalizer Bolt, Hex Head, 9/16"-18 x 3.50" |
| SB-LN-9 | 2 | Lock Nut, 9/16", Fits 91635B Equalizer Bolt |
| FA-7-254 | 2 | 5/16"-18 x 3.25" Slipper Spring Retainer Bolt |
| FA-7-254-NUT | 2 | 5/16"-18 Zinc Nut for Slipper Retainer Bolt |
Features
- 10-1/8" overall equalizer length
- 7/8" greaseable center pivot
- 9/16" spring eye bolt configuration
- Designed for 2" slipper spring suspension systems
- Compatible with tandem and triple axle trailers
R&P Knowledge Hub
In a slipper spring suspension system, the equalizer links adjacent springs and pivots on a central bolt. When one axle encounters uneven terrain, the equalizer rotates and transfers load to the adjacent axle, helping maintain tire contact and balanced suspension loading.
Greaseable center bolts allow lubrication of the pivot point which significantly increases suspension component life. Always confirm axle spacing, spring width, and pivot bolt diameter before ordering replacement equalizers.
Specifications
| Specification | Detail |
| Part Number | 013-004-00-KIT-PAIR |
| Equalizer Length | 10-1/8" |
| Axle Spacing | 33" Center-to-Center |
| Spring Width | 2" |
| Center Bolt Size | 7/8" Greaseable |
| Spring Bolt Size | 9/16" × 3.5" |
| Configuration | Complete Pair Kit |
Verify specifications before installation.
