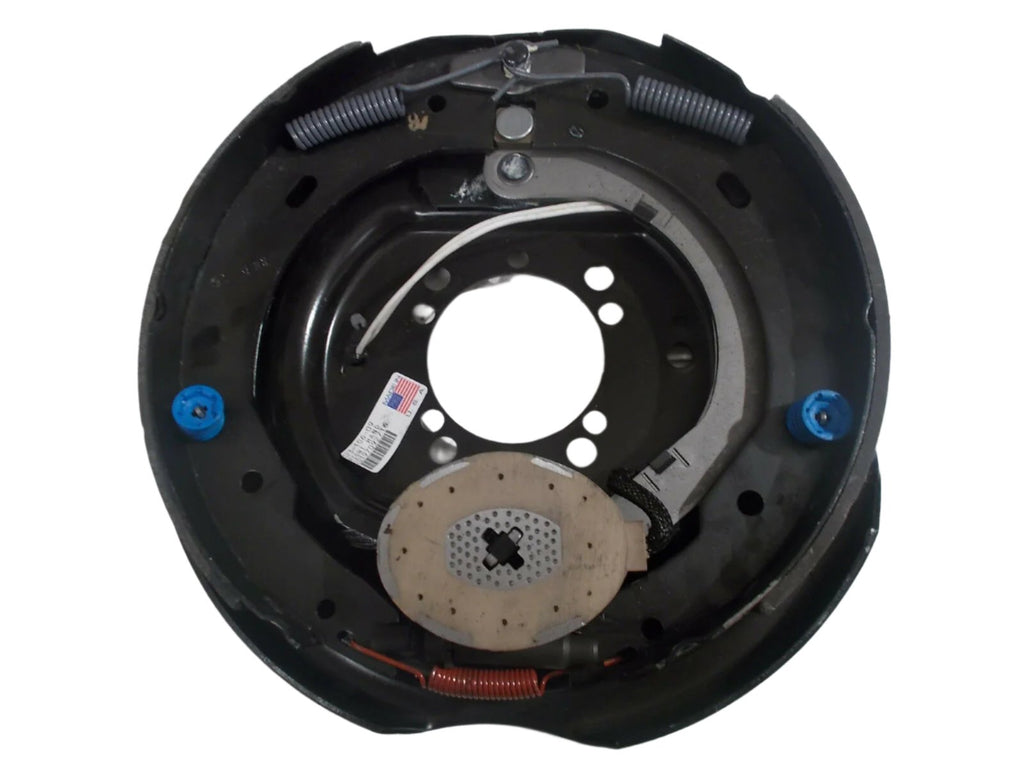

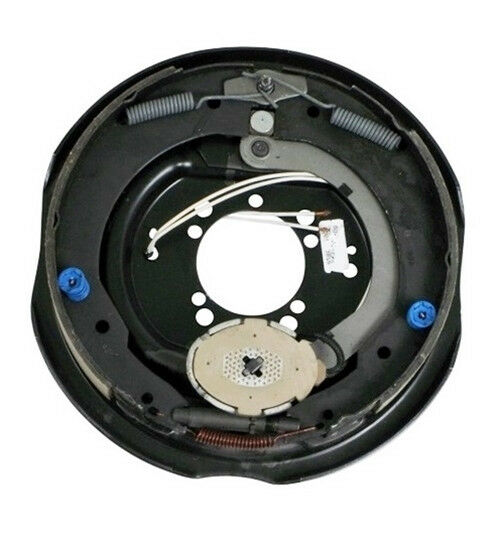

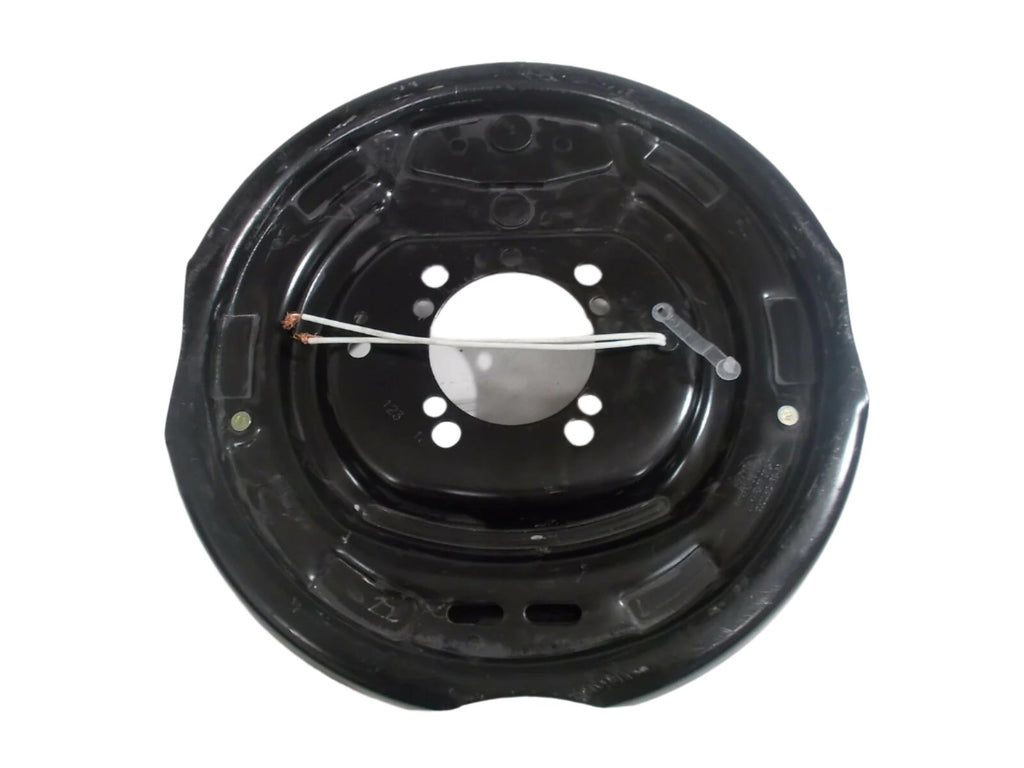

Dexter Right 12x2 4 & 5 Hole mounting Backing Plate Trailer Axle Brakes (K23-106-09)

Dexter

Regular price $138.99

R and P Carriages 270 E Jackson St Seneca IL 61360
              815-357-****
 Genuine Dexter 12" 6000# Electric 9 Bolt Brake Backing Plate, Right Hand (Passengers)

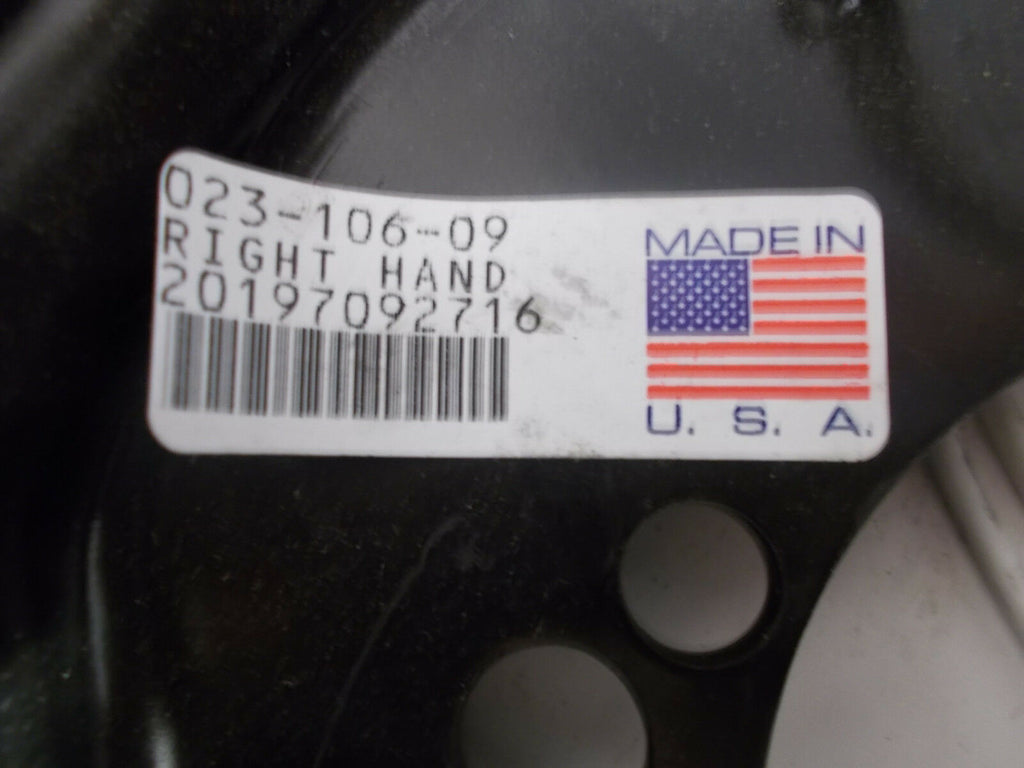

Part Number: 23-106-9

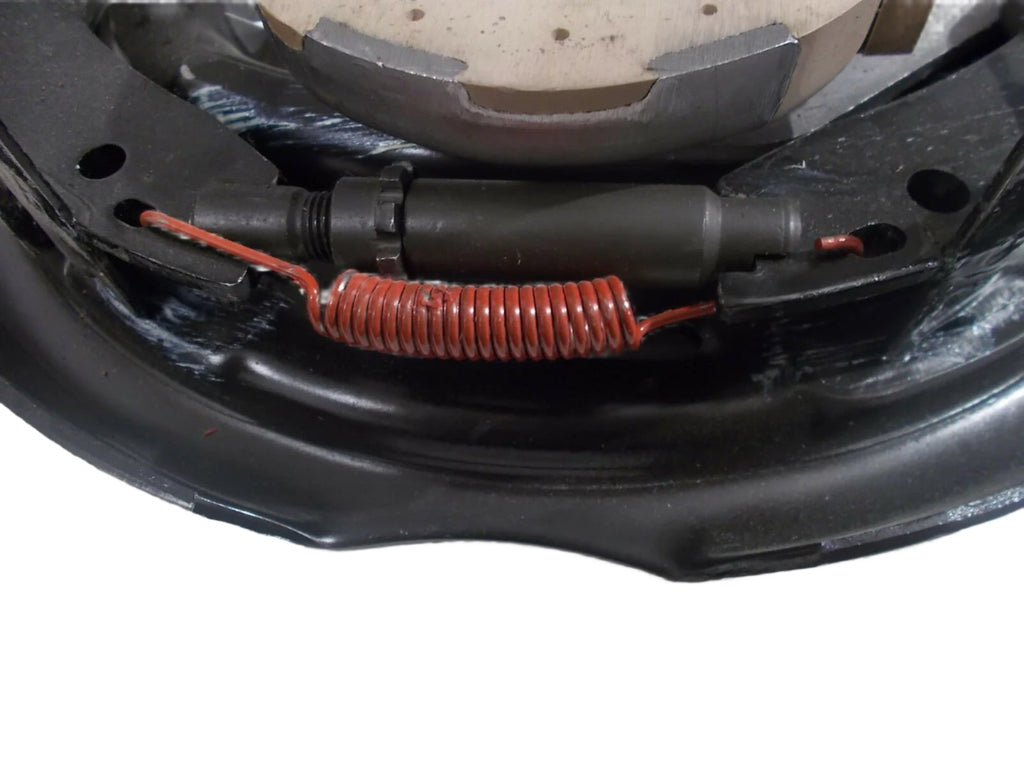

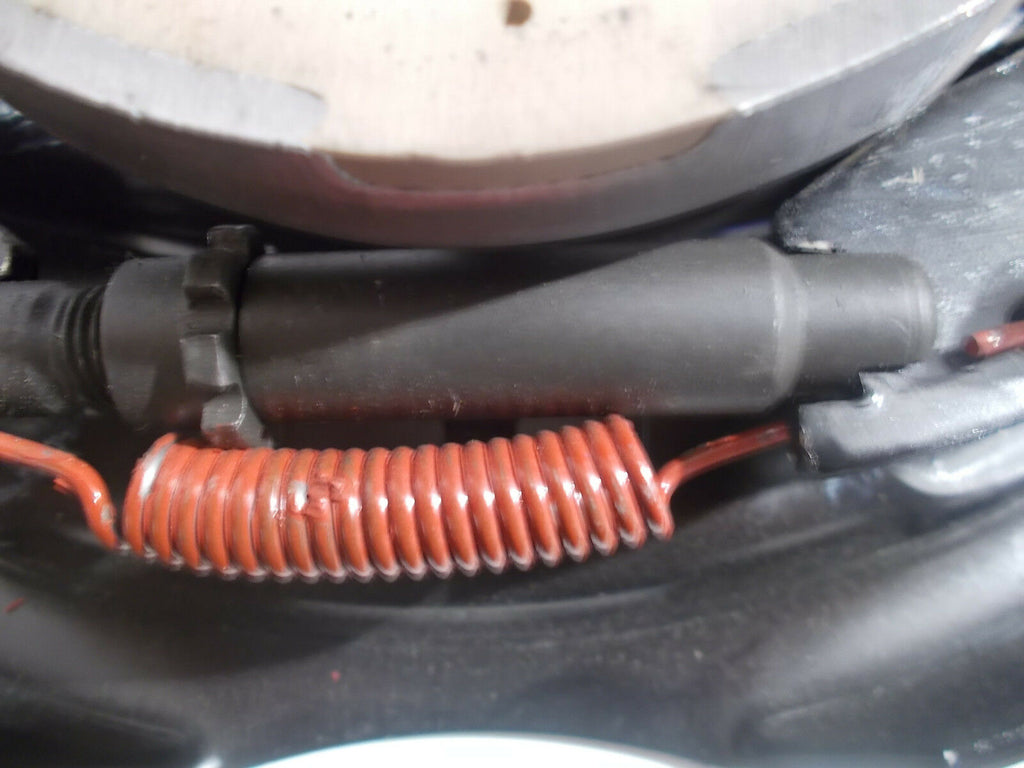

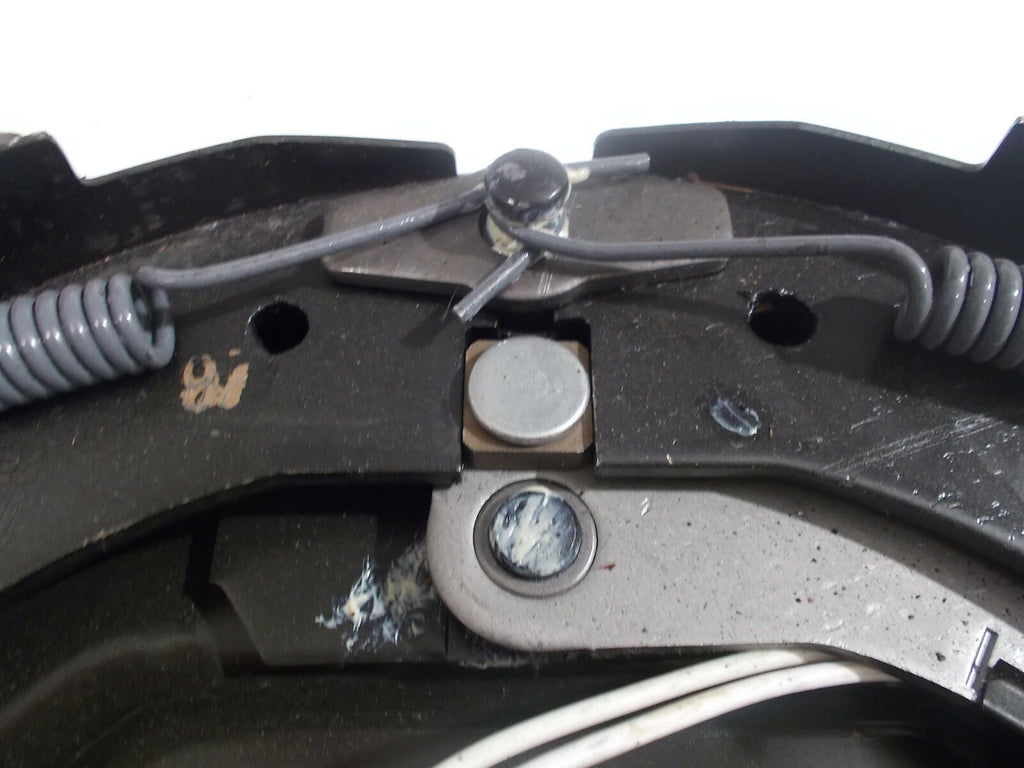

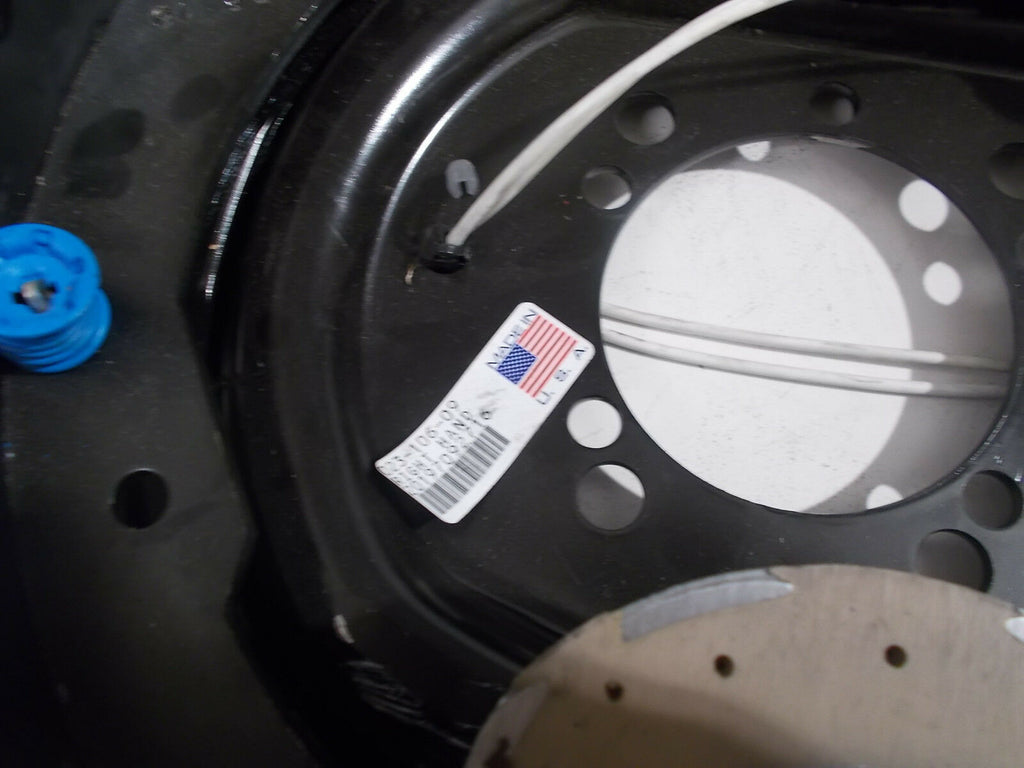

Dexter 12" x 2" Right Hand electric complete brake assembly with a 9 bolt mounting flange.  Features: 6000lb capacity per pair.  Mounts with 4 or 5 bolts (not included).  Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW included

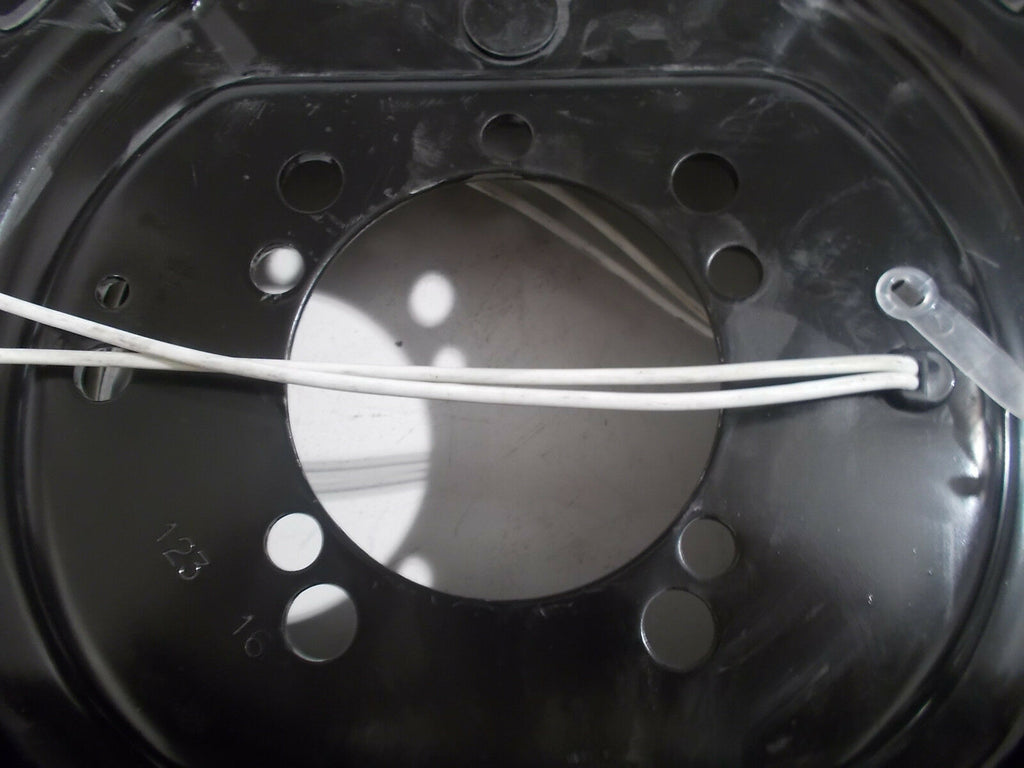

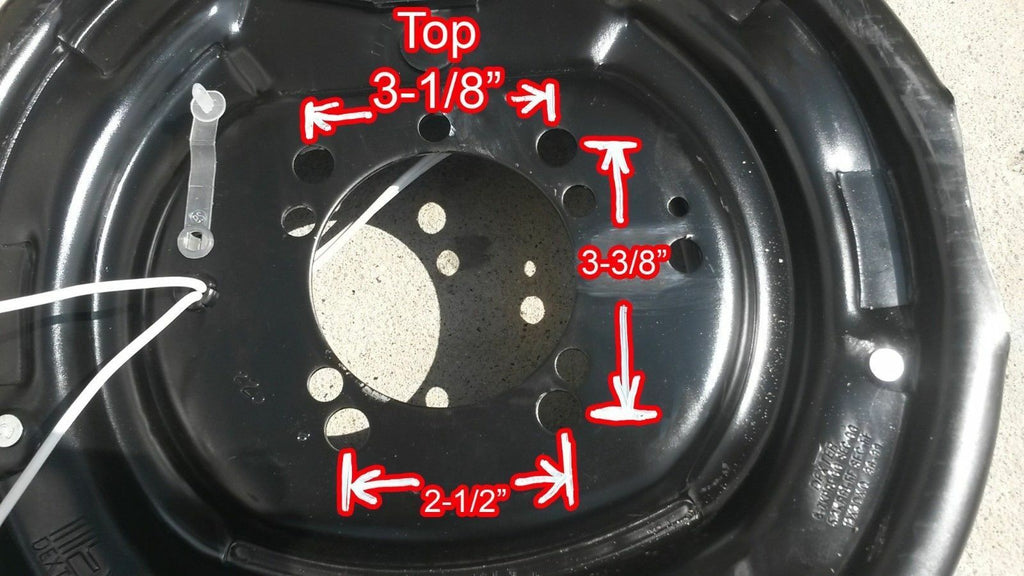

• Fits a 6000lb axle with a 4 or 5 bolt pattern on the mounting flange
(This special 4 and 5 bolt pattern fits old style Dexter axles as well as the Al-ko/Hayes 6000lb axles with a 4 bolt mounting flange)
• Right Hand (Passenger side)

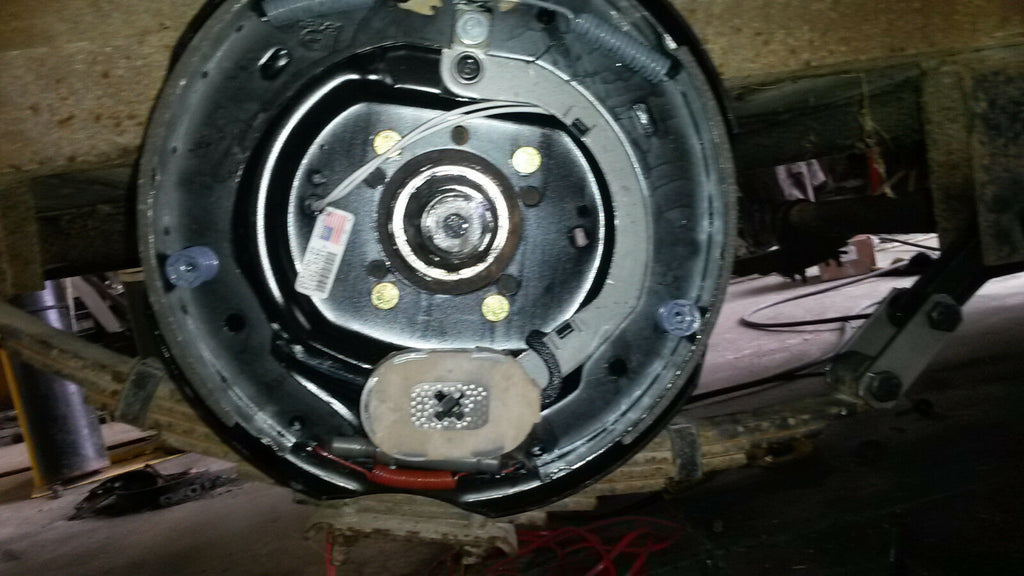

• Complete assembly ready to bolt on and wire
• For use with 12" inside diameter drum
• The shoes are 2" wide

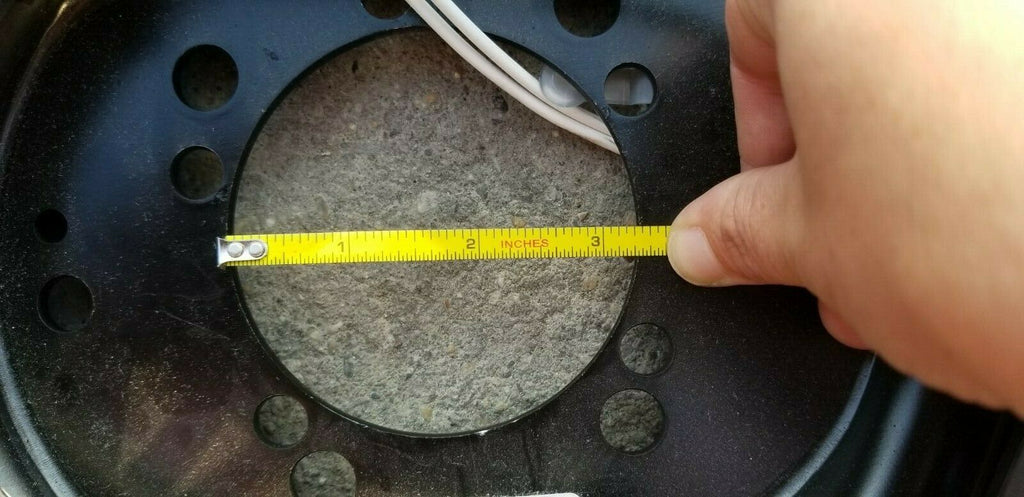

The center hole measures 3-1/4"
