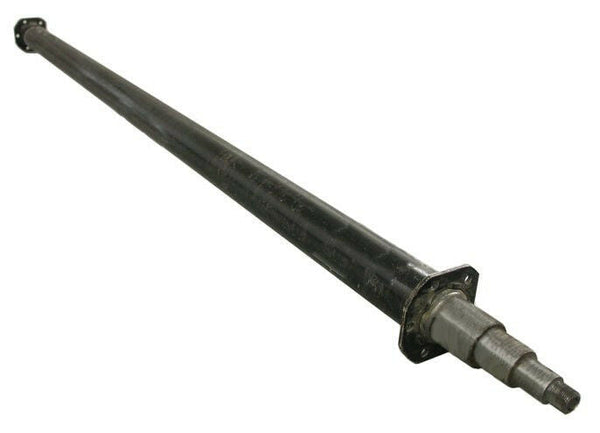

Lippert Trailer Axle 8000# Bare Beam 81" Hub Face 3" Tube Straight EZ Lube 4 Bolt Flange True 8K (8000-81-3-KIT)

Lippert

$400.00

Running Low — Only 2 left

Ask a Pro

Features

Common Replacement Axle for Trailers or Campers that typically have 62 to 65" Floor Deck Width and True 8000# Dexter 008-285 Drums or LCI 12.25 x 3.375"
Heavy Duty 3" Tube
Straight Axle with Camber
Uses Standard 25580 / 02475 Bearings and 2.25" Seals (2.125" Seals on Older Trailers) (Not Included, See Chart Below)

Brake Flange to Flange	71.91
Bearing Shoulder to Shoulder	78.125
Spindle End to End	86.875

Part Number	Quantity	Description
8000-81-3	1	Lippert Trailer Axle 8000# Bare Beam 81" Hub Face 3" Tube Straight EZ Lube 4 Bolt Flange True 8K
SP-3	2	Spring Perch for 3" Axle Beam
