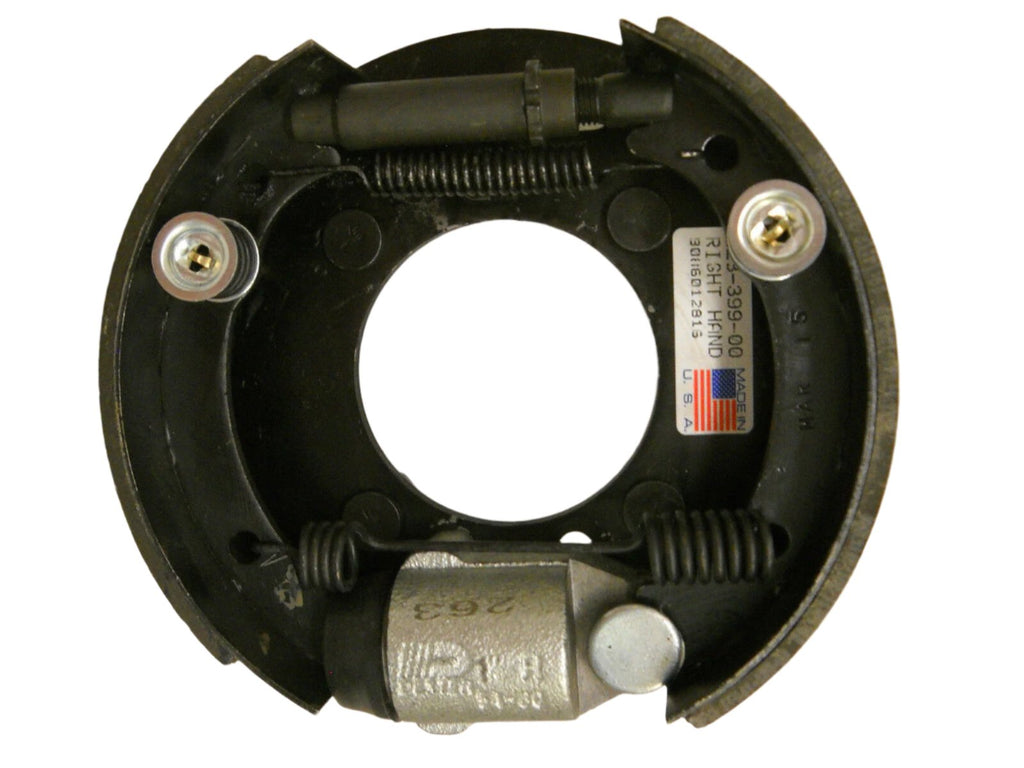

Dexter 7" x 1-3/4" Hydraulic Brake Backing Plate – 2,000-2,200 lb Axle – Right Hand
Complete 7" x 1-3/4" hydraulic uni-servo brake backing plate assembly for 2,000–2,200 lb trailer axles. Right-hand configuration (passenger side). Common replacement for boat and snowmobile trailers. Designed for hydraulic drum brake systems only. Cannot be used with electric brake systems.
Included
- 1 – Right Hand Hydraulic Brake Backing Plate
- 4 – Mounting Nuts
- 4 – Washers
R&P Knowledge Hub
Hydraulic backing plates are mechanically actuated by brake fluid pressure from a surge actuator or master cylinder. They are not compatible with electric brake controllers or electric drum systems.
Uni-servo brakes apply braking force in one direction of rotation and are commonly used on light-duty utility, boat, and powersport trailers. Brake assemblies are side-specific and must match the correct left or right orientation. Always confirm brake size (7" x 1-3/4"), axle capacity, and flange configuration before ordering.
Features

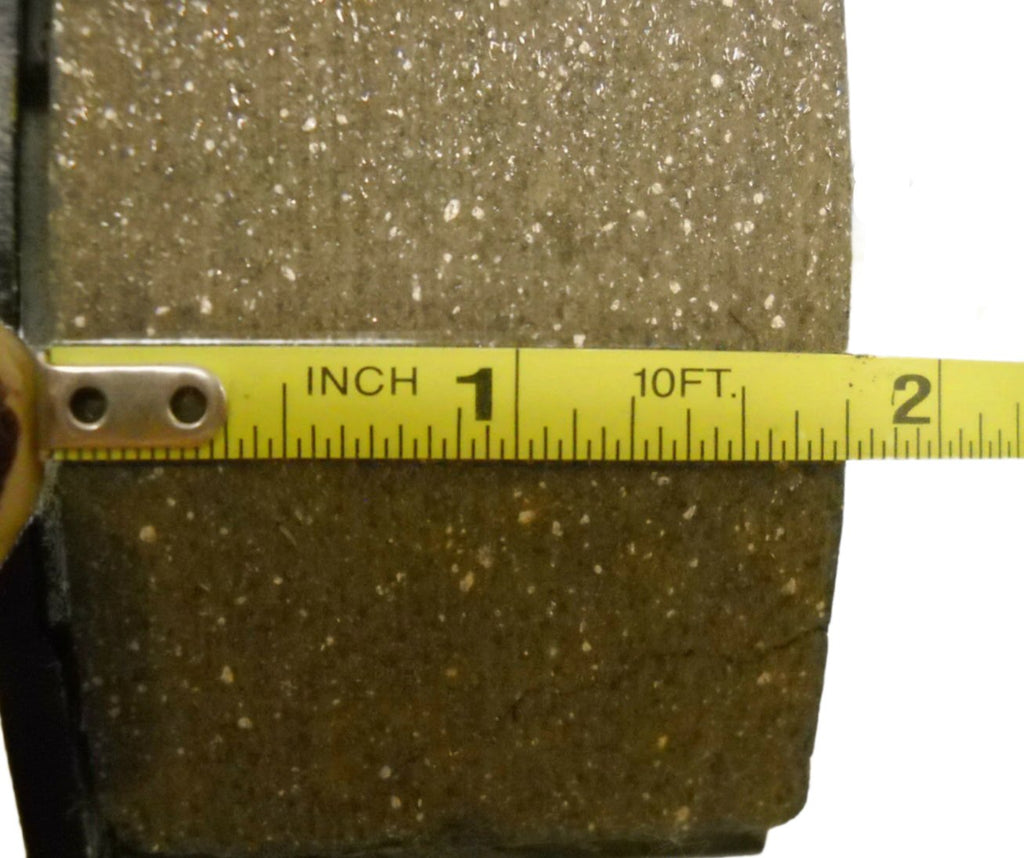

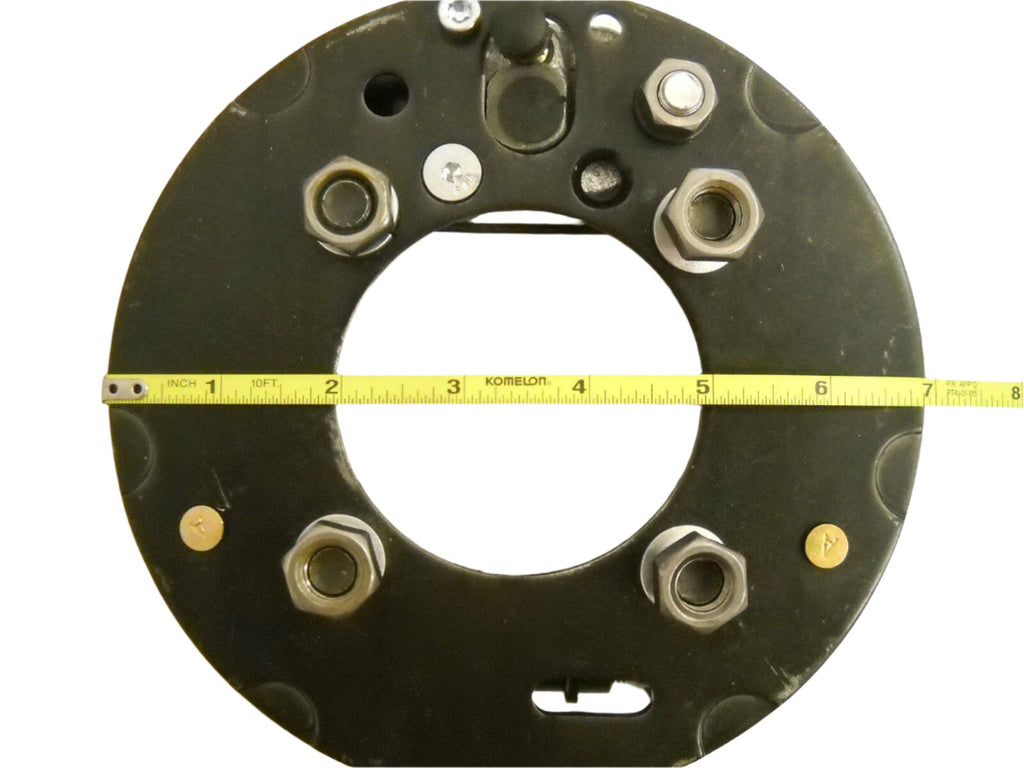

- 7" diameter x 1-3/4" wide brake assembly
- Designed for 2,000–2,200 lb axles
- Hydraulic drum brake operation (not electric)
- Right-hand (passenger side) orientation
- Common boat and snowmobile trailer application
- Made in the USA
Specifications
| Specification | Detail |
| Manufacturer | Dexter |
| Brake Size | 7" x 1-3/4" |
| Axle Rating | 2,000–2,200 lb |
| Configuration | Right Hand (Passenger Side) |
| Brake Type | Hydraulic Uni-Servo |
Verify specifications before installation.
