12,500 lb Capacity
Rated for trailers up to 12,500 lbs GTW with a maximum tongue weight of 1,250 lbs.
Hydraulic Drum Brake Actuator
Dexter Zinc-Plated Adjustable-Channel Brake Actuator – Drum – Bolt On – 12,500 lbs
Bolt-on hydraulic surge actuator for trailers with drum brakes. The adjustable front channel accepts a compatible coupler or attachment, sold separately.
Titan SKU: T4809700 Dexter: 068-227-00 12,500 lb GTW Zinc-Plated Steel
Brake Application Hydraulic Drum
Gross Trailer Weight 12,500 lbs
Maximum Tongue Weight 1,250 lbs
Installation Bolt On

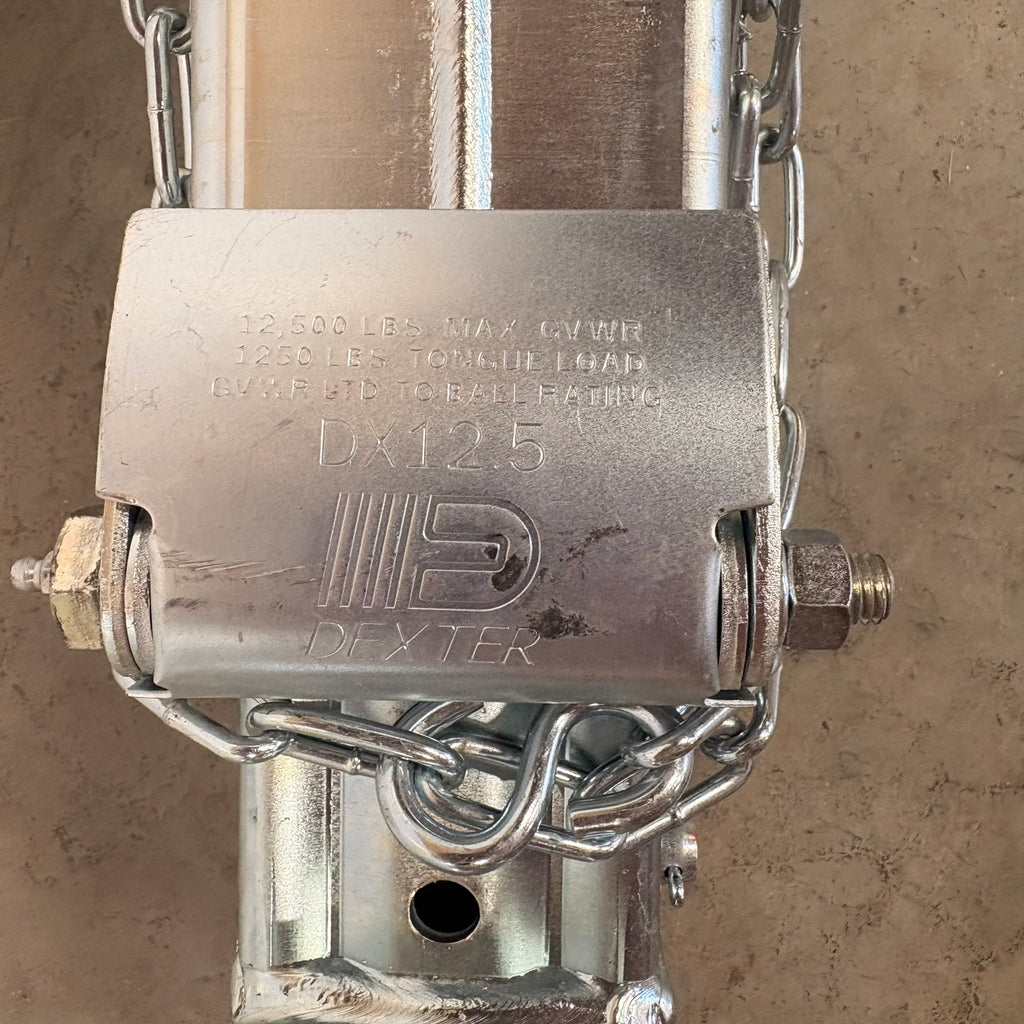

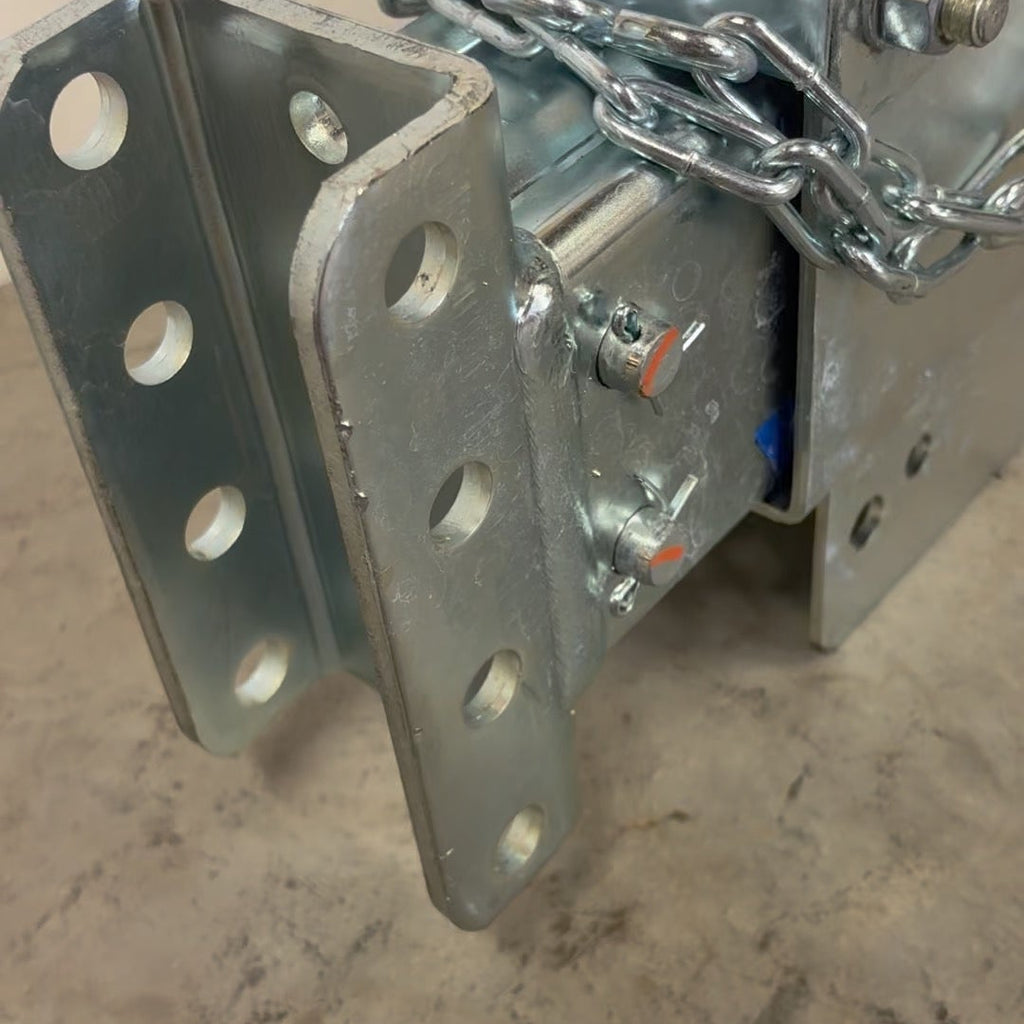

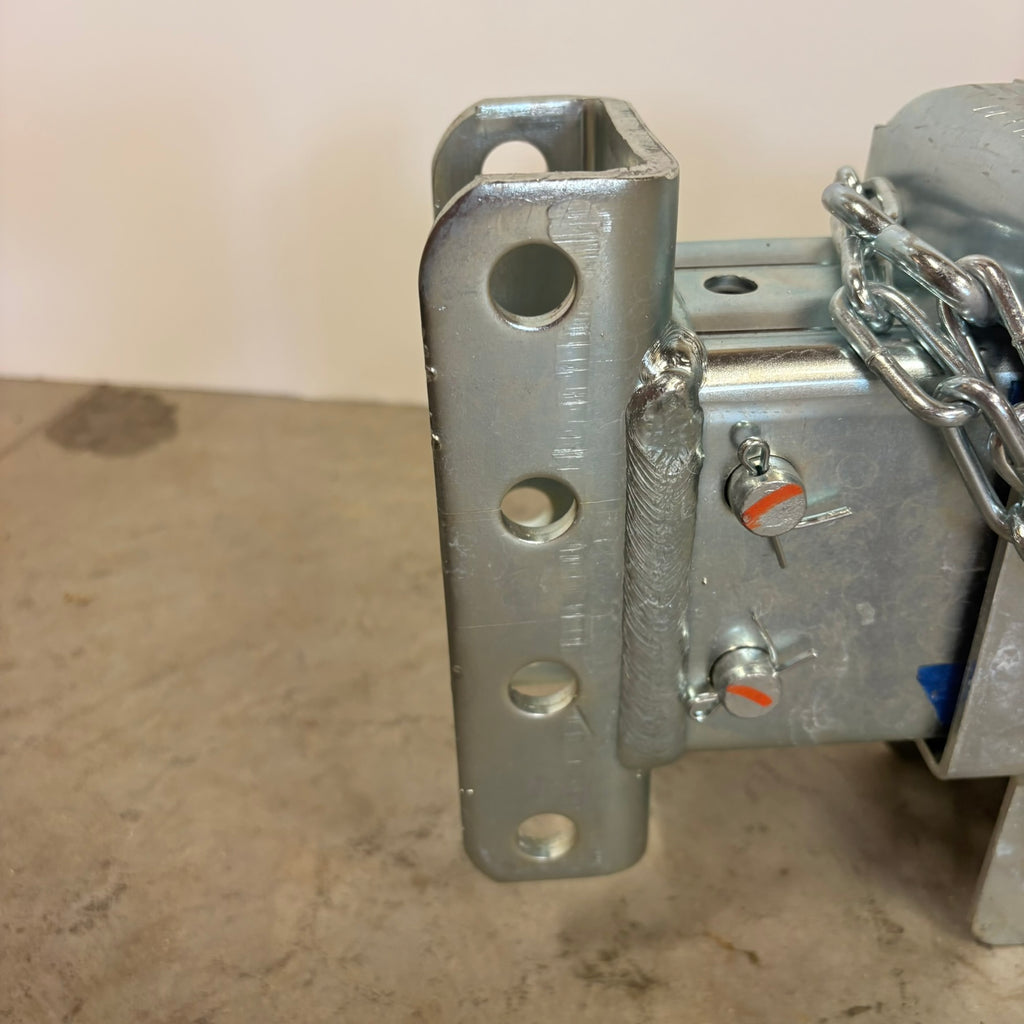

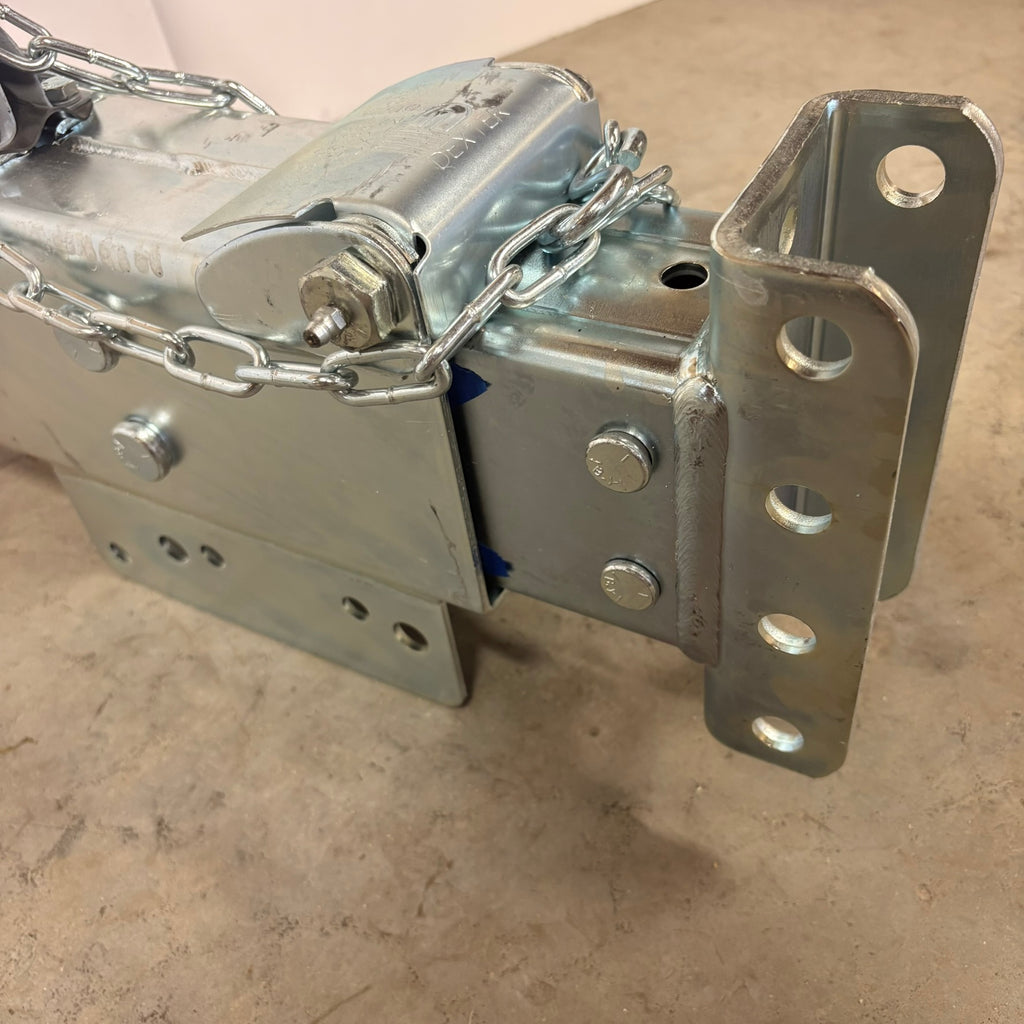

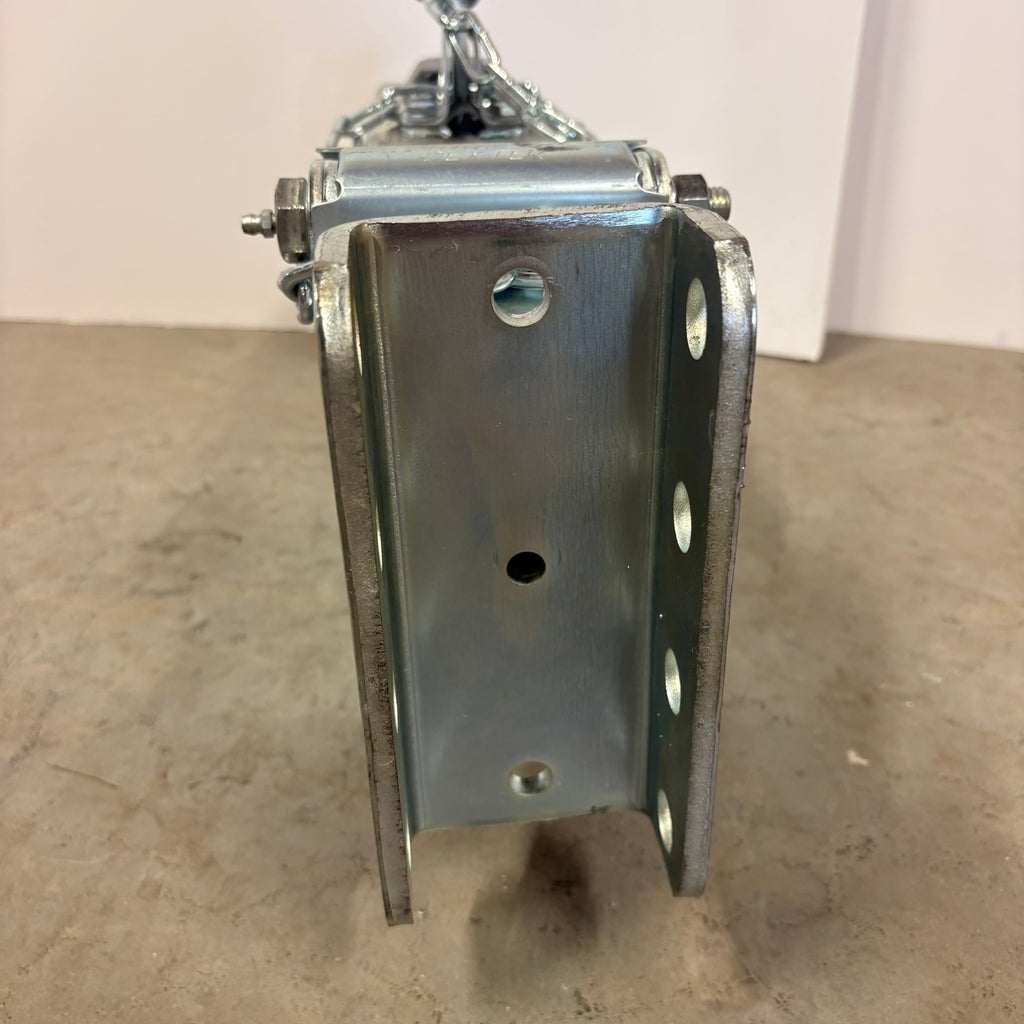

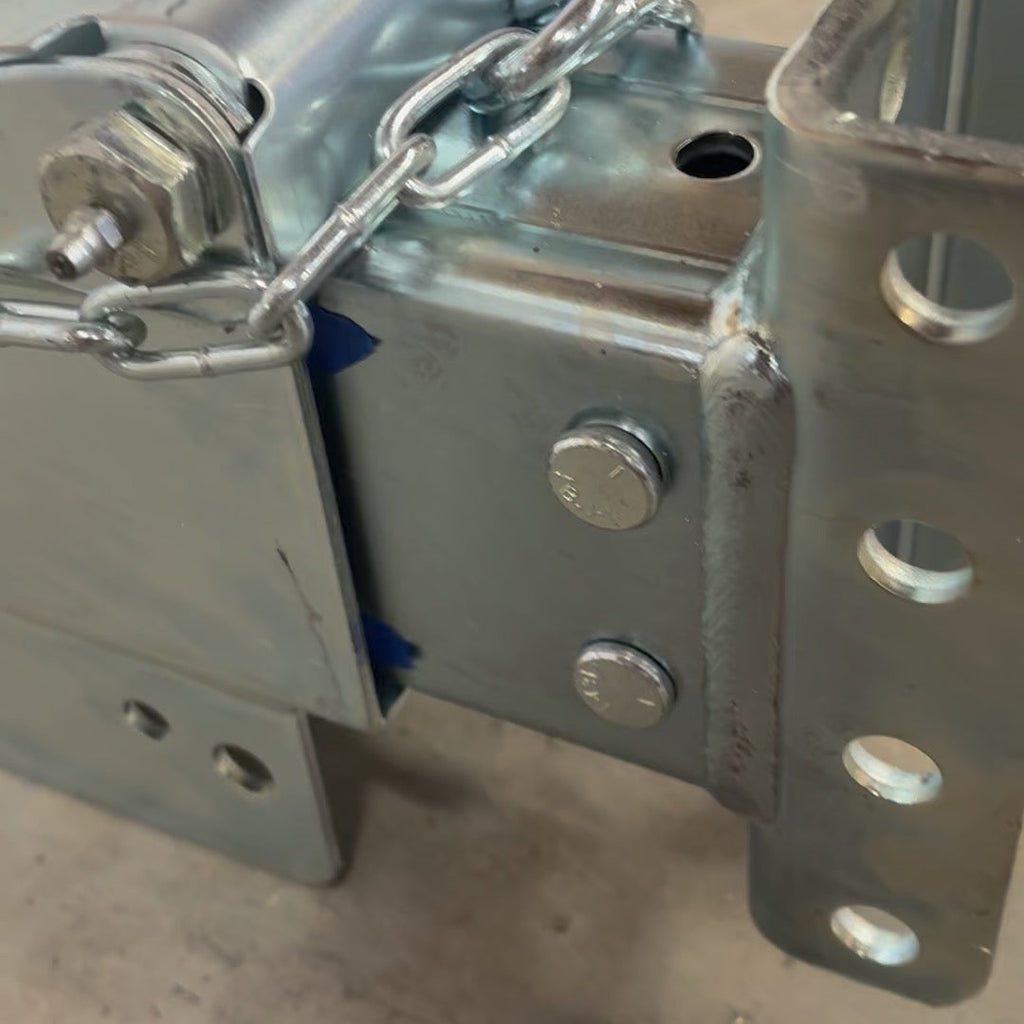

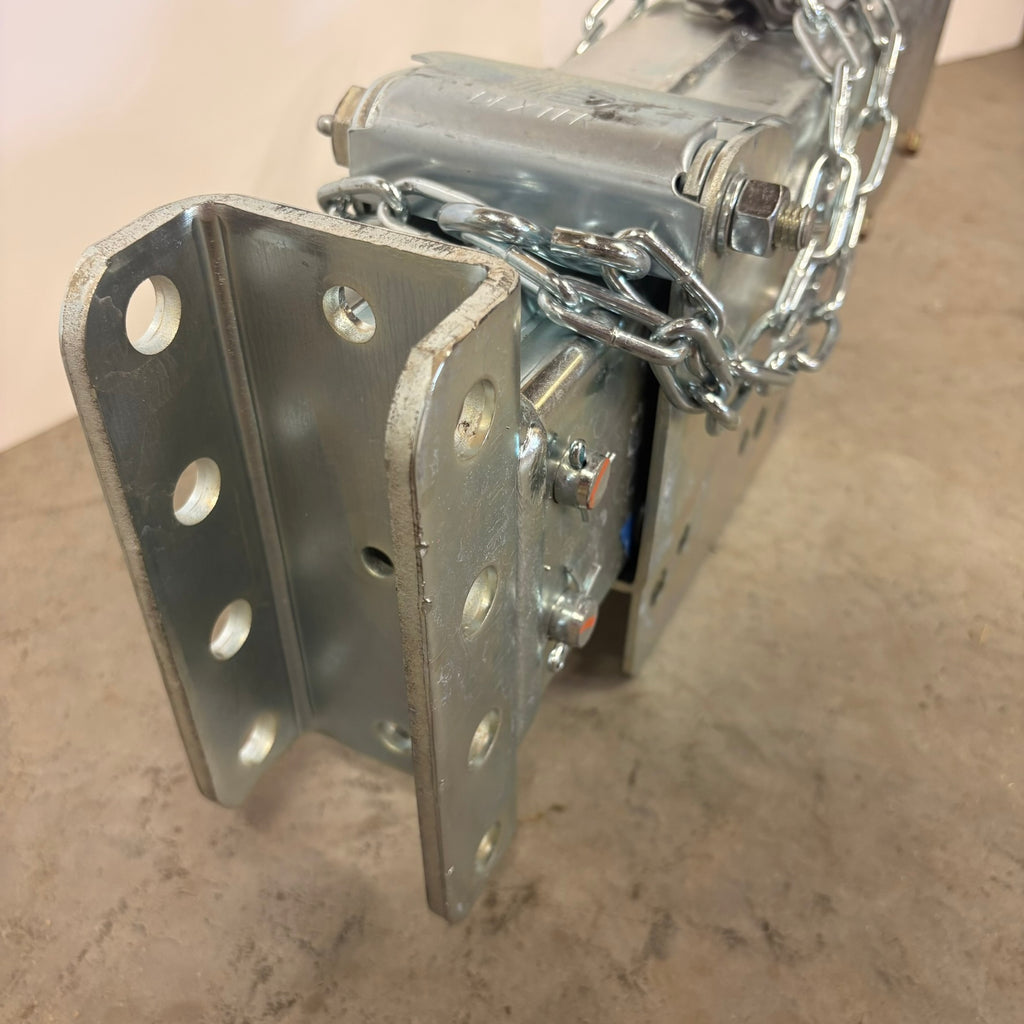

Product Images
Slow continuous rotation · Hover to pause
Product Video
Muted autoplay · Loops continuously

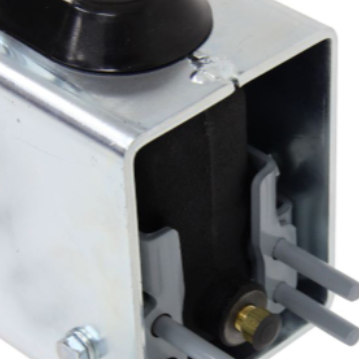

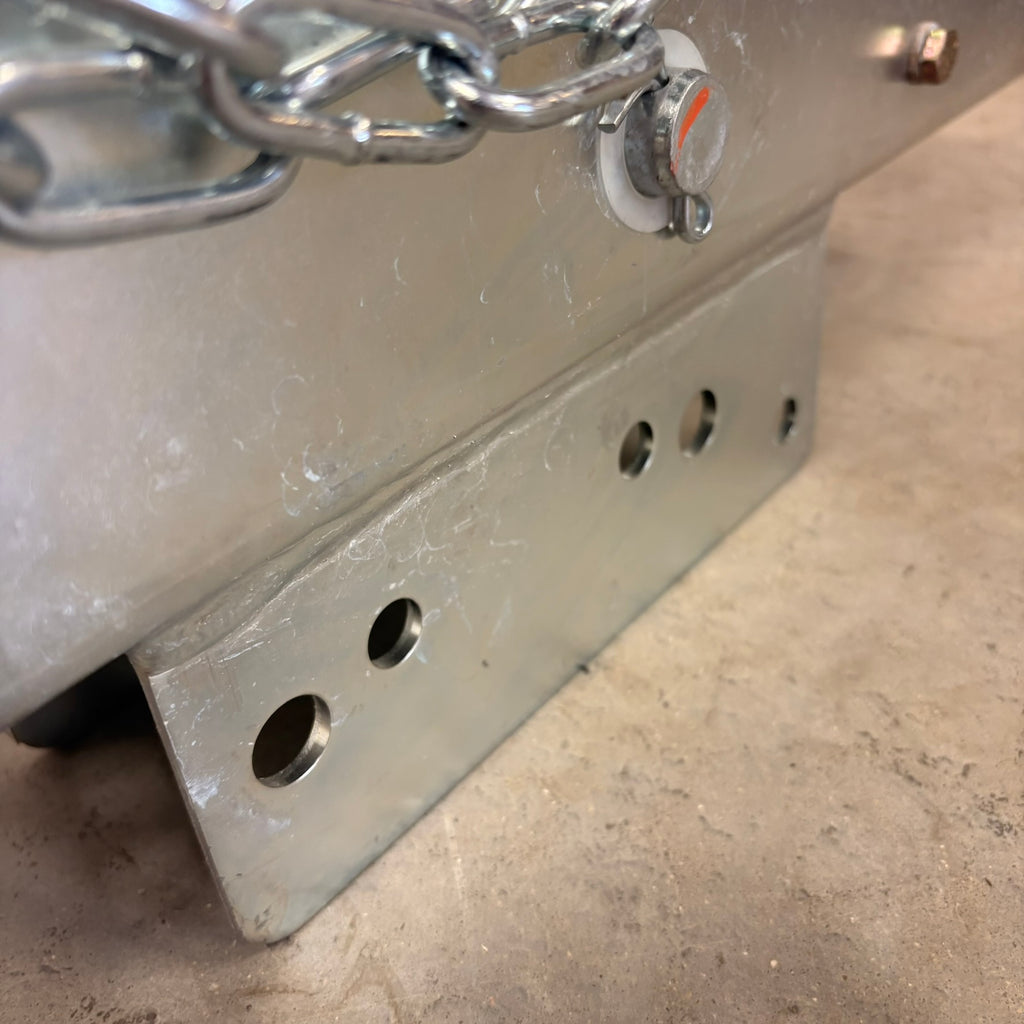

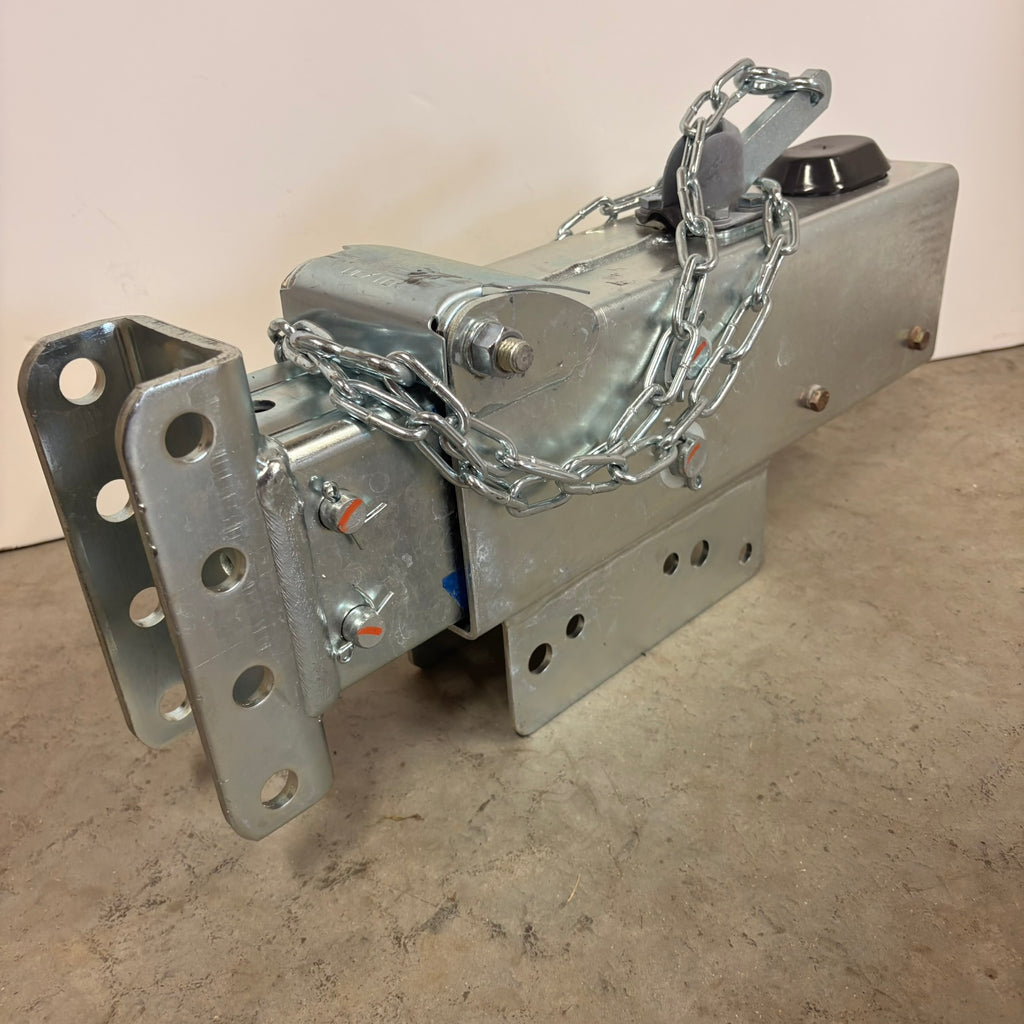

See the actuator in detail: Review the adjustable front channel, zinc-plated housing, mounting structure, hydraulic assembly, and included breakaway components.
Key Specifications
| Specification | Detail |
|---|---|
| Finale / Titan SKU | T4809700 |
| Dexter Part Number | 068-227-00 / D068-227-00 |
| Product Type | Hydraulic surge brake actuator |
| Brake Compatibility | Hydraulic drum brakes |
| Gross Trailer Weight | 12,500 lbs |
| Maximum Tongue Weight | 1,250 lbs |
| Mounting Style | Bolt-on |
| Trailer Tongue | Fits over a 3" wide channel tongue |
| Front Channel | Approximately 3-1/2" wide |
| Adjustment | Three coupler mounting positions |
| Finish | Zinc-plated steel |
| Reverse Lockout | Not included |
| Coupler | Sold separately |
| Breakaway Assembly | Included |
| Warranty | 1 year |
Product Details
The T4809700 is a bolt-on hydraulic surge actuator for trailers equipped with drum brakes. When the tow vehicle slows, trailer momentum compresses the actuator and sends hydraulic pressure to the trailer brakes.
Its zinc-plated steel housing resists corrosion. The adjustable front channel provides three mounting positions for a compatible coupler, lunette ring, or other approved attachment.
Before ordering: Confirm hydraulic drum brakes, trailer capacity, tongue width, mounting dimensions, coupler compatibility, and reverse-operation requirements.
Features
Hydraulic Surge Operation
Applies hydraulic drum brakes automatically as trailer momentum compresses the actuator.
Adjustable Front Channel
Provides three mounting positions for a compatible coupler or attachment.
Roller-Guided Movement
Supports straight telescoping movement while reducing internal resistance.
Zinc-Plated Steel
Helps protect the actuator housing against rust and corrosion.
Bolt-On Installation
Designed to bolt over a compatible 3-inch-wide trailer tongue.
Fitment and Application
| Check | Requirement |
|---|---|
| Brake Type | For trailers equipped with hydraulic drum brakes. |
| Tongue Width | Designed to bolt over a 3" wide trailer tongue. |
| Capacity | Do not exceed 12,500 lbs GTW or 1,250 lbs tongue weight. |
| Coupler | Compatible channel-mounted coupler or attachment is sold separately. |
| Reverse Operation | No reverse lockout is included. Free-backing brakes or a separate lockout solution may be required. |
Included Components
| Quantity | Included Item |
|---|---|
| 1 | Dexter/Titan Model 10 zinc-plated hydraulic drum-brake actuator |
| 1 | Three-position adjustable front channel |
| 1 | Hydraulic master-cylinder assembly |
| 1 | Breakaway lever, chain, and hook assembly |
Important: The coupler is not included. This actuator is intended for hydraulic drum-brake systems and does not include a reverse lockout.
