Demco Hydraulic Brake Line Kit – Tandem Torsion Axle – Drum or Disc Brakes
Complete Demco hydraulic brake line kit designed for tandem torsion axle trailers using drum or disc brake systems. Includes pre-formed ZT brake lines, flexible brake hoses, tees, brackets, clips, and mounting hardware required for installation.
R&P Knowledge Hub
This kit is designed for hydraulic brake systems on tandem torsion axle trailers. It is compatible with both hydraulic drum and hydraulic disc brake configurations.
ZT brake lines are pre-bent steel lines intended for structured routing along trailer frames. Flexible hoses are used at suspension or brake connection points where movement occurs.
Kit Contents
| Part Number | Description | Quantity |
|---|---|---|

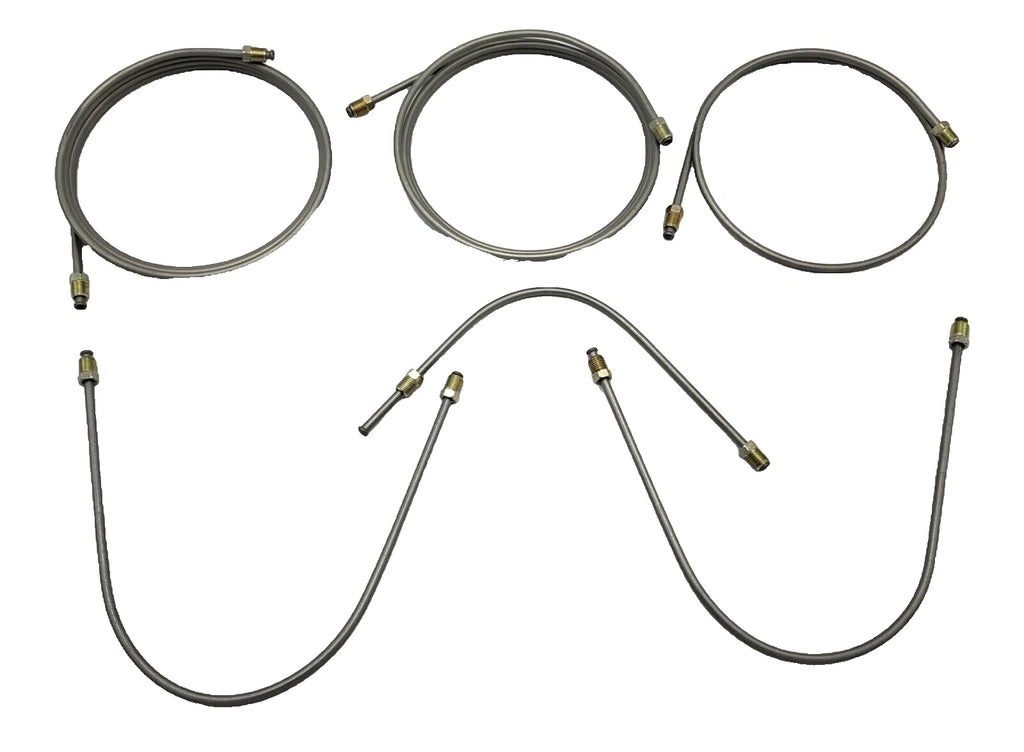

| SB5193 | 193" ZT Brake Line | 1 |
| SB517 | 17" ZT Brake Line | 2 |
| SB566 | 66" ZT Brake Line | 2 |
| SB512 | 12" ZT Brake Line | 1 |
| SB530 | 30" ZT Brake Line | 1 |

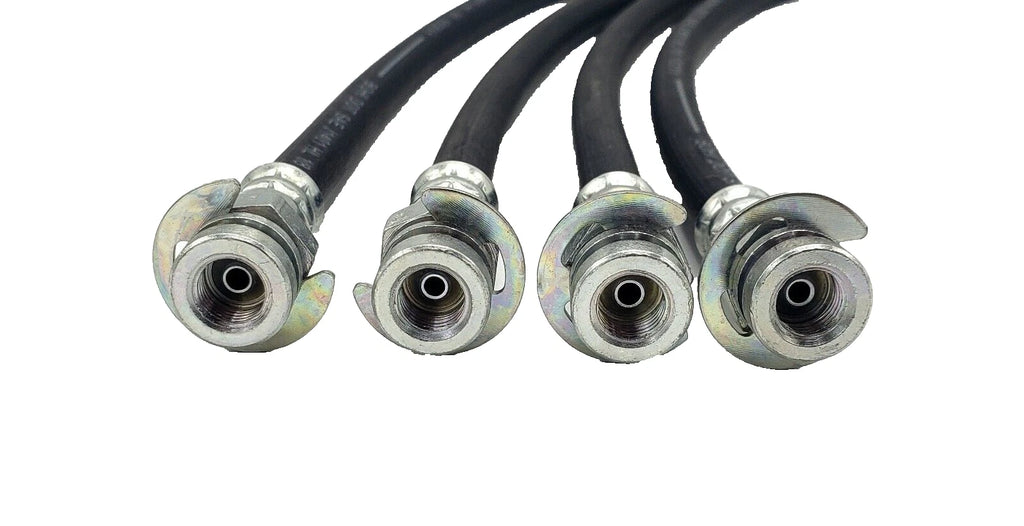

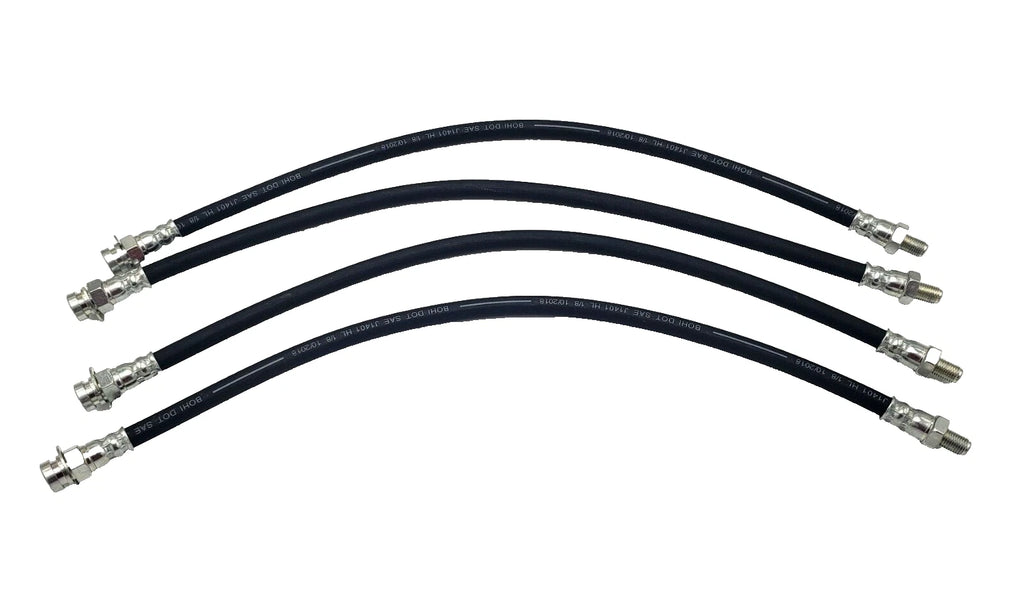

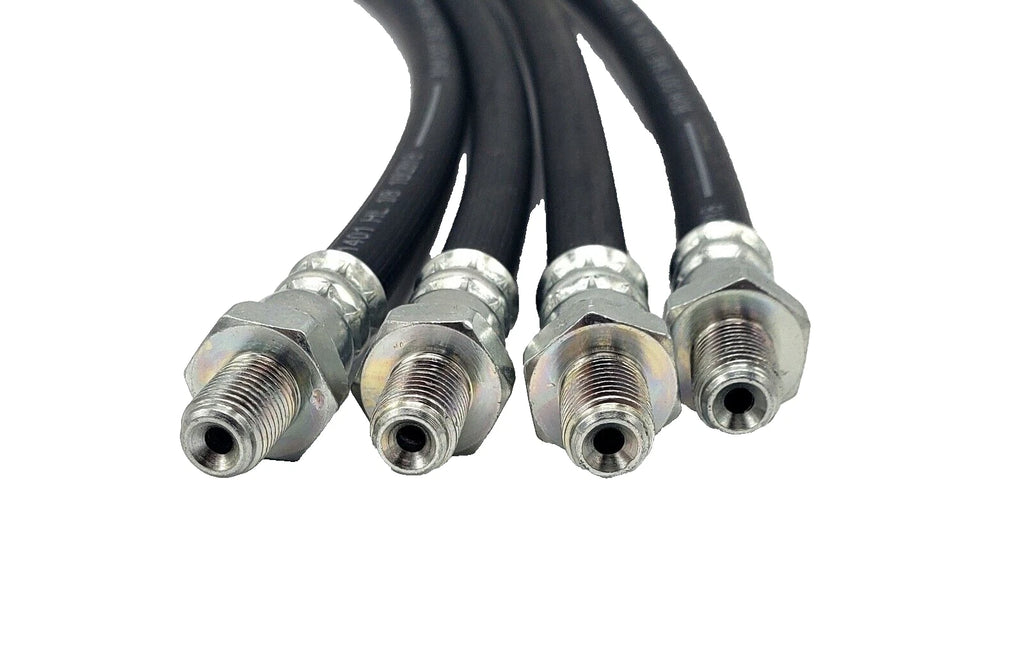

| 05982 | 18-7/8" Brake Hose | 4 |

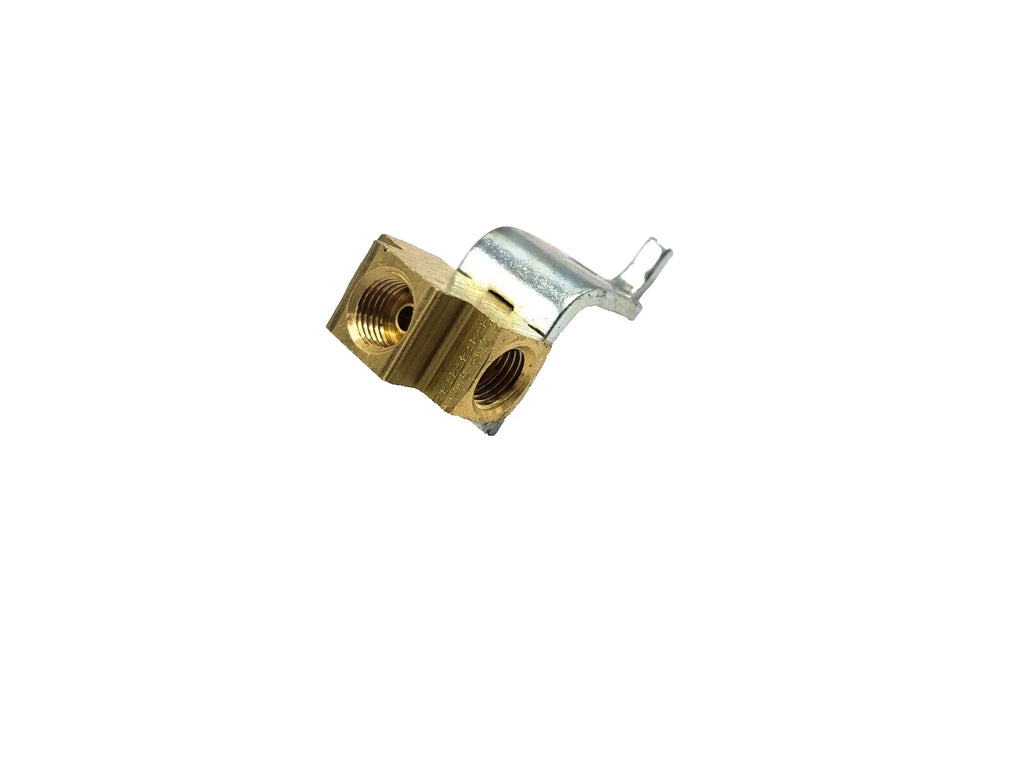

| SB7785 | 3/16" Brake Tee | 3 |

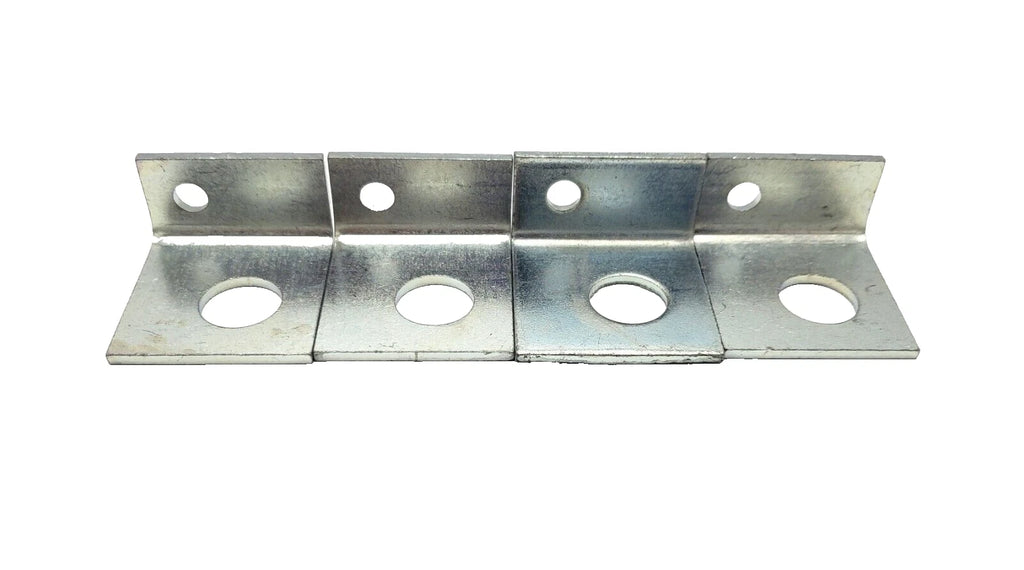

| 05981-95 | Brake Line Hose Bracket | 4 |

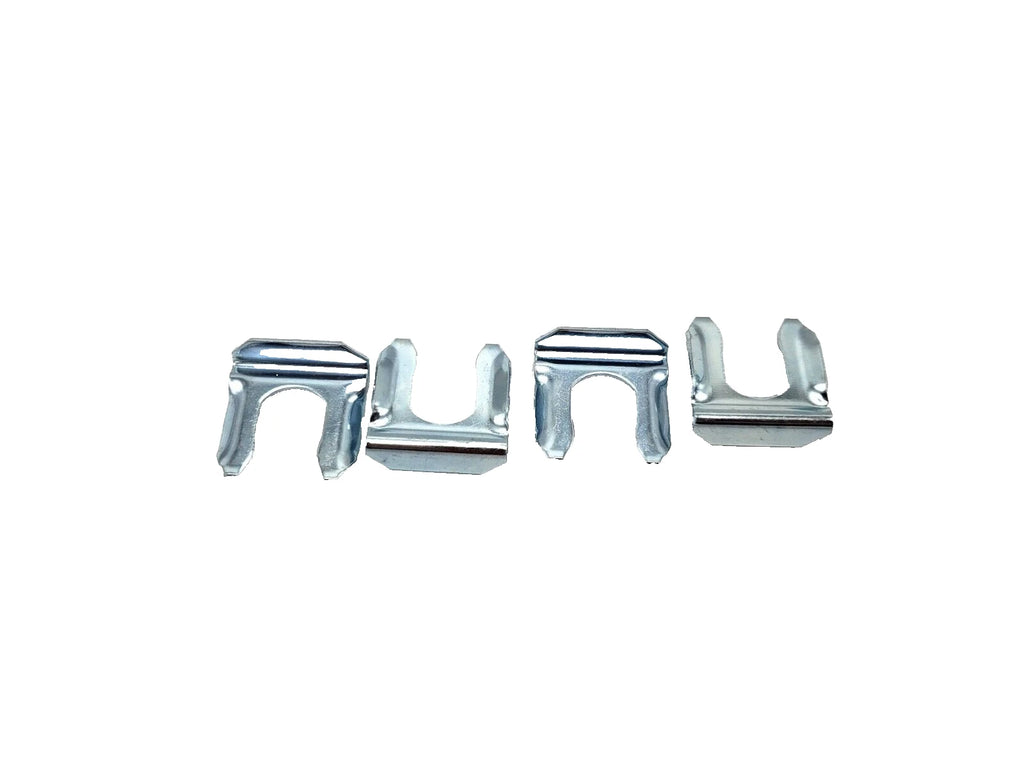

| SB7764 | Retainer Clip | 4 |

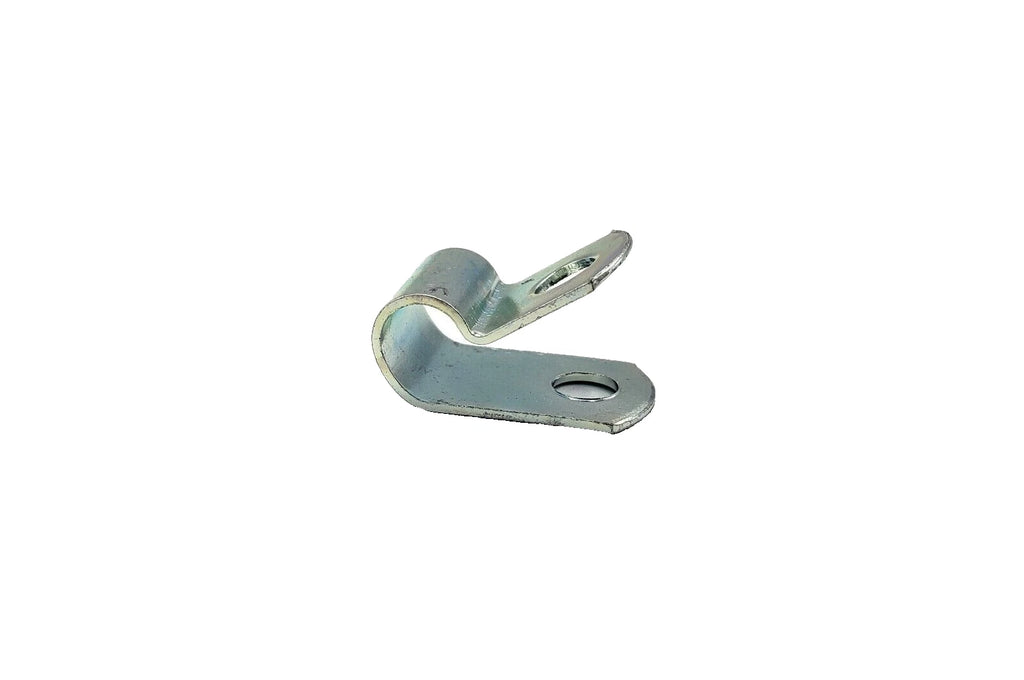

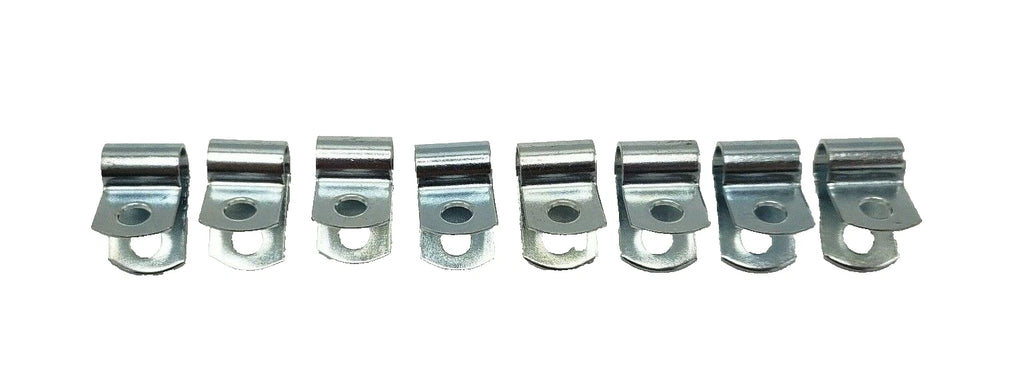

| 05378 | Brake Line Control Clip | 8 |

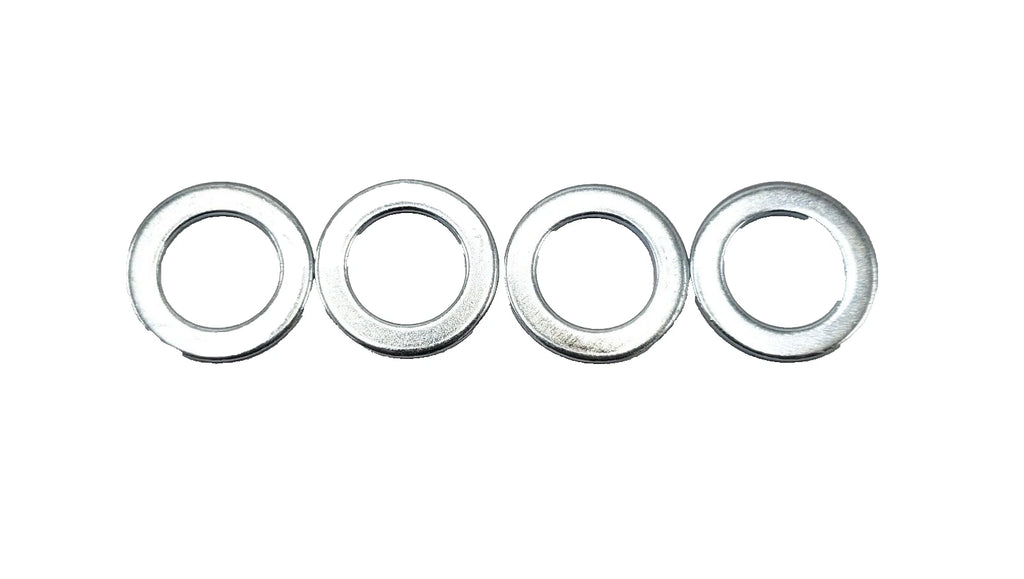

| 00496 | 5/8" x 14GA Machine Bushing | 4 |

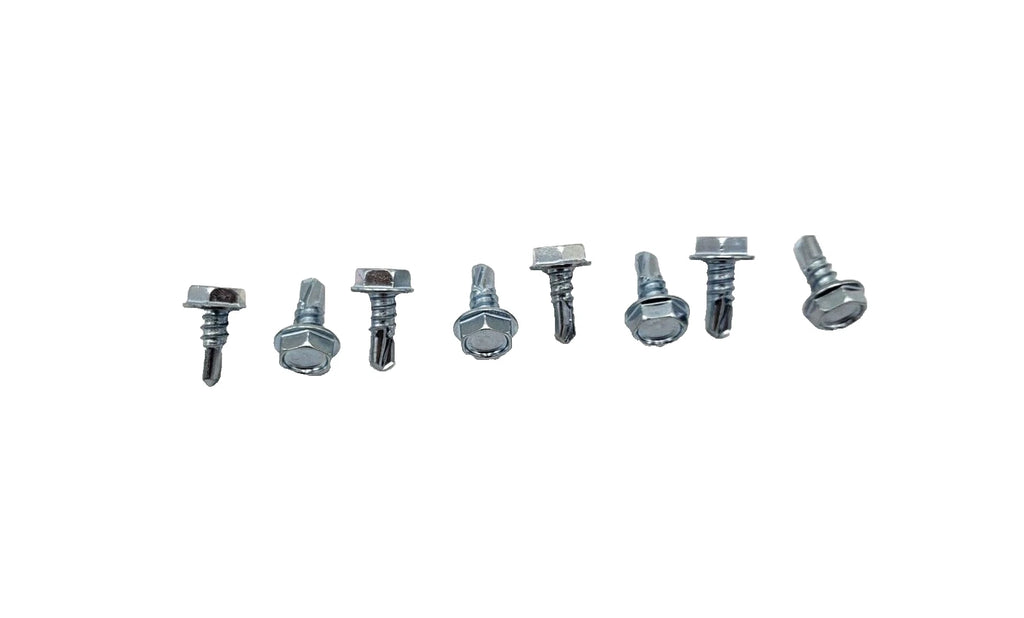

| 03787 | #10-16UNC x 1/2" Self Drilling Hex Washer Head Screw | 8 |
Verify axle configuration and brake system type before installation.
