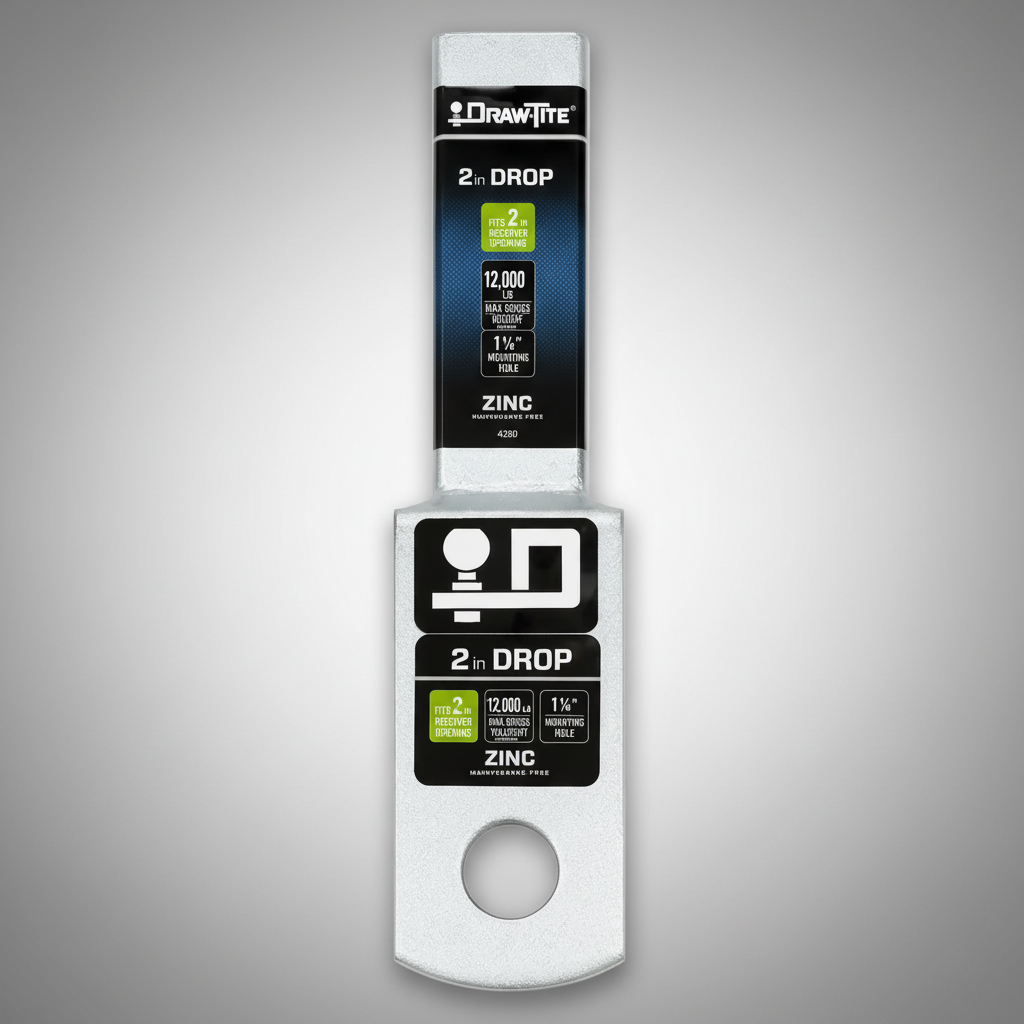

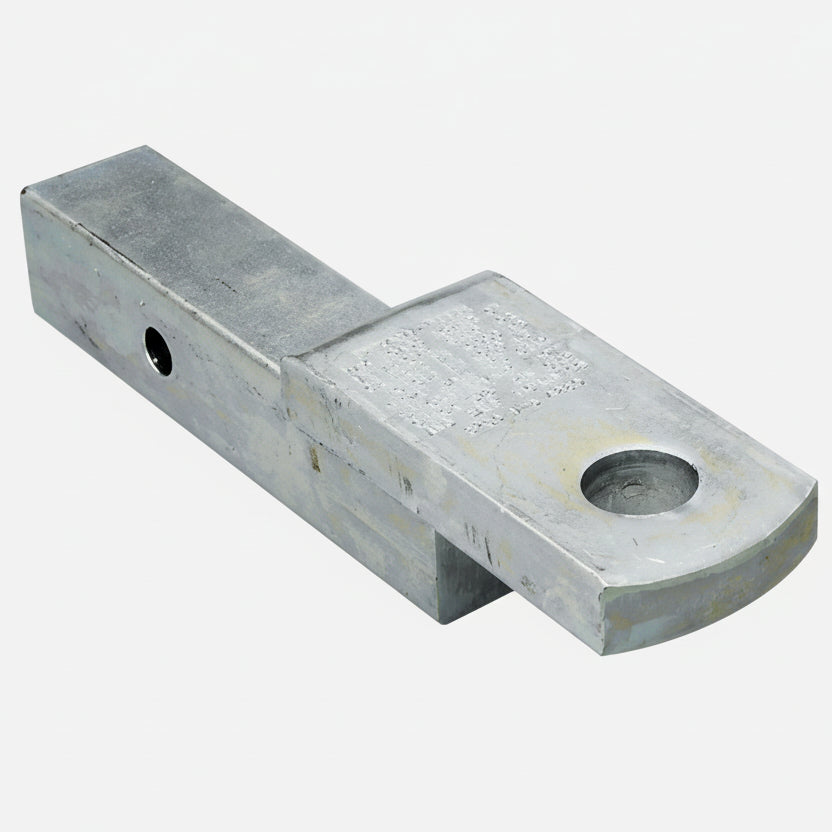

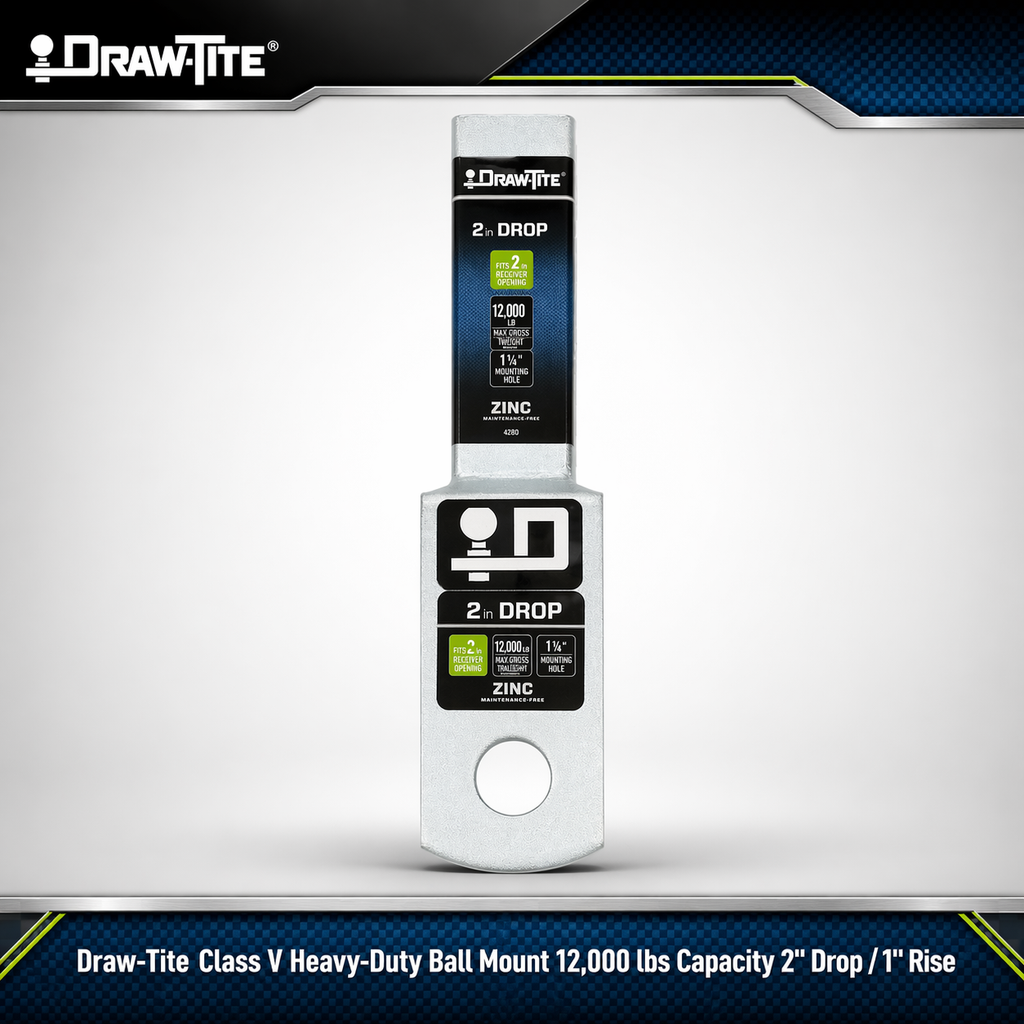

Draw-Tite Class V Heavy-Duty Ball Mount - 12,000 lbs Capacity (2" Drop / 1" Rise)
A solid steel Class V ball mount built to create a secure, level towing connection between your 2" receiver and trailer coupler for work-ready and recreation-ready hauling.
Overview
Elevate your towing capability with this heavy-duty Draw-Tite ball mount. Designed to bridge the gap between your 2" receiver hitch and your trailer's coupler, this solid steel component provides a secure connection for heavy loads. Whether you're hauling for work or weekend recreation, this ball mount ensures a level towing setup for pick-up trucks and SUVs alike.
R&P Service Insight
This component is typically replaced due to wear, environmental exposure, or repeated load stress over time—not sudden failure.
- Wear: The 1.25" ball hole can elongate over years of heavy cycling, leading to clunking or loose fitment.
- Exposure: While the zinc finish provides superior protection, salt and road chemicals can eventually lead to surface oxidation.
- Load Stress: Exceeding the 1,200 lb tongue weight can cause hairline stress fractures or deformation in the shank.
R&P Knowledge Hub
Compatibility: Fits all standard 2" x 2" Class V receiver hitches. Requires a hitch ball with a 1.25" shank diameter.
Vehicle / System Fit: Ideal for heavy-duty trailers, equipment haulers, and large boats requiring a Class V weight rating.
Installation Notes: Requires a 5/8" hitch pin and clip (sold separately). Always torque your hitch ball to the manufacturer's specified foot-pounds.

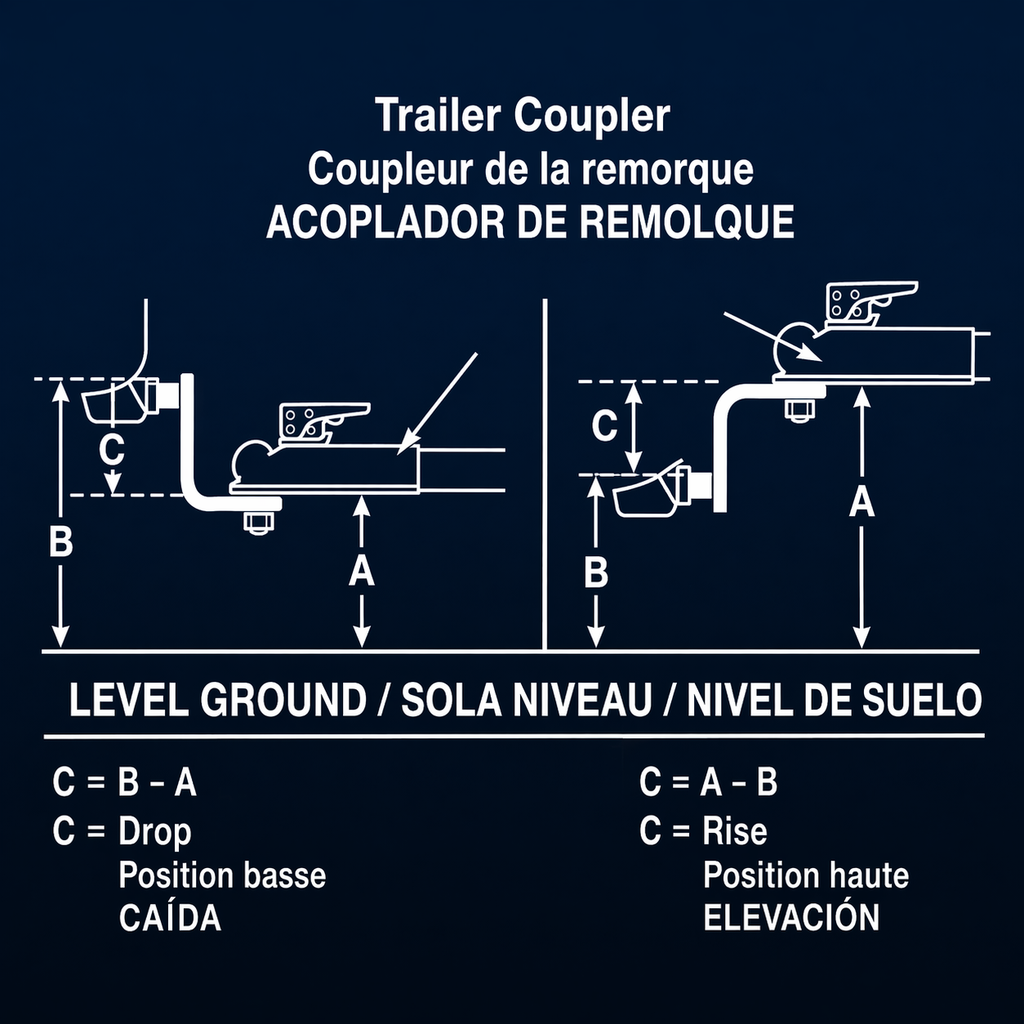

Performance Insight: The 2" drop or 1" rise allows you to level your trailer precisely. Proper leveling prevents trailer sway and helps promote even tire wear and consistent braking performance.
Features
Trusted Strength
Solid steel construction rated for 12,000 lbs GTW and 1,200 lbs tongue weight.
Class V Versatility
Dual-purpose design offers a 2" drop or a 1" rise to match different trailer heights.
Universal Receiver Fit
Engineered to fit any standard 2 in. trailer hitch receiver opening.
Tested Performance
Inspected and tested to exceed SAE J684 standards for dependable heavy-duty towing use.
Specifications
| Specification | Detail |
|---|---|
| Type | Fixed Ball Mount |
| Application | Heavy-Duty Towing (Class V) |
| Hitch Receiver Size | 2 in. |
| Material / Finish | Steel / Zinc Silver Finish |
| Weight Capacity | 12,000 lbs. (GTW) / 1,200 lbs. (TW) |
| Key Measurements | 8.5" Shank Length | 1.25" Ball Hole |
| Part Number | 4280 |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Pick-up Trucks, Crossovers, and SUVs with 2" Receivers |
| Axle / Capacity | Class V (Up to 12,000 lbs) |
| Notes | Does not include hitch pin or ball. Requires 5/8" pin. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Draw-Tite 12,000 lbs Class V Ball Mount (Zinc) |
