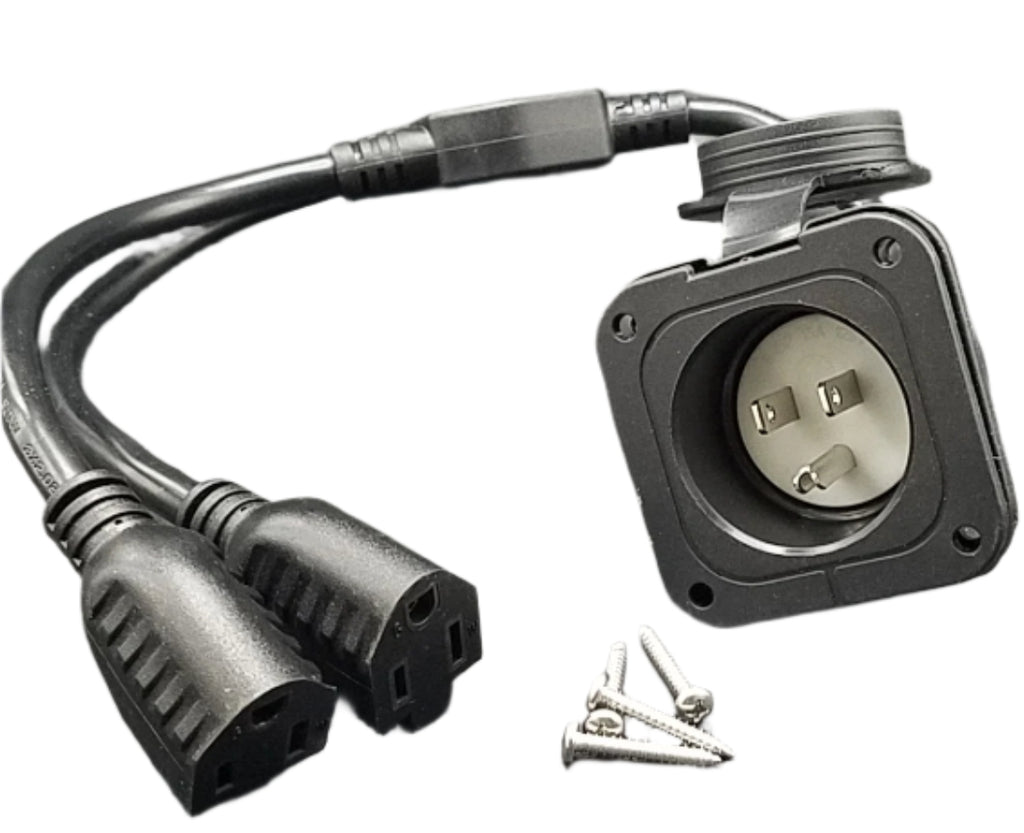

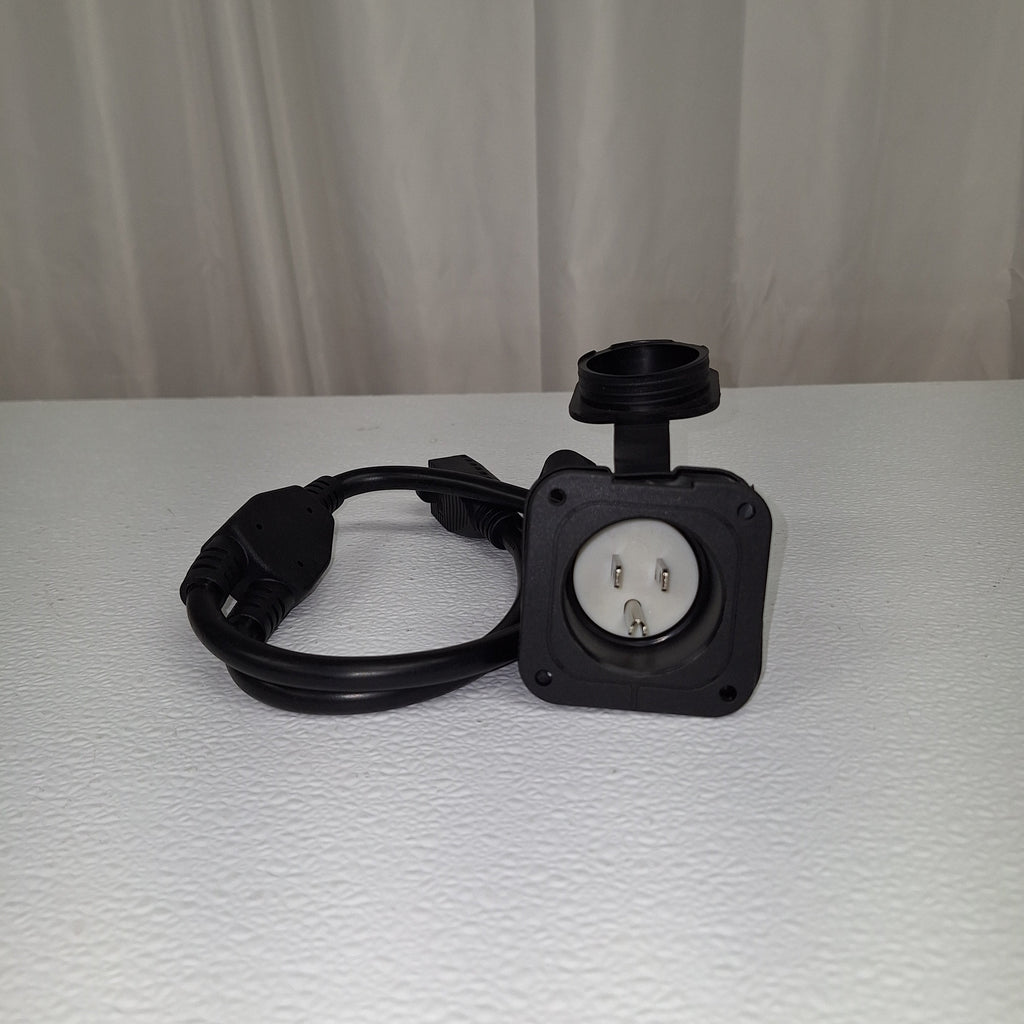

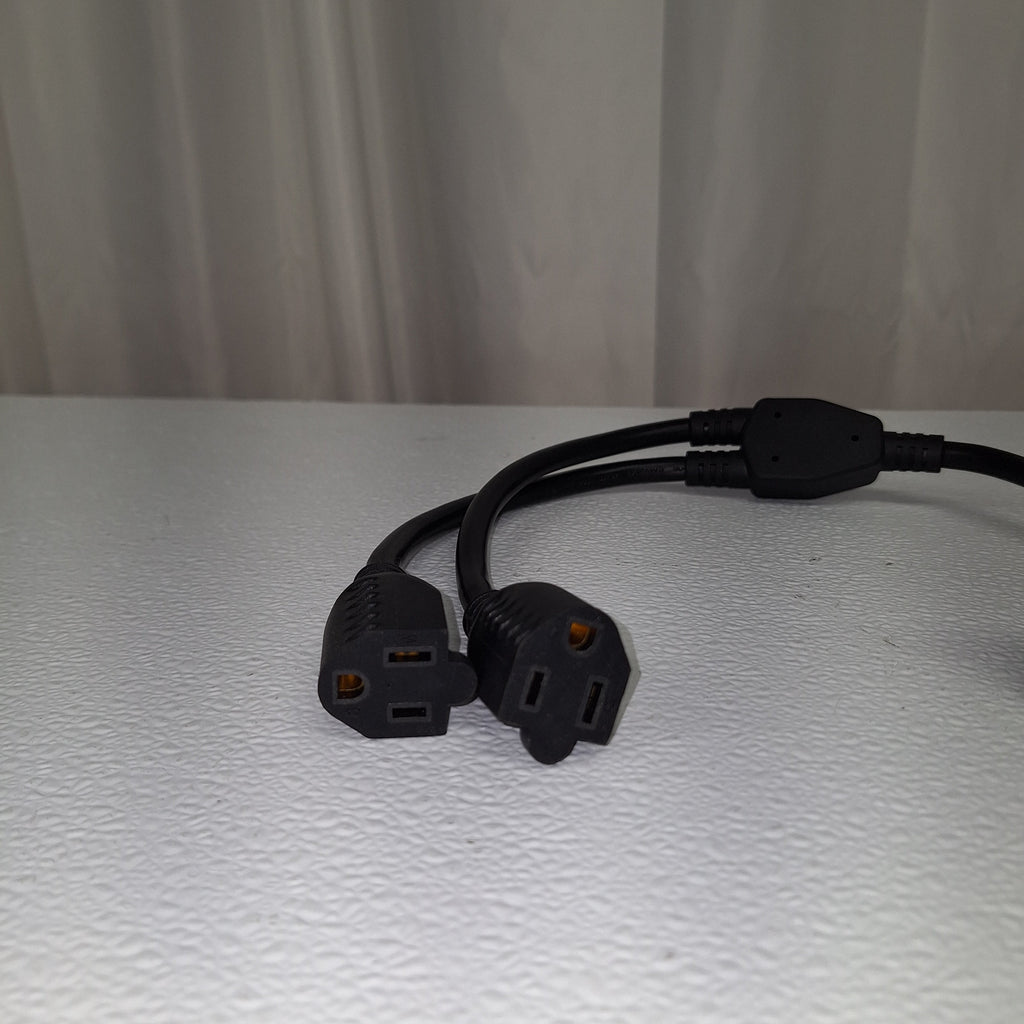

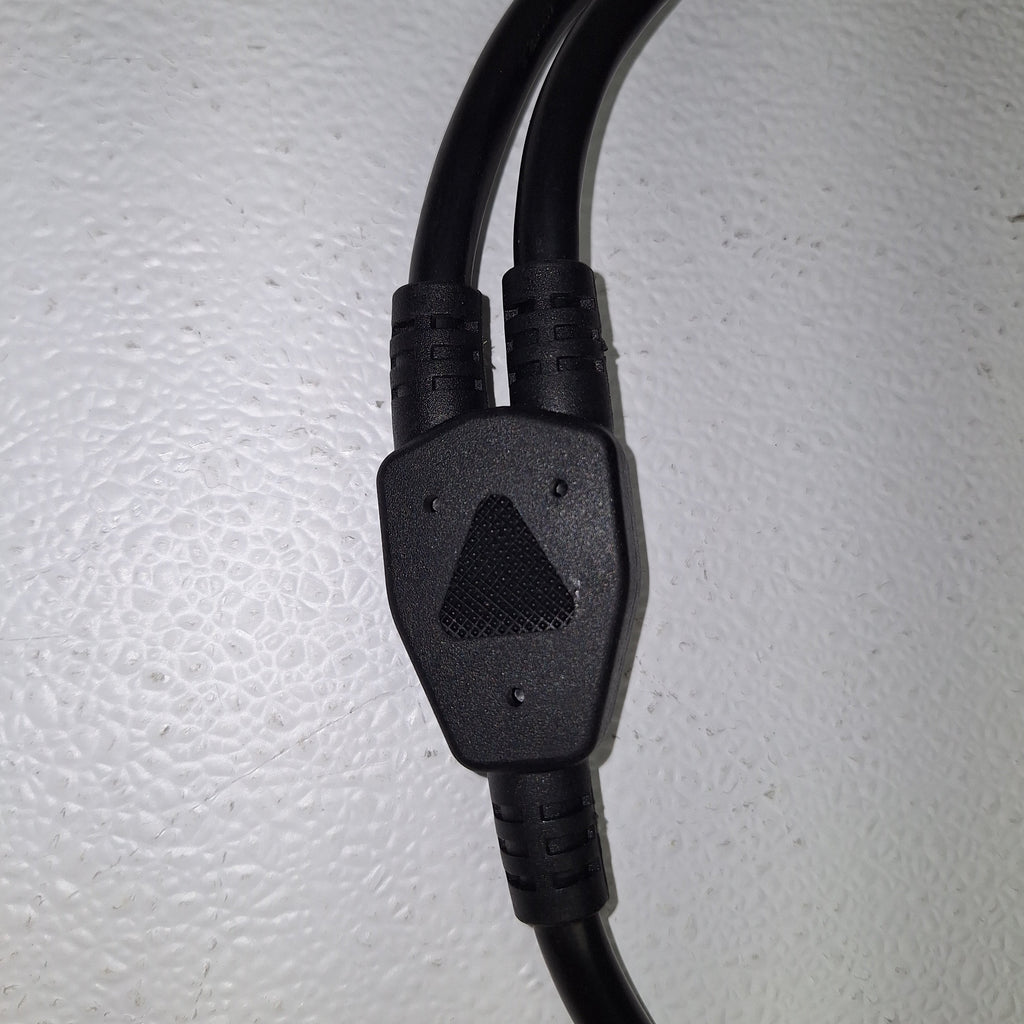

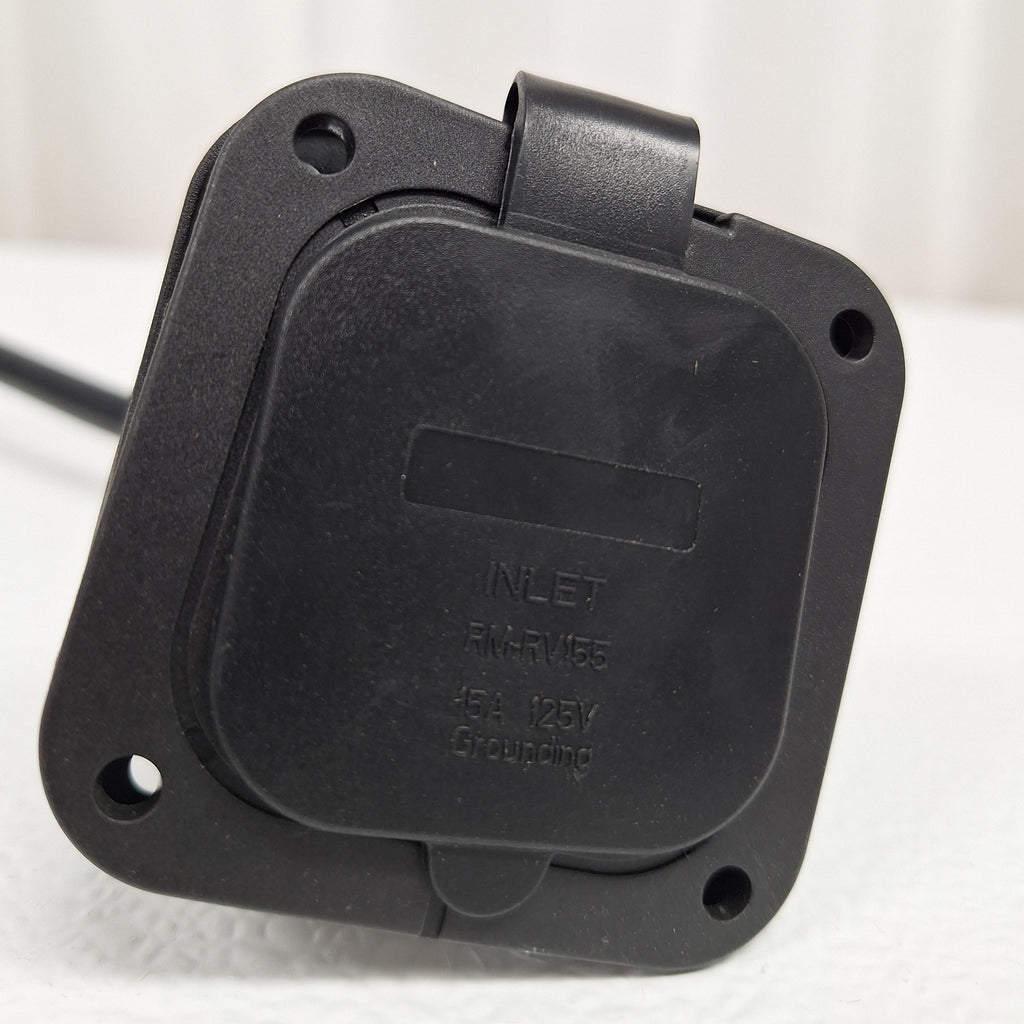

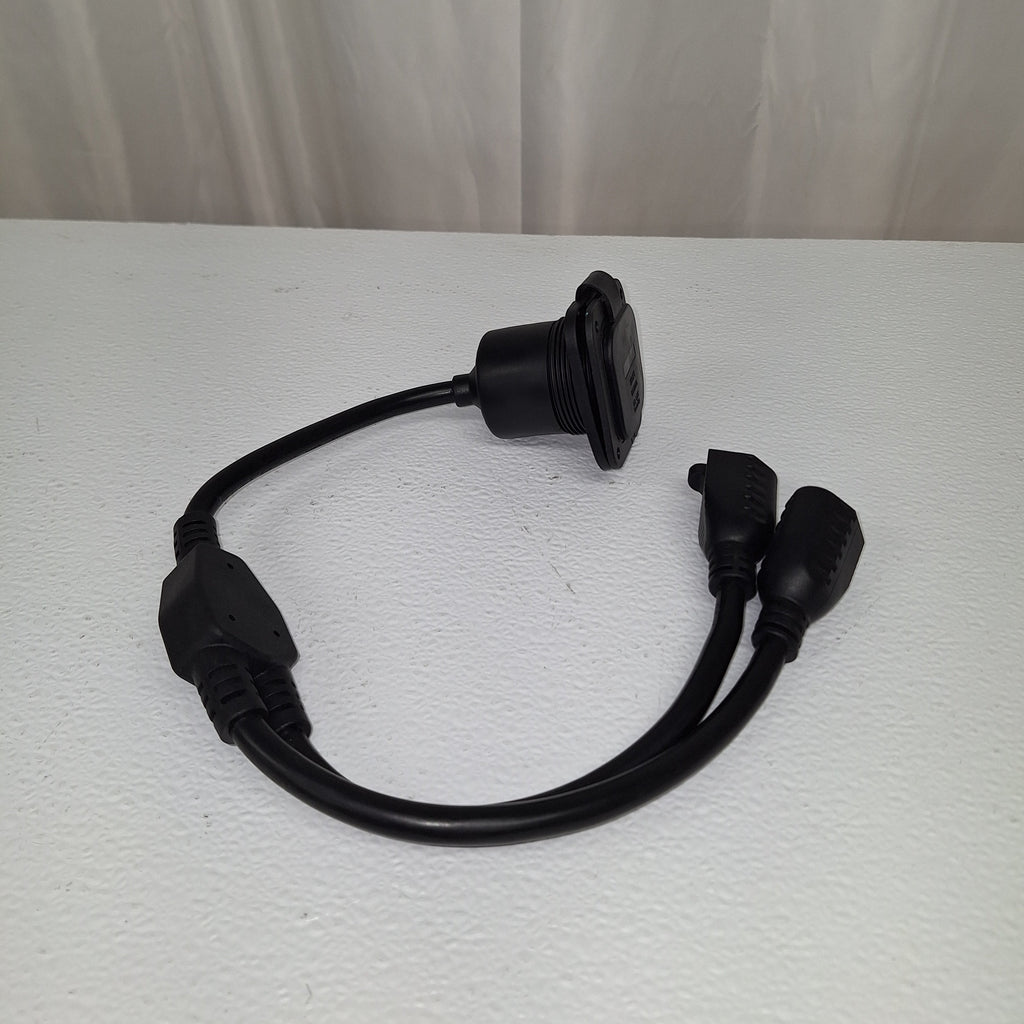

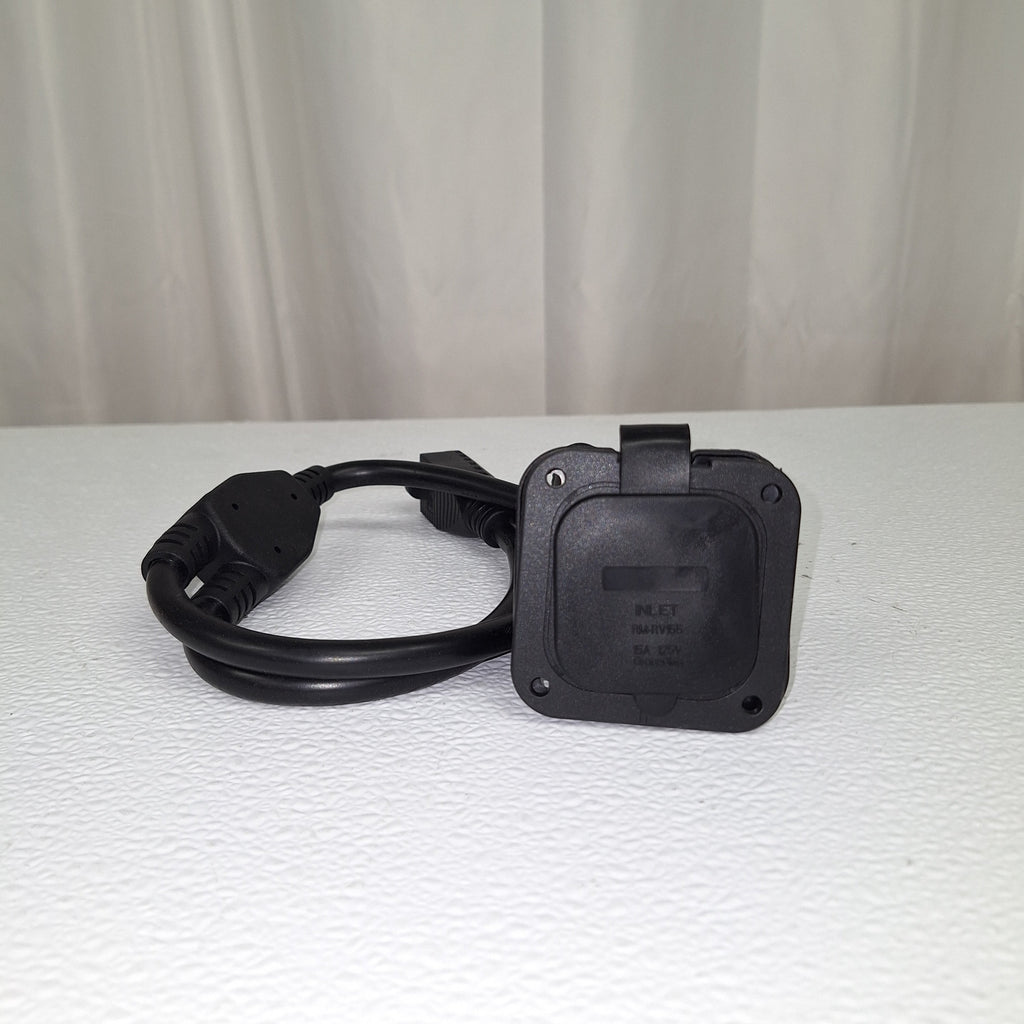

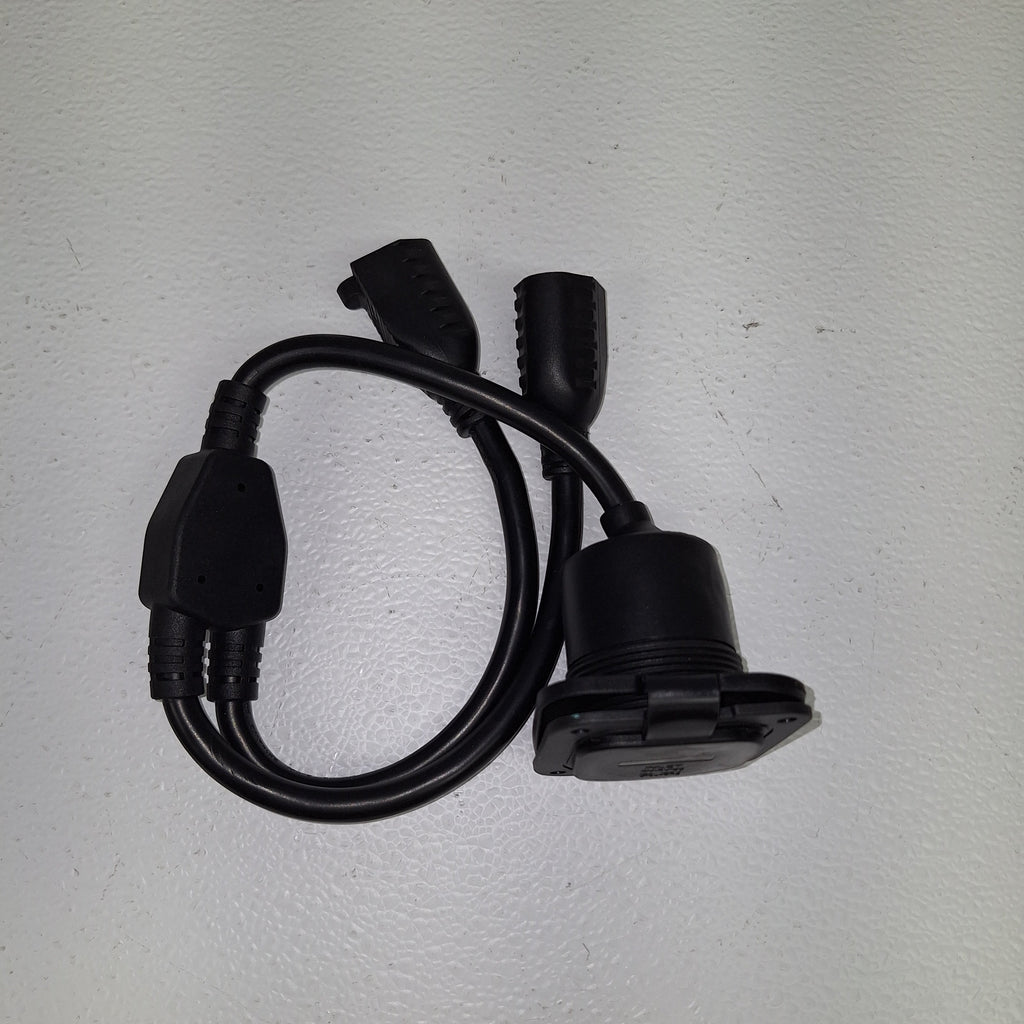

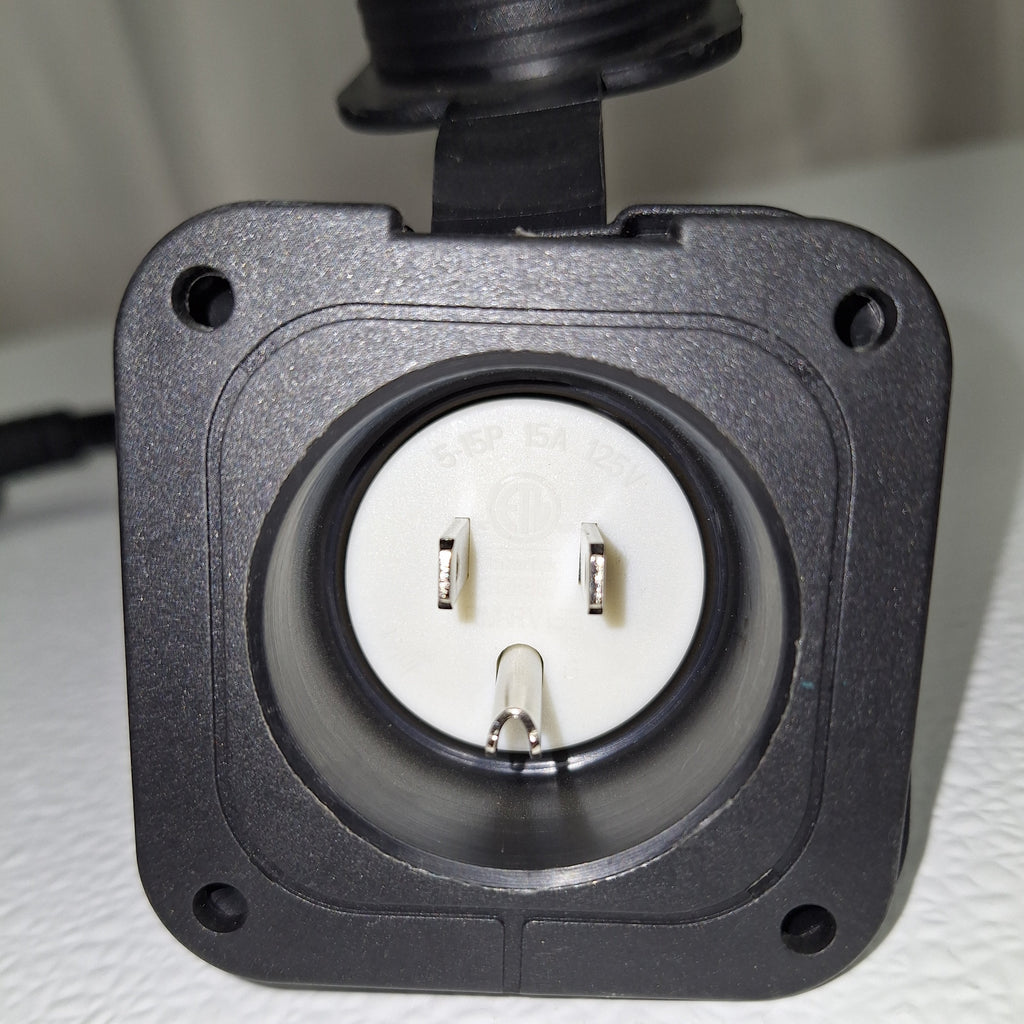

Dumble 3-Prong “Y” Splitter Cable Power Extension Cord – 125V 15A
Dumble three-prong Y-style power splitter cord with a 125-volt, 15-amp NEMA 5-15P connection and support for up to 12 AWG, three-conductor wiring.
SKU: RVS-820923 125V / 15A NEMA 5-15P
Specifications
| Specification | Detail |
|---|---|
| Brand | Dumble |
| SKU | RVS-820923 |
| Product Type | Three-prong Y splitter power extension cord |
| Voltage Rating | 125 volts |
| Amperage Rating | 15 amps |
| Plug Configuration | NEMA 5-15P |
| Maximum Wire Gauge | 12 AWG / 3-conductor |
| Conductor Colors | Black, white, and green |
Fitment / Application
| Category | Details |
|---|---|
| Electrical System | Compatible 125-volt AC electrical applications |
| Connection Type | Three-prong grounded NEMA 5-15P configuration |
| Wire Compatibility | Accepts wiring up to 12 AWG with three conductors |
| Before Installation | Confirm the voltage, amperage, plug configuration, wire size, and available mounting space for your application. |
Wire Identification
| Wire Color | Connection |
|---|---|
| Black | Load / hot – 125 volts |
| White | Neutral |
| Green | Equipment ground |

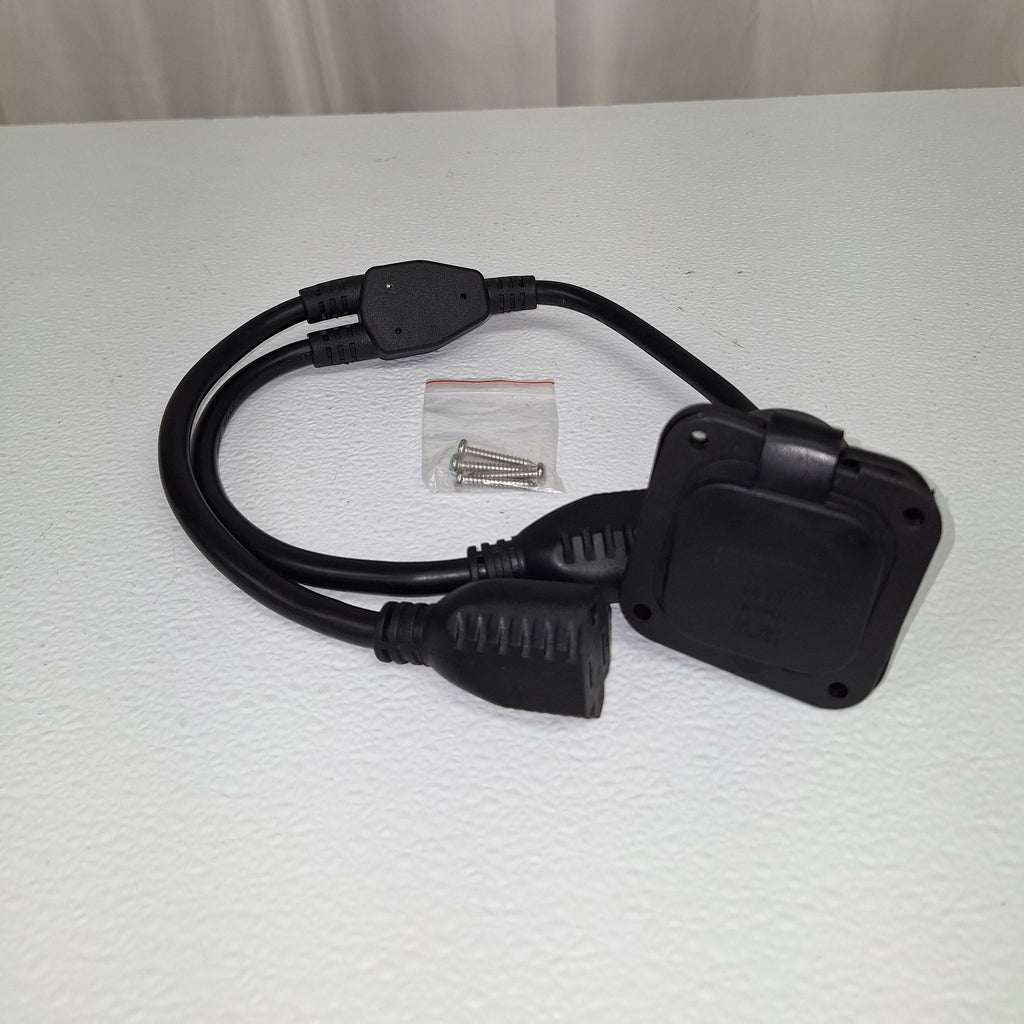

Included Components
| Quantity | Item |
|---|---|
| 1 | Dumble three-prong Y splitter power extension cord assembly |
| 4 | #8 pan-head stainless-steel mounting screws |
| 1 | Set of installation instructions |
Tools Required for Assembly
- Pencil
- Electric drill
- 2-inch hole saw
- 1/8-inch drill bit
- Flat-blade screwdriver
- Cutting and wire-stripping pliers
Installation Note
Disconnect all electrical power before beginning assembly or installation.
Follow the included installation instructions and applicable electrical requirements. Verify the hot, neutral, and equipment-ground conductors before making any connections.
If you are uncertain about the wiring or installation procedure, have the product installed by a qualified technician.
Important Electrical Note: Confirm the 125V, 15A rating, NEMA 5-15P configuration, wire gauge, conductor identification, and mounting requirements before installation. Do not exceed the listed electrical ratings.
