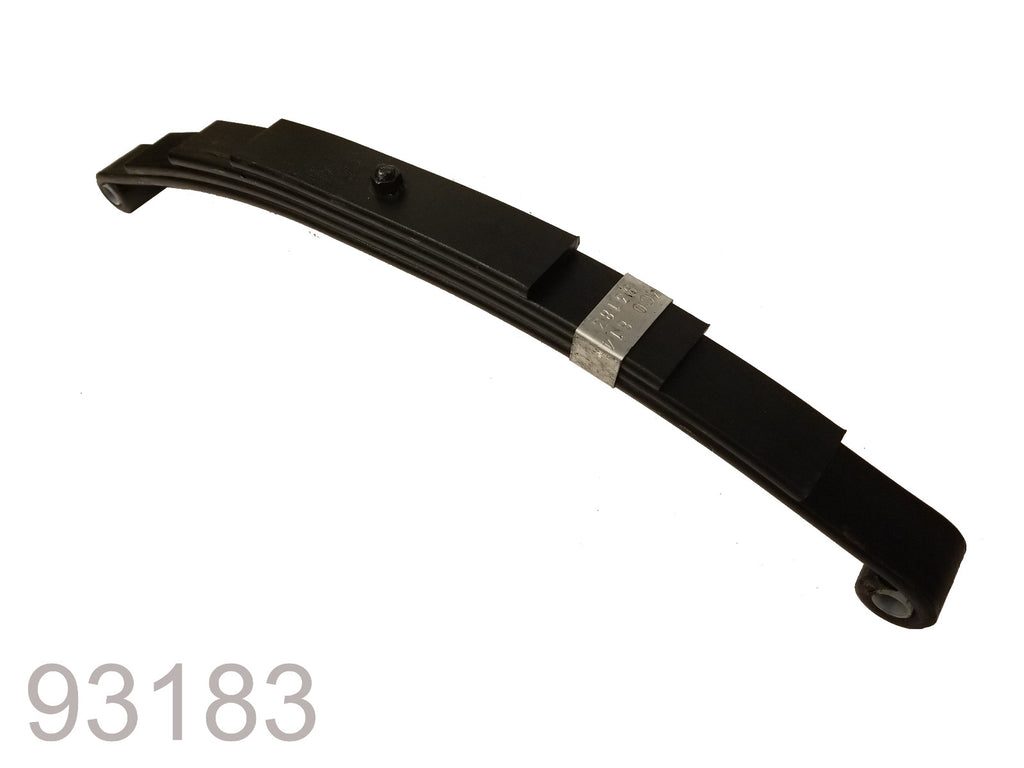

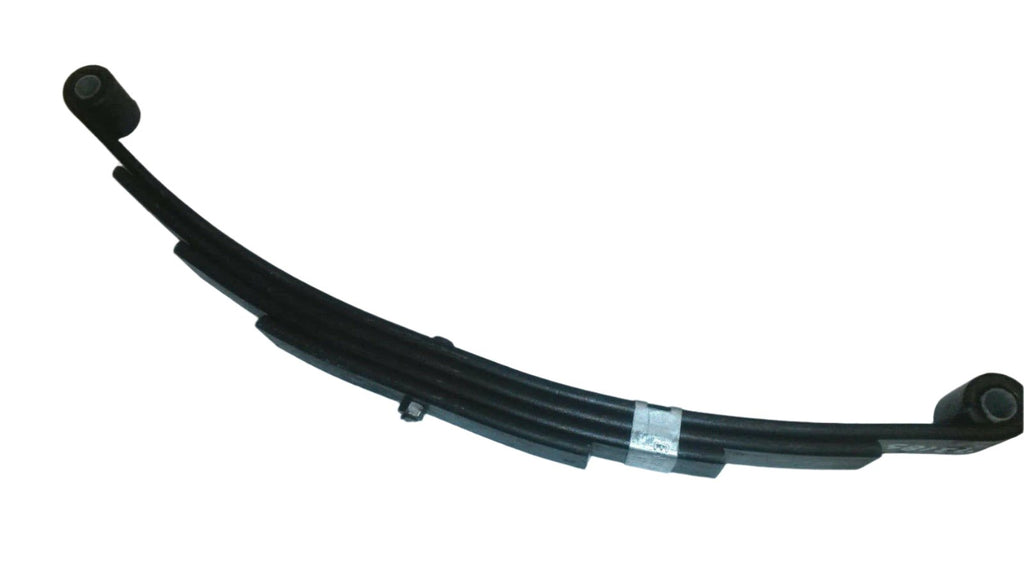

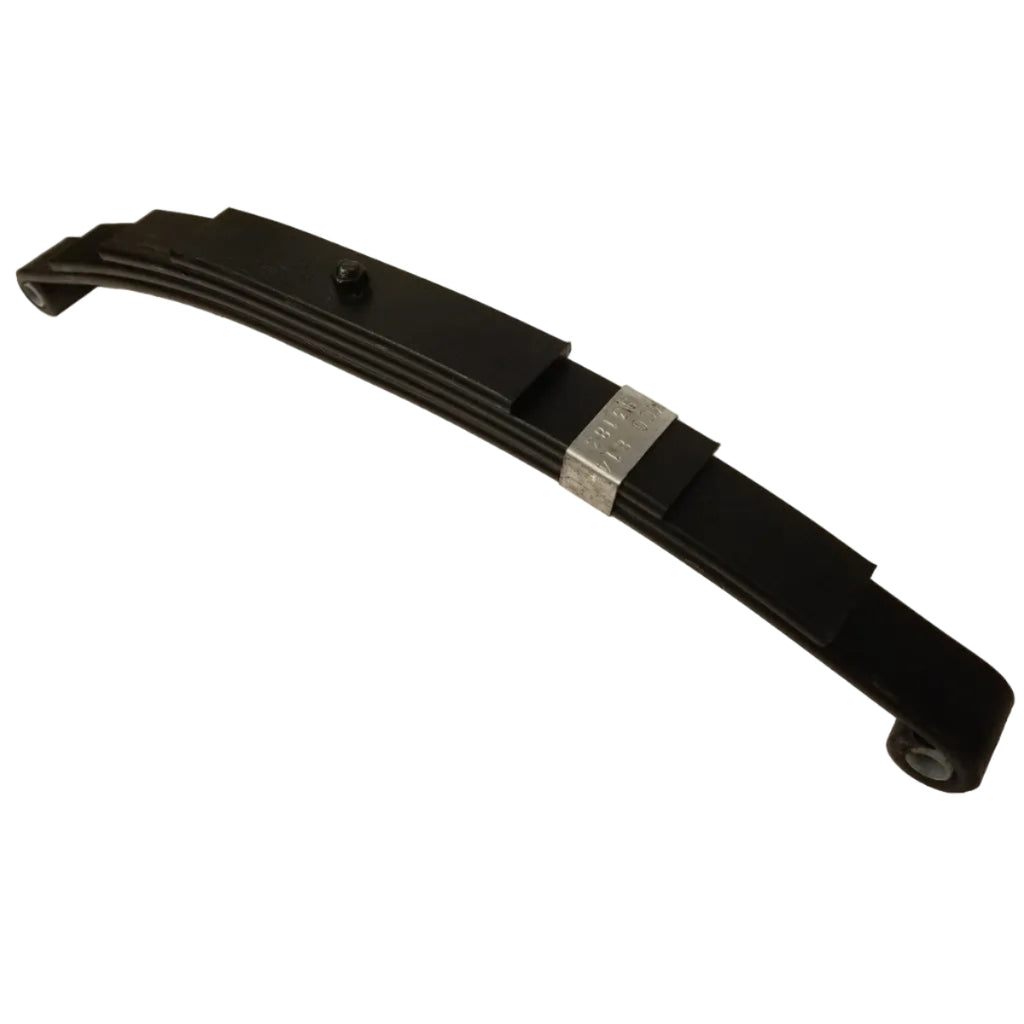

EMCO Double Eye Leaf Spring – 23.25" – 1.75" Wide – 4 Leaf – 2,900 lb
EMCO four-leaf double eye leaf spring rated at 2,900 lb per spring. Measures 23.25" eye-to-eye (long measurement), 1.75" wide, with approximately 3-1/2" of arch. Includes 9/16" bushings.
Commonly found on select Northwood camper models including Nash and Fox Mountain, and may be used on other trailer applications requiring this specific length, width, and capacity.
R&P Knowledge Hub

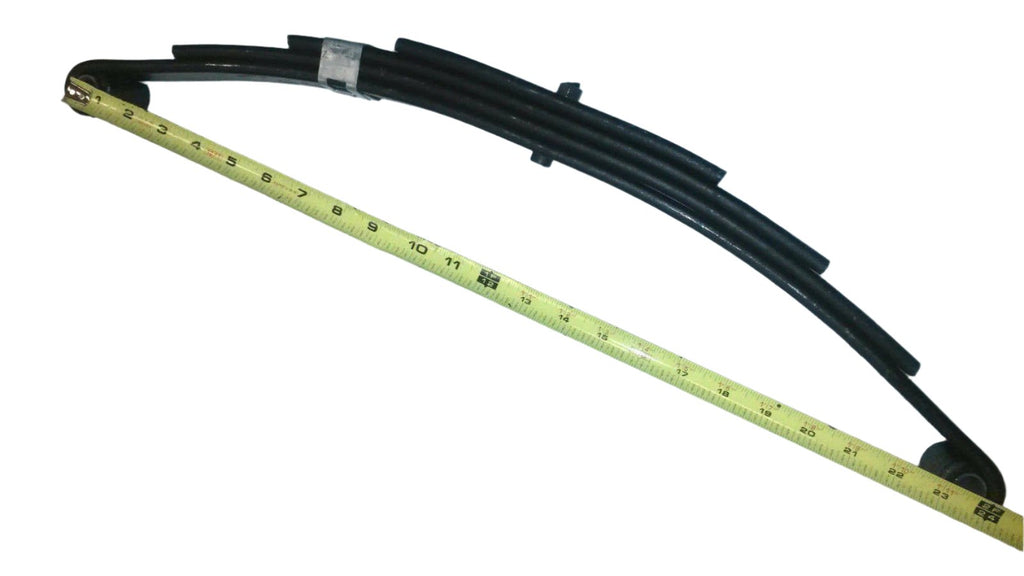

Double eye leaf springs use a fixed front eye and a shackle-mounted rear eye, allowing the suspension to articulate as the spring flexes. Proper eye-to-eye measurement must be taken along the spring’s arc in its unloaded state.
Always confirm spring length (23.25"), width (1.75"), bushing diameter (9/16"), arch height, and axle rating before replacement. Springs should be replaced in pairs to maintain balanced suspension geometry and ride height.
Features
- Manufacturer: EMCO
- 4 Leaf Construction
- Double Eye Design
- 1.75" Spring Width
- Approximately 3-1/2" Arch
- 9/16" Bushings Included
- 2,900 lb Rating Per Spring
Specifications
| Specification | Detail |
| Part Number | DE-93183 |
| Spring Type | Double Eye |
| Leaf Count | 4 Leaf |
| Length | 23.25" Eye to Eye |
| Width | 1.75" |
| Arch | Approximately 3-1/2" |
| Bushing Size | 9/16" |
| Capacity | 2,900 lb Per Spring |
Verify specifications before installation.
