Dexter Slipper Spring Equalizer Kit – 17.37" – Tandem 4,500 lb Axle Systems
Part Number: 013-118-03-KIT
Slipper spring equalizer kit designed for tandem 4,500 lb axle trailer suspensions (commonly used in 9,000 lb GVWR trailer configurations). Intended for 2" wide slipper springs with approximately 42.2" axle spacing (center-to-center).
Features
- 17.37" overall equalizer length
- Designed for approximately 42.2" axle spacing
- Fits 2" wide slipper springs
- 1" center wet bolt configuration
- 5/8" spring eye bolt connection
- Pressed-in center bushing
R&P Knowledge Hub
In a slipper spring suspension system, the equalizer pivots on the center wet bolt to transfer suspension movement between axles. When one axle encounters uneven terrain, the equalizer rotates to distribute force to the adjacent axle.
Equalizer length directly determines axle spacing and suspension geometry. Before ordering, verify spring width, center bolt diameter, and center-to-center axle spacing.
Specifications
| Overall Equalizer Length | 17.37" |
|---|---|
| Axle Spacing (Typical) | 42.2" (Center-to-Center) |
| Spring Width | 2" |
| Center Bolt Size | 1" Wet Bolt |
| Outer Bolt Size | 5/8" Spring Eye Bolt |
| Center Bushing | Pressed-In |
Kit Includes
| Qty | Component |
|---|---|
| 1 | Equalizer (013-118-03) |

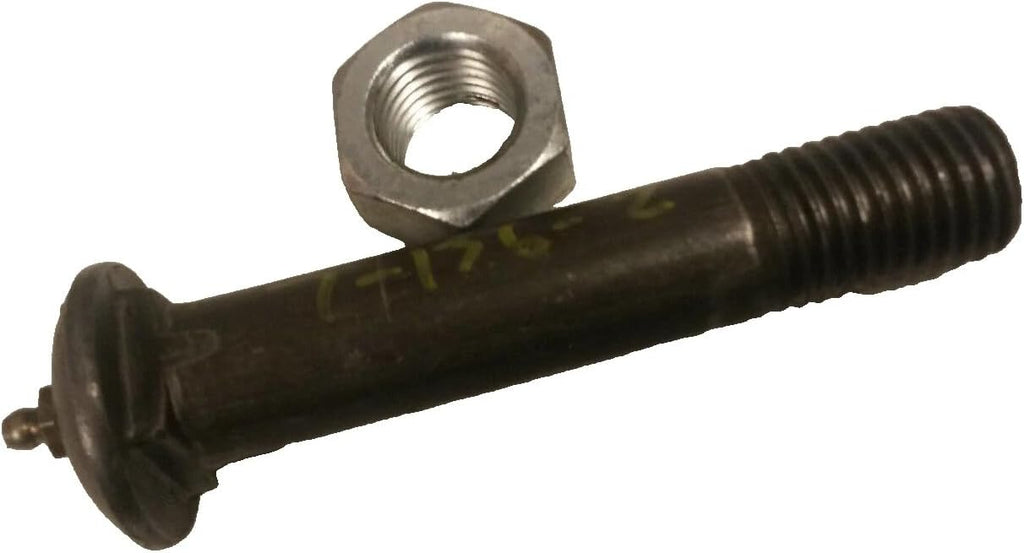

| 1 | 1" Wet Bolt (7-136-2) |
| 1 | Lock Nut (006-112-00) |
| 1 | 5/8" Spring Eye Bolt (7-181) |
| 1 | 5/8" Eye Bolt Nut (006-038-00) |
Diagram Dimensions
| Reference | Measurement |
|---|---|

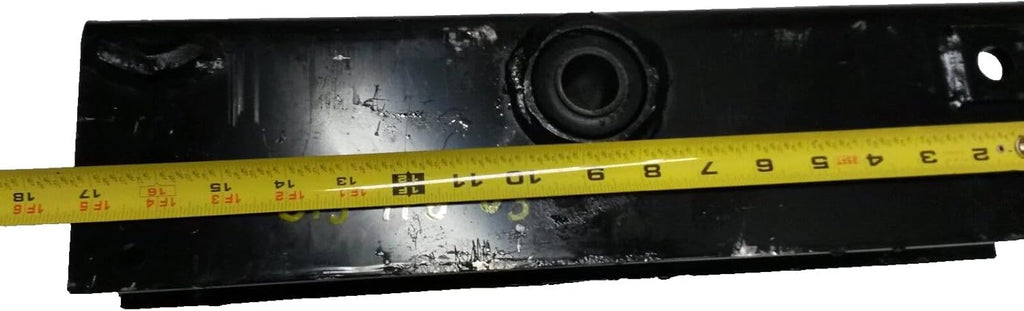

| A | 17.37" – Overall Length |

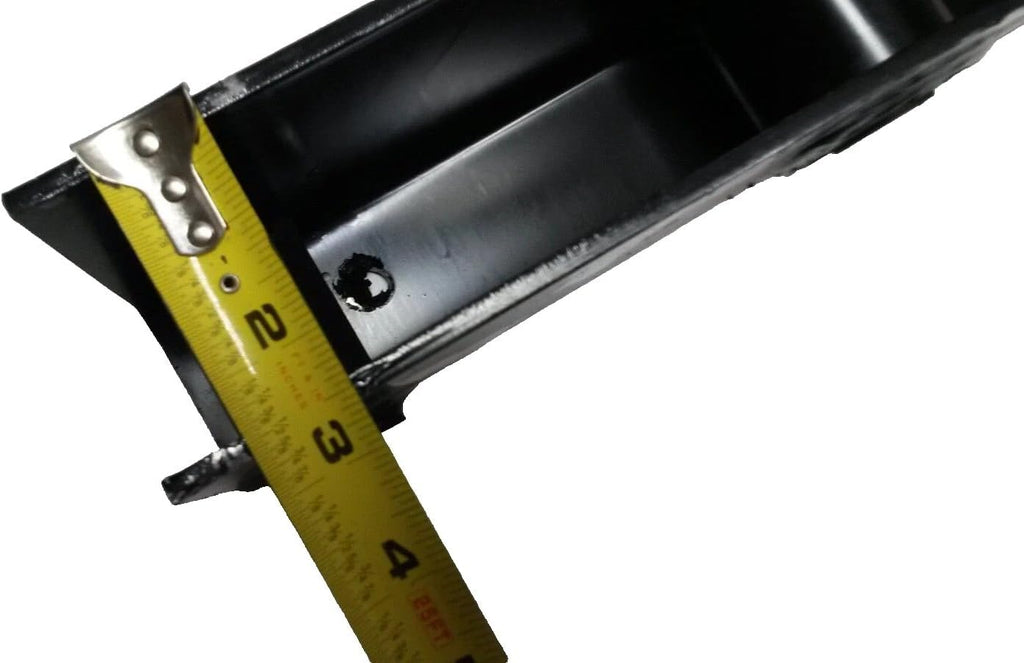

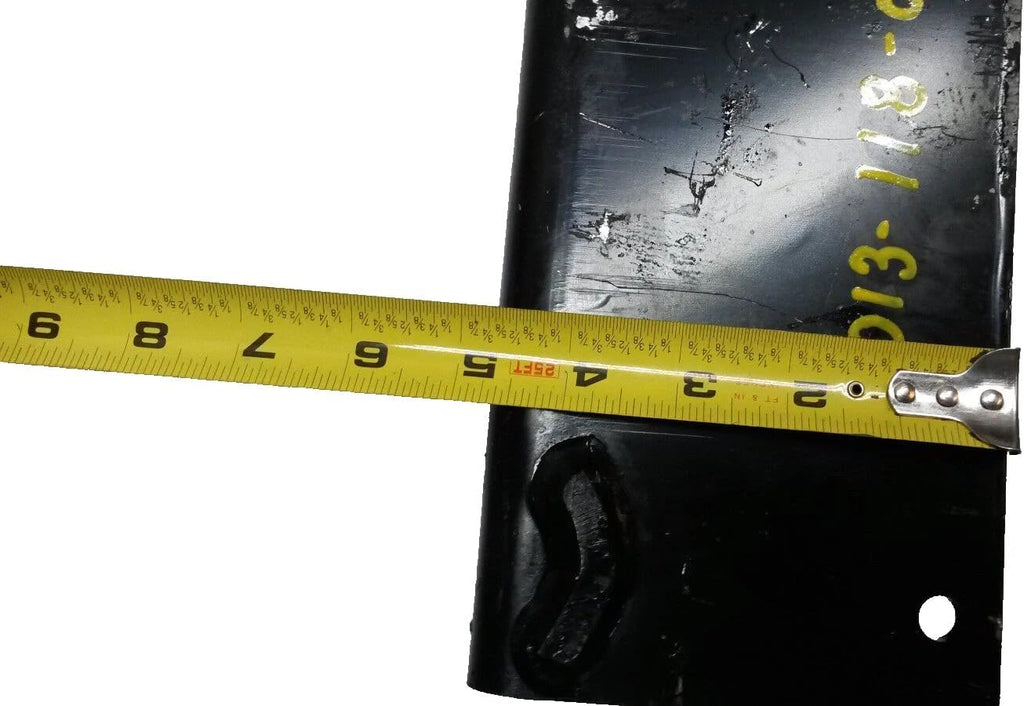

| D | 2" – Spring Width |
| E | 1" – Center Wet Bolt Diameter |
| F | 5/8" – Spring Eye Hole Diameter |
Verify axle spacing, spring width, and bolt sizes before installation.
