At a Glance
- SKU: J-55-R
PRODUCT INFORMATION
Product Details
Trailer Lighting / Clearance & Marker Lights

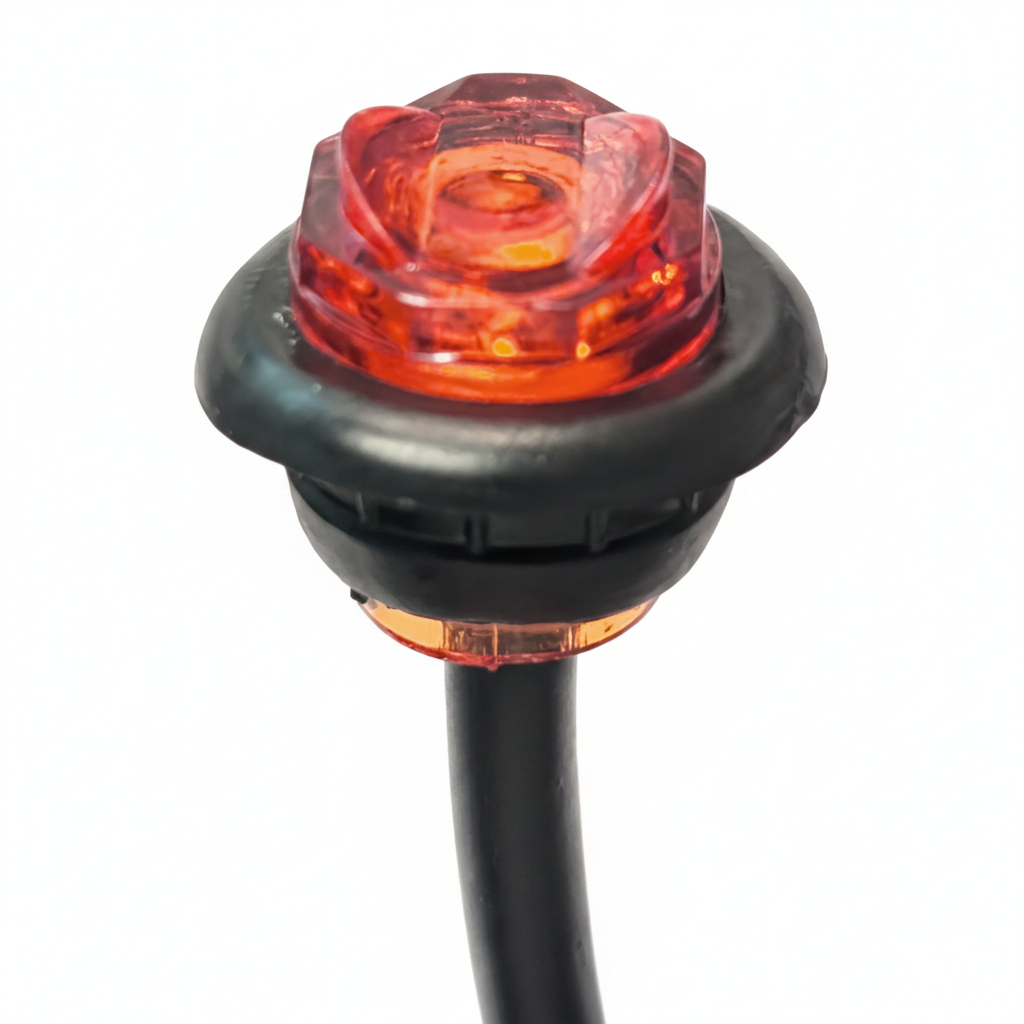

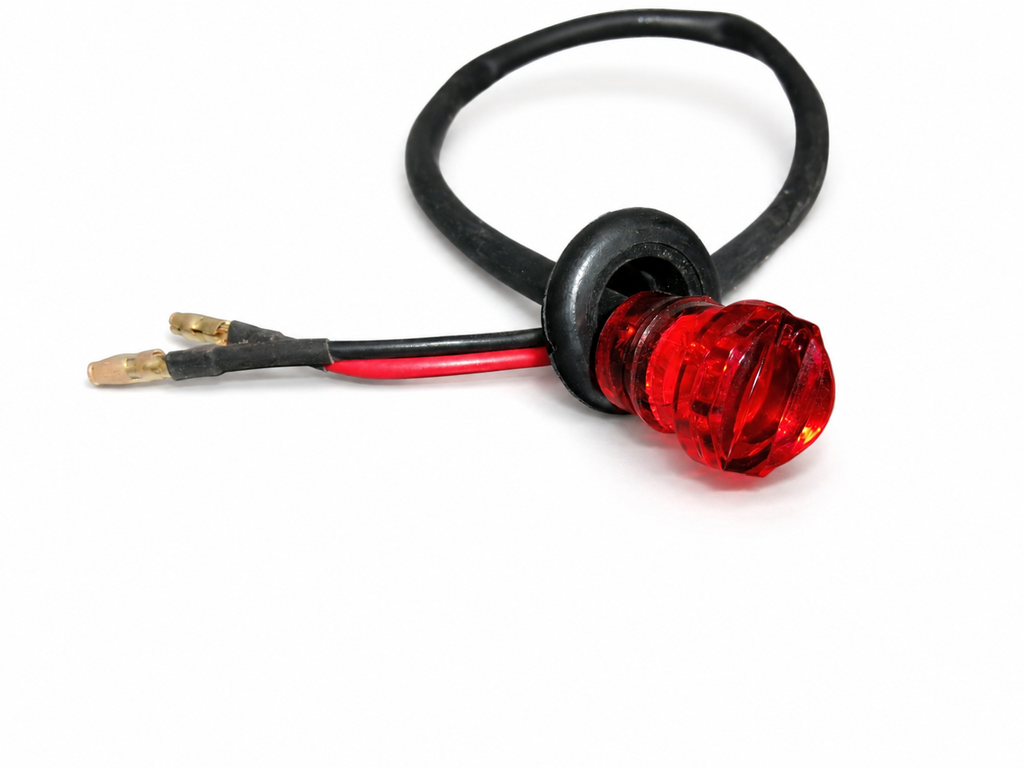

Jammy Round Single 3/4" Red LED Marker Light, 16" Lead
Compact 3/4" round red LED clearance/marker lamp with red lens, grommet mount, high-output SMD diode, 16" leads, and .156 bullet connectors. PC rated when mounted on a 45 degree angle.
Part Number: J-55-R 3/4" Round LED Lamp Red Diode / Red Lens
Overview
This 3/4" round single diode red LED clearance/marker light is built for compact trailer lighting applications where a small, bright, grommet-mounted lamp is needed. The J-55-R uses a red diode with a red lens, includes the mounting grommet, and is designed to mount in a 3/4" diameter hole.
R&P Service Insight
Small LED marker lights are commonly used where space is limited but visibility still matters. Before ordering, confirm the mounting hole size, lens color, diode color, and wiring connector style.
- Mounting Style: Grommet mount for a 3/4" diameter mounting hole.
- PC Rating: Legal for PC rating when mounted on a 45 degree angle.

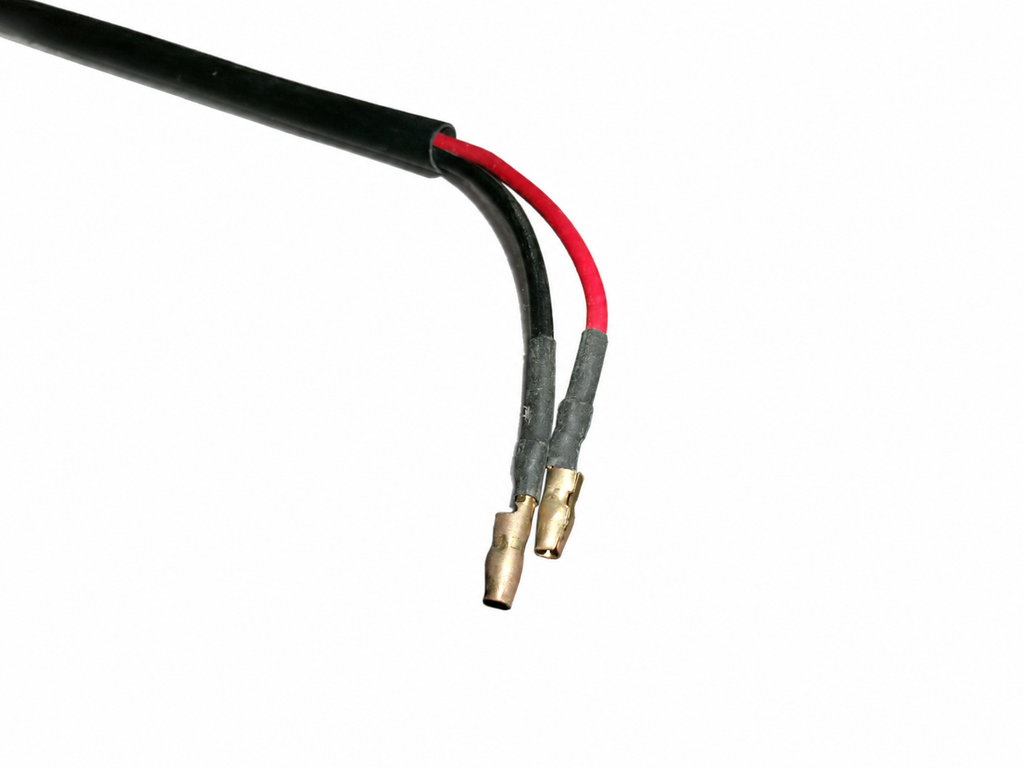

- Wiring: Includes 16" leads with .156 bullet connectors standard.
R&P Knowledge Hub
Compatibility: Designed for trailer clearance and marker light applications using a 3/4" round grommet-mounted lamp.
Vehicle / System Fit: Trailer lighting systems requiring a red clearance/marker lamp with 16" lead wiring and .156 bullet connectors.
Installation Notes: Verify the 3/4" mounting hole, grommet fit, wiring connection, lens color, diode color, and required mounting angle before installation.
Performance Insight: The high-output SMD diode, PC lens, and flex-seal potting support durability, long life, and reliable lighting performance.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: This listing is for a trailer clearance/marker light used where the lamp size, mounting hole, wiring style, and color configuration match the application.
What This Means: This listing is for one J-55-R 3/4" round red LED clearance/marker lamp with included mounting grommet.
Before Ordering: Verify hole diameter, mounting angle, connector style, wire length, lens color, diode color, and required marker/clearance light position before installation.
R&P Repair Insight
When replacing a small round marker lamp, the most important fit checks are the lamp diameter, the grommet mount, and the wiring connection. Do not rely on appearance alone if replacing an existing light.
- Hole Size Check: This lamp mounts in a 3/4" diameter hole.
- Color Check: This J-55-R version is red diode / red lens.
- Connector Check: Wiring is supplied with 16" leads and .156 bullet connectors standard.
Features
Compact 3/4" Round Design
Designed to mount in a 3/4" diameter hole for small trailer clearance and marker light applications.
Red LED Output
Single high-output SMD diode with red diode / red lens configuration for rear or side marker applications where red lighting is required.
PC Rated Mounting Application
Legal for PC rating when mounted on a 45 degree angle, helping support proper visibility requirements when installed correctly.
Durable Sealed Construction
PC lens and flex-seal potting help support durability, weather resistance, and long service life.
Specifications
| Specification | Detail |
|---|---|
| Part Number | J-55-R |
| Product Type | 3/4" Round 1-LED Clearance/Marker Lamp |
| Light Color | Red |
| Diode / Lens Color | Red / Red |
| Mount | Grommet |
| Mounting Hole | 3/4" diameter hole |
| Wiring | 16" leads with .156 bullet connectors standard |
| Amps @ 13.8V | 93 mA |
| Rating Note | PC rated when mounted on a 45 degree angle |
| Catalog MOQ | 200 |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer lighting systems |
| Primary Fit | Clearance and marker light applications using a 3/4" round grommet-mounted lamp |
| Mounting Requirement | Mounts in a 3/4" diameter hole |
| Notes | For PC rating, lamp must be mounted on a 45 degree angle. Verify wiring, connector style, and required light color before installation. |
Included Components
| Quantity | Item |
|---|---|
| 1 | J-55-R 3/4" round single diode red LED clearance/marker light |
| 1 | Mounting grommet |
| Included | 16" wire leads |
| Included | .156 bullet connectors standard |
Verify the 3/4" mounting hole, grommet fit, red diode / red lens configuration, wiring connection, .156 bullet connector style, and 45 degree mounting angle requirement before installation.
J-55-R 3/4 round red LED clearance marker light, 3/4 inch round marker lamp, red red grommet mount LED trailer light, PC rated trailer marker light, single diode red clearance light, 16 inch leads .156 bullet connector marker lamp, small round red trailer light, 3/4 hole LED clearance light
