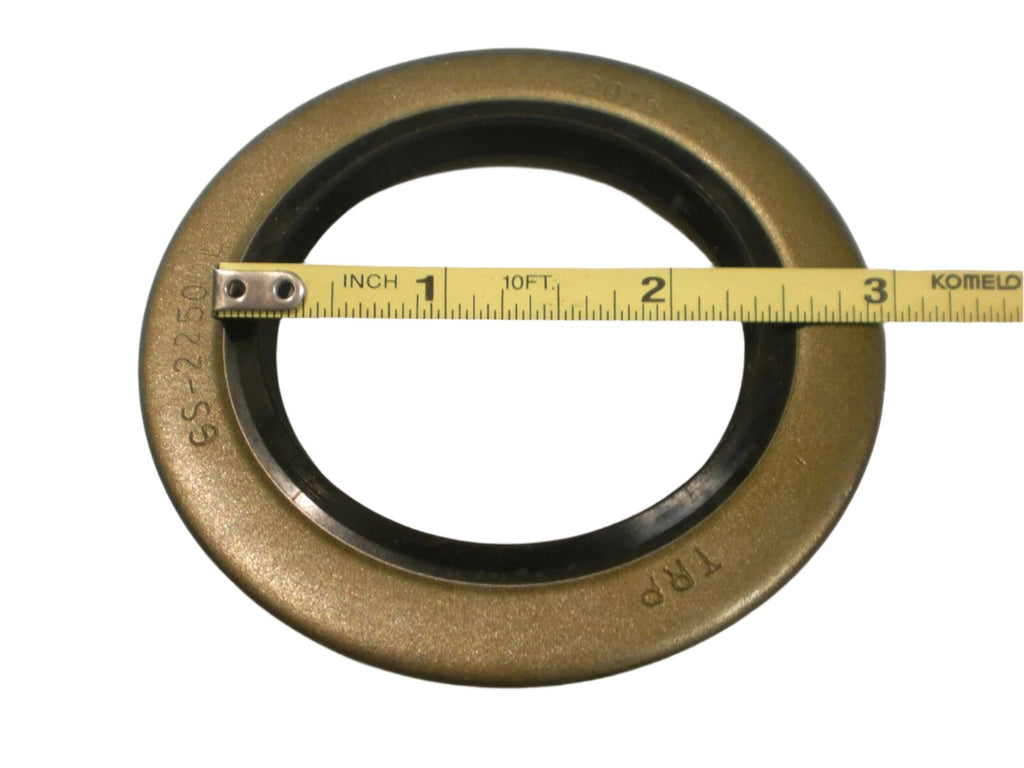

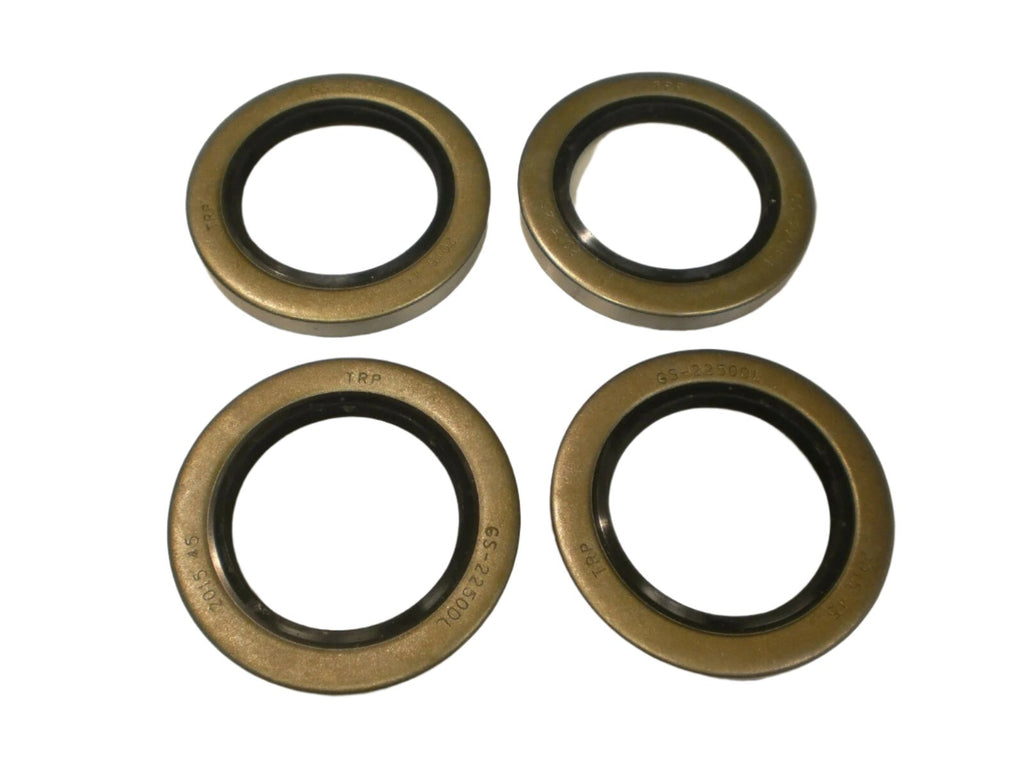

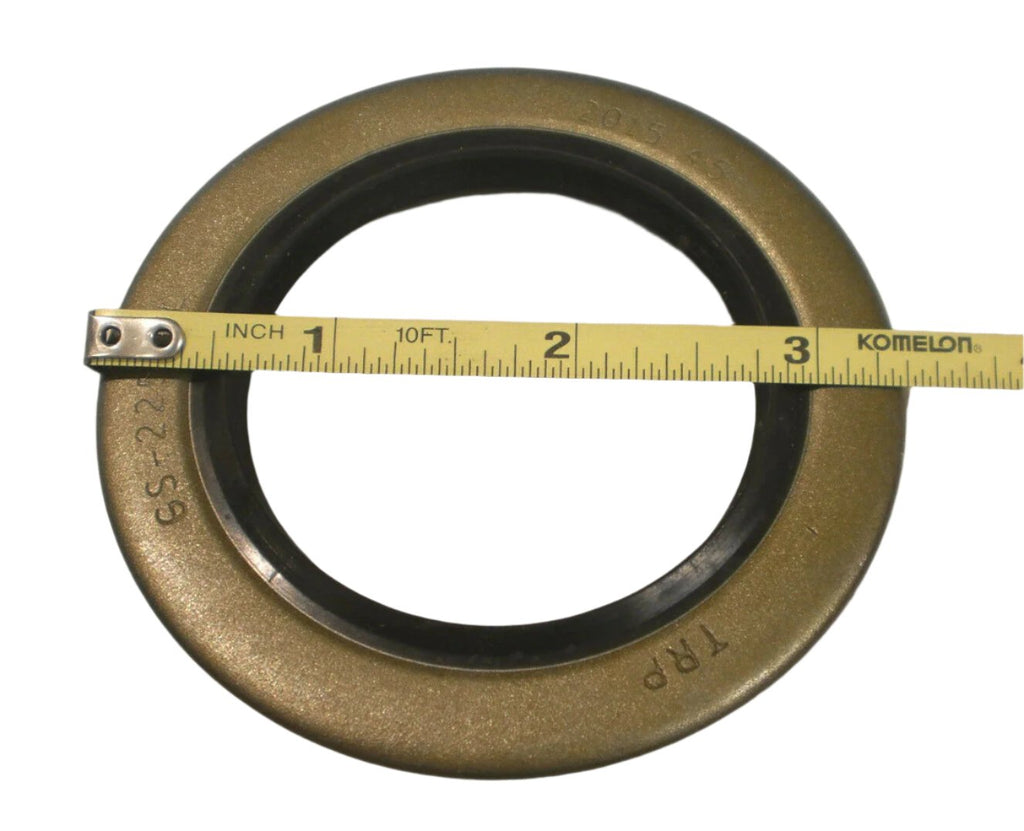

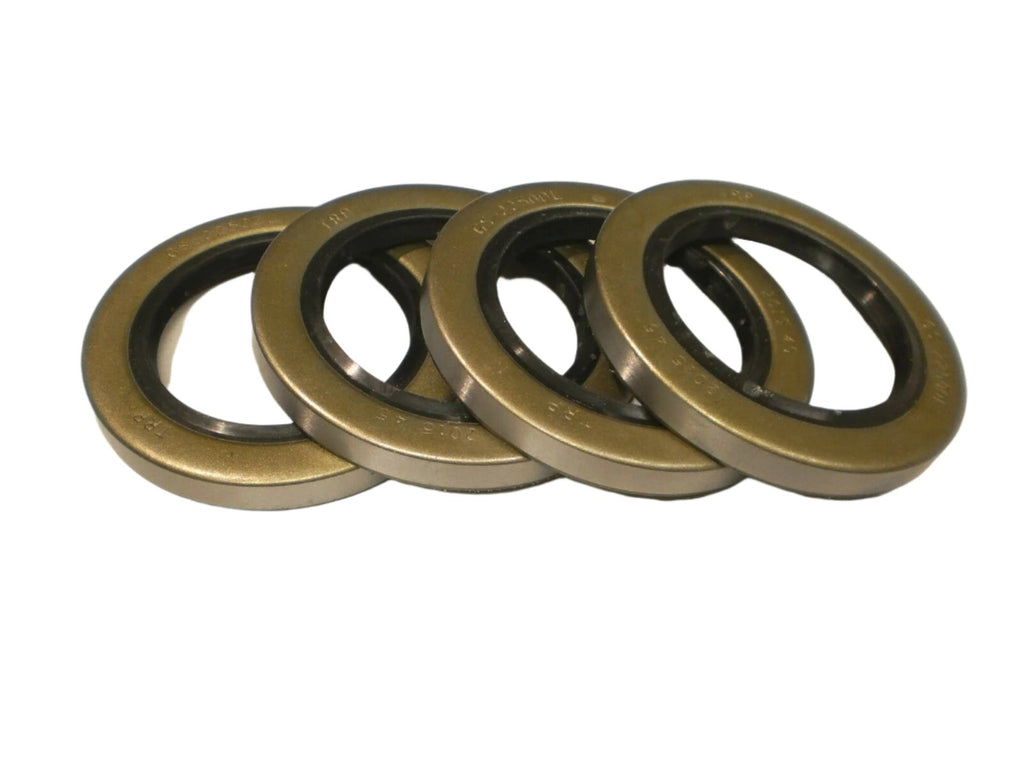

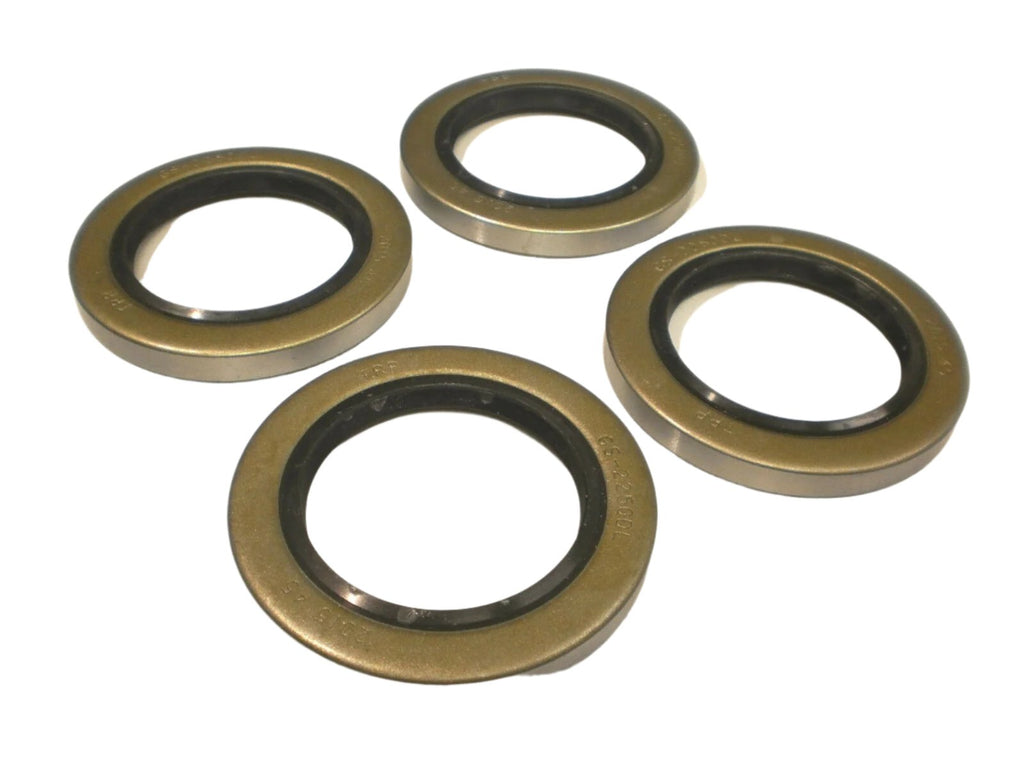

(4) Double Lip Grease Seals 2.25 inch ID x 3.376 inch OD
Fits Many 5200 lb to 7000 lb Trailer Axles
Part Number: 10-36-LOTOF4
Four double lip grease seals commonly used on 5200 lb, 6000 lb, and 7000 lb trailer axle hub assemblies requiring a 2.25 inch inner diameter and 3.376 inch outer diameter seal.
Designed for use with both EZ Lube and standard grease hub applications.
R&P Knowledge Hub
A double lip grease seal uses a primary sealing surface to retain grease
and a secondary lip to help block contamination. Proper fitment requires
matching both the spindle seal surface (inner diameter) and hub bore
(outer diameter).
Always measure your existing seal before ordering, as some 7000 lb and
8000 lb axles may use a different 2.125 inch or oil bath style seal.
Features
- 2.25 inch inner diameter
- 3.376 inch outer diameter
- Double lip spring-loaded design
- Compatible with EZ Lube and standard grease hubs
- Four seals included
Specifications
| Specification | Detail |
| Inner Diameter | 2.25 inch |
| Outer Diameter | 3.376 inch |
| Seal Type | Double Lip Grease Seal |
| Typical Axle Ratings | 5200 lb – 7000 lb |
| Quantity | 4 Seals |

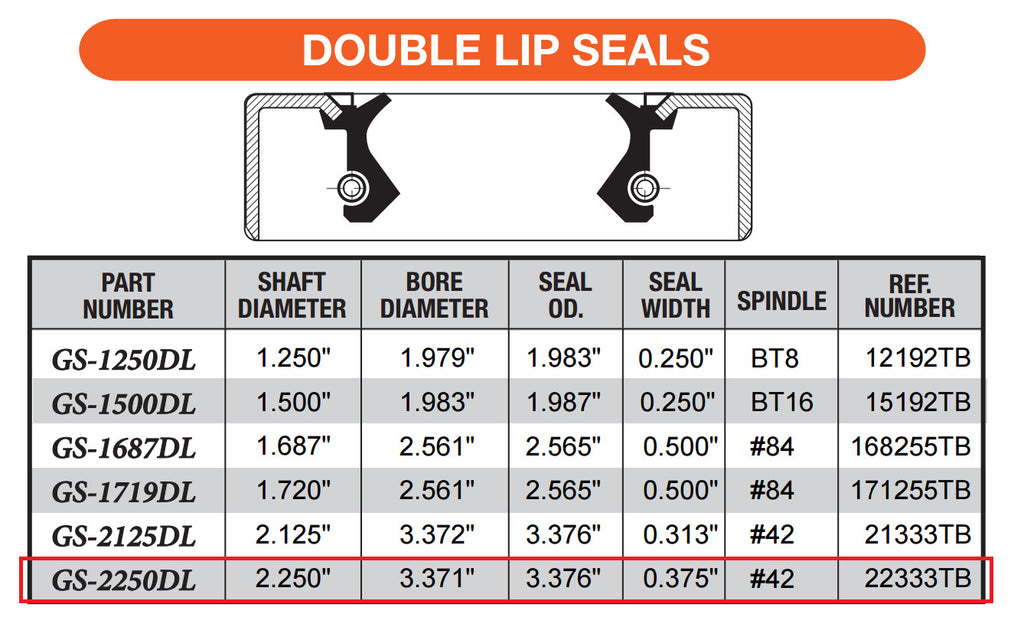

Cross Reference
- Dexter: 010-036-00 (10-36)
- TruRyde: GS-2250DL
- Texcom: 22333TBN
- National: 452920 / 482920
- NOK: AD3135E1 / AD3135EO
- Highton: 7000-DL
Verify seal dimensions before installation.
