At a Glance
- SKU: BD1750290301
PRODUCT INFORMATION
Product Details

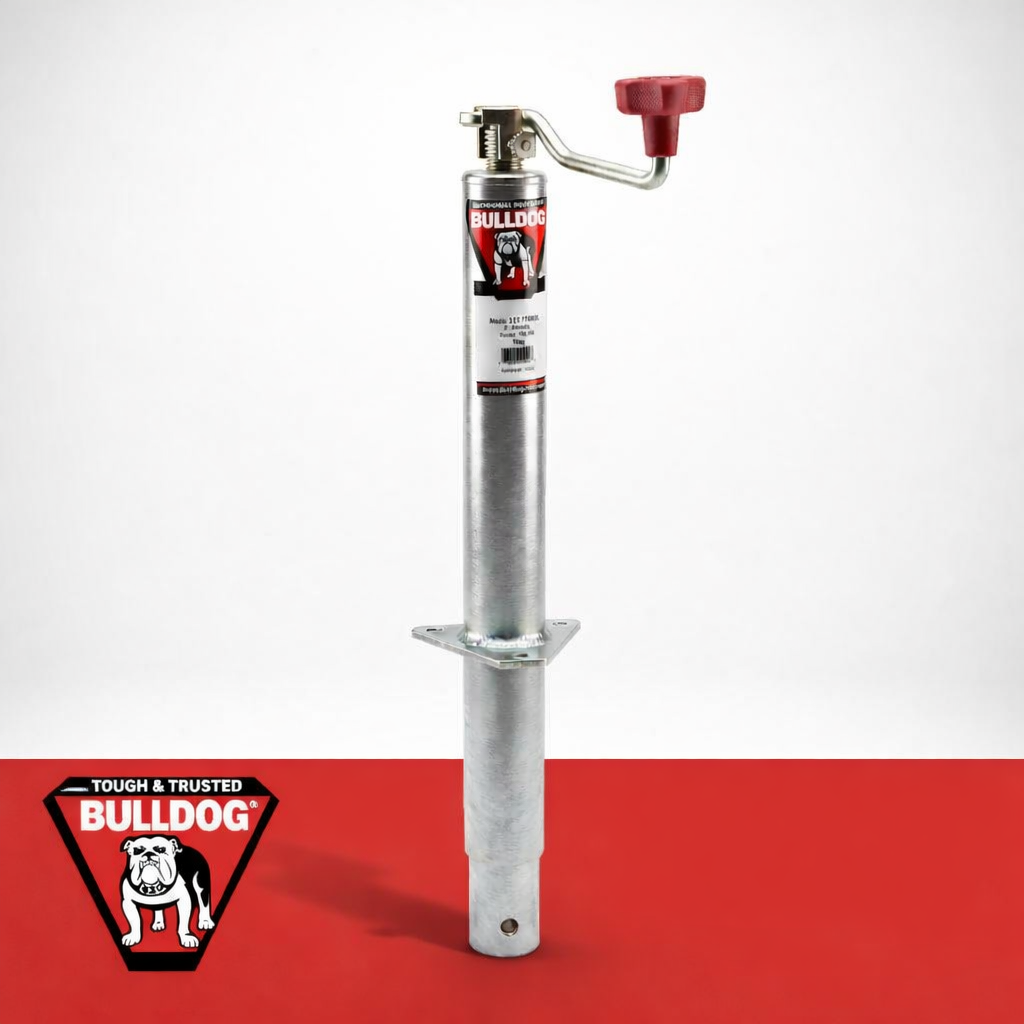

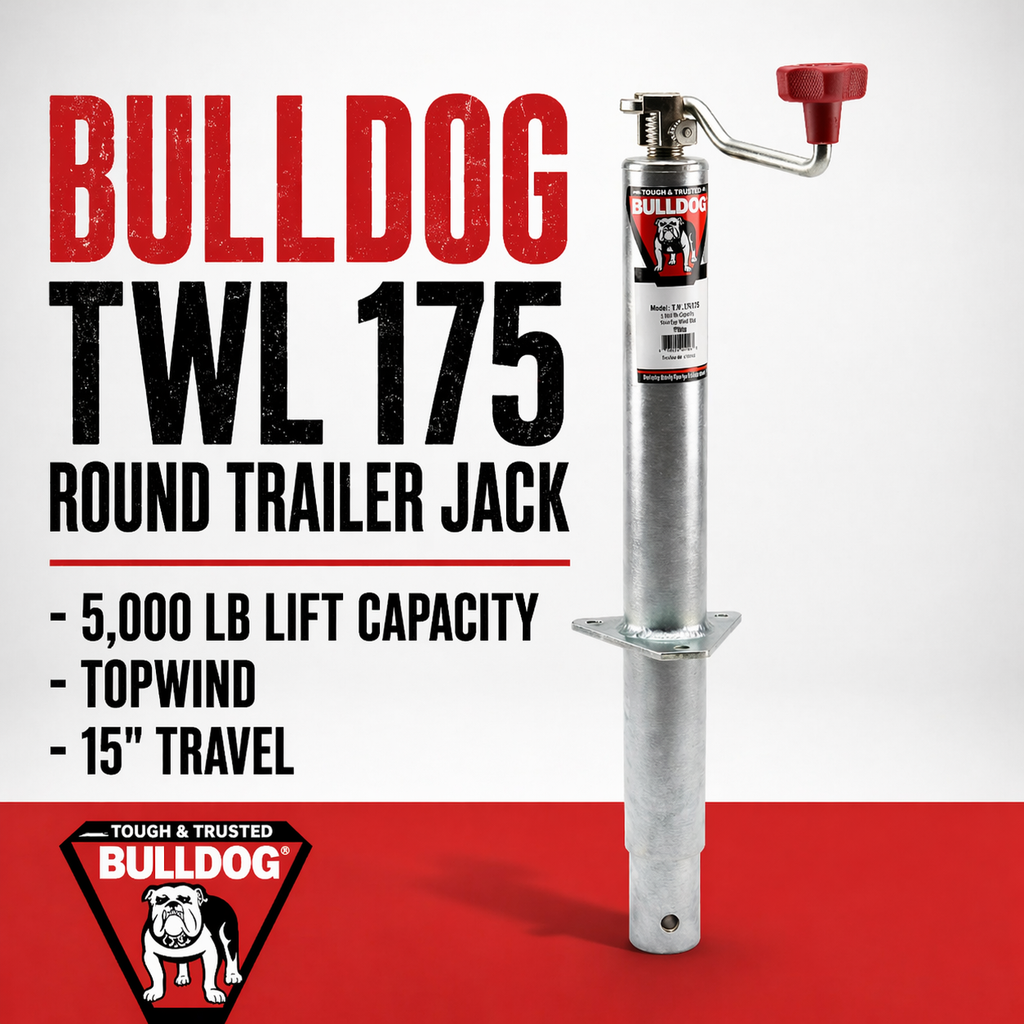

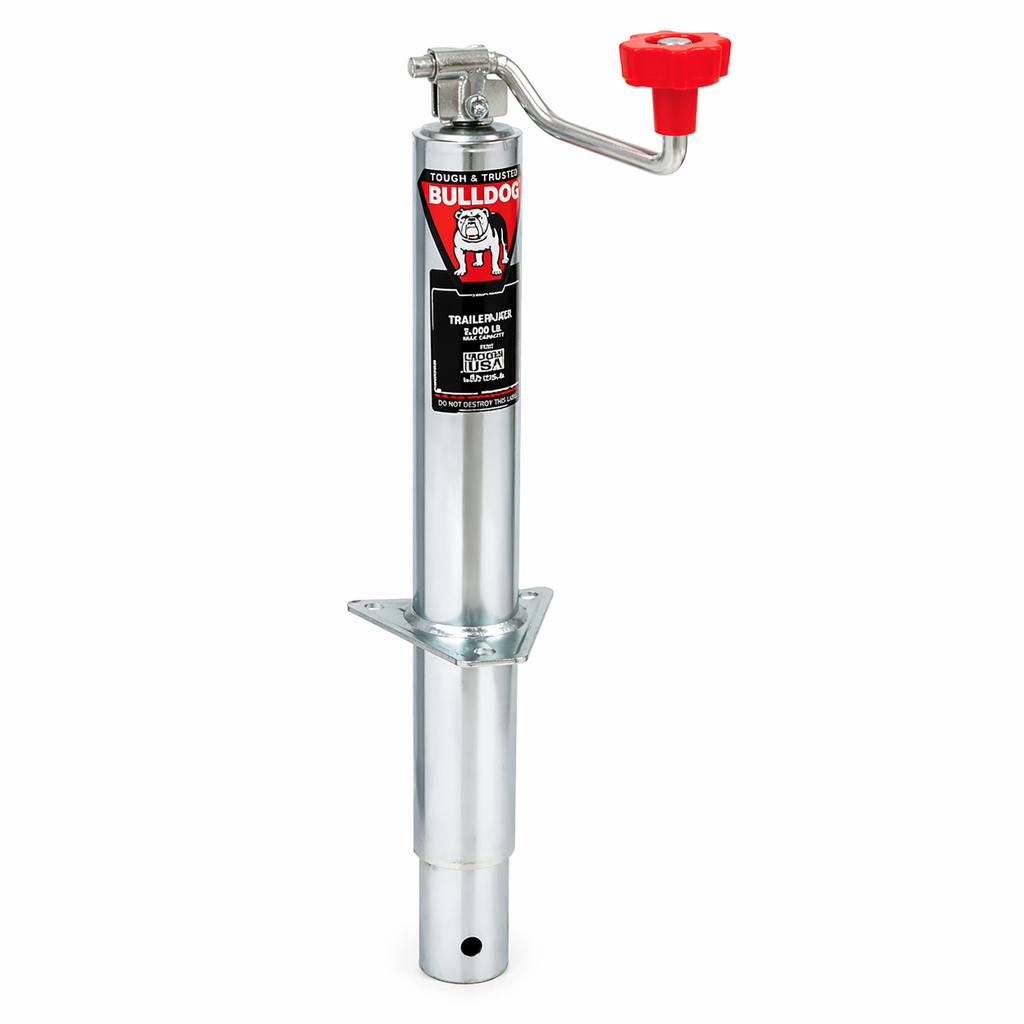

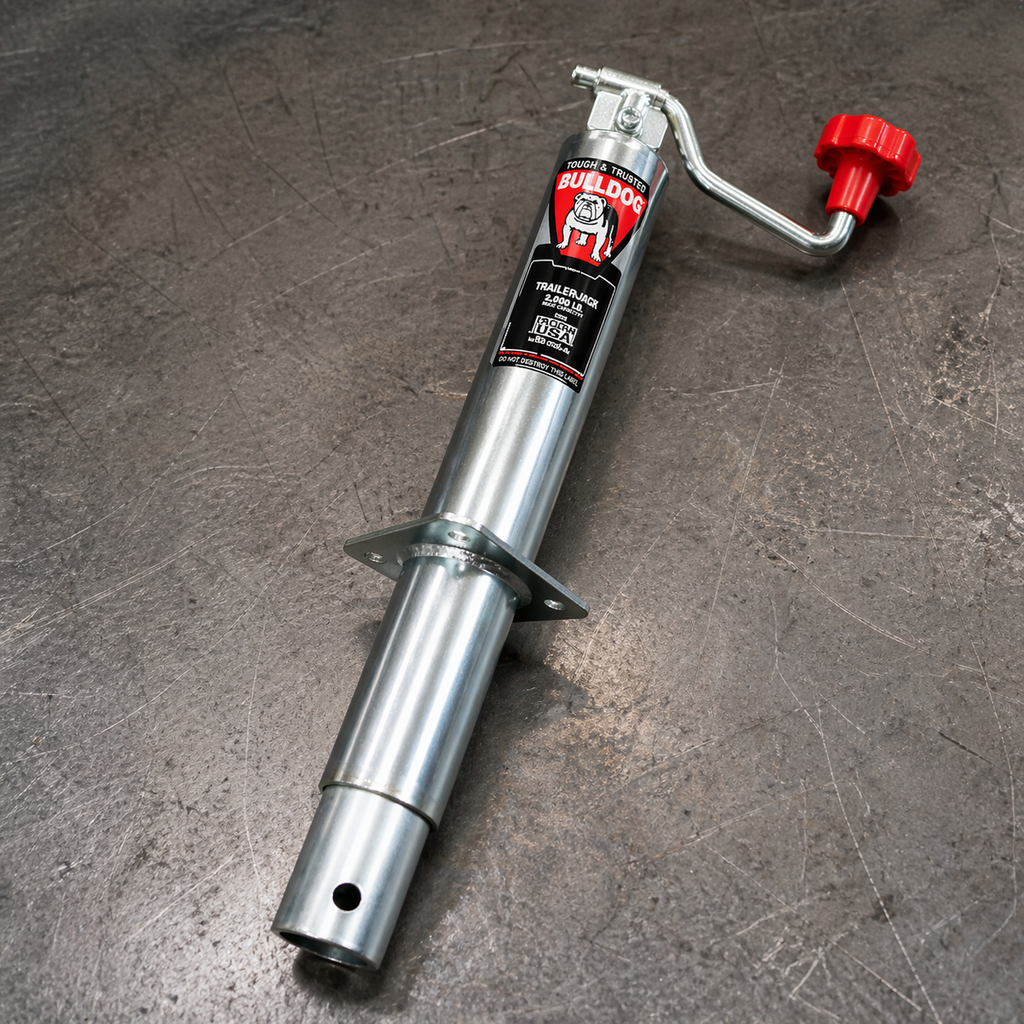

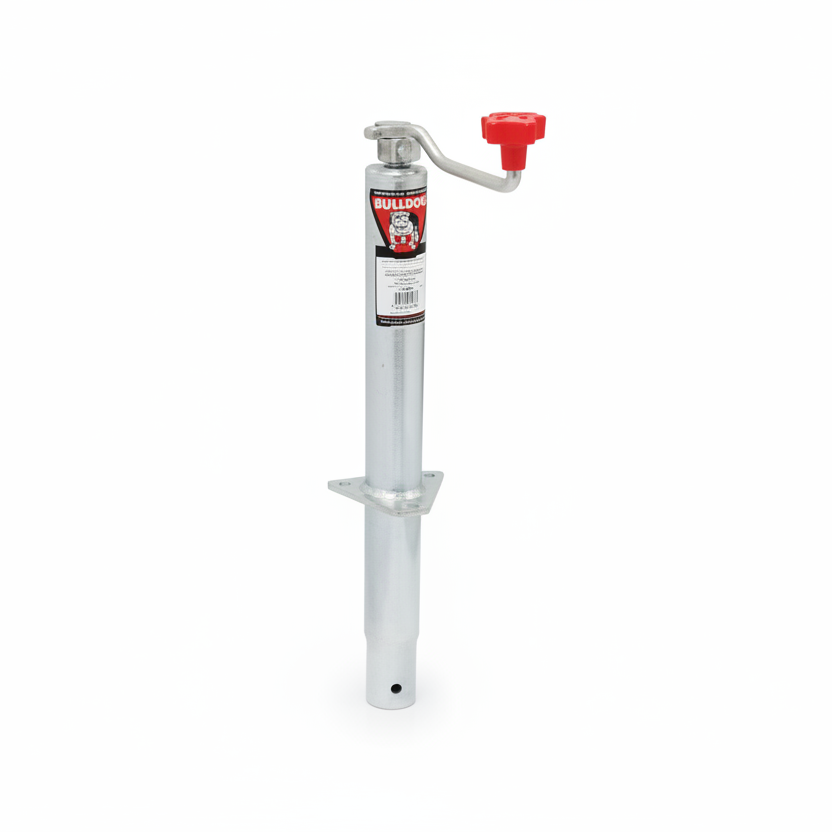

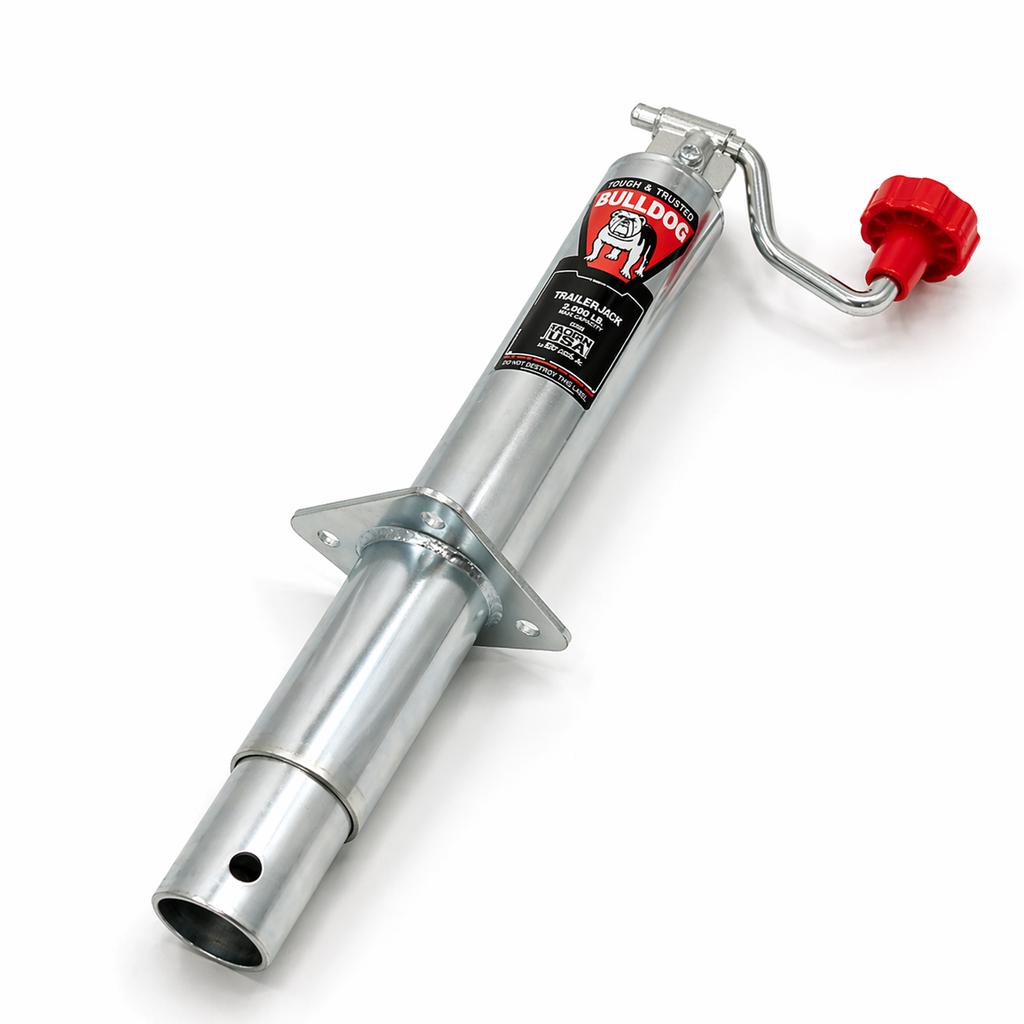

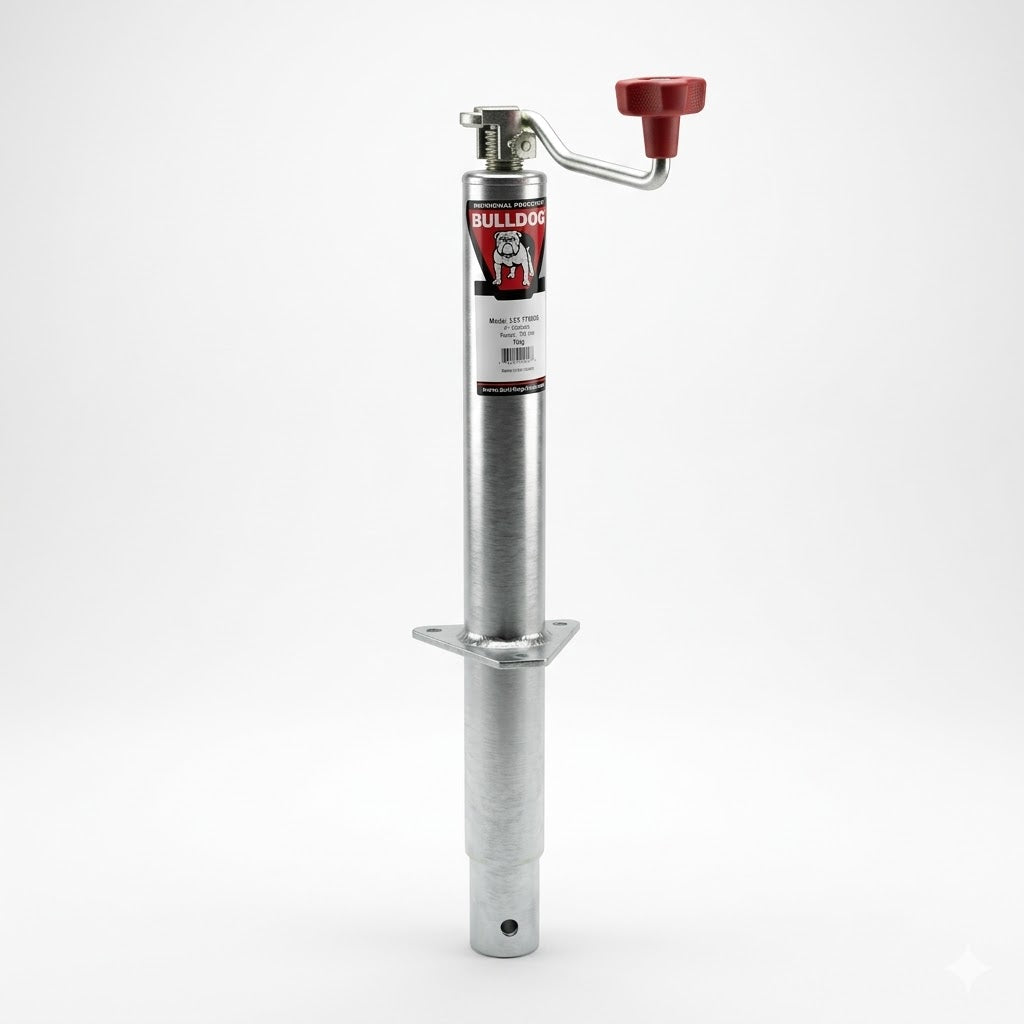

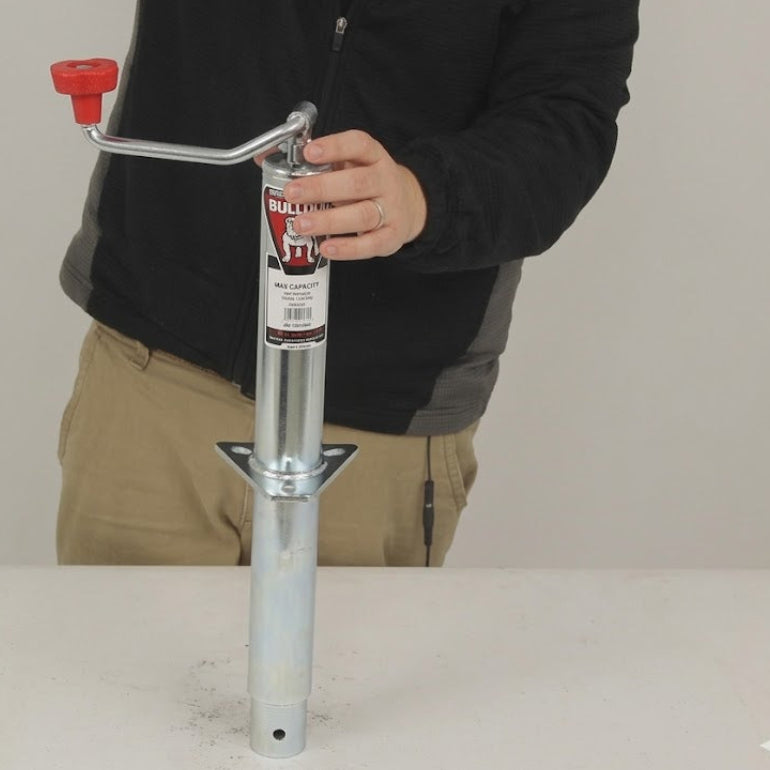

BULLDOG TWL 175 Round Trailer Jack - 5,000 lb Lift Capacity - Topwind - 15" Travel
Part Number: BD1750290301
5,000 lb lift capacity 15" travel Topwind operation 2.25" cylinder diameter Precision-fitted steel construction BULLDOG field-proven design 5,000 lb lift capacity 15" travel Topwind operation 2.25" cylinder diameter Precision-fitted steel construction BULLDOG field-proven design
The BULLDOG TWL 175 round trailer jack is a field-proven topwind jack built for dependable lifting and long-term stability on demanding trailer applications. With a 5,000 lb lift capacity, 15 inches of travel, and precision-fitted steel construction, it is designed for reliable service across agricultural, commercial, horse, livestock, and other trailer uses.
R&P Knowledge Hub
Compatibility: Match your existing jack by capacity, travel, retracted height, extended height, cylinder diameter, and handle style before ordering.
Vehicle / System Fit: Commonly used on agricultural, commercial, horse, livestock, and other trailers that require a heavy-duty round jack with topwind operation.
Installation Notes: Verify mounting style, available frame clearance, and handle rotation space. Confirm that the installed jack location allows for the listed 10.5 inch clearance and full operating travel.
Performance Insight: Jack performance depends on more than lift rating alone. Matching the correct travel range, retracted height, and tube dimensions helps ensure proper trailer stance, smoother crank operation, and better long-term stability under rated loads.
R&P Service Insight
Trailer jacks usually show their age gradually. Hard cranking, wobble, corrosion, and reduced lifting smoothness are often signs that replacement is due before a complete failure happens in the field.
- Wear: Internal lifting components and fitted parts lose precision over time with repeated use
- Exposure: Weather, dirt, and road spray can affect finish quality and moving surfaces
- Load Stress: Repeated support at rated trailer tongue loads can gradually reduce smooth operation and stability
Features
- 5,000 lb lift capacity for demanding trailer support applications
- 15 inch travel with topwind ergonomic operation for controlled lifting
- Precision-fitted steel construction for added stability and long service life
- Industry-proven BULLDOG design trusted by leading agricultural, commercial, horse, and livestock trailer manufacturers
Specifications
| Specification | Detail |
| Brand | BULLDOG |
| Model Number | TWL 175 |
| Type | Round trailer jack |
| Handle Style | Topwind |
| Capacity | 5,000 lbs lift |
| Travel | 15 in. |
| Retracted Height | 10.82 in. |
| Extended Height | 25.82 in. |
| Clearance | 10.5 in. |
| Cylinder Diameter | 2.25 in. |
| Material | Steel |
| Color | Silver |
| Wheel | No |
| Attached Wheels | No |
| Speedy Lift | No |
| Weight | 12 lbs |
| Finish Note | Manufacturer note: A-frame models listed have grey painted outer and inner tubes; all other models have grey painted outer and clear zinc inner tubes |
| Part Number | BD1750290301 |
Fitment / Application
| Category | Details |
| Trailer Types | Agricultural, commercial, horse, livestock, and other trailer applications using a round topwind jack |
| Load Class | Applications requiring up to 5,000 lbs lift capacity |
| Critical Match Points | Confirm mounting setup, 2.25 in. cylinder diameter, 15 in. travel, retracted/extended dimensions, and topwind clearance before purchase |
Included Components
| Quantity | Item |
| 1 | BULLDOG TWL 175 round trailer jack |
Verify all specifications, measurements, mounting style, and compatibility before installation.
