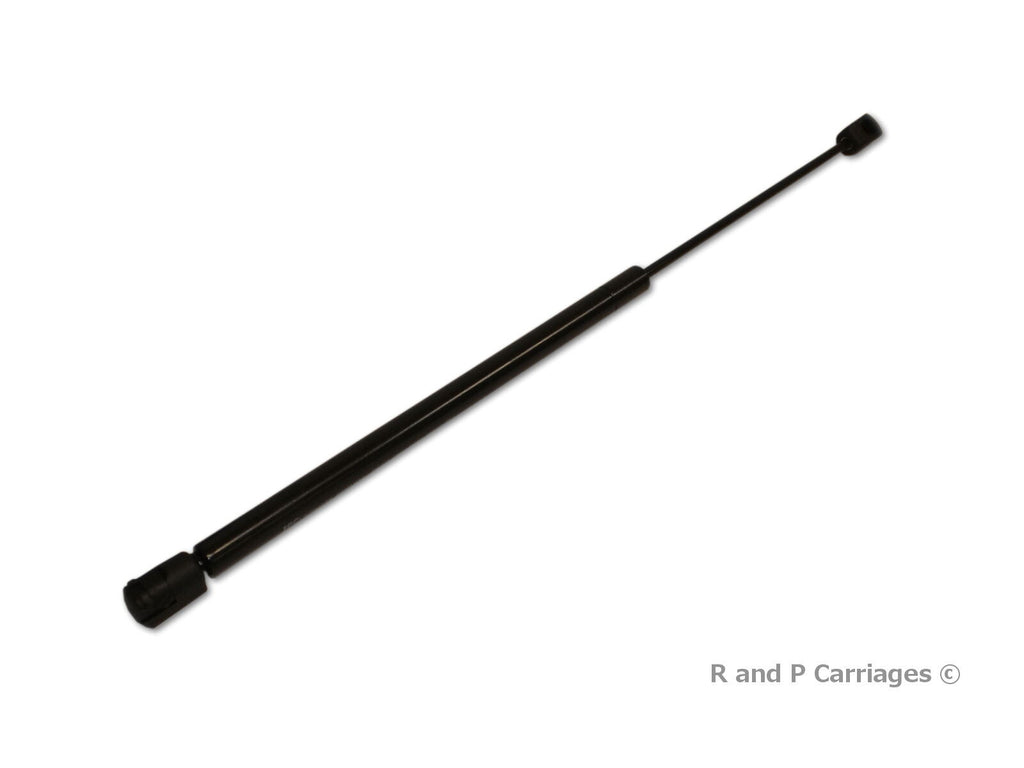

Black Nitride Shaft Gas Spring Strut Rod
LPG6-D-200-20-QQ or GN6-200-20-75MM
LPG6-D-200-20-QQ or GN6-200-20-75MM
( 20" Long, 8" stroke and 20# force)
This strut is also engineered with SPECIAL custom dampening to work properly with an RV door and is found on many Campers and RVs
Used for RV Doors
This strut is also engineered with SPECIAL custom dampening to work properly with an RV door and is found on many Campers and RVs
Used for RV Doors
Replaces:
GN6-200-20-75MM
LGP6-200-20D1D1
LGP6-200-20QQ
LGP6-200-20QQ-15
This gas spring combines all the proven reliability you have come to expect from a gas spring along with the added feature of a nitride shaft. The gas spring incorporates a strong annealed steel rod with a Nitride coating for added corrosion resistance - especially when used with the all composite ball end fitting. It is ideal choice where exceptional quality combined with an over all black appearance are important for your application.

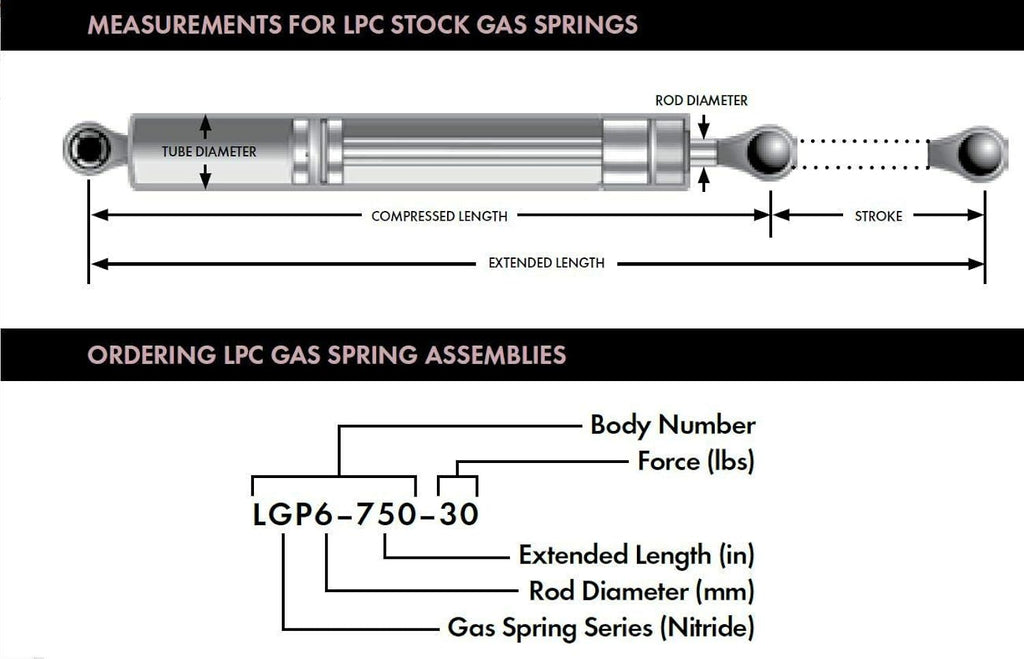

| Product Number | R&P PART NUMBER | Extended Length | Compressed Length (in) | Stroke (in) | Rod Diameter (mm) | Stroke (in)2 | Standard Ends |
| SPD-GSNI-4900-10 | LGP6-750-10 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-4900-20 | LGP6-750-20 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-4900-30 | LGP6-750-30 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-4900-40 | LGP6-750-40 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-4900-60 | LGP6-750-60 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-2000-100 | Call for Availability | 10 | 7 | 3 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2000-120 | Call for Availability | 10 | 7 | 3 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2000-150 | Call for Availability | 10 | 7 | 3 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-5000-10 | LGP6-100-10 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-20 | LGP6-100-20 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-30 | LGP6-100-30 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-40 | LGP6-100-40 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-60 | LGP6-100-60 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-80 | LGP6-100-80 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-2100-120 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-150 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-20 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-30 | LGP8-119-30 | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-40 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-50 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-60 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
