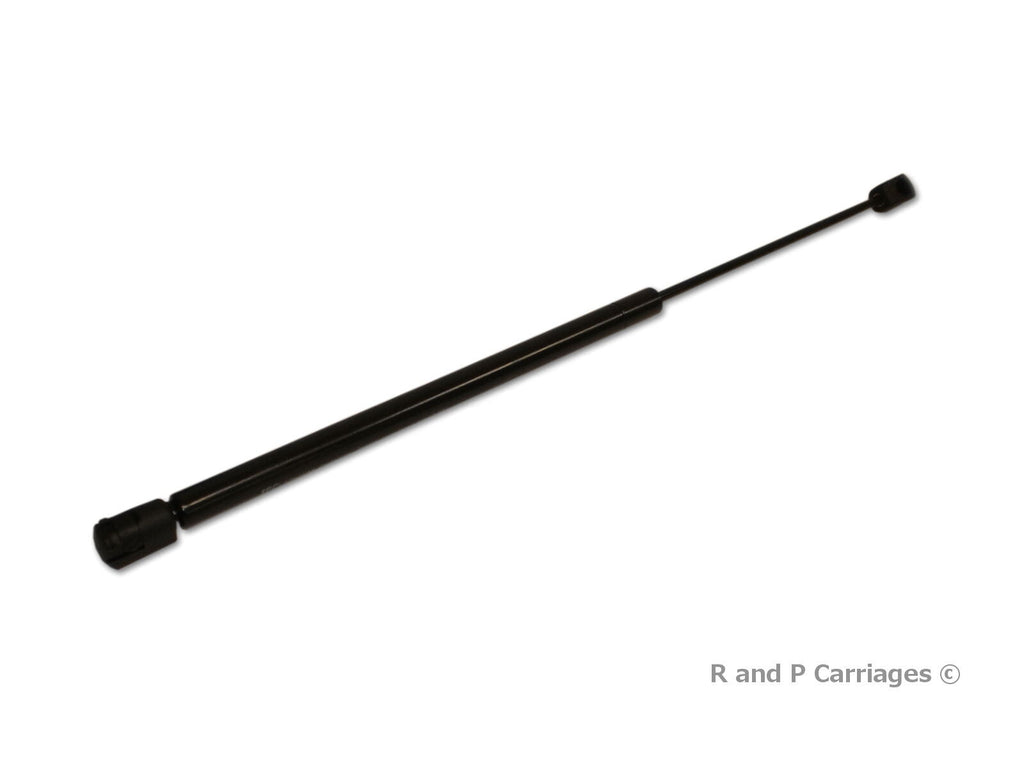

Black Nitride Shaft Gas Spring Strut Rod
SPD GSNI-2300-150 or LGP8-200-150
(20" Long 8" Stroke and 150# Force)
Direct Replacement for SPD's & Many Other Brands
Used for Hatches, Covers, RVs, Campers
Strut has Standard 10mm Ends
This gas spring combines all the proven reliability you have come to expect from a gas spring along with the added feature of a nitride shaft. The gas spring incorporates a strong annealed steel rod with a Nitride coating for added corrosion resistance - especially when used with the all composite 10 mm ball end fitting. It is ideal choice where exceptional quality combined with an over all black appearance are important for your application.
SPD GSNI-2300-150 or LGP8-200-150
(20" Long 8" Stroke and 150# Force)
Direct Replacement for SPD's & Many Other Brands
Used for Hatches, Covers, RVs, Campers
Strut has Standard 10mm Ends
This gas spring combines all the proven reliability you have come to expect from a gas spring along with the added feature of a nitride shaft. The gas spring incorporates a strong annealed steel rod with a Nitride coating for added corrosion resistance - especially when used with the all composite 10 mm ball end fitting. It is ideal choice where exceptional quality combined with an over all black appearance are important for your application.
| Product Number | R&P PART NUMBER | Extended Length | Compressed Length (in) | Stroke (in) | Rod Diameter (mm) | Stroke (in)2 | Standard Ends |
| SPD-GSNI-4900-10 | LGP6-750-10 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-4900-20 | LGP6-750-20 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-4900-30 | LGP6-750-30 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-4900-40 | LGP6-750-40 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-4900-60 | LGP6-750-60 | 7.5 | 5.5 | 2 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-2000-100 | Call for Availability | 10 | 7 | 3 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2000-120 | Call for Availability | 10 | 7 | 3 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2000-150 | Call for Availability | 10 | 7 | 3 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-5000-10 | LGP6-100-10 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-20 | LGP6-100-20 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-30 | LGP6-100-30 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-40 | LGP6-100-40 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-60 | LGP6-100-60 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5000-80 | LGP6-100-80 | 10 | 7 | 3 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-2100-120 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-150 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-20 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-30 | LGP8-119-30 | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-40 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-50 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-60 | Call for Availability | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2100-90 | LGP8-119-90 | 11.9 | 8.4 | 3.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-5100-10 | Call for Availability | 12 | 8.5 | 3.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5100-20 | LGP6-120-20 | 12 | 8.5 | 3.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5100-30 | LGP6-120-30 | 12 | 8.5 | 3.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5100-40 | LGP6-120-40 | 12 | 8.5 | 3.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5100-60 | LGP6-120-60 | 12 | 8.5 | 3.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5100-90 | LGP6-120-90 | 12 | 8.5 | 3.5 | 8 | 18 | EF-PS30B1 |
| SPD-GSNI-5150-20 | LGP6-150-20 | 15 | 9.5 | 5.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5150-30 | LGP6-150-30 | 15 | 9.5 | 5.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5150-40 | LGP6-150-40 | 15 | 9.5 | 5.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5150-60 | LGP6-150-60 | 15 | 9.5 | 5.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5150-80 | LGP6-150-80 | 15 | 9.5 | 5.5 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-2150-120 | Call for Availability | 15.25 | 9.75 | 5.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2150-150 | Call for Availability | 15.25 | 9.75 | 5.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2150-30 | Call for Availability | 15.25 | 9.75 | 5.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2150-60 | Call for Availability | 15.25 | 9.75 | 5.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2150-90 | Call for Availability | 15.25 | 9.75 | 5.5 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2200-120 | Call for Availability | 17 | 11 | 6 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2200-150 | Call for Availability | 17 | 11 | 6 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2200-20 | Call for Availability | 17 | 11 | 6 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2200-30 | Call for Availability | 17 | 11 | 6 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2200-40 | Call for Availability | 17 | 11 | 6 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2200-50 | Call for Availability | 17 | 11 | 6 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2200-60 | Call for Availability | 17 | 11 | 6 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2200-90 | LGP8-170-90 | 17 | 11 | 6 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-5200-20 | LGP6-170-20 | 17 | 10.25 | 6.75 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5200-30 | LGP6-170-30 | 17 | 10.25 | 6.75 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5200-40 | LGP6-170-40 | 17 | 10.25 | 6.75 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5200-50 | LGP6-170-50 | 17 | 10.25 | 6.75 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5200-60 | Call for Availability | 17 | 10.25 | 6.75 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5200-75 | Call for Availability | 17 | 10.25 | 6.75 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5200-90 | LGP6-170-90 | 17 | 10.25 | 6.75 | 8 | 18 | EF-PS30B1 |
| SPD-GSNI-2250-120 | LGP8-185-120 | 18.5 | 11.25 | 7.25 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2250-150 | LGP8-185-150 | 18.5 | 11.25 | 7.25 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2250-90 | Call for Availability | 18.5 | 11.25 | 7.25 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-5250-20 | LGP6-185-20 | 18.5 | 11.25 | 7.25 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5250-30 | LGP6-185-30 | 18.5 | 11.25 | 7.25 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5250-45 | LGP6-185-45 | 18.5 | 11.25 | 7.25 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5250-60 | LGP6-185-60 | 18.5 | 11.25 | 7.25 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5250-75 | Call for Availability | 18.5 | 11.25 | 7.25 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-2300-100 | LGP8-200-100 | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-110 | Call for Availability | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-120 | LGP8-200-120 | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-130 | Call for Availability | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-150 | LGP8-200-150 | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-20 | Call for Availability | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-30 | Call for Availability | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-40 | Call for Availability | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-60 | LGP8-200-60 | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-70 | LGP8-200-70 | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-75 | LGP8-200-75 | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-80 | LGP8-200-80 | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-2300-90 | LGP8-200-90 | 20 | 12 | 8 | 8 | 18 | EFPS30B1 |
| SPD-GSNI-5300-10 | LGP6-200-10 | 20 | 12 | 8 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5300-20 | LGP6-200-20 | 20 | 12 | 8 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5300-30 | LGP6-200-30 | 20 | 12 | 8 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5300-40 | LGP6-200-40 | 20 | 12 | 8 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5300-50 | Call for Availability | 20 | 12 | 8 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-5300-60 | Call for Availability | 20 | 12 | 8 | 6 | 15 | EF-PS30B1 |
| SPD-GSNI-3100-100 | LGP10-280-100 | 28 | 16.5 | 11.5 | 10 | 22 | EF-PS100BP |
| SPD-GSNI-3100-120 | LGP10-280-120 | 28 | 16.5 | 11.5 | 10 | 22 | EF-PS100BP |
| SPD-GSNI-3100-150 | LGP10-280-150 | 28 | 16.5 | 11.5 | 10 | 22 | EF-PS100BP |
| SPD-GSNI-3100-175 | Call for Availability |
28 | 16.5 | 11.5 | 10 | 22 | EF-PS100BP |
| SPD-GSNI-3100-200 | LGP10-280-200 | 28 | 16.5 | 11.5 | 10 | 22 | EF-PS100BP |
| SPD-GSNI-3100-250 | LGP10-280-250 | 28 | 16.5 | 11.5 | 10 | 22 | EF-PS100BP |
