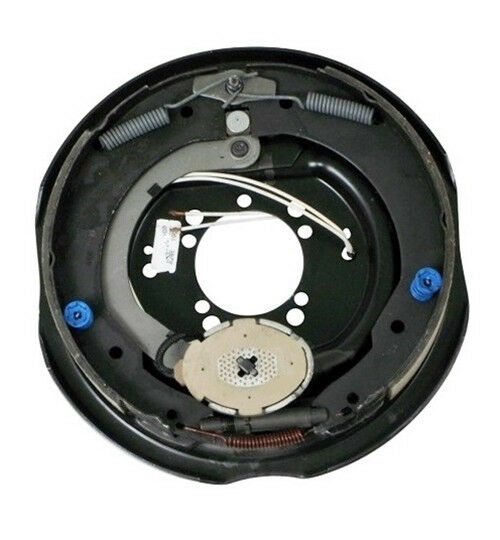

 Genuine Dexter 12" 6000# Electric 9 Bolt Brake Backing Plate, Left Hand (Drivers)
Part Number: 23-105-9 (023-105-09)
HOLE DIMENSIONS:
(Refer To 2nd picture)
2 Biggest Top holes across: 3-1/8 inches
2 Biggest Bottom holes across: 2-/12 inches
2 Biggest Vertical holes across: 3-3/8 inches
Center Hole: 3-1/4"
Dexter 12" x 2" Left Hand electric complete brake assembly with a 9 bolt mounting flange. Features: 6000lb capacity per pair. Mounts with 4 or 5 bolts (not included). Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW included • Fits a 6000lb axle with a 4 or 5 bolt pattern on the mounting flange (This special 4 and 5 bolt pattern fits old style Dexter axles as well as the Al-ko/Hayes 6000lb axles with a 4 bolt mounting flange) • Left Hand(driver's side) • Complete assembly ready to bolt on and wire • For use with 12" inside diameter drum • The shoes are 2" wide |
