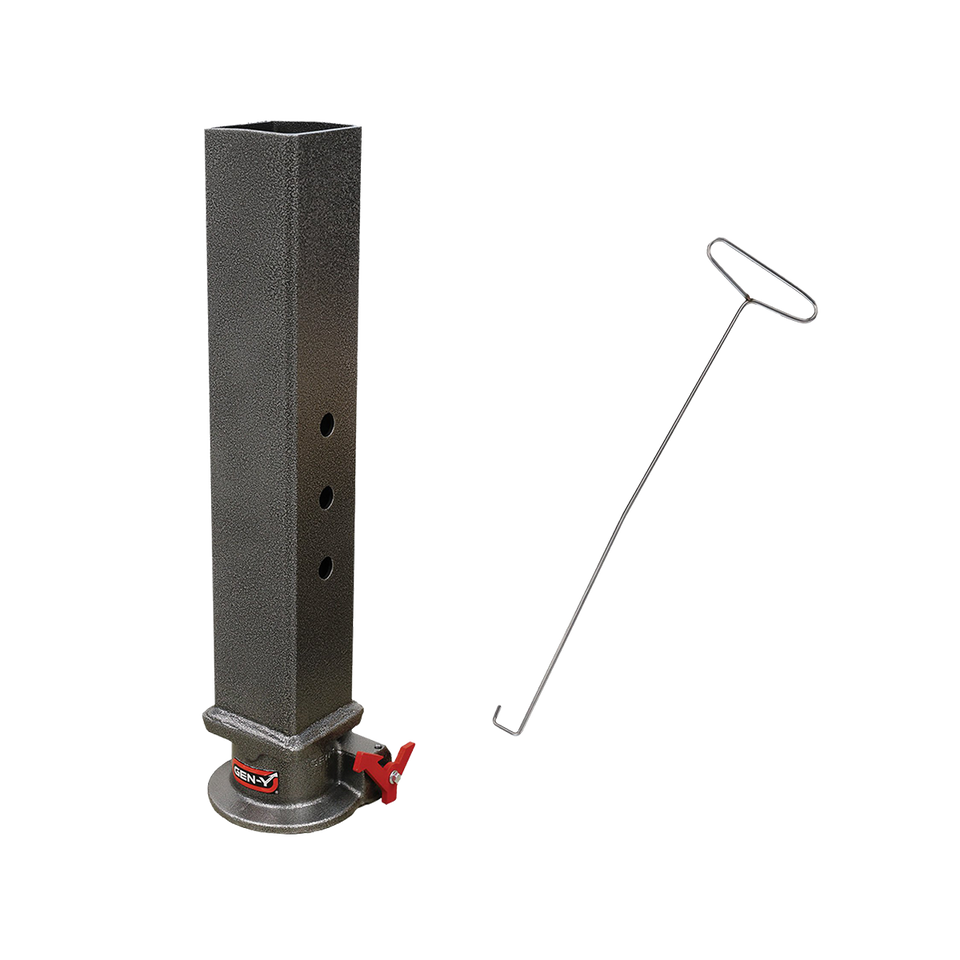

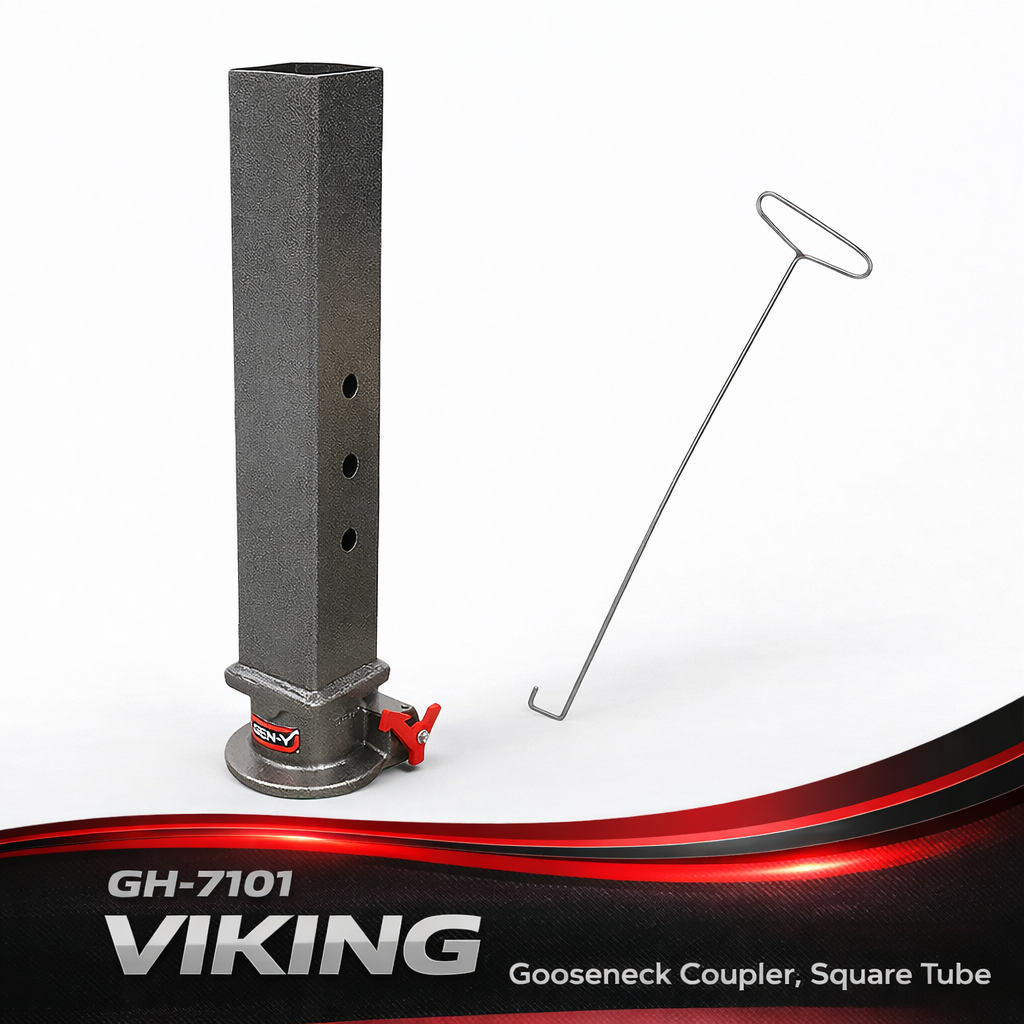

GEN-Y VIKING Gooseneck Static Hitch - SnapLatch 2-5/16" Coupler - 4" Square Tube - 8.5K TW - 30K Max Towing - With Pull Cable - Texture Black (GH-7101)
GEN-Y VIKING Gooseneck Static Hitch — SnapLatch 2-5/16" Coupler — 4" Square Tube — 8.5K TW — 30K Max Towing (GH-7101)
Heavy-duty GEN-Y VIKING gooseneck coupler engineered for maximum control and durability, featuring a 2-5/16" SnapLatch coupler, 4" square tube, included pull cable, and a 30,000 lb towing rating.
See GEN-Y in Action
Included Part
| Part Number | Quantity | Description |
| GH-7101 | 1 | GEN-Y VIKING Gooseneck Static Hitch with 2-5/16" SnapLatch Coupler, 4" Square Tube, Pull Cable, and Texture Black Finish |
About This Hitch
The GEN-Y VIKING GH-7101 is a heavy-duty static gooseneck hitch built for demanding towing applications where strength, quick coupling, and long-term durability matter. Its 2-5/16" SnapLatch coupler is designed for fast, secure hookup, while the included pull cable makes latch operation easier from outside the truck bed.
With a 4" square tube design, 8,500 lb tongue weight rating, and 30,000 lb maximum towing capacity, this model is suited for serious hauling across commercial, agricultural, and equipment trailer applications. The textured black powder-coated finish helps protect the steel construction from wear and corrosion in demanding environments.

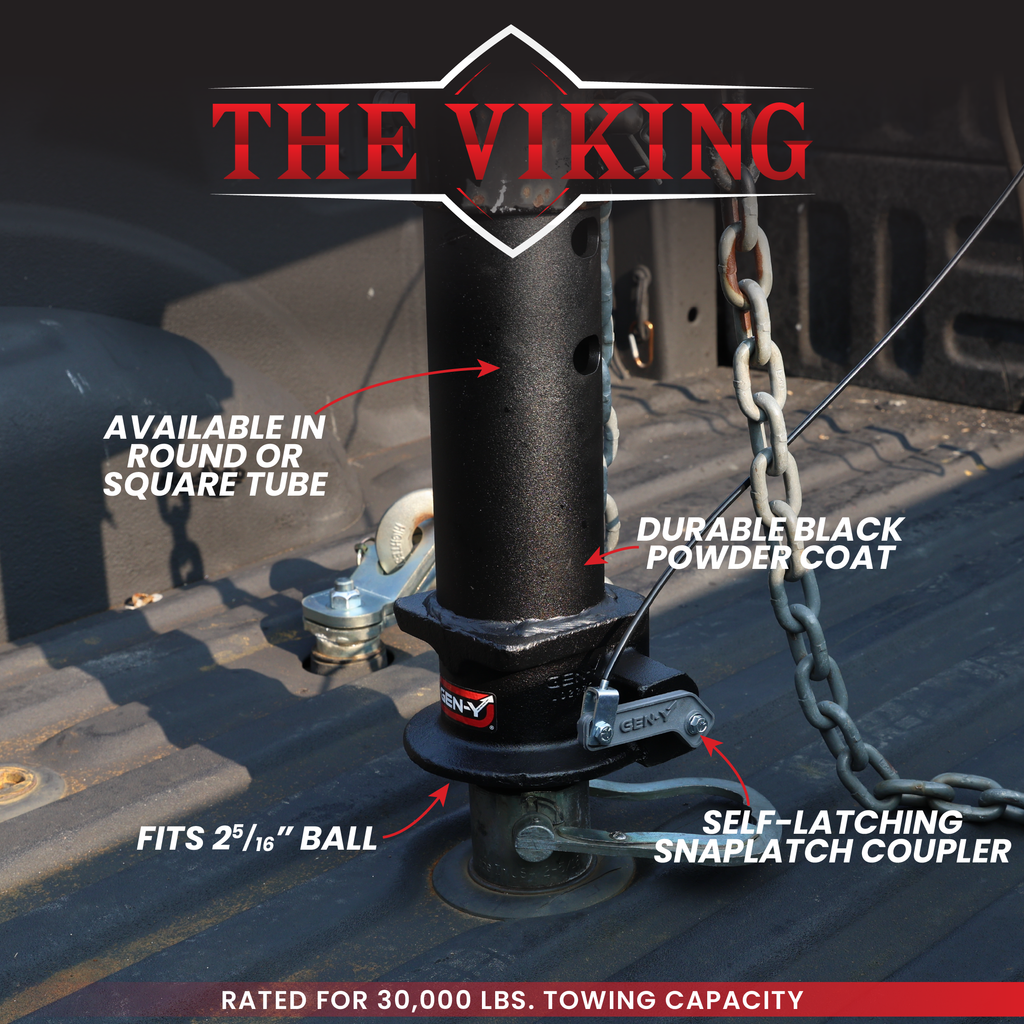

Features
- Heavy-duty VIKING static gooseneck coupler rated for 30,000 lbs towing
- 2-5/16" SnapLatch coupler for fast, secure latching
- 4" square tube design fits standard gooseneck receivers
- 8,500 lb tongue weight capacity for heavy hauling
- Includes pull cable for easier latch operation
- Texture black powder coat finish resists rust and corrosion
- Made in the USA using high-strength steel
- Static mount design for high-stability towing
Specifications
| Specification | Detail |
| Part Number | GH-7101 |
| Coupler Type | 2-5/16" SnapLatch |
| Tube Size | 4" Square |
| Tongue Weight Capacity | 8,500 lbs |
| Maximum Towing Capacity | 30,000 lbs |
| Finish | Texture Black Powder Coat |
| Includes | Pull Cable |
| Country of Origin | USA |
Applications
- Ideal for flatbed, livestock, equipment, and dump trailers
- Well suited for contractors, farmers, and professional haulers
- Compatible with most standard 4" square gooseneck tubes

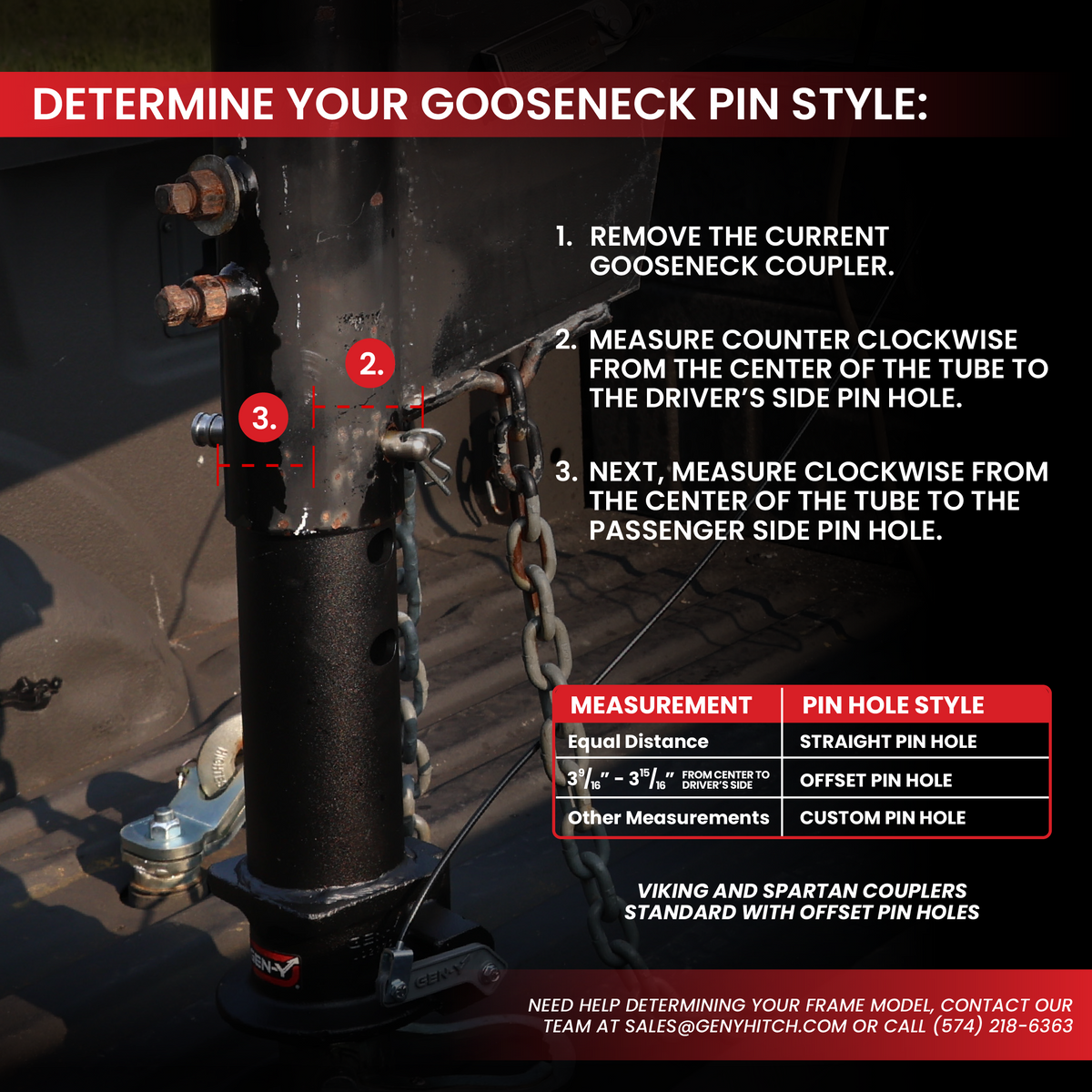

Determine Your Gooseneck Pin Style
This reference helps identify whether your trailer uses a straight pin hole, offset pin hole, or custom pin hole arrangement before selecting the correct gooseneck coupler setup.
- Remove the current gooseneck coupler.
- Measure counterclockwise from the center of the tube to the driver’s-side pin hole.
- Next, measure clockwise from the center of the tube to the passenger-side pin hole.
| Measurement | Pin Hole Style |
| Equal distance | Straight pin hole |
| 3 9/16" – 3 15/16" from center to driver’s side | Offset pin hole |
| Other measurements | Custom pin hole |
Fitment Guide
| Use | Type | Tube Size | Notes |
| General Towing | Gooseneck Coupler | 4" Square | Static mount design for high-stability towing |
| Farm / Equipment | Heavy-Duty Trailer | 4" Square | Compatible with most GEN-Y VIKING models |
