Tandem Trailer Axle Suspension Rebuild Kit with GREASE TYPE Wet Bolts and 2.56" Shackle Straps
Part Number: SRK-TA-WB-458-2
We work on trailers in our facility every day! The number one problem we see is worn out suspension! There is now way to grease them! Now, with this NEW kit, the bolts actually pump grease right into the bushings! AMAZING!
This is a kit to change all the "wear parts" on a tandem axle trailer (4,000 # GVW up to 14,000# GVW) .
These equalizers are for double-eye leaf springs with 9/16" spring eyes and the center bolt hole diameter is 3/4" and the left and right bolt hole diameter is 9/16"
These equalizers are for double-eye leaf springs with 9/16" spring eyes and the center bolt hole diameter is 3/4" and the left and right bolt hole diameter is 9/16"
This Kit includes GREASABLE WET BOLTS. Tired of replacing the suspension bolts on your trailer? With these wet bolts, you could add THOUSANDS of miles on to your trailer.
And remember, we actually INSTALL what we sell, so if you have questions, just ask!

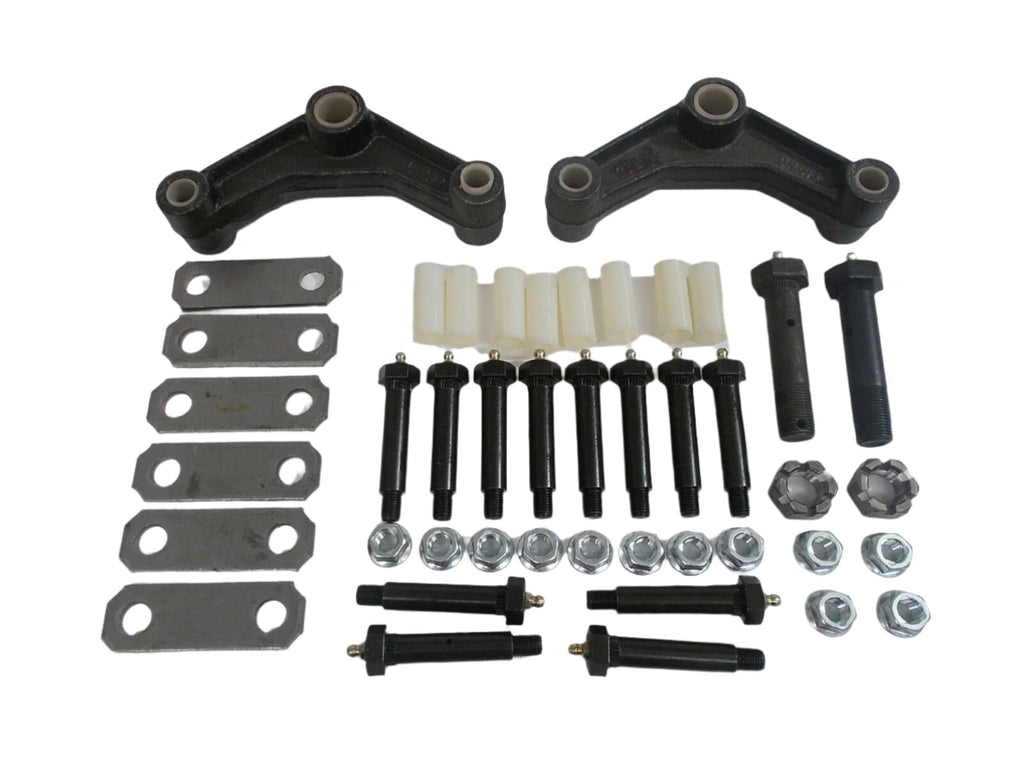

Kit consist of:
14 - 9/16" x 3" Hardened "Wet Bolts"
14- 9/16" locking 9/16" nuts
2 - Center spring pivot equalizers, 6-1/2" X 2" Equalizer, 3/4" Top Hole
14 (6 are already installed in the equalizers)- New Nylon Spring Bushings
8 - New Spring Shackle Straps 2"
Hole Center to Hole Center from Top Hole to either side hole is 4"
Hole Center to Hole Center from Side Holes is 6.25"
14 - 9/16" x 3" Hardened "Wet Bolts"
14- 9/16" locking 9/16" nuts
2 - Center spring pivot equalizers, 6-1/2" X 2" Equalizer, 3/4" Top Hole
14 (6 are already installed in the equalizers)- New Nylon Spring Bushings
8 - New Spring Shackle Straps 2"
Hole Center to Hole Center from Top Hole to either side hole is 4"
Hole Center to Hole Center from Side Holes is 6.25"
We are now offering kits with BRONZE BUSHINGS!
