Heavy Duty Bulldog 23.5" Trailer Leveling Post with 18" Rack and Wide Stability Foot
Part Number: D018520

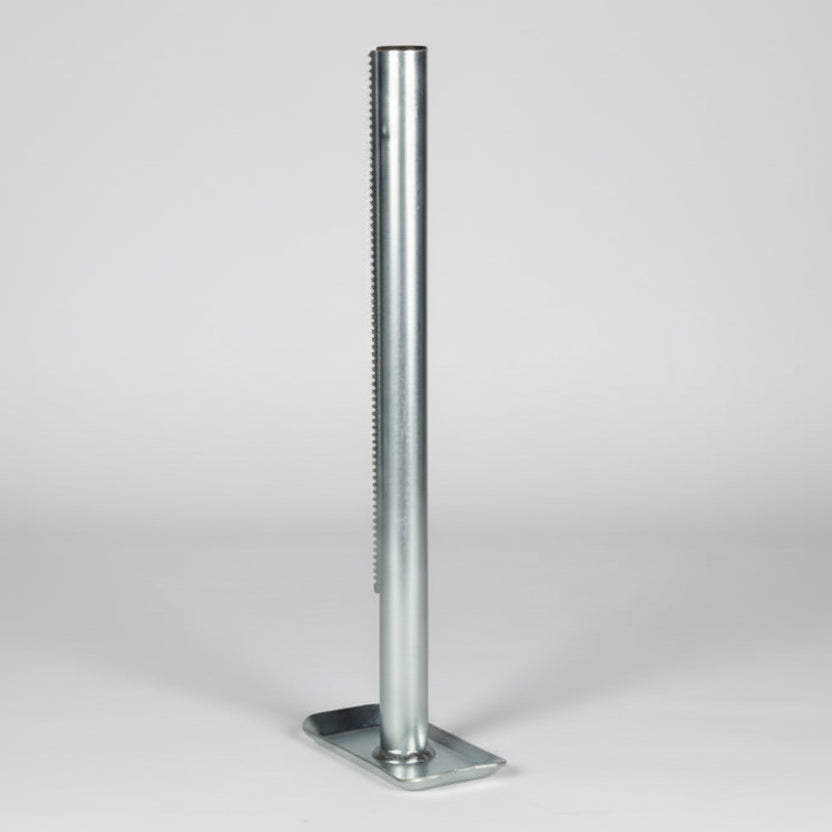

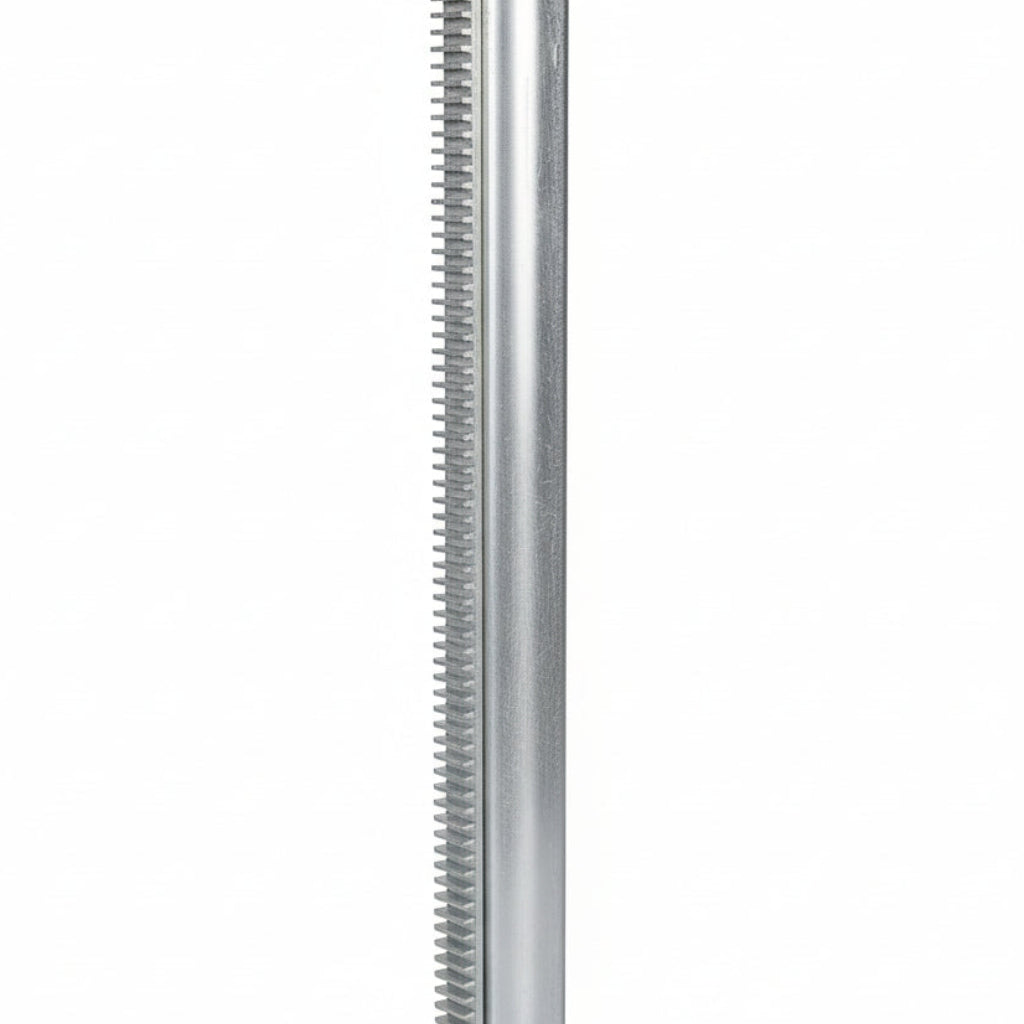

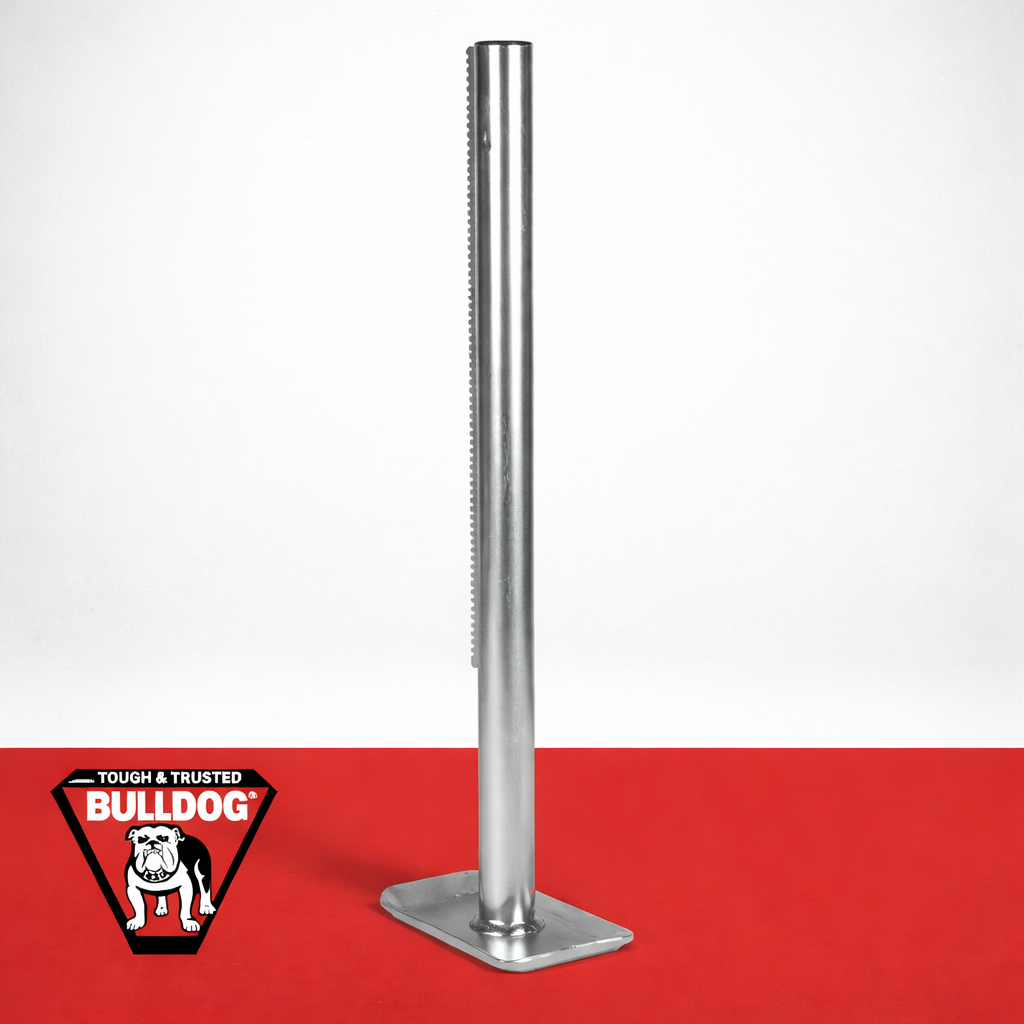

The 23.5" Post with 18" Rack and Disc Foot is a high-performance lifting and support component designed for trailer jacks and stabilization systems. This assembly provides a reliable mechanical interface for height adjustment, featuring a precision-cut 18-inch rack for smooth engagement and a wide disc foot for enhanced surface stability. Engineered for both commercial and residential trailer applications, it ensures your load remains secure and level during storage or maintenance.
R&P Knowledge Hub
Compatibility: Designed for standard manual or electric trailer jack housings that accept a 23.5" post. Compatible with standard gear-driven jack mechanisms.
Vehicle / System Fit: Utility trailers, boat trailers, and equipment haulers requiring vertical stabilization and adjustable lift heights.
Installation Notes: Ensure the rack teeth are properly aligned with the jack's drive gear before applying load. Lubricate the rack periodically to ensure smooth operation and prevent binding.

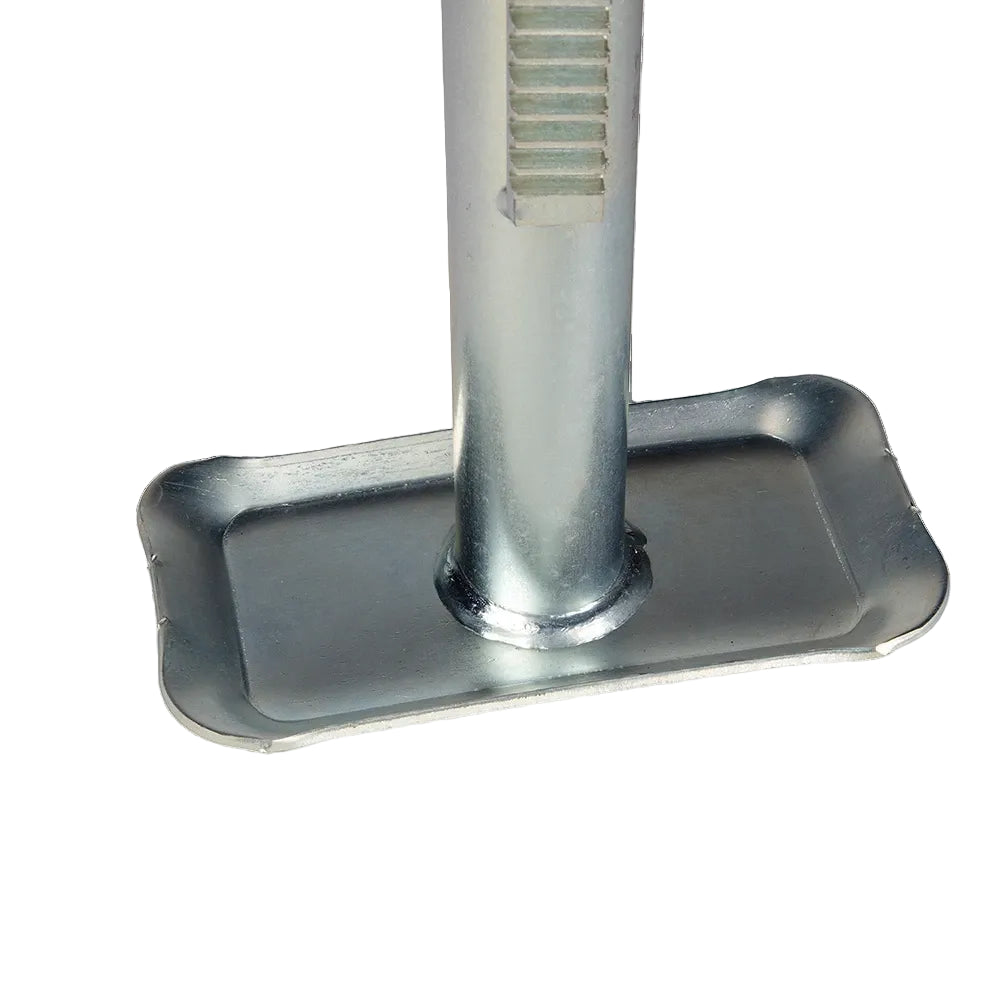

Performance Insight: The integrated disc foot is critical for soft-ground applications, distributing the vertical load over a wider surface area to prevent the trailer from sinking or shifting.
R&P Service Insight
This jack post is typically replaced due to wear on the rack teeth, environmental exposure leading to rust, or mechanical deformation from exceeding load limits.
-
Wear: Repeated cranking under heavy load can round off the rack teeth, leading to "slipping" during operation.
-
Exposure: Constant contact with ground moisture and road salt can cause the disc foot to seize or the post to corrode.
-
Load Stress: Side-loading (moving the trailer while the jack is down) can bend the post, making it difficult to retract.
Features
-
Durable Construction: Built with premium heavy-duty steel for maximum sturdiness and long-lasting performance in demanding environments.
-
Optimized Height: 23.5-inch overall length provides a versatile range for various trailer heights and terrain clearances.
-
Enhanced Stability: The integrated disc foot prevents unwanted movement and provides a secure base on concrete, asphalt, or dirt.
-
Easy Installation: User-friendly design allows for a straightforward swap-out with existing worn or damaged jack posts.
Specifications
| Specification | Detail |
| Type | Trailer Jack Rack Post |
| Application | Trailer Support and Leveling |
| Rack Length | 18 Inches |
| Material / Finish | Heavy-Duty Steel / Zinc or Powder Coat Finish |
| Overall Height | 23.5 Inches |
| Foot Type | Fixed Disc Foot |
Fitment / Application
| Category | Details |
| Vehicle / System | Standard Gear-Driven Trailer Jacks |
| Axle / Capacity | Varies by Jack Housing Rating |
| Notes | Ensure tooth pitch matches your current jack gear before purchase. |
Included Components
| Quantity | Item |
| 1 | 23.5" Post with Integrated 18" Rack and Disc Foot |
Notice: Verify all specifications, measurements, and gear compatibility before installation. Never exceed the rated capacity of your jack assembly.
