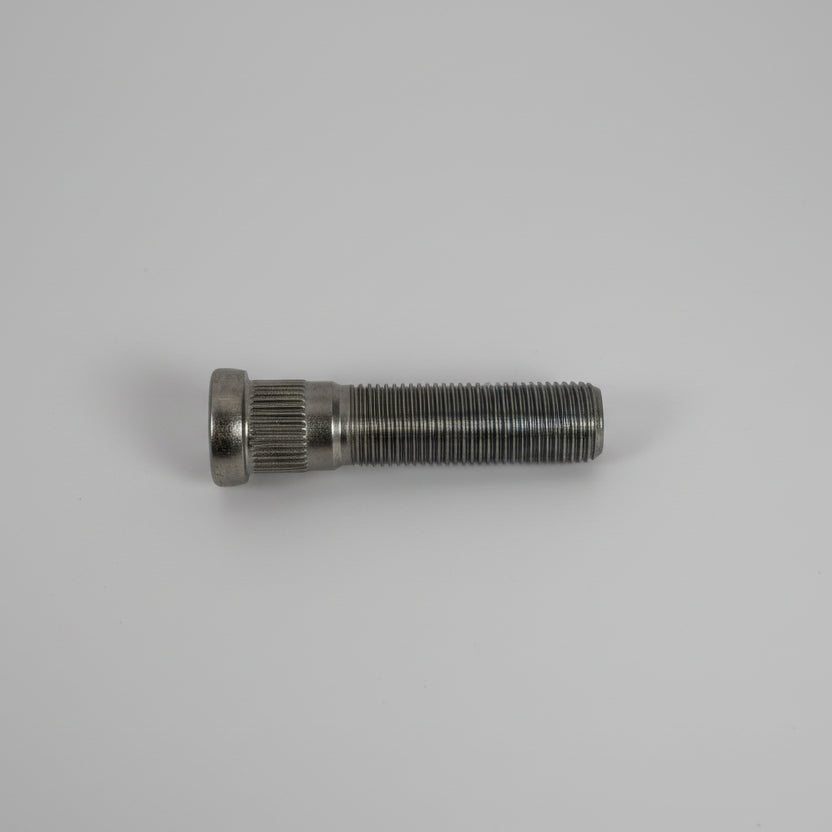

Drive-In Trailer Wheel Stud · 9/16"-18 · 2-5/16" Long
Part Number: HW-132-01
This listing is for one (1) drive-in (press-in) wheel stud designed for trailer wheel hubs. This stud is commonly used as a replacement for damaged or spinning studs on hubs that use 9/16"-18 lug nuts.
This is a press-fit stud — it installs from the rear of the hub flange and relies on the spline diameter to lock into the hub. It is not a screw-in stud.
Dimensional Reference Diagram
Specifications (Diagram Reference A–E)
| Ref | Description | Measurement |
|---|---|---|
| A | Thread Size | 9/16"-18 |
| B | Overall Stud Length | 2-5/16" |
| C | Spline Length | 0.31" |
| D | Base (Under-Head) Length | 0.81" |
| E | Spline Diameter | 0.689" |
Fitment
- Trailer wheel hubs using 9/16"-18 lug nuts
- Many Dexter-style trailer hubs
- Aftermarket trailer hubs with 0.689" spline bore
- Utility, equipment, cargo, and boat trailers
This is NOT a vehicle-specific part. Fitment depends entirely on hub bore and spline diameter.
⚠️ WILL NOT FIT hubs requiring different spline diameters or screw-in studs.
Installation Notes
- Press-fit installation only — do not hammer
- Stud must seat fully against hub flange
- Improper spline size may cause spinning or hub damage
- Professional installation recommended
What’s Included
- (1) Drive-In Wheel Stud
