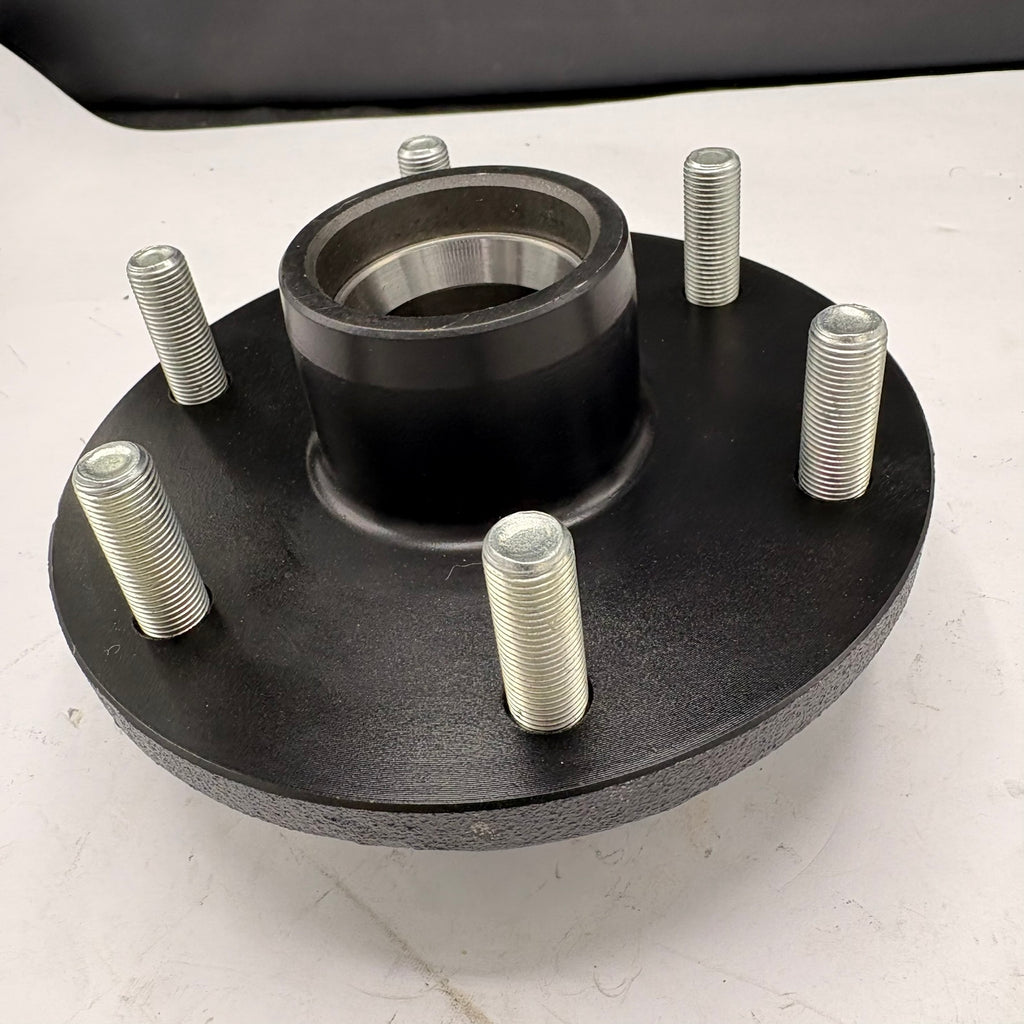

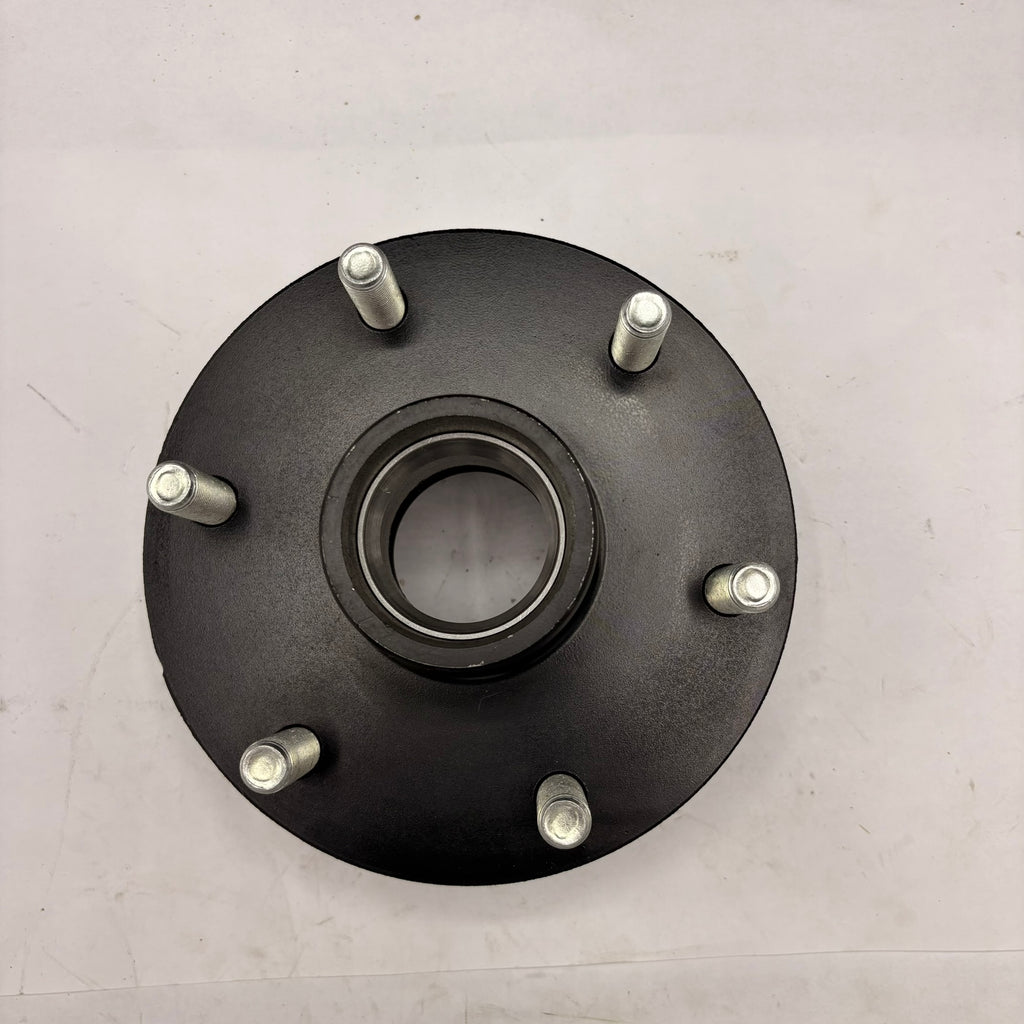

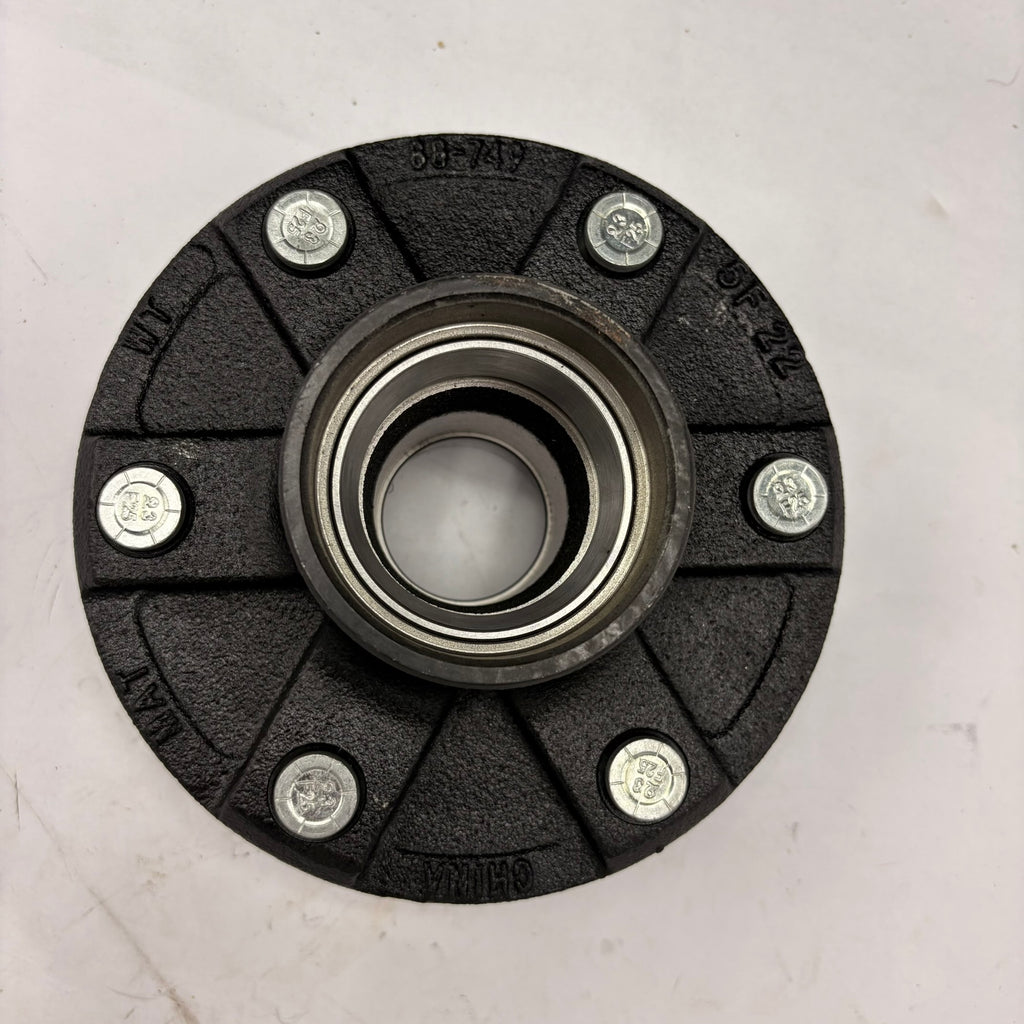

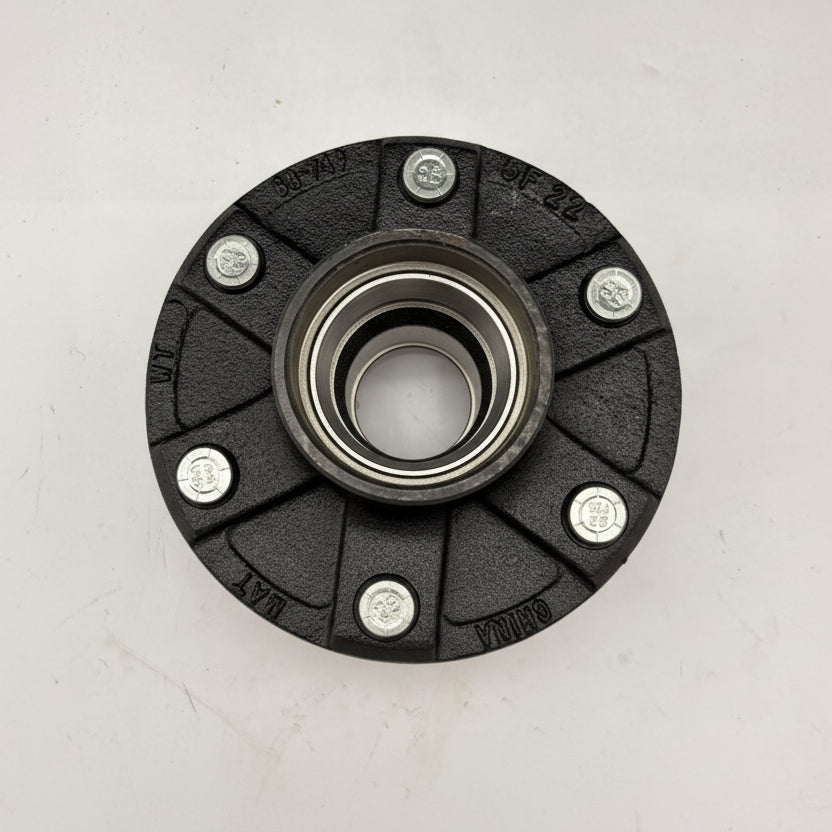

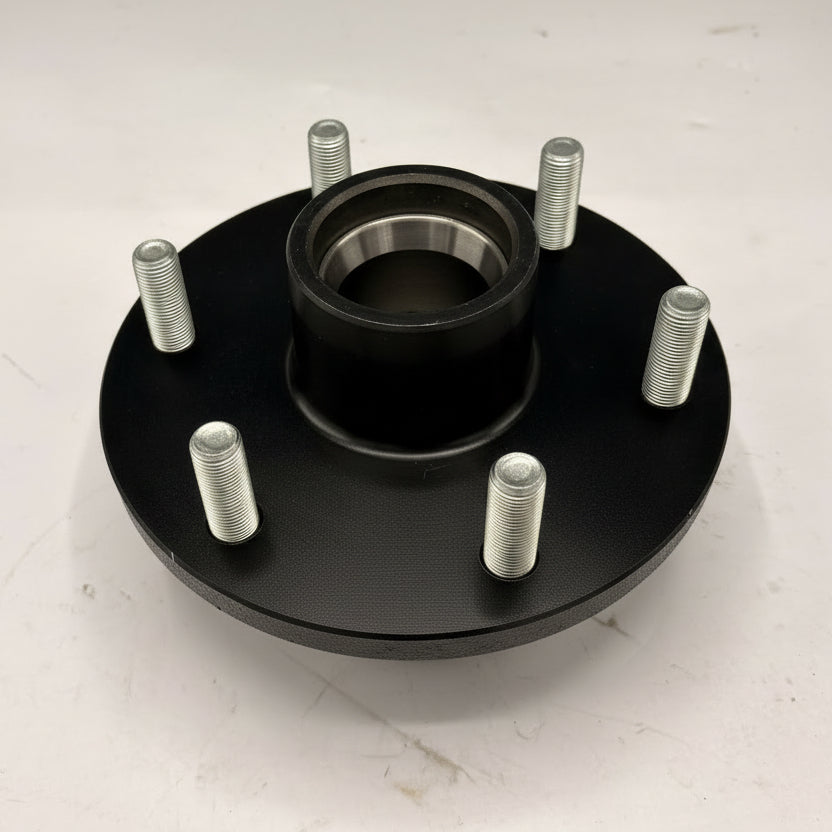

Dexter Idler Hub – 3,500 lb – 6 on 5.5" – 1/2" Stud – Cupped & Studded
Part Number: 84655-1
Dexter 84655-1 idler hub designed for 3,500 lb trailer axle applications with a 6 on 5.5 inch bolt pattern. This hub comes cupped and studded with 1/2 inch wheel studs installed and is commonly used on light to medium duty trailer axles. One hub included.
R&P Knowledge Hub
3,500 lb trailer axles use specific bearing, race, and seal combinations. The 6 on 5.5" bolt pattern is measured center-to-center across opposite studs. Always verify spindle size, bearing numbers, and seal dimensions before ordering.

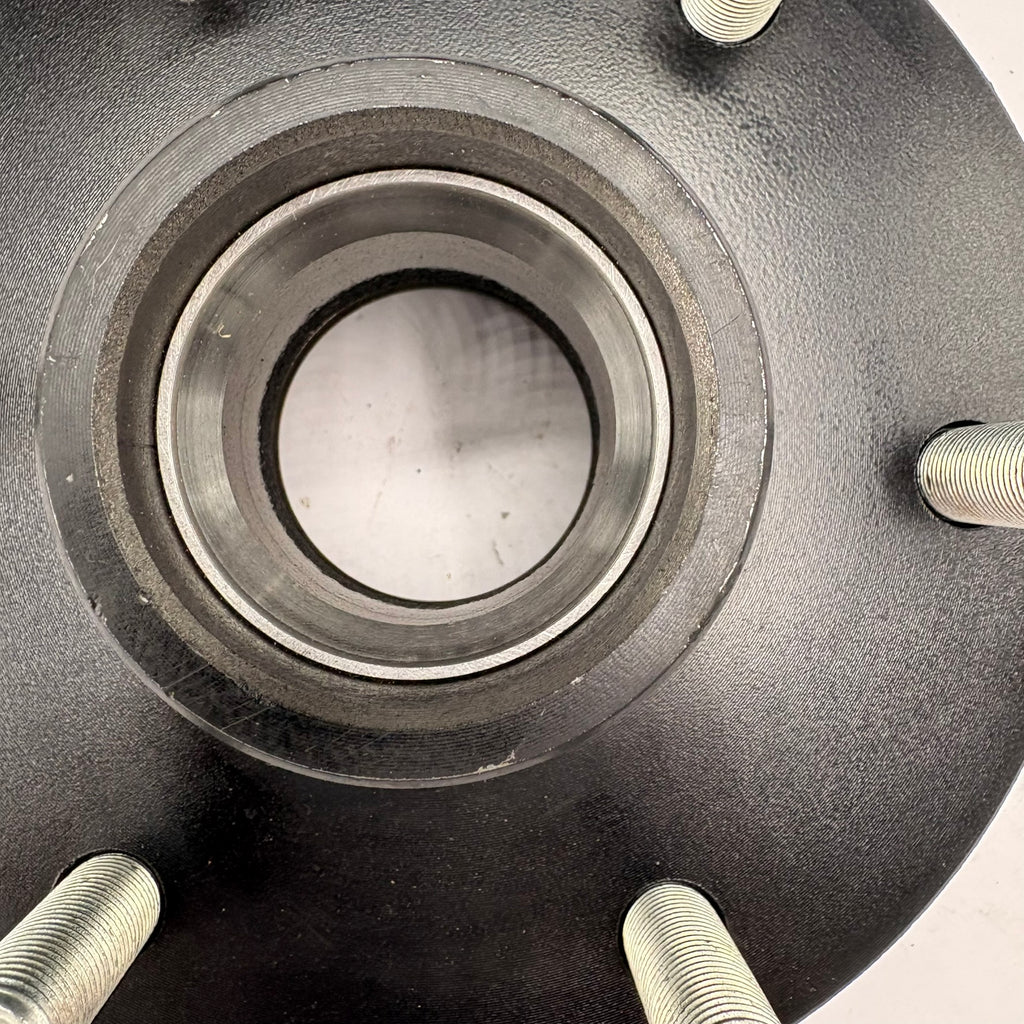

“Cupped & Studded” means bearing races are installed in the hub and wheel studs are pre-installed. Bearings, grease seal, and cap are typically sold separately unless otherwise specified.
Features
- Idler hub for 3,500 lb trailer axles
- 6 on 5.5 inch bolt pattern
- 1/2" wheel studs installed
- Cupped (races installed)
- Single hub (1 piece)
- Dexter genuine component
Specifications
| Specification | Detail |
| Axle Rating | 3,500 lb |
| Bolt Pattern | 6 on 5.5" |
| Wheel Stud Size | 1/2" Diameter |
| Inner Bearing (Typical) | L68149 |
| Outer Bearing (Typical) | L44649 |
| Grease Seal (Typical) | 10-19 (1.719" ID x 2.565" OD) |
| Configuration | Idler (Non-Brake) |
Verify specifications before installation.
