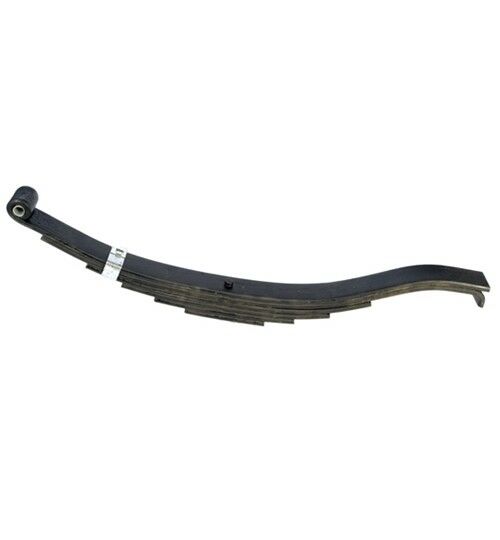

Leaf Spring Slipper 2" x 29.5" – 6 Leaf – 4,000 lb Each
Part Number: E5115 | Alternate: UNA-161
Six-leaf slipper-style trailer suspension spring designed for utility trailers, RVs, and campers using slipper hanger systems. Rated at 4,000 lb per spring, providing up to 8,000 lb capacity per axle when installed as a matched pair.
Specifications
| Specification | Detail |
|---|---|
| Spring Type | Slipper leaf spring |
| Leaf Count | 6 leaves |
| Spring Width | 2" |
| Length | 29-1/2" (slipper hook to center of eye) |
| Arch Height | 3.50" |
| Center Thickness | 2-3/8" |
| Capacity (Each) | 4,000 lb |
| Capacity (Pair) | 8,000 lb |
| Bushings | Nylon bushings installed |
Commonly used on single- or tandem-axle trailer suspension systems utilizing slipper-style hangers. Suitable for trailer, RV, and camper applications requiring 2" wide springs.
Always confirm spring length, width, arch height, and load rating against your existing suspension before ordering to ensure proper fit and ride height.
