LC270682 / 164888 4400# Diamond Torsion Axle 3-1/2" Lift Kit
A replacement 3-1/2" lift kit for compatible 4400# diamond torsion axle applications where the axle style, mounting points, and 9" center-to-center bolt hole spacing match.
Overview
This R&P Carriages lift kit is built for compatible 4400# diamond torsion axle applications. The risers install between the trailer frame and axle to raise the trailer by 3-1/2", helping add ground clearance and room for larger tires where the trailer, fender, and suspension setup allow.
R&P Service Insight
Axle lift kits are fitment-sensitive. A correct match depends on axle rating, axle style, mounting hole spacing, and available trailer clearance.
- Lift Height: Raises the trailer height by 3-1/2" between the trailer frame and axle.
- Mounting Match: Built for 9" center-to-center mounting hole spacing.
- Application Check: Confirm the trailer uses the correct 4400# diamond torsion axle configuration before ordering.
R&P Knowledge Hub
Compatibility: Intended for compatible 4400# diamond torsion axle applications with 9" center-to-center mounting holes.
Vehicle / System Fit: Trailer torsion axle suspension lift / axle riser installation.

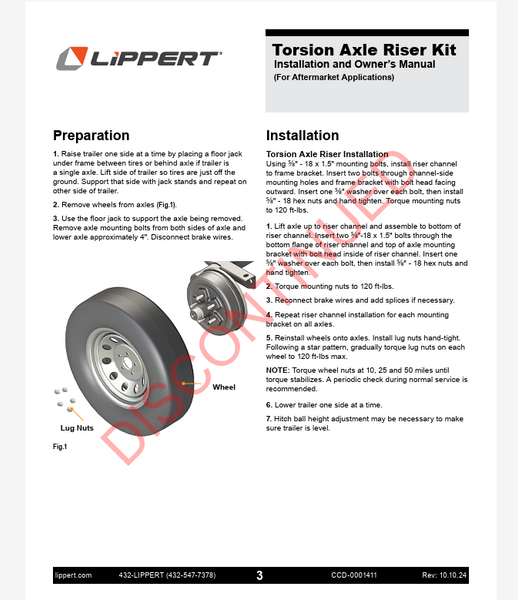

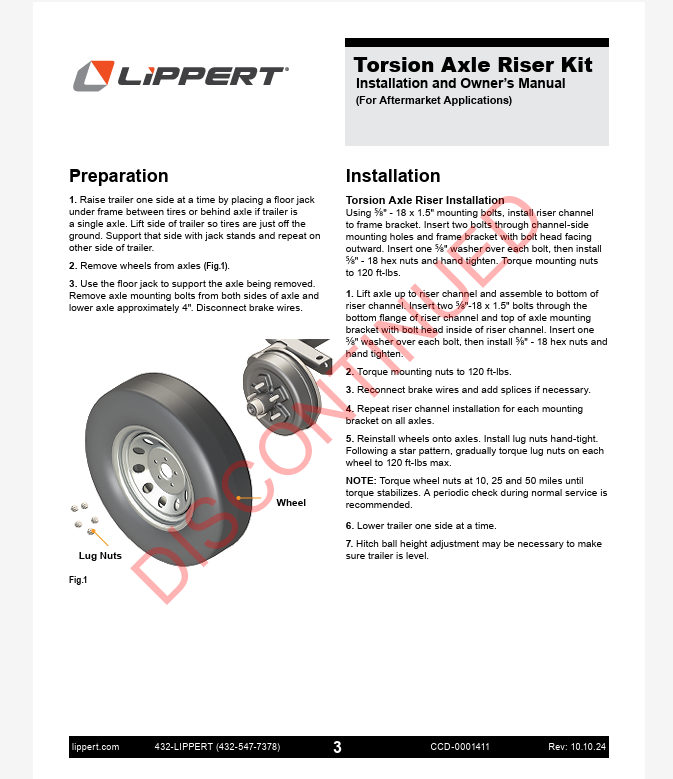

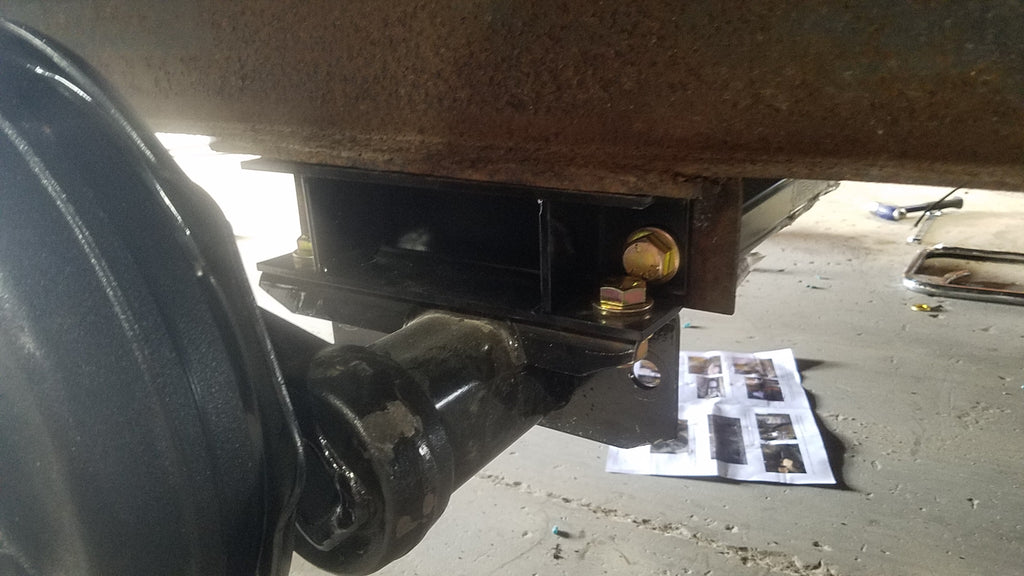

Installation Notes: Install between the trailer frame and axle. Support the trailer safely and verify frame clearance, mounting surfaces, brake wiring slack, tire clearance, and fender clearance before installation.
Performance Insight: The risers add vertical spacing at the axle mounting point to increase trailer height while keeping the application tied to the listed axle configuration.
Brand & Fitment Note
Selling Brand: R&P Carriages / NeedATrailerPart.com

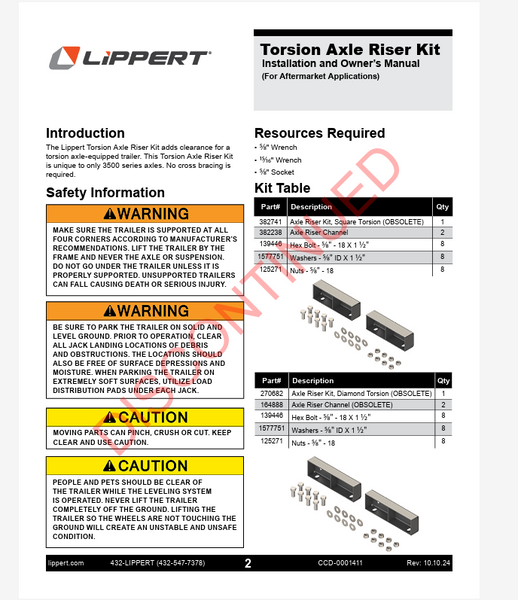

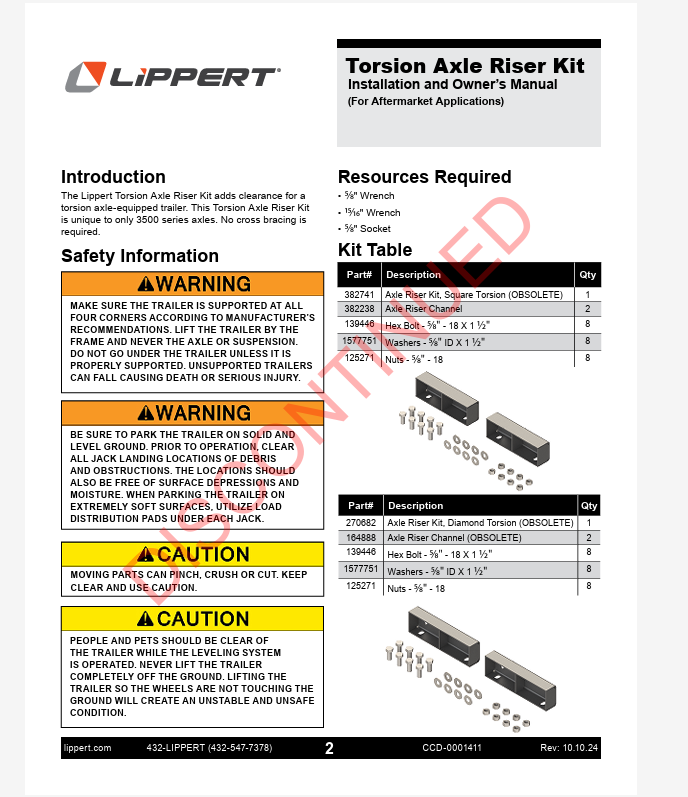

Application Reference: Lippert, LC270682, 164888, and 164882 references are used for compatibility and application identification where the trailer measurements and mounting configuration match.
What This Means: This listing is for an R&P Carriages replacement lift kit for the listed application style, not a guaranteed OEM-branded Lippert item unless specifically stated and verified.

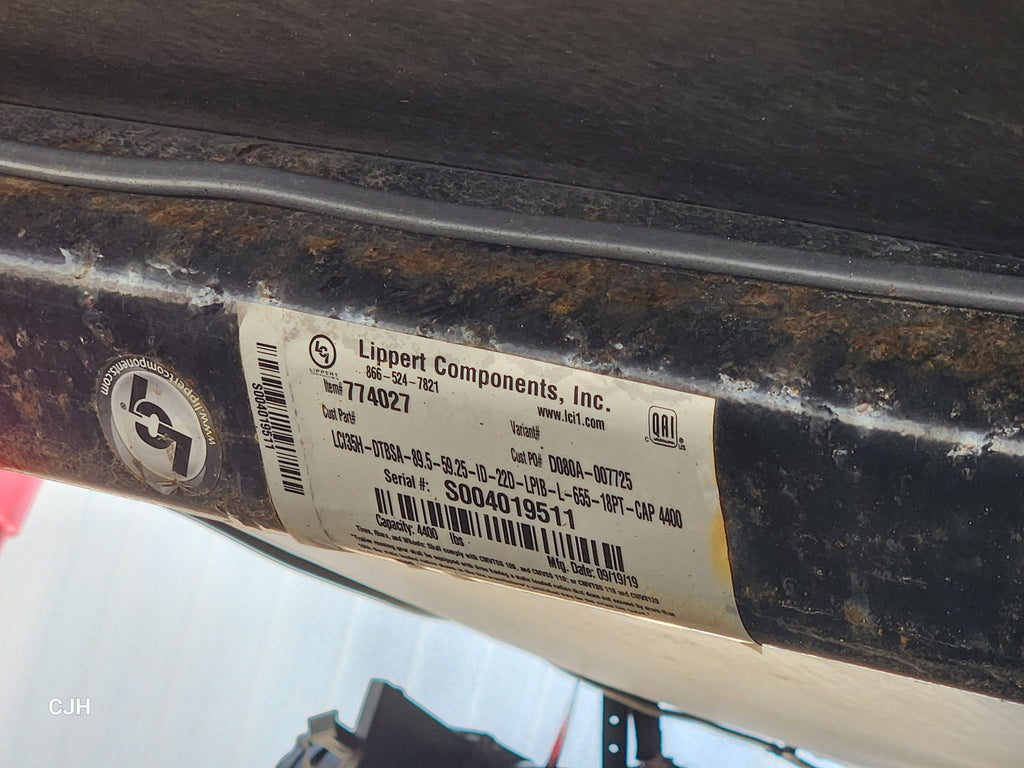

Before Ordering: Verify axle rating, diamond torsion axle style, lift amount, bolt hole spacing, mounting position, trailer clearance, and included components before installation.
R&P Repair Insight
Most lift kit installation issues come from ordering against the part number alone without checking the trailer. Measure the mounting holes, verify the axle style, and check surrounding clearance before starting the job.
- Hole Spacing Check: Confirm the mounting holes measure 9" center to center.
- Clearance Check: Re-check tire, fender, step, stabilizer, brake wiring, and coupler angle after the lift.

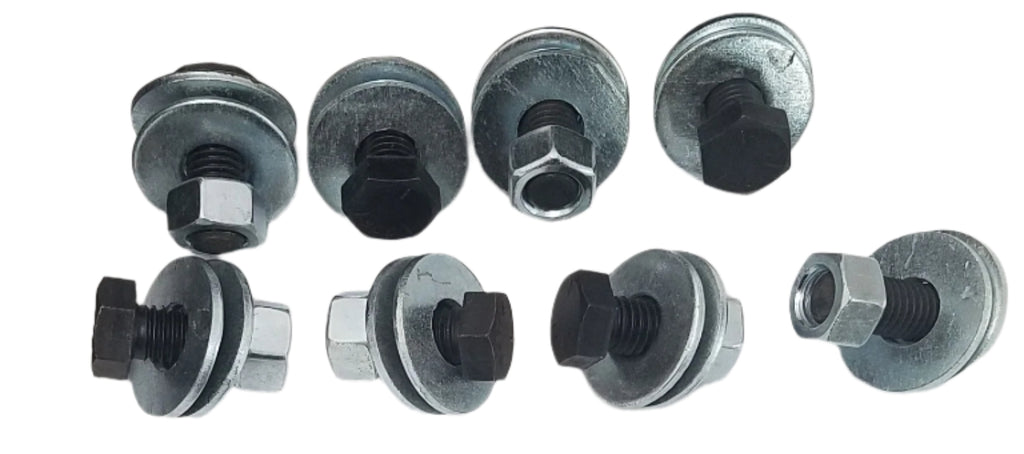

- Hardware Check: Match the included 5/8" hardware to the mounting points and installation requirements for the trailer.
Features
3-1/2" Lift Height
Raises the trailer by 3-1/2" at the axle mounting location for added ground clearance.
4400# Diamond Torsion Axle Application
Designed for compatible 4400# diamond torsion axle setups where the configuration matches.
9" Center-to-Center Hole Spacing
Built around the listed 9" mounting hole spacing used by this application.
Risers & Hardware Included

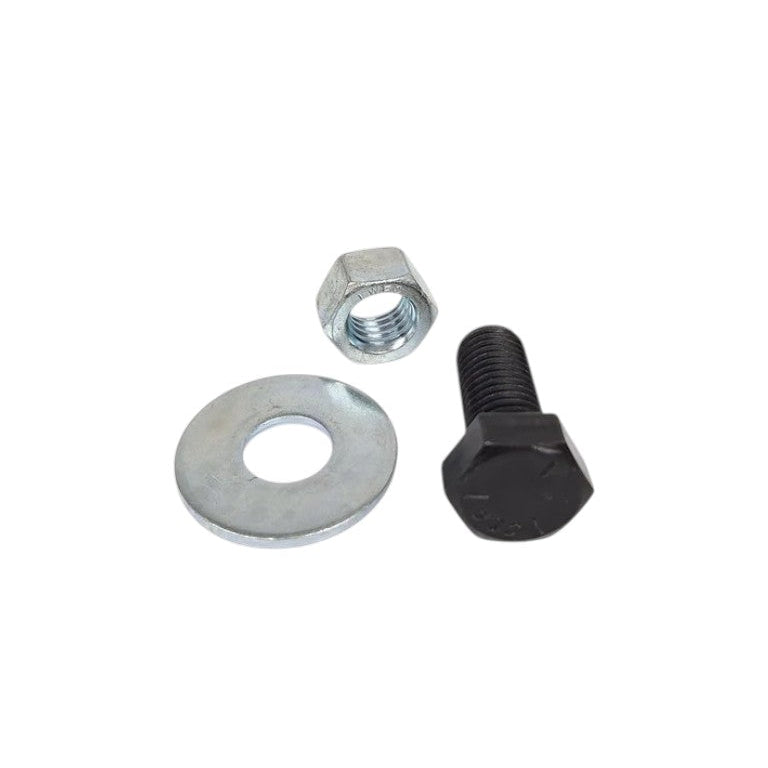

Includes two axle risers plus the listed washers, nuts, and Grade 5 hex cap screws.
Specifications
| Specification | Detail |
|---|---|
| Part Number | LC270682 / 164888 |
| Brand | R&P Carriages / NeedATrailerPart.com |
| Product Type | Diamond torsion axle lift kit / axle riser kit |
| Application | 4400# diamond torsion axle lift application |
| Lift Amount | 3-1/2" |
| Bolt Hole Spacing | 9" center to center |
| Mounting Location | Between trailer frame and axle |

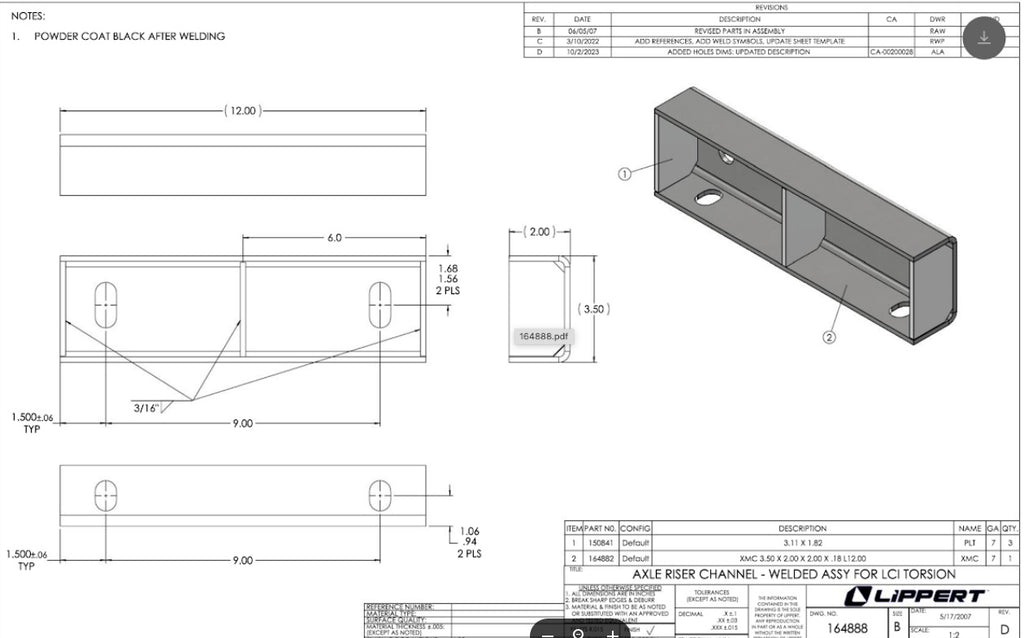

| Riser Reference | 164882 4400# diamond axle risers |
| Material / Finish | Riser material / finish not specified in provided data. Listed flat washers and hex nuts are zinc. |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer torsion axle suspension |
| Primary Fit | 4400# diamond torsion axle applications with 9" center-to-center mounting hole spacing |
| Application Reference | Lippert-style LC270682 / 164888 application where measurements and mounting points match |
| Notes | Verify axle style, axle rating, mounting hole spacing, trailer clearance, brake wiring slack, tire clearance, and fender clearance before installation. |

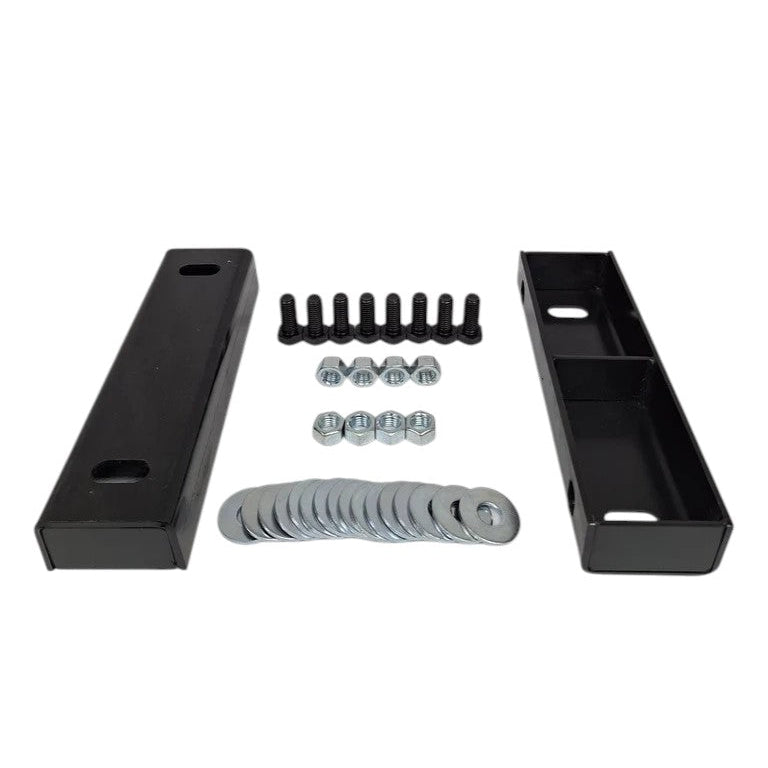

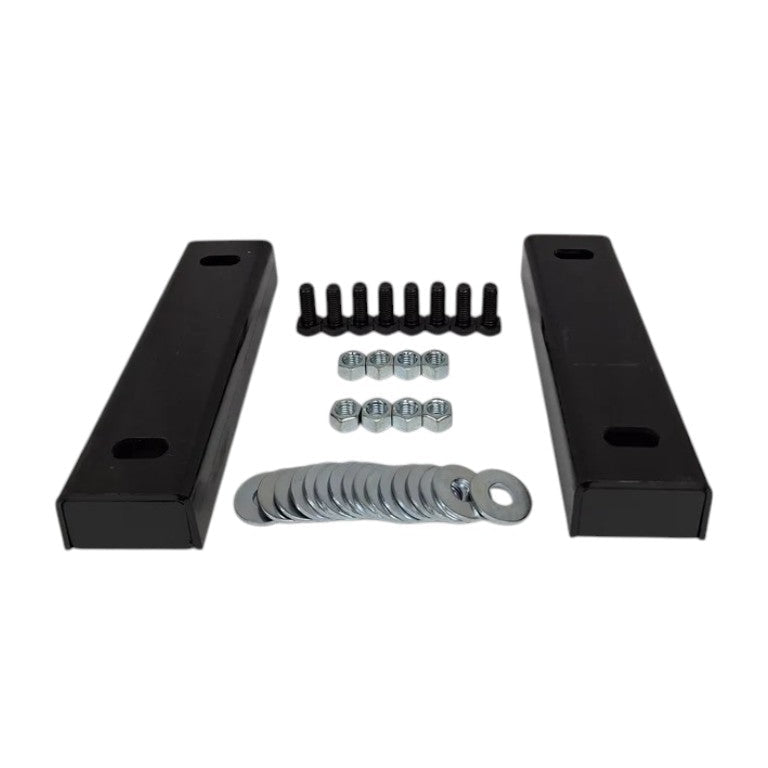

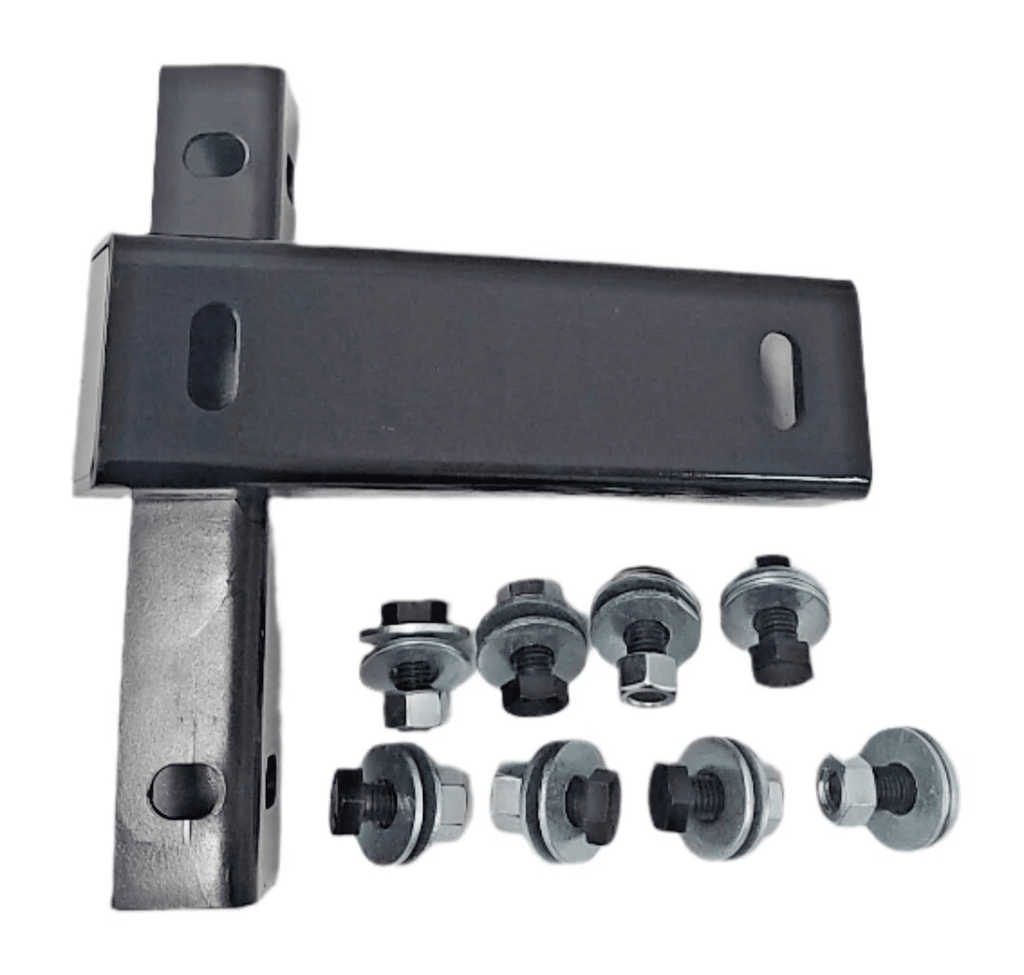

Included Components
| Quantity | Item |
|---|---|

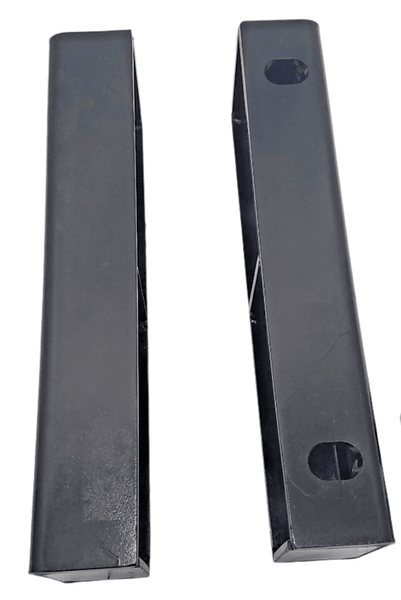

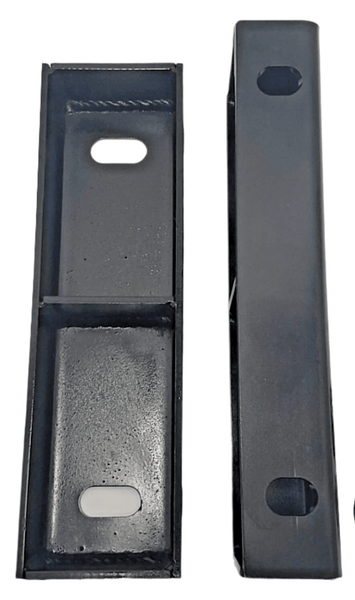

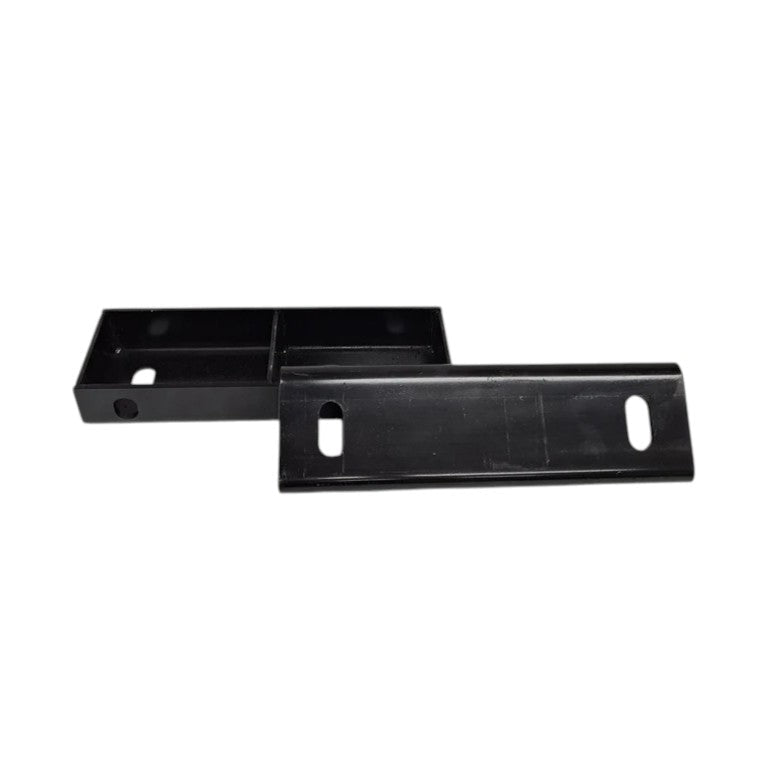

| 2 | 164882 4400# diamond axle risers |

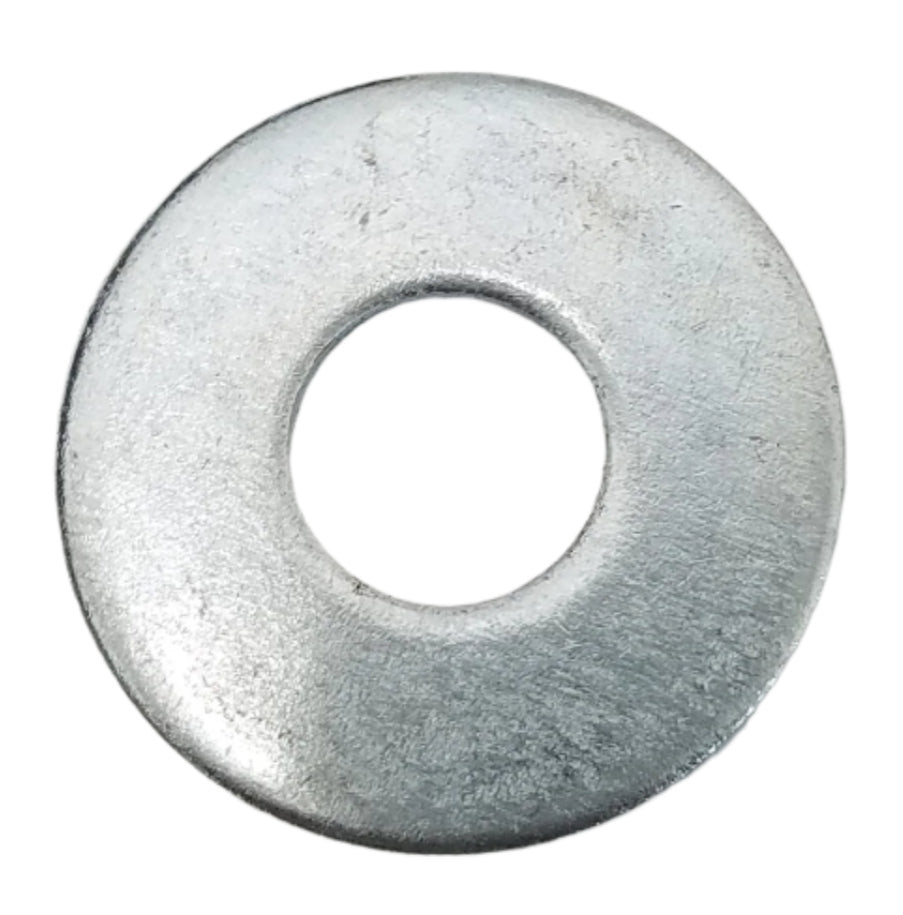

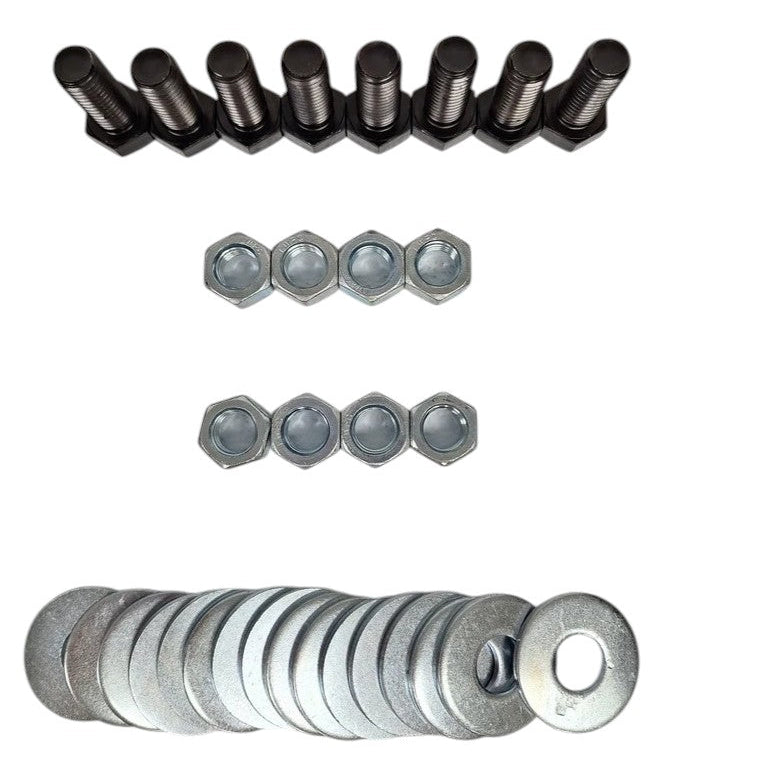

| 16 | 5/8" USS flat washers, zinc |

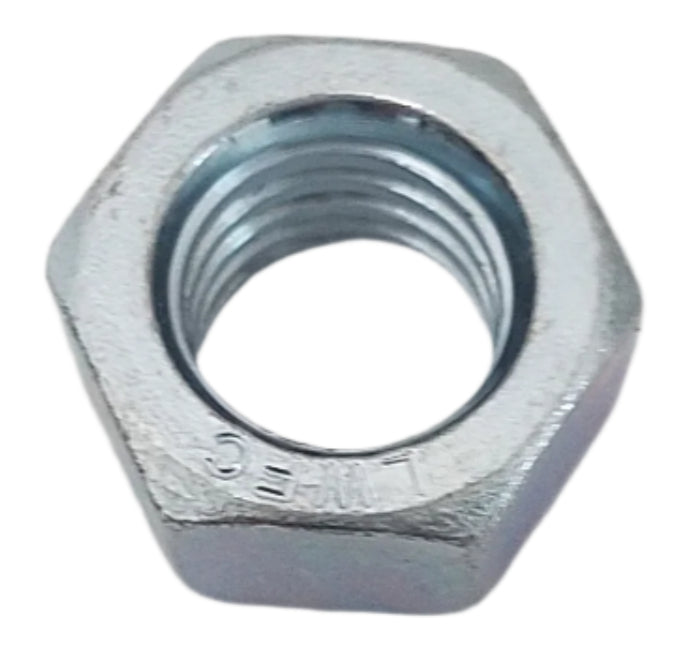

| 8 | 5/8-11 hex nuts, zinc |

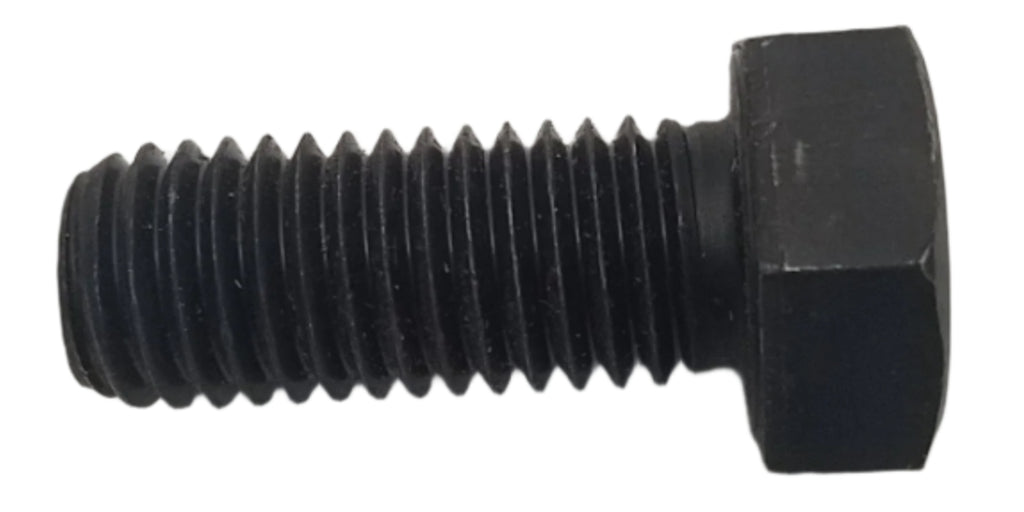

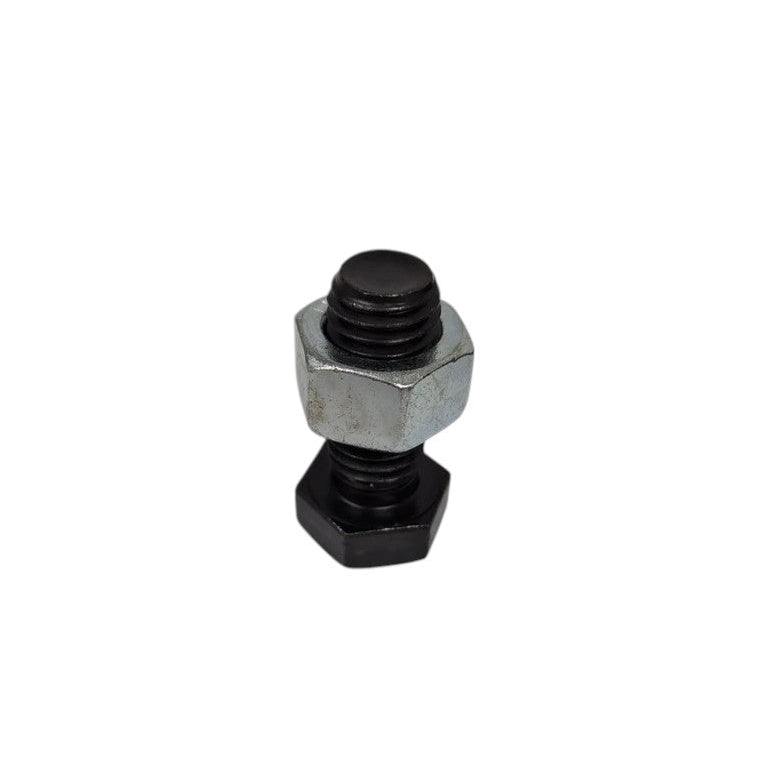

| 8 | 5/8-11 x 1-1/2" Grade 5 hex cap screws |
