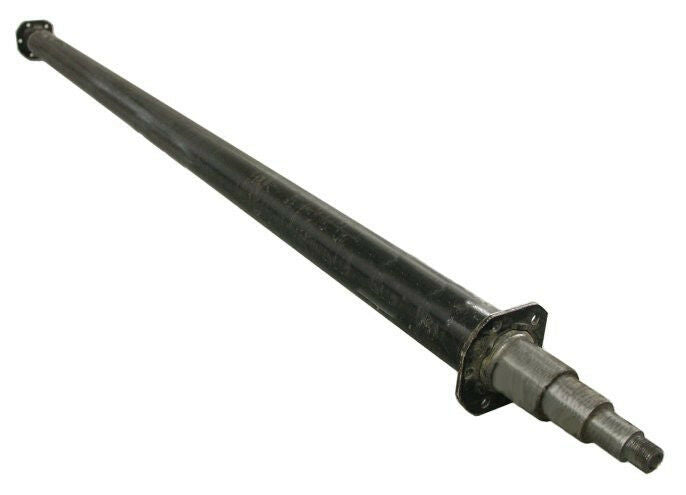

Lippert 8000 lb Hybrid Trailer Axle Beam – 93" Hub Face – 3" Tube – EZ Lube – 5 Bolt Flange
Part Number: 8000-HYB-93-KIT
Lippert 8,000 lb hybrid trailer axle beam with 93" hub face and heavy-duty 3" tube. Straight cambered design built for compatibility with hybrid grease or oil hub and drum systems used on equipment and cargo trailers.
R&P Knowledge Hub
Hybrid axles support grease or oil bath hub systems. Always confirm bearing sizes (25580/02475), seal dimensions, and brake compatibility (Lippert L347627 style drums) before installation.
Features
- Common replacement axle for trailers with 74" to 83" floor deck width
- Heavy duty 3" axle tube construction
- Straight axle with camber for load distribution
- Compatible with hybrid 8000# Lippert L347627 drum and brake setups
Specifications
| Specification | Value |
|---|---|
| Brake Flange to Flange | 83.91" |
| Bearing Shoulder to Shoulder | 90.125" |
| Spindle End to End | 98.875" |
| Bearing Set | 25580 Inner / 02475 Outer |
| Seal Size | 2.25" (2.125" on older applications) |
Included Components
| Part Number | Quantity | Description |
|---|---|---|

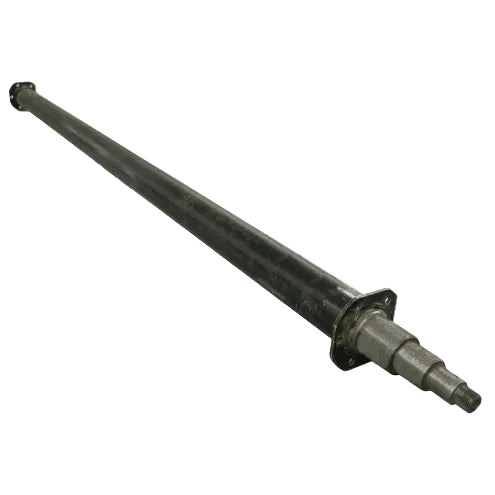

| 8000-HYB-93 | 1 | Lippert Trailer Axle 8000# Bare Beam 93" Hub Face 3" Tube Straight EZ Lube 5 Bolt Flange Hybrid Grease or Oil |
| SP-3 | 2 | Spring Perch for 3" Axle Beam |
Compatible Components (Not Included)
| Component | Specification |
|---|---|
| Brake Assemblies | 8000# Electric Brake Sets (12" x 2") |
| Drums / Hubs | Hybrid 8000# Drums (Lippert L347627 Style) |
| Bearings | 25580 Inner / 02475 Outer |
| Seals | 2.25" ID (Typical) or 2.125" (Older Applications) |
